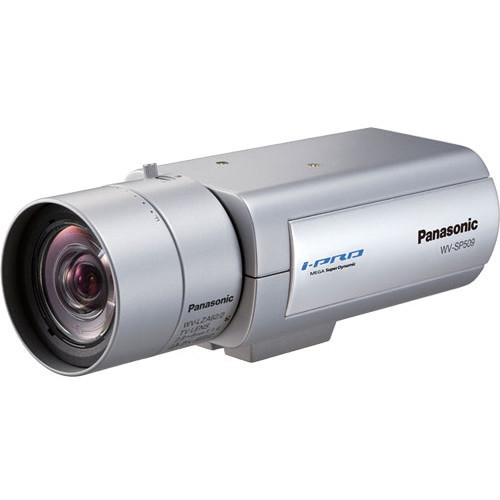

Product description The Panasonic POCSP509LMP05 Full HD Network Camera with 5 to 50mm Auto-Iris Lens delivers full HD images and 360p images simultaneously. Panasonic’s UniPhier S generation LSI processor provides simultaneous cropping of whole and part images, lower bandwidth storage requirements, more VIQS (Variable Image Quality on Specified areas) zones, dual H.264 streaming capability, and overall high-level functionality. VIQS, combined with efficient compression, enables network bandwidth reduction by decreasing the image quality for less important areas in a video frame (such as the sky), while retaining image quality for critical parts of the view. Face detection analytics detect the position of a human face and send the information via a video stream. ABF (Auto Back Focus) allows easy installation and stable focus in color and black & white modes. Camera - High-resolution at full HD / 1920 x 1080 created by 3.1 MP high sensitivity MOS sensor
- Simultaneous 1080p full HD images at up to 30 fps and 360p images at up to 30 fps
- Combining enhanced UniPhier, Panasonic's proprietary system LSI platform and 2 areas
- VIQS (Variable Image Quality on Specified area) function can reduce network bandwidth usage
- Cropping function enables to provide whole image (1920 x 1080) and the part image (640 x 360) simultaneously
- Up to 4 image capture areas can be specified, and it is also possible to control the sequence
- Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real-time monitoring and high-resolution recording by enhanced UniPhier
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wide dynamic range
- Face Super Dynamic Range technology ensures clear face image
- High sensitivity with day & night (IR) function; 0.5 lux (color), 0.06 lux (B/W) at F1.4
- Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored thanks to wide angle lens
- ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes
- Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions
- Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving
- Good color reproduction by primary (RGB) color filter
- Electronic Sensitivity Enhancement: Auto (up to 16x) / off
- Selectable Light Control Modes: Outdoor scene / indoor scene (50 Hz) / indoor scene (60 Hz) / ELC / fixed electronic shutter
- Outdoor Scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level
- Indoor Scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated
- ELC: Up to 1/10,000 electronic shutter is automatically applied for a fixed iris lens
- Fixed Electronic Shutter: Up to 1/10,000 fixed electronic shutter can be selectable
- 3x extra optical zoom at 360p resolution (Picture Mode: 2 MP (16:9))
- VMD (Video Motion Detection) with 4 programmable detection areas, adjustable sensitivity level (up to 15 steps) and 10 detection area sizes
- Face Detection function detects the position of a human face and the information is sent by a video stream
- Privacy Zone function can mask up to 2 private areas such as house windows and entrances/exits
- 2x, 4x digital zoom controlled by browser
- Camera Title Display: Up to 20 alphanumeric characters on the browser
- Alarm sources, including 3 terminal input, VMD, and Panasonic alarm command, can trigger actions such as SDXC / SDHC / SD memory recording, FTP image transfer, e-mail notification, indication on browser, alarm terminal output, and Panasonic alarm protocol output
- Full duplex bi-directional audio allows interactive communication between camera site and monitoring site
- JPEG image compression ratio can be changed by alarm so that higher quality image can be provided
- Prioritized Stream Control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate
- SDXC / SDHC / SD memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG), and backup upon network failure (JPEG)
- H.264 maximum bit rate / client and total bit rate control allows flexible network traffic management and frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate
- Internet Mode: H.264 images can be transmitted over HTTP protocol
- Multi-Language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese
- IPv4 / IPv6 protocol supported
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Still images (JPEG) can be viewed on mobile phones via the Internet
Lens In the Box Panasonic POCSP509LMP05 Full HD Network Camera with 5 to 50mm Auto-Iris Lens CD-ROM with Operating Instructions (PDFs) and Tool Software Programs Installation Guide Code Label Power Cord Plug Safety Wire Safety Wire Plate for Ceiling Safety Wire Lug for Wall 2 x Wire Lug Fixing Screws (M2.5 x 8), includes 1 spare Washer Spring Washer Limited 3-Year Warranty Note: Code label may be required for network management. The network administrator shall retain the code label. Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic POCSP509LMP05 Full HD Network Camera with 5 to 50mm Auto-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic POCSP509LMP05 Specs | | | Image Sensor | 1/3-type MOS sensor | | Effective Pixels | Approximately 3.1 MP | | Scanning Mode | Progressive scan | | Scanning Area | H x V: 3/16 x 1/8" (4.51 x 3.38 mm) | | Minimum Illumination | Color: 0.5 lux, B/W: 0.06 lux (F1.4, auto slow shutter: Off (1/30 sec), Gain: On (high))
Color: 0.03 lux, B/W: 0.004 lux (F1.4, auto slow shutter: Maximum 16/30 sec, Gain: On (high)) | | White Balance | AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K) | | Light Control Mode | Outdoor : Automatic integration of ALC and ELC
Indoor (50 Hz): Automatic integration of ALC and ELC (up to 1/100 sec)
Indoor (60 Hz): Automatic integration of ALC and ELC (up to 1/120 sec)
ELC: (up to 1/10,000 sec) | | Shutter Speed | Fix Shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at super dynamic off) | | Super Dynamic | On / off
Dynamic Range: 52 dB type (Super Dynamic: On, Light Control Mode: Indoor)
Face Super Dynamic: On / off (Only at Super Dynamic: On)
Adaptive Black Stretch: On / off (Only at Super Dynamic: Off) | | AGC (Automatic Gain Control) | On (low, mid, high) / off | | Electronic Sensitivity UP | Off / auto (maximum 2x (2/30 sec), 4x (4/30 sec), 6x (6/30 sec), 10x (10/30 sec), 16x (16/30 sec)) | | Day/Night | IR Mode: Auto1 / auto2 / on / off
Level: High / low, with external control | | Digital Noise Reduction (DNR) | High / low | | Video Motion Detection | 4 Areas Sensitivity: 15 steps
Detection Size: 10 steps | | Privacy Zone | Up to 2 zones, gray | | VIQS | Up to 2 zones | | Camera Title | Up to 20 alphanumeric characters (OSD) | | Back Focus Adjustment | ABF / manual, ABF mode upon color / B&W switching: auto / preset / fix | | Lens Distortion Compensation | 256 steps | | Miscellaneous | Upside Down: On / off
Cropping: 2 x H.264 / JPEG (VGA or 640 x 360) / JPEG (QVGA or 320 x 180), up to 4 image capture areas can be specified
Camera Title: Up to 20 alphanumeric characters | | Camera Control | Brightness, AUX on / off
Zoom: 1x, 2x 4x | | Display Mode | Spot Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only)
20 characters camera title available | | Digital Zoom | 1x, 2x, 4x controlled by browser GUI | | Clock Display | Time: 12 / 24 hour
Date: 5 formats on the browser, summer time (auto / manual) | | Alarm Control | Reset | | Capture | One Shot: Still picture will be displayed on a newly opened window | | Audio | Mic (line) Input: On / off
Volume Adjustment: Low / middle / high
Audio Output: On / off
Volume Adjustment: Low / middle / high | | SD Memory Data Download | Still or motion Images recorded in the SDHC / SD memory card can be downloaded | | Menu Language | GUI / Setup Menu: English, Italian, French, German, Spanish, Russian, Chinese, Japanese, Russian | | System Log | Up to 100 (internal), up to 4,000 (SDXC / SDHC / SD memory when the recording format is set to JPEG) error logs | | Supported OS | Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3 Refer to notes on Windows Vista/7 on the provided CD-ROM for further information about system requirements for PC.
When using IPv6 for communication, use Microsoft Windows 7/Vista. | | Supported Web Browsers | Windows Internet Explorer 9.0 (32-bit)
Windows Internet Explorer 8.0 (32-bit)
Windows Internet Explorer 7.0 (32-bit)
Microsoft Internet Explorer 6.0 SP3 | | | | Network IF | 10Base-T / 100Base-TX, RJ-45 connector | | Image Resolution | Image Capture Mode
2 MP (16:9)
H.264: 1920 x 1080 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1920 x 1080 / 640 x 360 / 320 x 180, up to 30 fps
1.3 MP (16:9)
H.264: 1280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
1.3 MP (4:3)
H.264: 1280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG (MJPEG): 1280 x 960 / VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
3 MP (4:3)
H.264: 1,280 x 960, up to 15 fps
JPEG (MJPEG): 2048 x 1536, up to 15 fps | | Format | H.264
Transmission Mode: Constant bit rate / frame rate priority / best effort
Frame Rate: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Bit Rate / Client: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
Image Quality: Low / normal / fine
Refresh Interval: 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 sec
Transmission Type: Unicast / multicast HTransmission for 2 streams can be individually set in the same compression method. | | JPEG | Image Quality: 10 steps
Refresh Interval 0.1 to 30 fps
Transmission Type: Pull / push | | Audio Compression | G.726 (ADPCM) 32 / 16 kbps, G.711 64 kbps | | Audio Mode | Off / mic (line) input / audio output / interactive (half duplex) / interactive (full duplex) | | Authentication | Level 1 only / level 2 higher / all users (for audio) | | Total Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / unlimited | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP | | FTP Client | Alarm image transmission, FTP periodic transmission (when the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available) | | Users | Number of Simultaneous Users: Up to 14 users (depends on network conditions) | | Memory Card | SDXC / SDHC / SD: Option
Option
H.264 Recording: Manual REC / alarm REC (pre / post) / schedule REC
JPEG Recording: Manual REC / alarm REC (post) / backup upon network failure compatible
SD (SDHC / SDXC) Card: Panasonic 1, 2 , 4, 8, 16 , 32 , 64 GB model
SDHC card, SDXC card (except miniSD card and microSD card) | | Face Detection | On / off (with XML notification) | | Compatibility | Cellular Phone: JPEG image
Mobile Terminal: iPad, iPhone, iPod touch (iOS 4.2.1 or later) , and Android mobile terminals | | Alarm | Source: 3 terminals input, VMD, command alarm
Actions: SDXC / SDHC / SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Log: 5,000 logs with SDXC / SDHC / SD memory card or 1,000 logs without SDXC / SDHC / SD memory card
Schedule: Alarm / VMD / access permission / H.264 recording | | | | Size | 1/3" | | Type | 10x | | Focal Length | 5 to 50 mm | | Aperture | f1.4 | | Iris | Type: Automatic | | Mount | CS | | | | Output | Monitor (for adjustment): 1 Vpp / 75 Ω composite, RCA jack
Audio: Ø3.5 mm stereo mini jack (monaural output) line level | | Input | Microphone / Line: Mic in and line in are selectable, Ø3.5 mm stereo mini jack (monaural input) (applicable microphone: plug-in power type)
Supply Voltage: 2.5 ± 0.5 V
Input Impedance: Approximately 2 kΩ | | External I/O Terminals | Alarm in, alarm out, AUX out | | | | Standard | Safety / EMC: UL (UL60950-1), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 ClassA) | | Power | 12 VDC: 570 mA , PoE (IEEE802.3af compliant)
PoE 48 V: 125 mA (Class 2 device) | | Ambient Operating Humidity | Less than 90 % (no condensation) | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 2.95 x 2.56 x 5.22" (75 x 65 x 132.5 mm) | | Weight | 0.93 lb (0.42 kg) |
