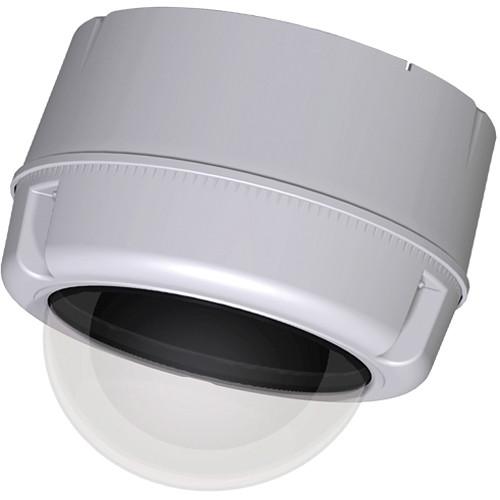

User Manual for Panasonic POSM5V Vandal-Resistant Outdoor Dome Housing with Heater & Blower Click to enlarge the picture
Contents of the user manual for the Panasonic POSM5V Vandal-Resistant Outdoor Dome Housing
- Product category: Housings Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Housings
|
User manual for the Panasonic POSM5V Vandal-Resistant Outdoor Dome Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The POSM5V Vandal-Resistant Outdoor Dome Housing from Panasonic is compatible with the WV-NS202A, WV-NF302, WV-NF284, WV-CF294, WV-SC385, WV-CF series, WV-SF series, BBHCM 403/580/581 Cameras. It comes with a thermostatically controlled heater & blower and a clear bubble.The upper dome housing is manufactured from high impact polycarbonate with a UL flame rating of 94-V0 to ensure vandal resistance. The reflective white paint of the dome housing top insulates the internal equipment. The lower dome is made of injection molded, optically clear thermoplastic polycarbonate. It is pressed against a sealing o-ring by captive fasteners and the included safety cable holds the dome while servicing. The wiring enters through the top of the housing or through a 0.875” (22.2mm) opening on the side of the housing. - High-efficiency, thermostatically controlled heater & blower with separate power inputs for heater & blower and camera
- Compact, vandal-resistant, high-impact polycarbonate construction
- Optically transparent, UV-stabilized, thermoplastic polycarbonate capsule
- IP66 rating for camera protection
- Multiple mounting options: surface, pendant, or wall mount (sold separately)
- 0.875" (22.2mm) side knockout for conduit
UPC: 608938396501 In the Box Panasonic POSM5V Vandal-Resistant Outdoor Dome Housing with Heater & Blower (Clear Bubble) 3 x Fastener Safety Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic POSM5V Vandal-Resistant Outdoor Dome Housing with Heater & Blower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic POSM5V Specs | Compatible with | WV-NS202A, WV-NF302, WV-NF284, WV-CF294, WV-SC385, WV-CF series, WV-SF series, BB-HCM 403/580/581 Cameras | | | | Upper Housing | Polycarbonate, 94-VO flame rated, and UV protected | | Lower Dome | Optically clear, thermoplastic polycarbonate | | Mounting Options | Surface, pendant, and wall mount (sold separately) | | | | Certifications | RoHS compliant, UL listed, CE, UL flame rating of 94-V0 | | Ingress Protection Rating | IP66 | | | | Heater & Blower | 40 W maximum Slow blow fuse recommended for power supply | | Camera | Camera: 12 W; 12 VDC or PoE | | | | Operating temperature | -40 to 122°F (-40 to 50°C) | | Heater & Blower | Activates at: 60°F (15°C)
Deactivates at: 80°F (27°C) | | | | Dimensions (Ø x H) | 8.50 x 8.25" (215.90 x 209.55 mm) | | Weight | 2.3 lb (1.04 kg) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 11.6 x 9.2 x 9.1" |
