User Manual for Panasonic PT-DS20KU DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-DS20KU DLP Projector
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
|
User manual for the Panasonic PT-DS20KU DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

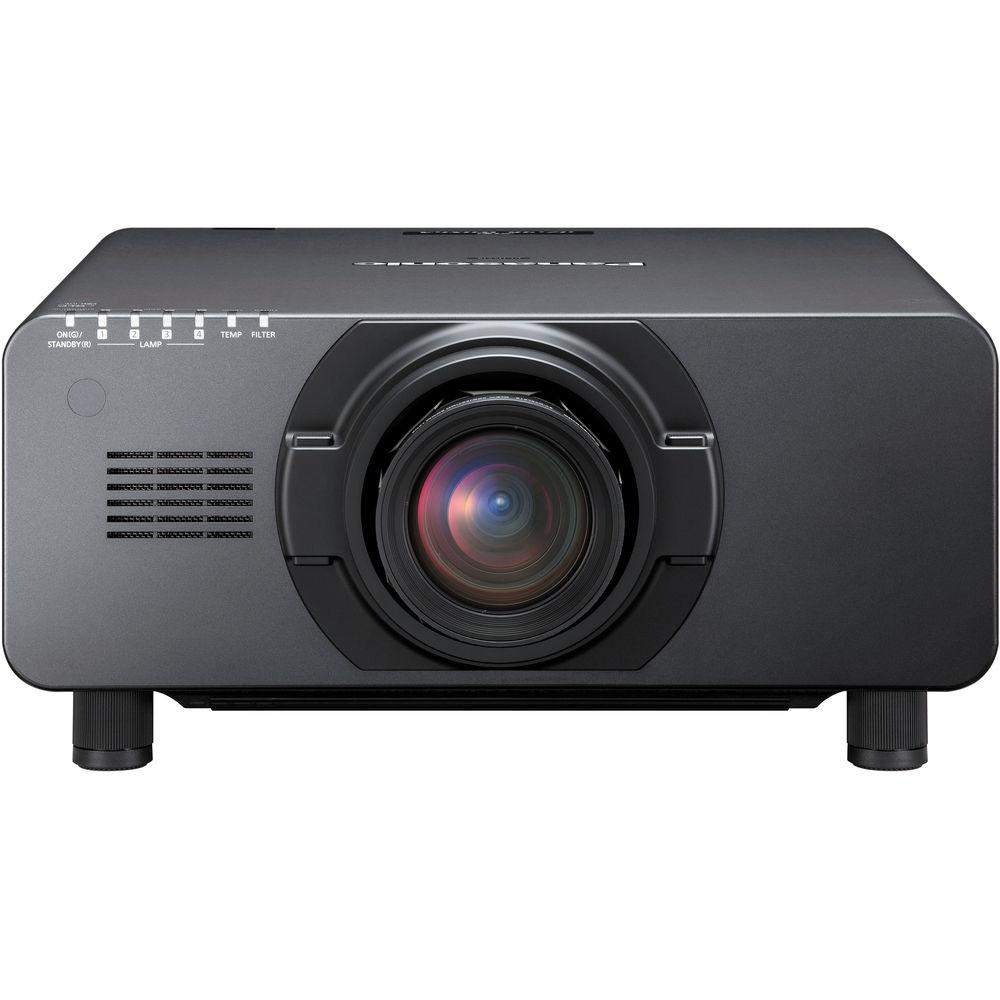

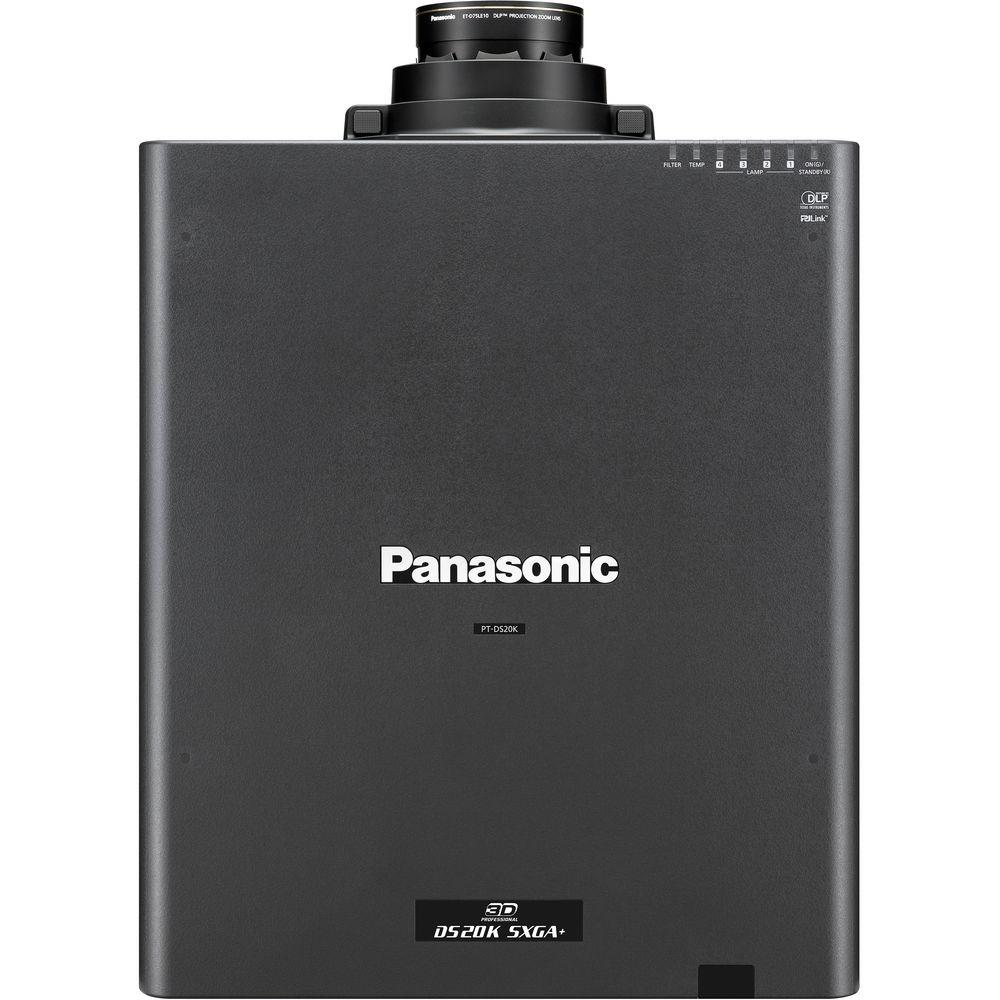

Product description The PT-DS20KU DLP Projector, from Panasonic is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging, and public advertising as well as premium home theater applications. This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. It provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images. Panasonic's unique quad-lamp system, with its high-power UHM lamps, has helped to make the body extremely compact while providing an astounding 20,000 lumens of brightness. The lamp relay mode also operates the lamps alternately to enable 24/7 projection. Featuring Texas Instruments DLP and SXGA+ (1400 x 1050), the PT-DS20KU projector delivers outstanding image quality to improve the color perception of the projected image in bright rooms. The 3-chip system with DLP technology delivers great image resolution, considered among the most advanced projector engines. This gives superior light utilization for high brightness, digital processing for low noise and linear white balance, extended device life for minimal image degradation, and a quick response that eliminates afterimages. The projector provides a liquid cooling system that directly cools the DLP chip to improve performance and enable operation up to 113°F (45°C). It allows quiet (49 dB) and versatile use while stabilizing performance. It also helps to make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid. With fantastic durability, bright light output, excellent color quality and full HD playback from a variety of digital and analog input sources; the PT-DS20KU DLP projector is an ideal partner for modern, high-end laptops with full HD resolution. Lens not included! - Incredible 20,000 Lumens of Brightness
- Panasonic's unique quad-lamp system, with its high-power UHM lamps, has helped to make the body extremely compact while providing an astounding 20,000 lumens of brightness
- Dynamic Iris for a High 10,000:1 Contrast Ratio
- Panasonic's dynamic iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures
- Detail Clarity Processor 3
- This unique Panasonic circuit optimizes the sharpness of each image, based on the superhigh-, high-, medium-, and low-frequency components of the extracted image information. The resulting images have more natural, lifelike expression
- Active 3D Projection Capability
- The series is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images
- Advanced Technologies for Excellent Image Quality
- 3D color management system / Full 10-bit image processing / Progressive cinema scan (3:2 pulldown) / Dynamic sharpness control / Digital noise reduction / IP conversion / AI scene control / 2:2 pulldown mode / sRGB compatibility / Fine-adjustable color temperature / Waveform monitor function
- Low TCO and an Environmentally Friendly Design
- The projector provides a lower total cost of ownership (TCO) because it has a lamp replacement cycle of up to 2000 hours. It's environmentally friendly design also includes a low power consumption of 2300W
- System Daylight View 2
- This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000 lumens, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images
- DICOM Simulation Mode
- This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity
- Four-Lamp System Enables Stable, Extended Operation
- The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, triple, dual and single lamp modes can be used
- Easy Lamp Replacement
- For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked
- Liquid Cooling System Attains a High Level of Reliability
- This new liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 113°F (45°C). It allows quiet (49 dB) and versatile use while stabilizing performance. It also helps to make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid
- Eco Filter that Needs No Maintenance for up to 12,000 Hours

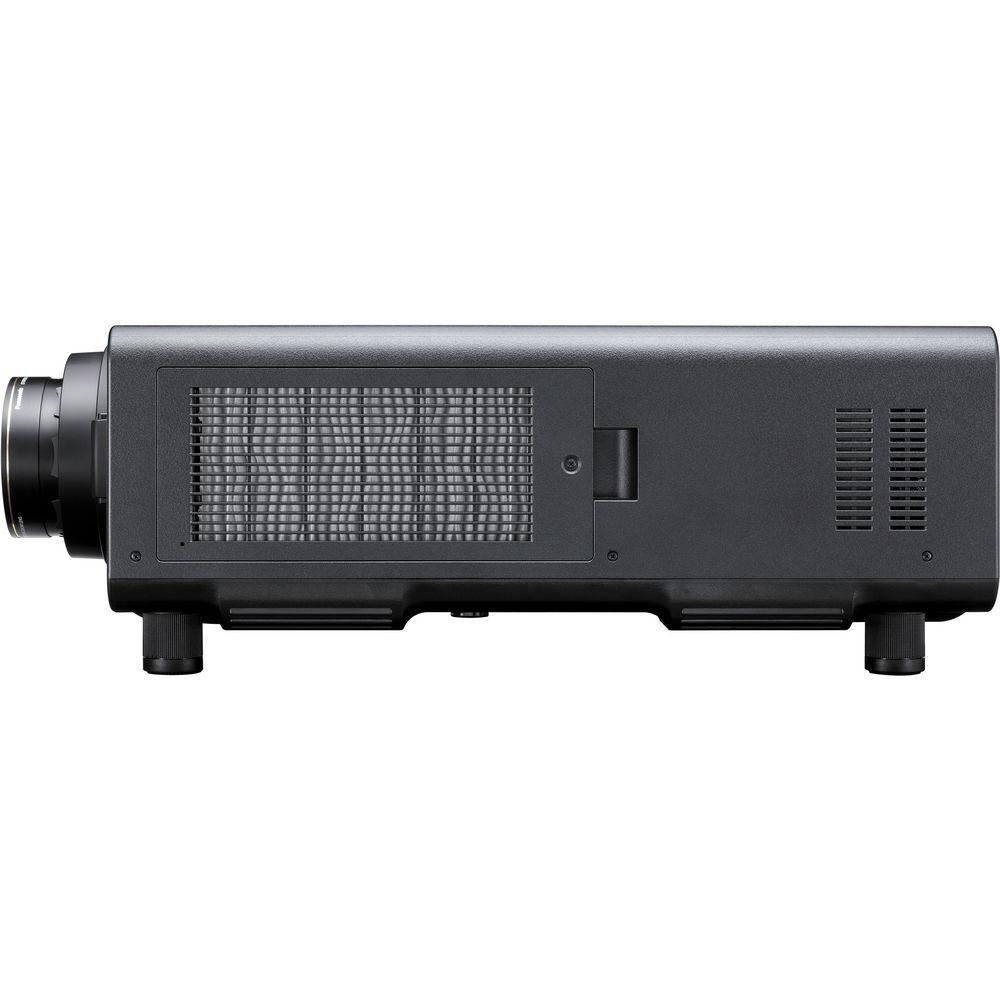

- The eco filter has an electrostatic micro cut filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it
- Flexible Installation
- The wide adjustment range of the powered horizontal / vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation
- Multi-Unit Brightness Control
- This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2048 projectors by using Multi Projector Monitoring and Control Software Ver. 2.7
- Multi-Screen Support System Seamlessly Connects Multiple Screens
- Edge blending: The edges of adjacent screens can be blended and their luminance controlled
Color matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control Multi-screen processor: The beamer can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time - Geometric Adjustment for Specially Shaped Screens
- This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed
- Optional Upgrade Kit Featuring Geometry Manager Pro
- The new Geometry Manager Pro software included in the optional upgrade kit supports Color Matching and Edge Blending for multiprojector setups (max. 32 units). It also allows creative masking using four lines or bitmap data. And its flexible and complex geometric adjustment capability suits a wide variety of screen shapes
- Multiple Terminals

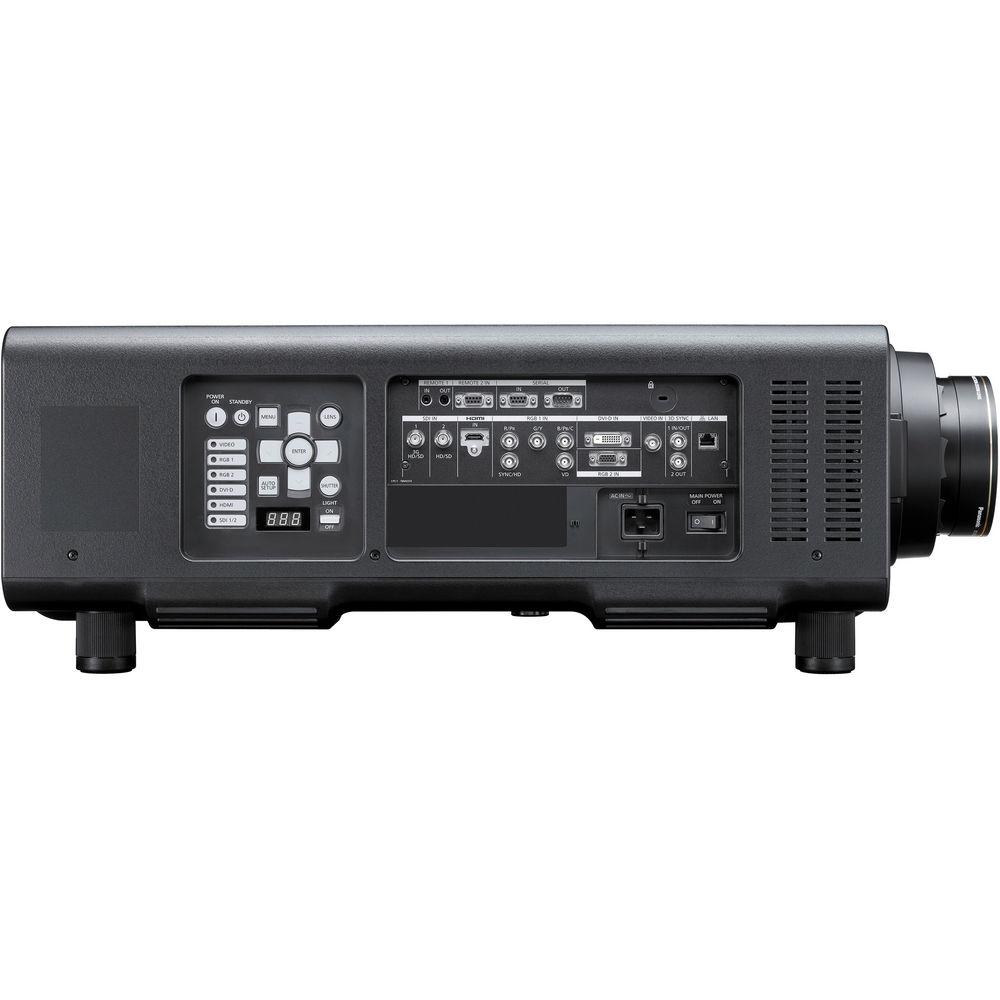

- The projector has an array of terminals, including DVI-D, HDMI and two RGB inputs. The unit features a 3D ready HD / SD-SDI input and 3D sync terminals to connect an emitter for 3D projection
- Multi Projector Monitoring & Control Software Ver. 2.7
- Panasonic's original Multi Projector Monitoring and Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring / controlling PC
- Other Valuable Features
- Mechanical lens shutter with fade in/out effect

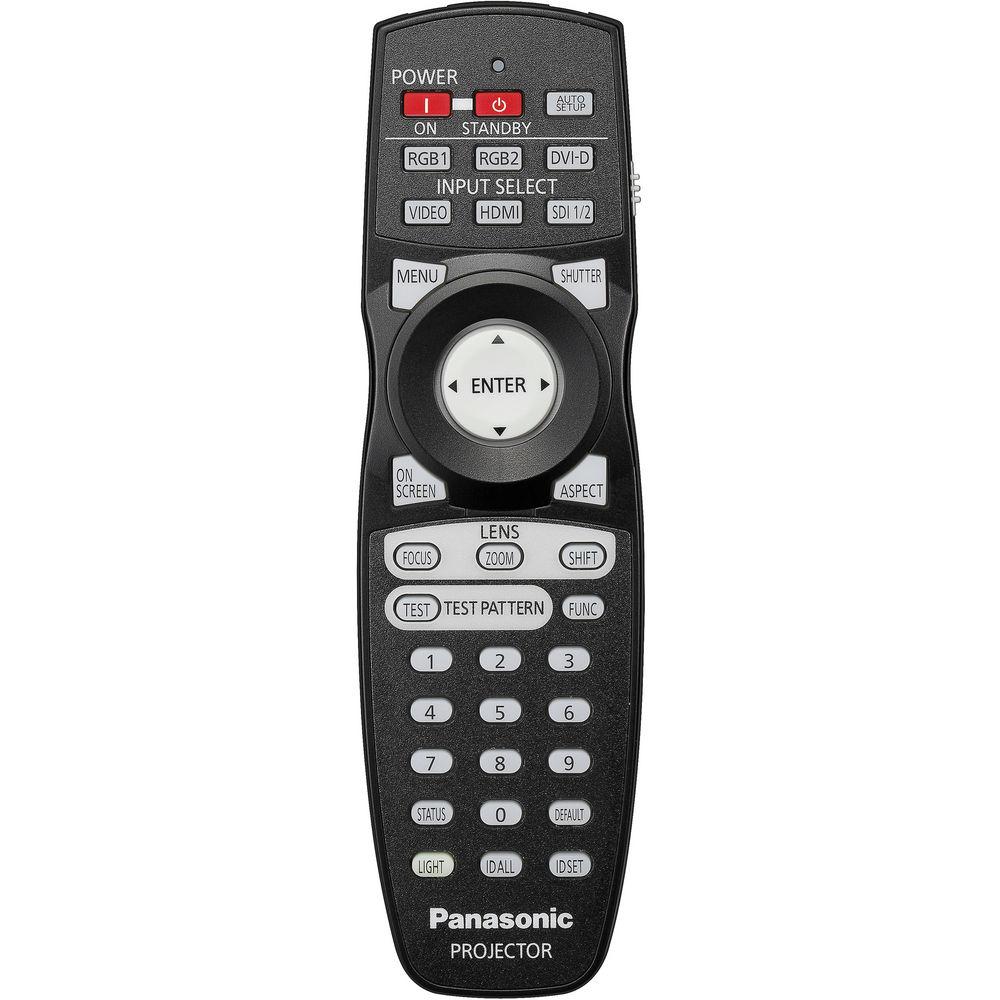

P-in-P function 98.4' (30 m) long-range wireless remote control with LED backlight ID assignment for up to 64 units Control device setup function Built-in test pattern Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean) RoHS Directive compliant Anti-theft features with chain opening Molded plastic cabinet Dissipation BTU: 7,848 BTU / Hour (max) / 7,585 BTU / Hour (without light output) - Ecology Conscious Design
- No halogenated flame retardants are used in the cabinet
Lead-free solder is used to mount components to the printed circuit boards Stand-by power consumption of only 0.3W Auto power save activates standby mode when no signal is input In the Box Panasonic PT-DS20KU DLP Projector 9.8' (3 m) Power Cord with Secure Lock Wireless / Wired Remote Control Unit 2 x Batteries (R6 / AA Type) Logo Transfer Software, Multi Projector Monitoring & Control Software 3-Years Parts & Labor Warranty; 90-Days on Lamp User Manual PDF 17mbduccsxfuardtwcfvvqrafw Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-DS20KU DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-DS20KU Specs | Display System | 3-Chip 0.95" DLP | Native Chip Resolution | 1400 x 1050 (SXGA+) | Supported Resolutions | VGA - 640 x 480 WUXGA - 1920 x 1200 | Max Brightness | 20,000 Lumens | Uniformity | 90% | Aspect Ratio | 4:3 | Contrast Ratio | 10000:1 | DLP Link 3D | Yes | Scan | Horizontal: 15 - 100 kHz Vertical: 24 - 120 Hz RGB | | Keystone Correction | Vertical: ± 40° Horizontal: ± 15° Will vary by lens attached | Picture-in-Picture | Yes | Ceiling Mountable | Yes | Rear Screen Projection | Yes | Built-In Speaker | None | | Inputs/Outputs | 2 x Component (3BNC) Video (Input) 2 x Component (3BNC) Video (Output) 1 x DVI-D Video (Input) 1 x HDMI Audio/Video (Input) 1 x Composite (BNC) Video (Input) 2 x RS-232C (Unspecified Connector) Control (Input) 1 x RS-232C (Unspecified Connector) Control (Output) 1 x Ethernet (RJ45) LAN 1 x M3 Control/Service (Input) 1 x M3 Control/Service (Output) | | Light Source | Lamp (4 x UHM) | Lamp Power | 465 W | Expected Lamp Life | Medium Brightness: 2000 Hours | Fan Noise | Medium Brightness: 49 dB | Security | Cable Lock Slot | AC Input Power | 240 VAC, 50 Hz | Power Consumption | Medium Brightness: 2300 W Standby Mode (Lamp Off): 0.3 W With standby mode set to eco | Max Operating Altitude | 4593' / 1399 m | Temperature | Operating 32 to 113°F (0 to 45°C) Humidity: 20 - 80% | Dimensions (W x H x D) | 24.4 x 11.5 x 31.5" / 619.8 x 292.1 x 800.1 mm Without optional lens | Weight | 94.80 lb / 43.00 kg Without optional lens |
