User Manual for Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
|
User manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

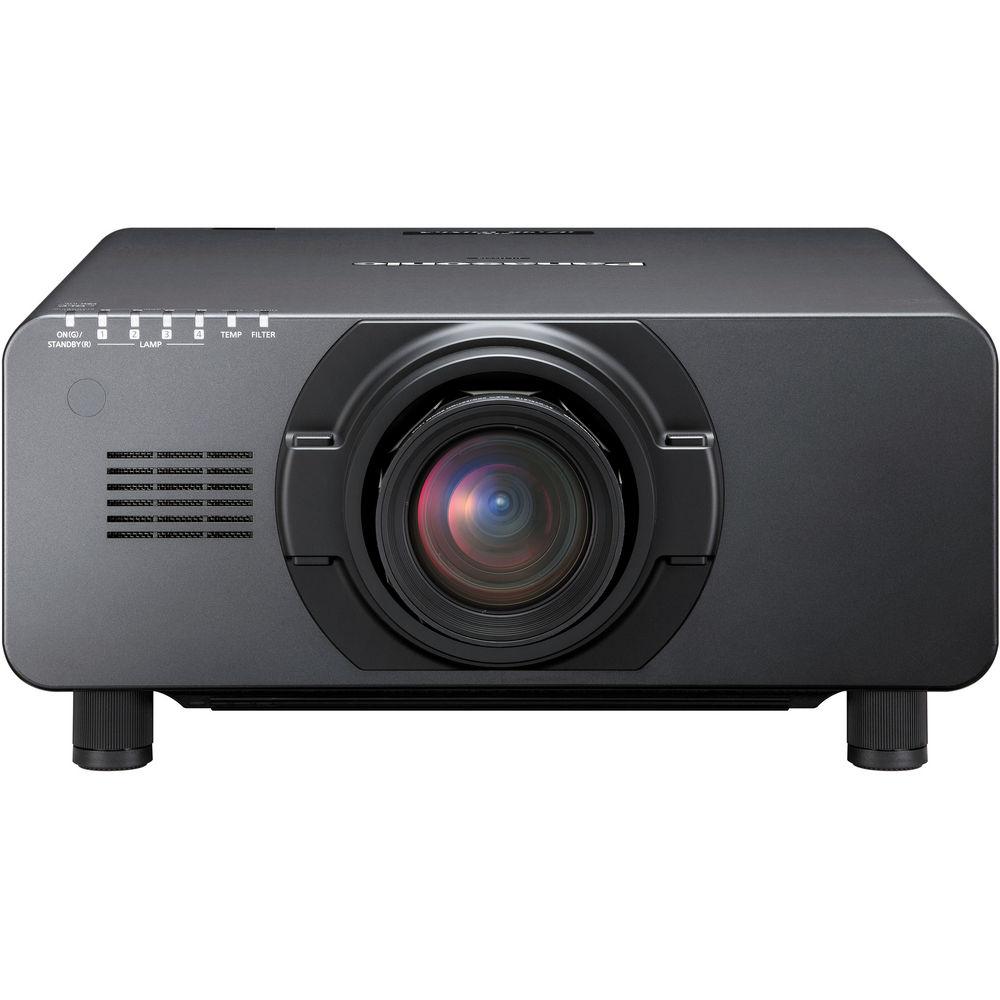

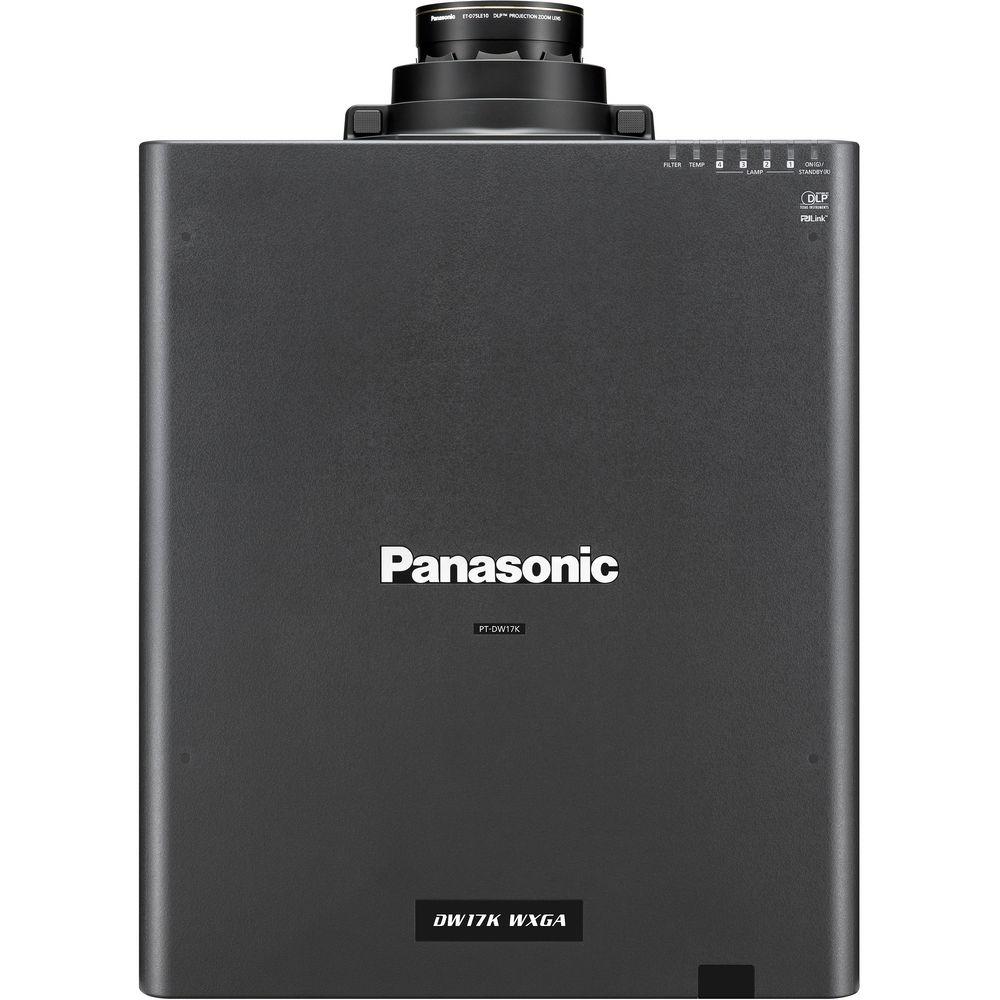

Product description The PT-DW17KU Large Venue 3-Chip DLP Projector, from Panasonic is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging, and public advertising as well as premium home theatre applications. This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. It provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images. Featuring Texas Instruments DLP and WXGA (1366 x 768), the PT-DW17KU projector delivers outstanding 17,000 lumen brightness and 10,000:1 contrast ratio. The four-lamp system allows the projector to keep working even if a lamp should fail. The lamp relay mode also operates the lamps alternately to enable 24/7 projection. The 3-chip system with DLP technology delivers great image resolution, considered among the most advanced projector engines. This gives superior light utilization for high brightness, digital processing for low noise and linear white balance, extended device life for minimal image degradation, and a quick response that eliminates afterimages. With fantastic durability, bright light output, excellent color quality and full HD playback from a variety of digital and analog input sources; the PT-DW17KU is an ideal partner for modern, high-end laptops with full HD resolution. Lens not included! - DICOM Simulation Mode
- This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
- Multi-Screen Support System Seamlessly Connects Multiple Screens
- Edge blending: The edges of adjacent screens can be blended and their luminance controlled
Color matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control Multi-screen processor: The projector can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time - Multi Projector Monitoring & Control Software Ver. 2.7
- Panasonic's original Multi Projector Monitoring and Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring / controlling PC
- Multi-Unit Brightness Control
- This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using Multi Projector Monitoring and Control Software Ver. 2.7
- Flexible Installation
- The wide adjustment range of the powered horizontal / vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation
- System Daylight View 2 for Enhanced Color Perception
- This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000 lumens, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images
- Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details
- This unique Panasonic circuit optimizes the sharpness of each image, based on the superhigh-, high-, medium-, and low-frequency components of the extracted image information. The resulting images have more natural, lifelike expression
- Low TCO and an Environmentally Friendly Design
- The projector lower the total cost of ownership (TCO) because they have a lamp replacement cycle of up to 2000 hours. Their environmentally friendly design also includes a low power consumption of 2300W
- Liquid Cooling System Attains a High Level of Reliability
- This new liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 113°F (45°C). It allows quiet (49 dB) and versatile use while stabilizing performance. It also helps to make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid
- Eco Filter that Needs No Maintenance for up to 12,000 Hours
- The eco filter has an electrostatic micro cut filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it
- Easy Lamp Replacement
- For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked
- Dynamic Iris for a High 10,000:1 Contrast Ratio
- Panasonic's dynamic iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures
- Four-Lamp System Enables Stable, Extended Operation
- The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, triple, dual and single lamp modes can be used
- Advanced Technologies for Excellent Image Quality
- 3D color management system / Full 10-bit image processing / Progressive cinema scan (3:2 pulldown) / Dynamic sharpness control / Digital noise reduction / IP conversion / AI scene control / 2:2 pulldown mode / sRGB compatibility / Fine-adjustable color temperature / Waveform monitor function
- Other Valuable Features
- Mechanical lens shutter with fade in / out effect

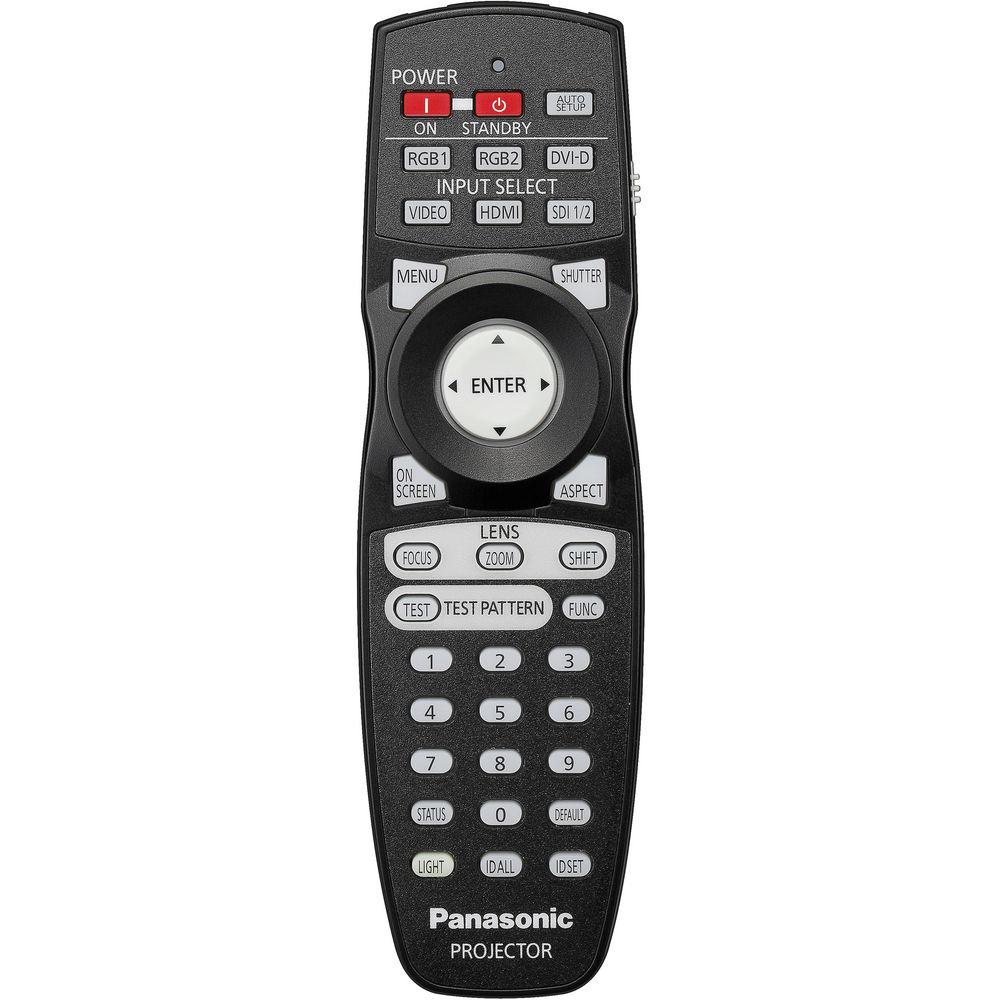

P-in-P function 98.4' (30 m) long-range wireless remote control with LED backlight ID assignment for up to 64 units Control device setup function Built-in test pattern Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean) RoHS Directive compliant Anti-theft features with chain opening Power cord length: 9.8' (3 m) Cabinet materials: Molded plastic UPC: 885170062580 In the Box Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector Logo Transfer Software, Multi Projector Monitoring & Control Software Power Cord with Secure Lock Wireless / Wired Remote Control Unit 2 x R6/AA Type Batteries 3-Year Parts & Labor Warranty User Manual PDF 17mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-DW17KU Large Venue 3-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

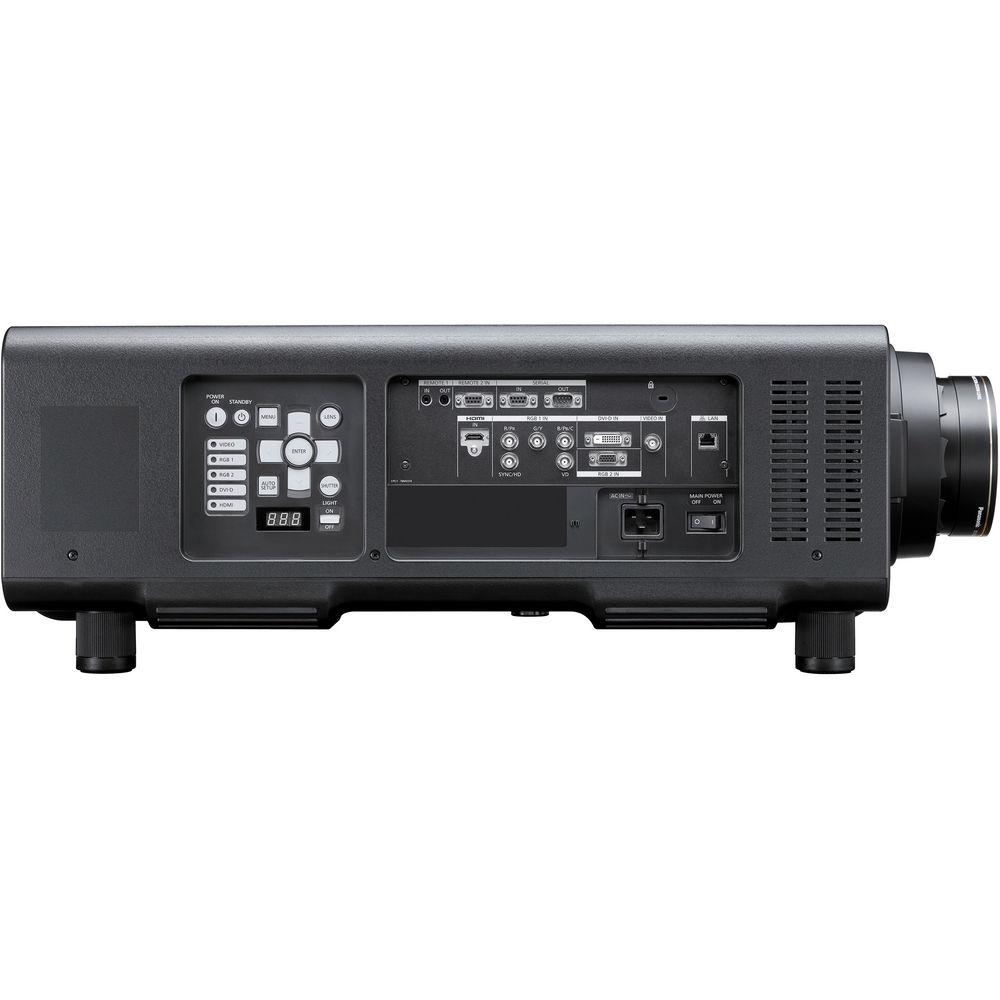

Technical parametersPanasonic PT-DW17KU Specs | Display System | 3-Chip 0.85" DLP | Native Chip Resolution | 1366 x 768 (WXGA) | Supported Resolutions | VGA - 640 x 480 WUXGA - 1920 x 1200 | Max Brightness | 17,000 Lumens | Uniformity | 90% | Aspect Ratio | 16:9 | Contrast Ratio | 10000:1 | DLP Link 3D | Yes | Scan | Horizontal: 15 - 100 kHz Vertical: 24 - 120 Hz | | Keystone Correction | Vertical: ± 40° | Picture-in-Picture | None | Ceiling Mountable | Yes | Rear Screen Projection | Yes | Built-In Speaker | None | | Inputs/Outputs | 2 x Component (3BNC) Video (Input) 2 x Component (3BNC) Video (Output) 1 x DVI-D Video (Input) 1 x HDMI Audio/Video (Input) 1 x Composite (BNC) Video (Input) 2 x RS-232C (Unspecified Connector) Control (Input) 1 x RS-232C (Unspecified Connector) Control (Output) 1 x Ethernet (RJ45) LAN 1 x M3 Control/Service (Input) 1 x M3 Control/Service (Output) 1 x Ethernet (RJ45) LAN | | Light Source | Lamp (4 x UHM) | Lamp Power | 465 W | Expected Lamp Life | Medium Brightness: 2000 Hours | Fan Noise | Medium Brightness: 49 dB | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Power Consumption | Medium Brightness: 2300 W Standby Mode (Lamp Off): 0.3 W | Max Operating Altitude | 1400' / 426 m | Temperature | Operating 32 to 113°F (0 to 45°C) Humidity: 20 - 80% | Dimensions (W x H x D) | 24.4 x 11.5 x 31.5" / 619.8 x 292.1 x 800.1 mm Without optional lens | Weight | 94.80 lb / 43.00 kg | | Package Weight | 116.8 lb | Box Dimensions (LxWxH) | 38.0 x 34.0 x 14.5" |
