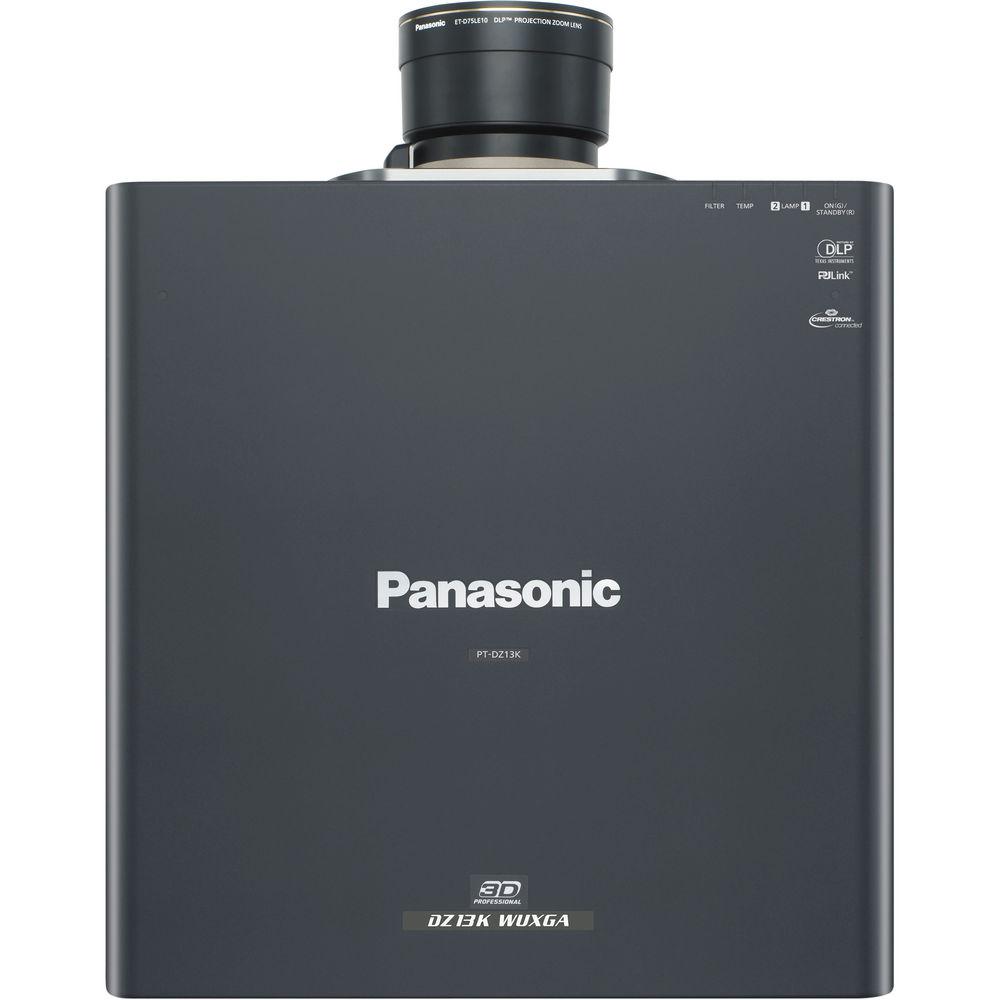

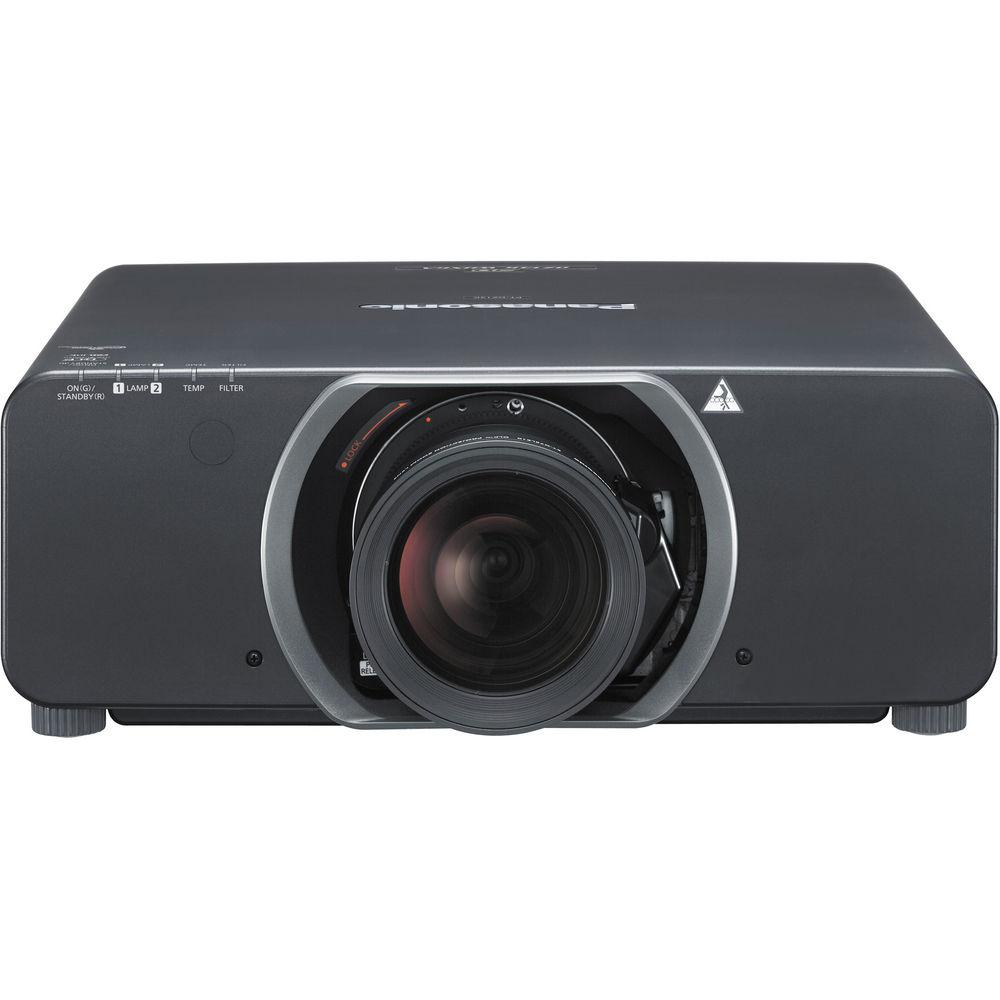

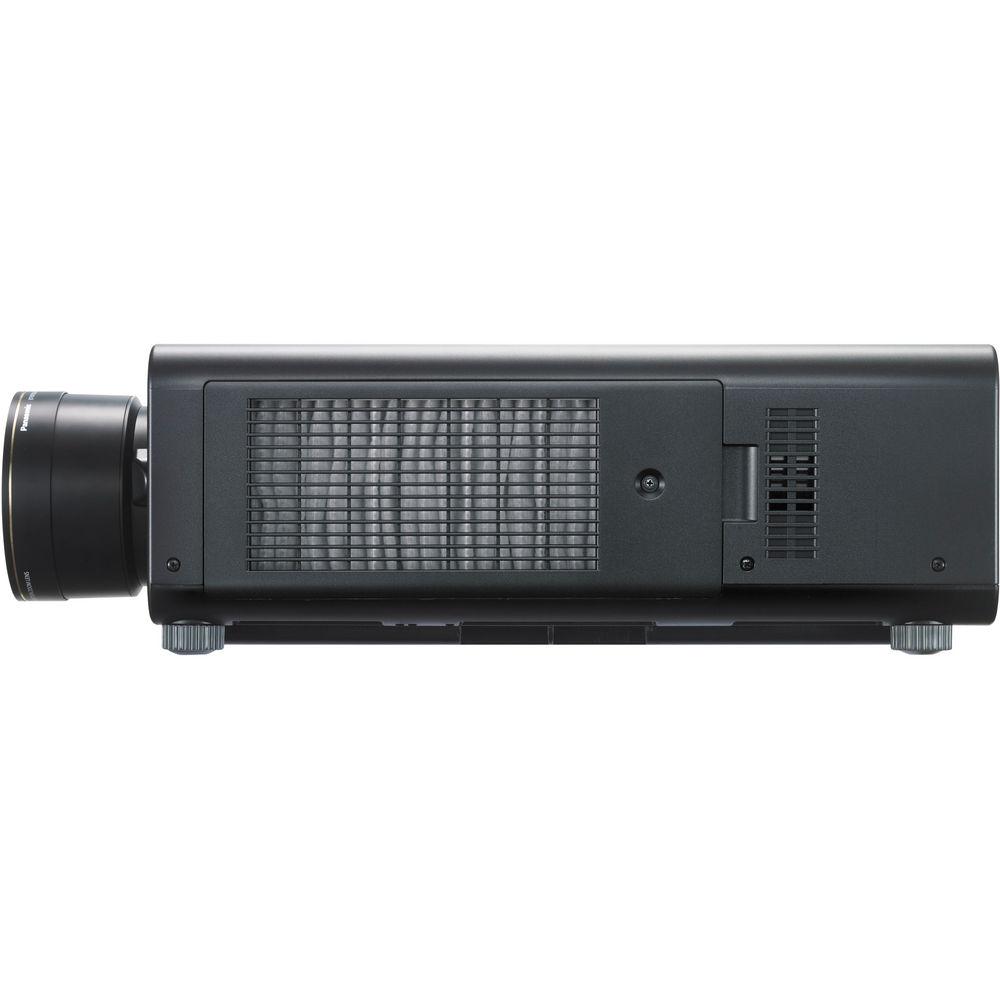

User Manual for Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic PT-DZ13KU 12,000 Lumens Large Venue DLP Projector features a WUXGA resolution of 1,920 x 1,200 and long lamp replacement cycles of up to 2,000 hours. With 3D compatibility and installation flexibility, this projector is well suited for large-venue applications such as auditoriums, museums and rental and staging that require both maximum brightness and easy handling. The lens memory adjusts the image size and location in up to three different projection positions and the combination of two 380W UHM lamps and the dynamic iris allow the PT-DZ13KU to deliver a 10,000:1 contrast ratio to ensure high brightness and superior picture quality.The PT-DZ13KU projector is 3D-ready, making it suitable for use in medical school and hospital applications. The projector is equipped with the DICOM Simulation mode, enabling end-users to view X-ray images. The PT-DZ13KU helps realize unique and captivating video performance with numerous built-in features. Users can program the mechanical shutter to fade the image in and out during show transitions, and it also has built-in Edge Blending, as well as Multi-Unit Brightness Control for projection onto wide screens and surfaces to create an immersive experience. Furthermore, the PT-DZ13KU can project onto various curved-screens with the Geometric Adjustment feature, which can be enhanced with the optional upgrade kit, ET-UK20, to support even more diverse curvatures and shapes with bitmap masking. This device has been designed with an extremely small footprint due to a highly efficient optical design as well as an improved liquid cooling system that makes it possible to keep the noise level to a minimum during operation. The PT-DZ13KU is built to maximize savings with a maintenance-free Eco Filter with a lifespan of up to 4,000 hours and low consumption of 1,050W.The 360° installation capability enables projection onto floors and ceilings. The projector also boasts high durability with an operating temperature between 32 to 113°F (0 to 45°C). Flexibility and reliability are further enhanced by the projectors capability to handle more than 100 input signals. Several available input terminals include SDIx2, HDMI, DVI-D, LAN (RJ-45) and 3D timing signal In/Out. In addition, end-users can remotely monitor and operate the PT-DZ13KU projector by using Multi Projector Monitoring and Control Software and the web browser feature enables users to view and send email alerts from the projector. Note: A lens is not provided with this product and must be purchased separately. ET-UK20 kit is sold separately. - Flexible Installation
- The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy Installation.
- Lens Memory
- The settings of projection size, lens shift position, and focus/zoom can be stored in memory and recalled for instant switching.
- Geometric Adjustment for Specially Shaped Screens
- This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed.
- Multi-Unit Brightness Control
- This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using "Multi Projector Monitoring & Control Software Ver. 2.8."
UPC: 885170117792 In the Box Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP Projector Power Cord with Secure Lock Wireless/Wired Remote Control Unit 2 x AA/R6 Batteries Lens Fixing Screw CD-ROM (Multi-Projector Monitoring & Control Software and Logo Transfer Software, for Windows) Limited 3-Year Warranty User Manual PDF 19.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-DZ13KU 12,000 Lumen Large Venue DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

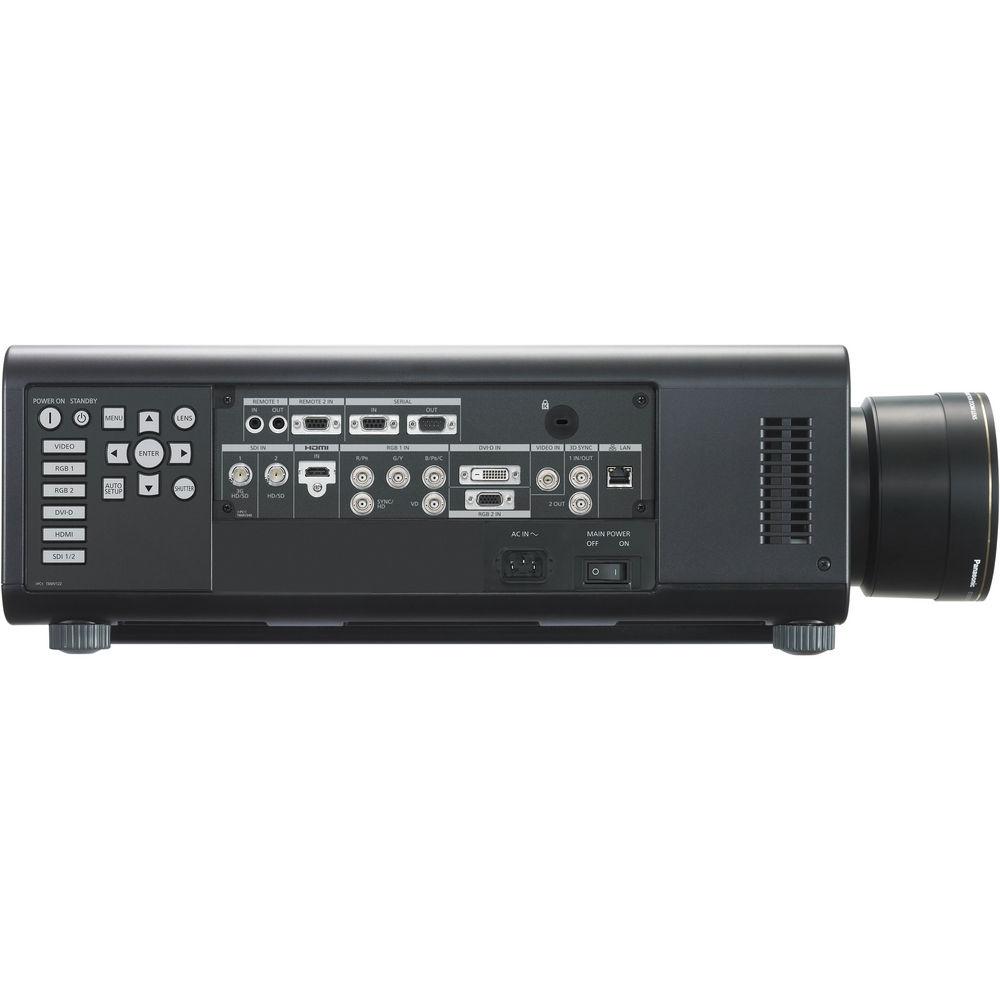

Technical parametersPanasonic PT-DZ13KU Specs | | | Display System | 3-Chip 0.96" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | WUXGA - 1920 x 1200 | | Max Brightness | 12,000 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | | | Inputs/Outputs | 1 x 3G-SDI (BNC) Video (Input)
1 x HD-SDI (BNC) Video (Input)
1 x Composite (BNC) Audio/Video (Input/Output)
1 x DVI-D Video (Input)
1 x HDMI Video (Input)
1 x 5BNC Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Composite (BNC) Video (Output)
1 x Composite (BNC) Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Unspecified Signal (DE-9) Control (Output)
1 x M3 Remote (Input)
1 x M3 Remote (Output)
1 x Unspecified Signal (DE-9) Control
1 x Ethernet (RJ45) LAN (Input) | | | | Light Source | Lamp (2 x UHM) | | Lamp Power | 380 W | | Fan Noise | Full Brightness: 45 dB
Medium Brightness: 43 dB
Low Brightness: 37 dB | | Security | Cable Lock Slot
Padlock
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Heat Dissipation | 3413 BTU | | Power Consumption | Medium Brightness: 1000 W
Standby Mode (Lamp Off): 6 W
Standby Mode (Lamp Off): 0.2 W | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 20.9 x 7.9 x 21.6" / 530.9 x 200.7 x 548.6 mm | | Weight | 52.9 lb / 24.0 kg |
