User Manual for Panasonic PT-DZ16K2U Full HD Large Venue 3-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-DZ16K2U Full HD Large Venue
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-DZ16K2U Full HD Large Venue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

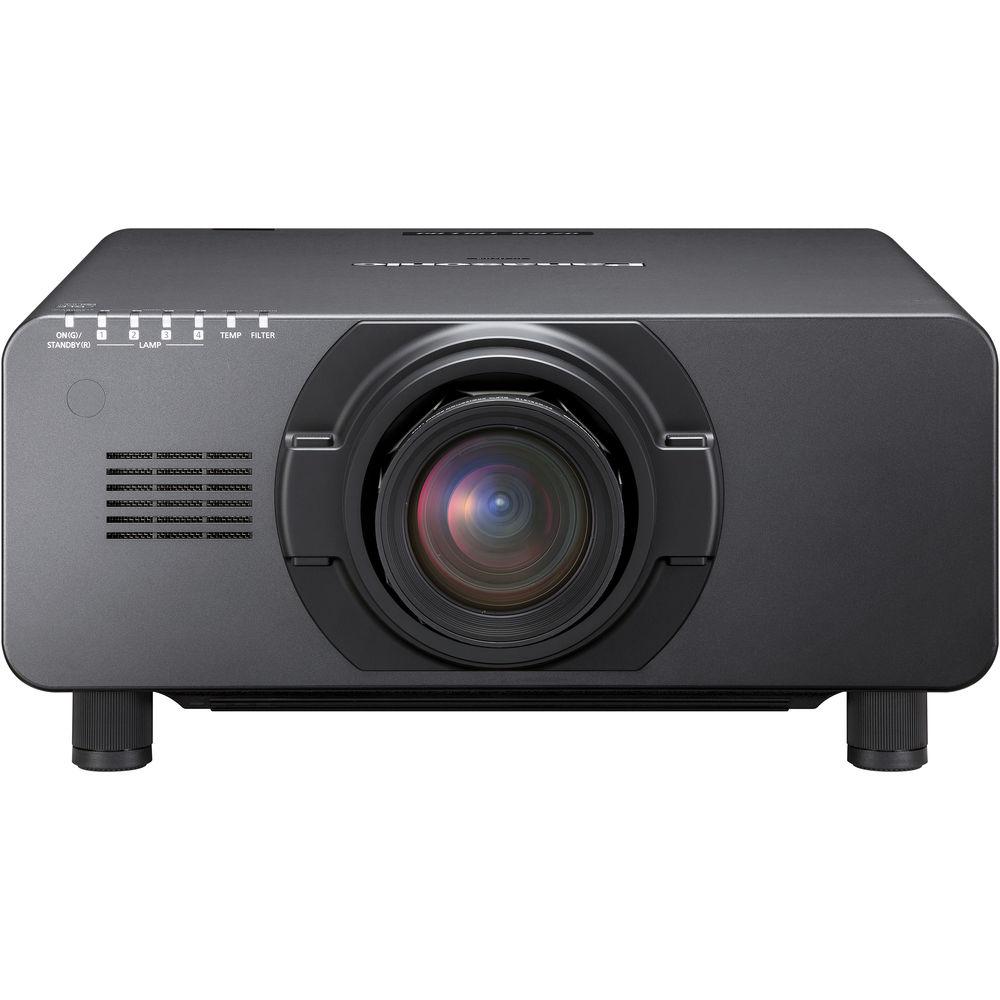

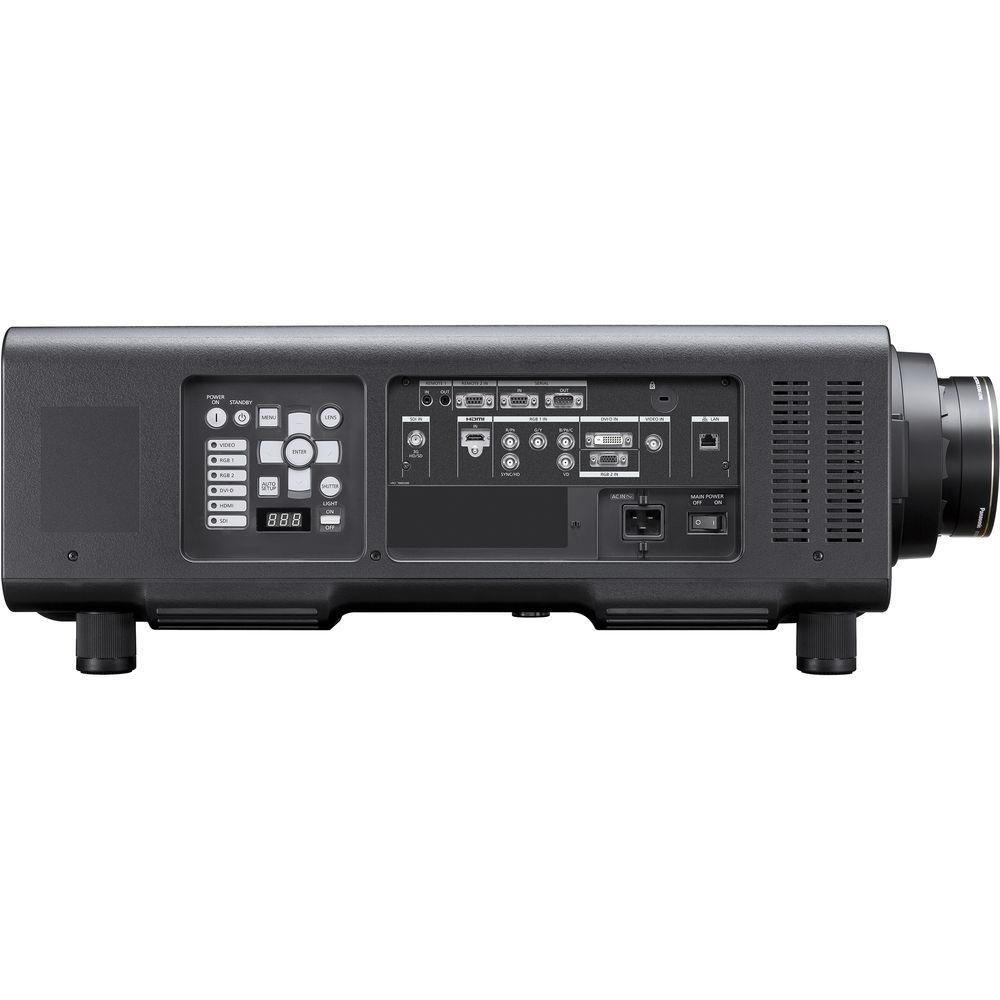

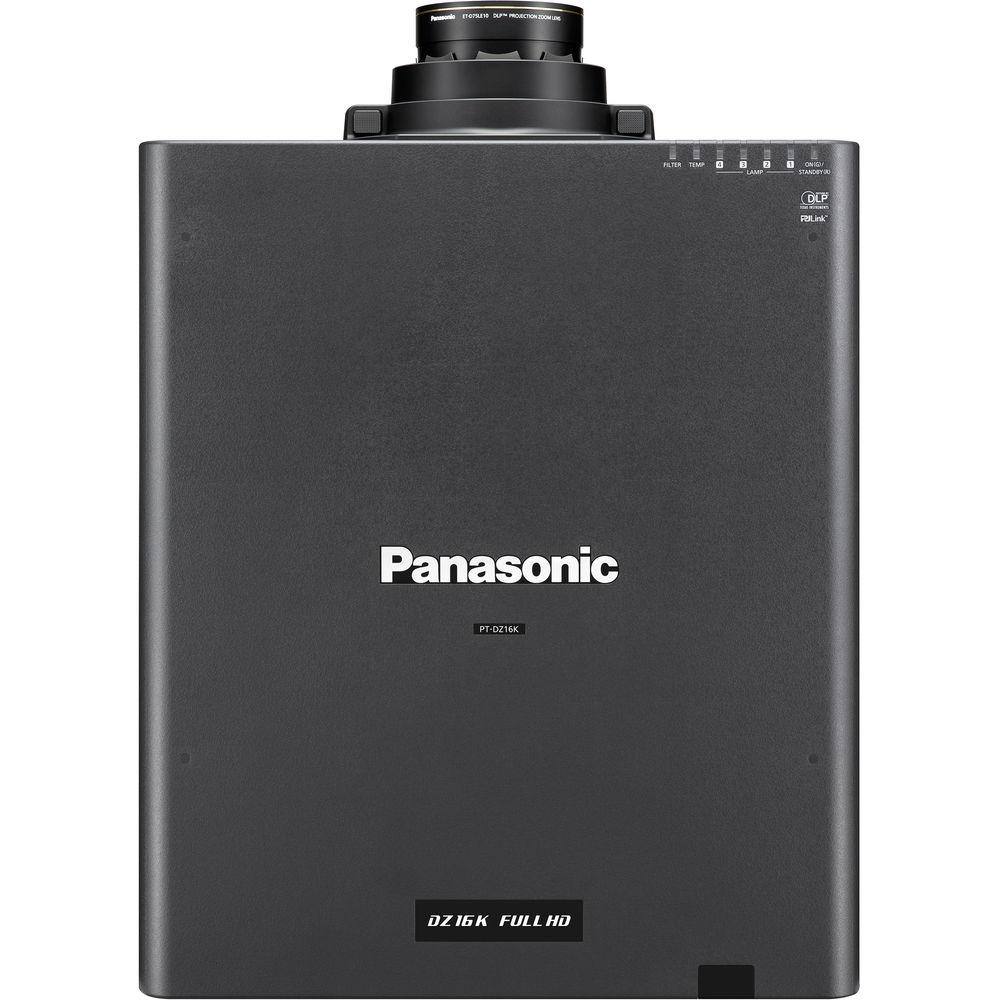

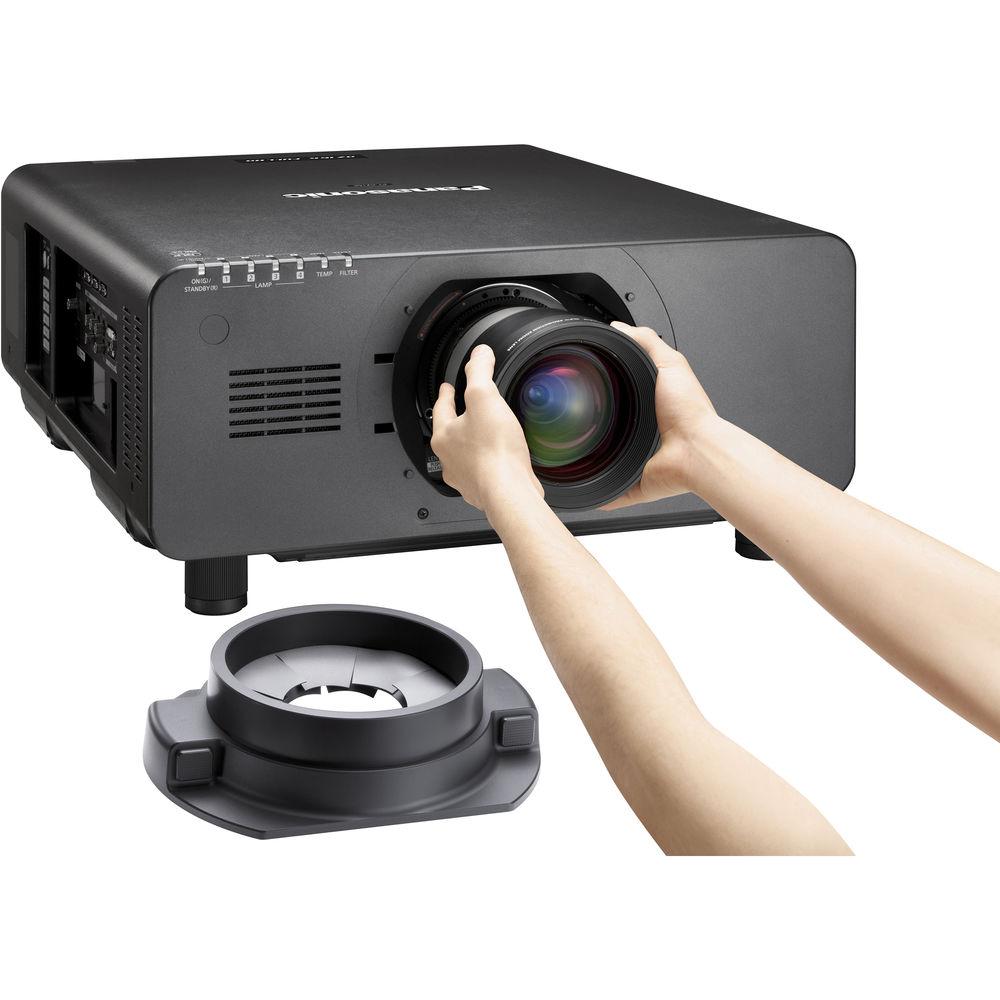

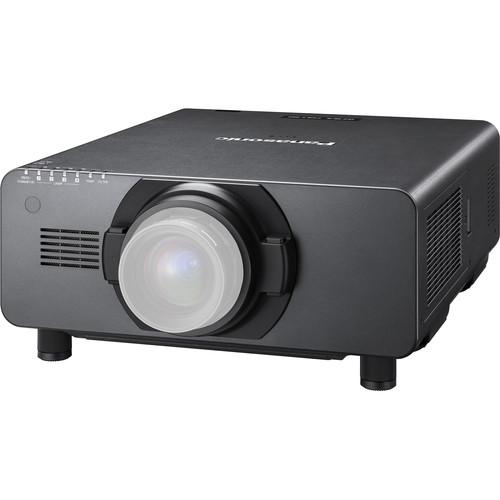

Product description The PT-DZ16K2U Full HD Large Venue 3-Chip DLP Projector from Panasonic has a resolution of 1920 x 1080 with 16,000 lumens of brightness, and features long lamp replacement cycles of up to 3,000 hours. These features make this projector great for large venue applications. Its real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction. The clarity processor delivers crisp and detailed image quality, providing a 10,000:1 contrast ratio with Dynamic Iris. This projector offers System Daylight View 3 for enhanced color performance in bright rooms and mapping applications, a Waveform Monitor function that allows for easy adjustment of black and white levels, and DICOM Simulation Mode for medical presentations and training. Additionally, it provides a liquid cooling system and highly efficient quad-lamp setup to reduce operational noise. - Quad-lamp system allows 24/7 operation in lamp relay mode

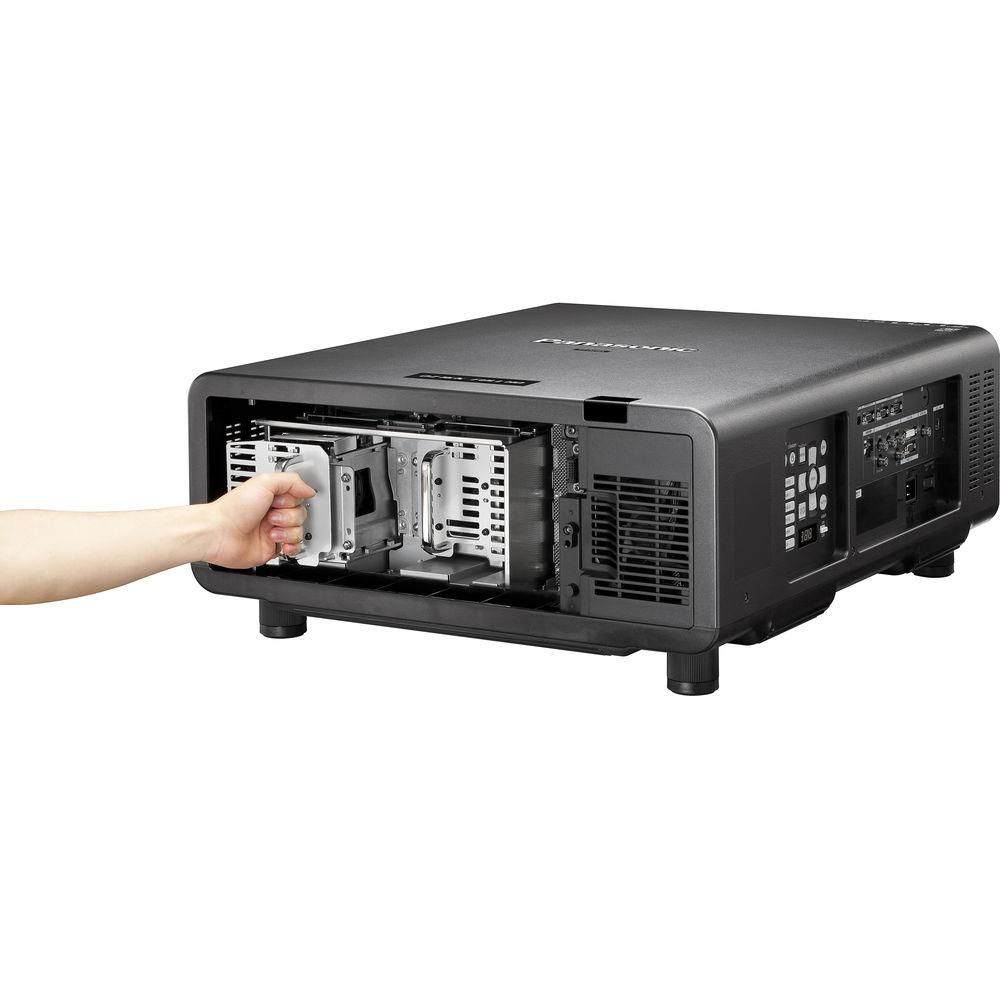

- Easy lamp replacement from rear side

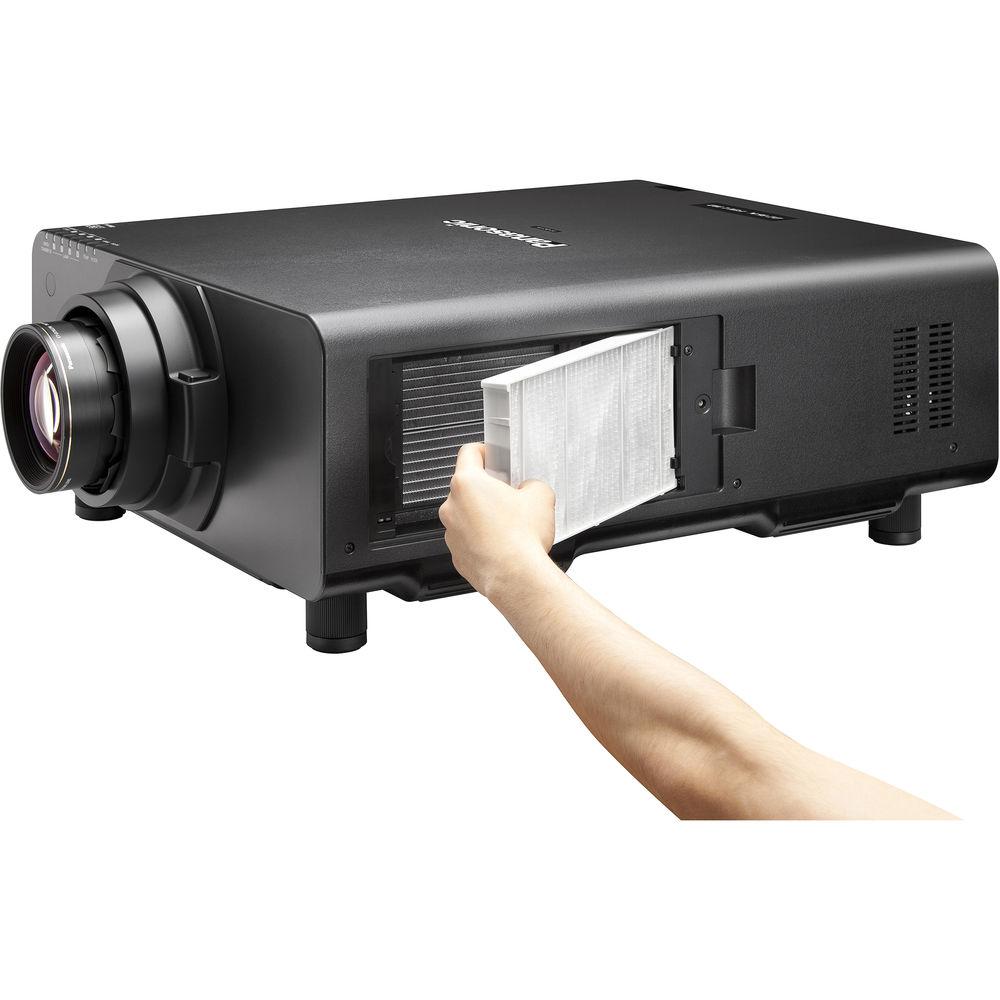

- Eco filter requires no maintenance for 12,000 hours
- Durable, precision-tuned optical engine
- High-efficiency lamps reduce power consumption
- Flexible installation with 360° vertical cabinet rotation
- Multi-screen support seamlessly joins screens with edge blending, color matching, and multi-screen processing
- Multi-unit brightness control
- Single-cable Digital Link connection transmits video and control signals up to 328 ft

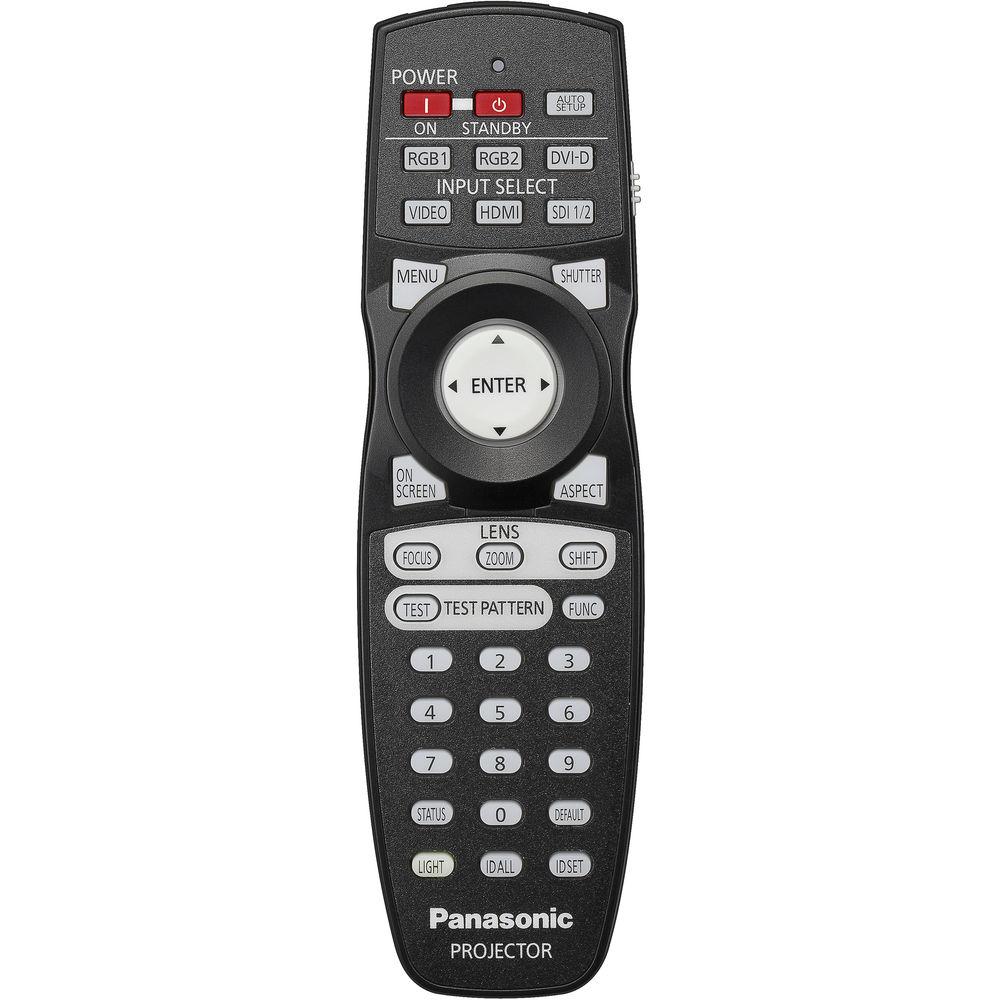

UPC: 885170246348 In the Box Panasonic PT-DZ16K2U Full HD Large Venue 3-Chip DLP Projector (No Lens) Power Cord with Secure Lock Wireless/Wired Remote Control with Batteries Multiple Projector Monitoring and Control Software Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamp Brochure PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-DZ16K2U Full HD Large Venue 3-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-DZ16K2U Specs | | | Display System | 3-Chip 0.95" DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Max Brightness | 16,000 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:9 | | Contrast Ratio | 10000:1 | | | | Keystone Correction | Vertical: ± 40°
Horizontal: ± 15° | | | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN (Input)
1 x Component (3BNC) Video (Input)
1 x Composite (BNC) Video (Input) | | | | Light Source | Lamp (4 x UHM) | | Lamp Power | 465 W | | Expected Lamp Life | Medium Brightness: 3000 Hours | | AC Input Power | 240 VAC50 Hz | | Power Consumption | Medium Brightness: 2300 W
Standby Mode (Lamp Off): 4 W
Standby Mode (Lamp Off): 0.3 W | | Max Operating Altitude | 8858' / 2700 m | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 24.4 x 10.0 x 28.7" / 620.0 x 255.0 x 730.0 mm without lens | | Weight | 94.80 lb / 43 kg without lens |
