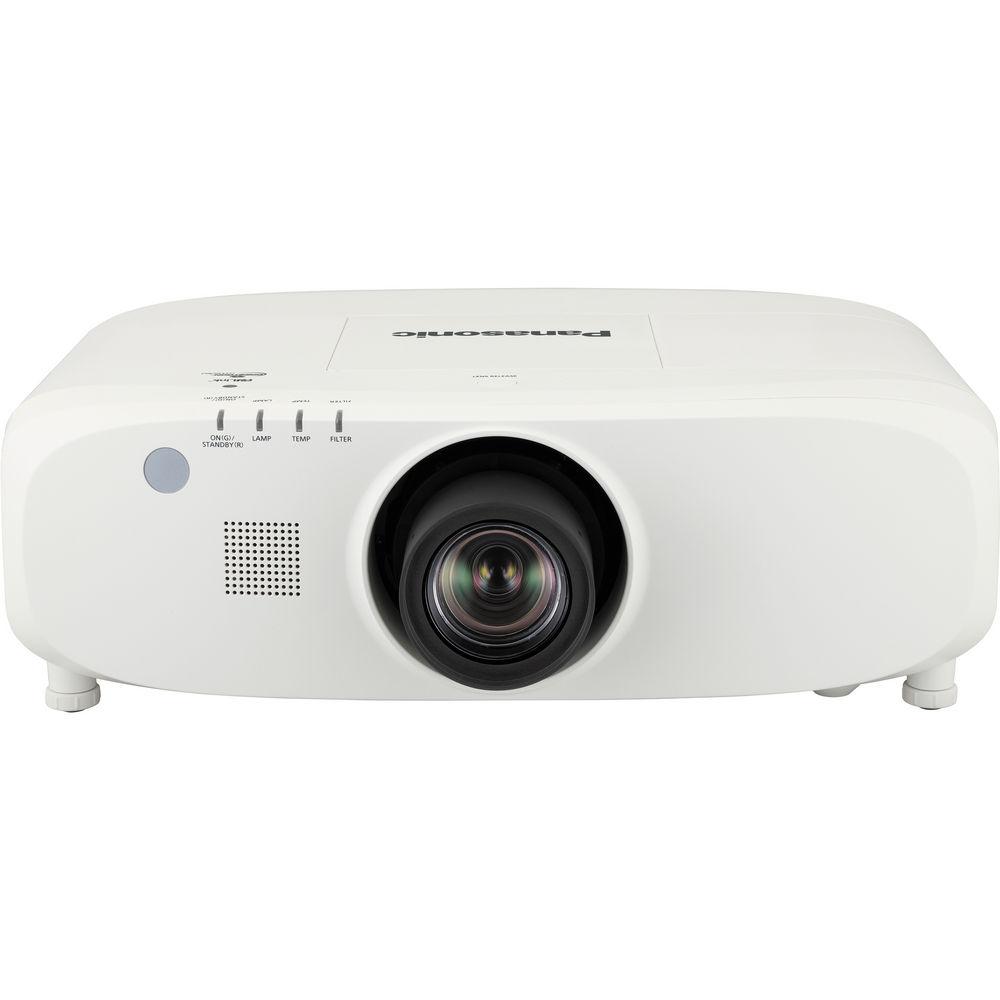

Product description The PT-EX800ZLU XGA LCD Projector from Panasonic features XGA 1024 x 768 resolution. It produces a brightness up to 7500 lumens and the iris automatically adjusts to match the situation, which results in a 5000:1 contrast ratio. The projector features three transparent LCD panels (R/G/B) and a widescreen 4:3 aspect ratio. It's designed to afford multiple uses and solutions for the classroom and the boardroom.The PT-EX800ZLU features a low-maintenance, dust-resistant cabinet design and a washable Eco Filter that requires replacement after about 15,000 hours. The projector's lamp life cycle can last up to 4500 hours in Eco Mode, and with the lamp set to Auto; the lamp control system automatically adjusts light according to brightness of the projected image.Other features include a 10W integrated speakers, a 29 dB noise level in Eco Mode, Side-by-Side projection and Picture-in-Picture projection. All of the various low-maintenance features result in a low total cost of ownership. The filter is easily replaced from the side and the lamp from the top. - High Brightness and Contrast
- The projector delivers brightness of up to 7500 lumens with a contrast ratio of 5000:1. The iris automatically adjusts to suit ambient lighting conditions
- XGA Resolution for HD Images
- With native XGA 1024 x 768-pixel widescreen resolution, the projector is capable of displaying video in detail
- DICOM-Compatible for Medical Presentations and Training
- The projector is compatible with DICOM standards for presentations relating to medicine. DICOM Simulation Mode reproduces X-rays, with high levels of detail and contrast
- Daylight View Basic Technology
- Panasonic's Daylight View Basic technology resolves hidden details in dark images that are normally difficult to see in bright conditions. Using an ambient light sensor, Daylight View Basic adjusts halftone color and brightness to suit the room. Resulting images are clear, bright, and easy to see
- Color Adjustment Function
- A color adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection, particularly in side-by-side configuration. Correction is performed on three or seven colors
- Crestron Connected and PJLink Integration
- The projector integrates into an existing projection system controlled by Crestron Connected software. The PJLink Class 1 and AMX system control standards are also supported
- Dust-Resistant Cabinet and Long-Life Eco Filter

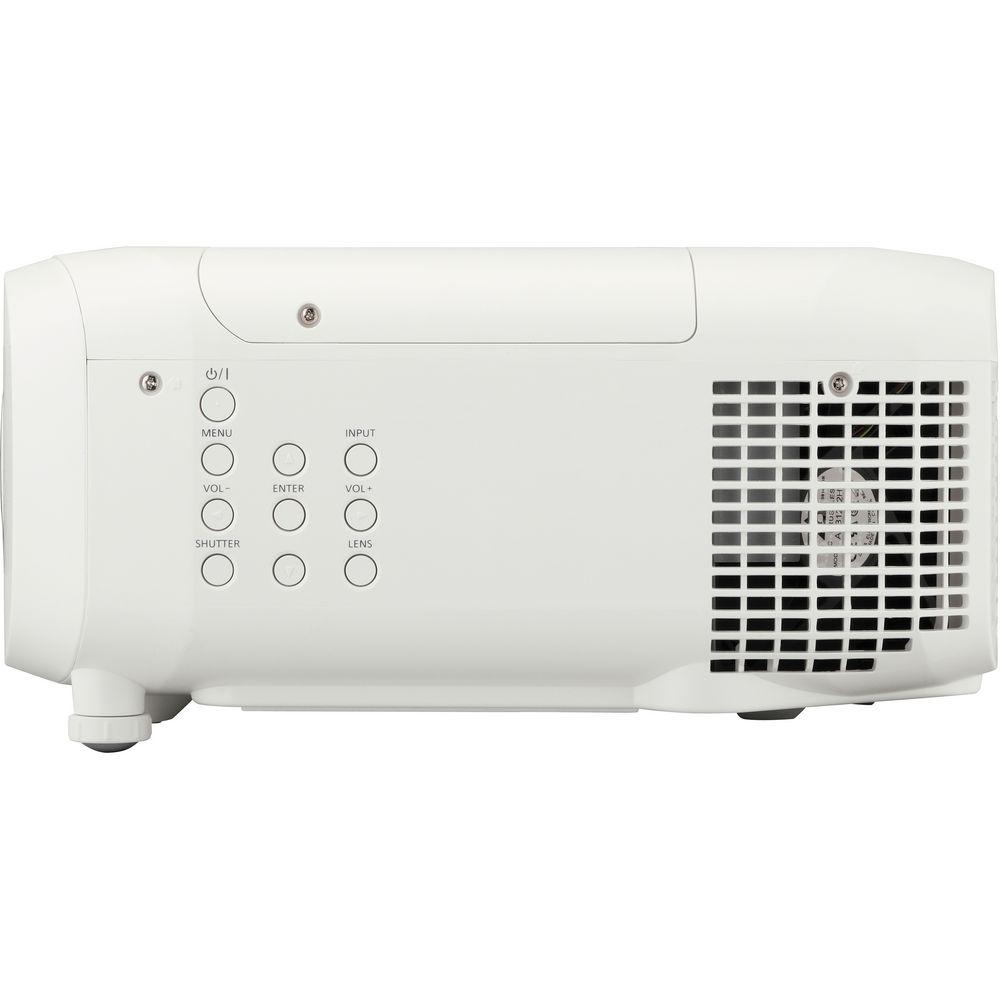

- The projector offers resistance to the effects of dust, extending maintenance to 15,000 hours for the Eco Filter (which may be washed and reused). The cabinet incorporates a straight airflow path, extensive optical shielding, and improved sealing for the Eco Filter and electrostatic Micro Cut Filter to keep the projector running clean and bright
- A Wide Selection of Lenses Available

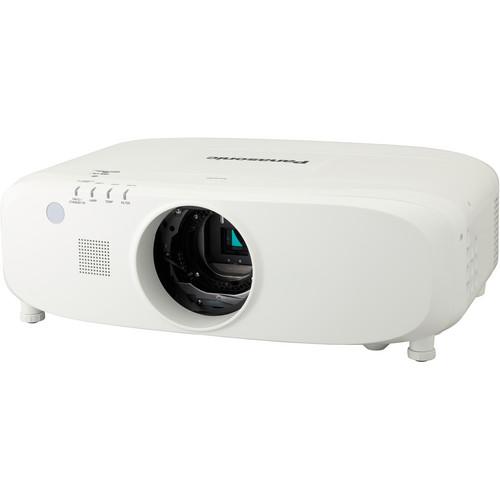

- Choose from a wide lineup of lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses (not included)
- Intelligent Lamp Control Reduces Power Consumption
- When in Auto Mode, the Intelligent Lamp Control manages lamp output levels in real time, reducing power by up to 58% when maximum output is not needed (in darker scenes, for example). Shift correction technology preserves the optimal color balance as lamp output fluctuates
- Lamp Replacement Cycle of up to 4500 Hours
- Users need not pay for higher brightness and imaging quality with increased running costs. The projector has a recommended lamp replacement cycle of up to 4500 hours, delivering considerable savings over the life of the product
- Integrated Digital Link and DisplayPort Connections
- Digital Link bundles uncompressed HD video, analog A/V, and Ethernet/RS-232C control commands through a single cable for distances of up to 328'. DisplayPort, meanwhile, enables a single high-bandwidth connection to the latest PCs while optional Digital Interface Box connects multiple source devices to the projector, routing signals via a single CAT5e cable for fast input switching via remote control
- Ecological Features
- Power-saving Eco Standby Mode draws just 0.3W of power
Eco management functions are easily adjusted to suit conditions via the ECO remote control button
Ecologically conscious design with full RoHS compliance

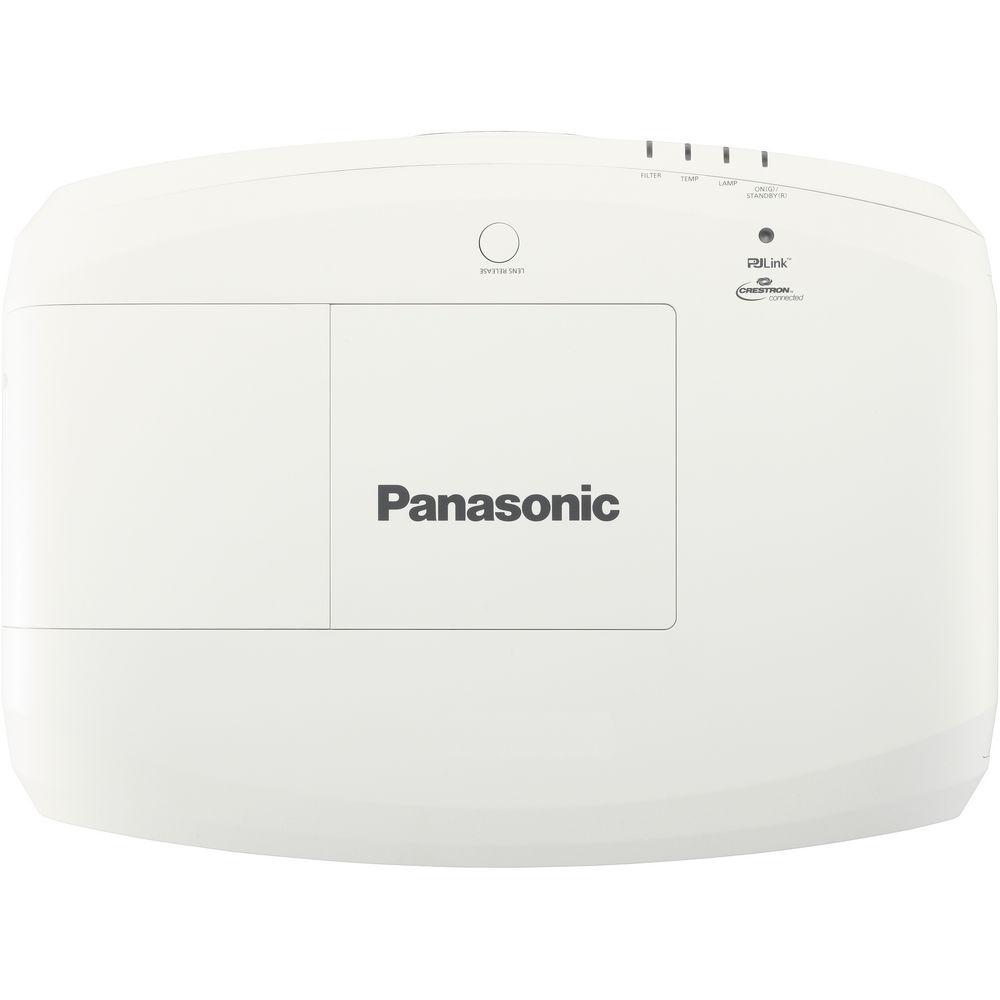

Easy lamp and air-filter replacement with unit installed on ceiling
The direct power off function enables safe projector shutdown via breaker
Ultra-quiet operation with only 29 dB of noise on ECO 2 Mode - Additional Features
- Side-by-side and Picture-in-Picture Mode for simultaneous multi-source viewing
Inorganic LCD materials used to maintain image quality longer
Offers a wider range of easy-change lenses to suit every space
Mounting flexibility with 360° cabinet rotation and lens-centered design
Corner keystone correction for angled projection situations

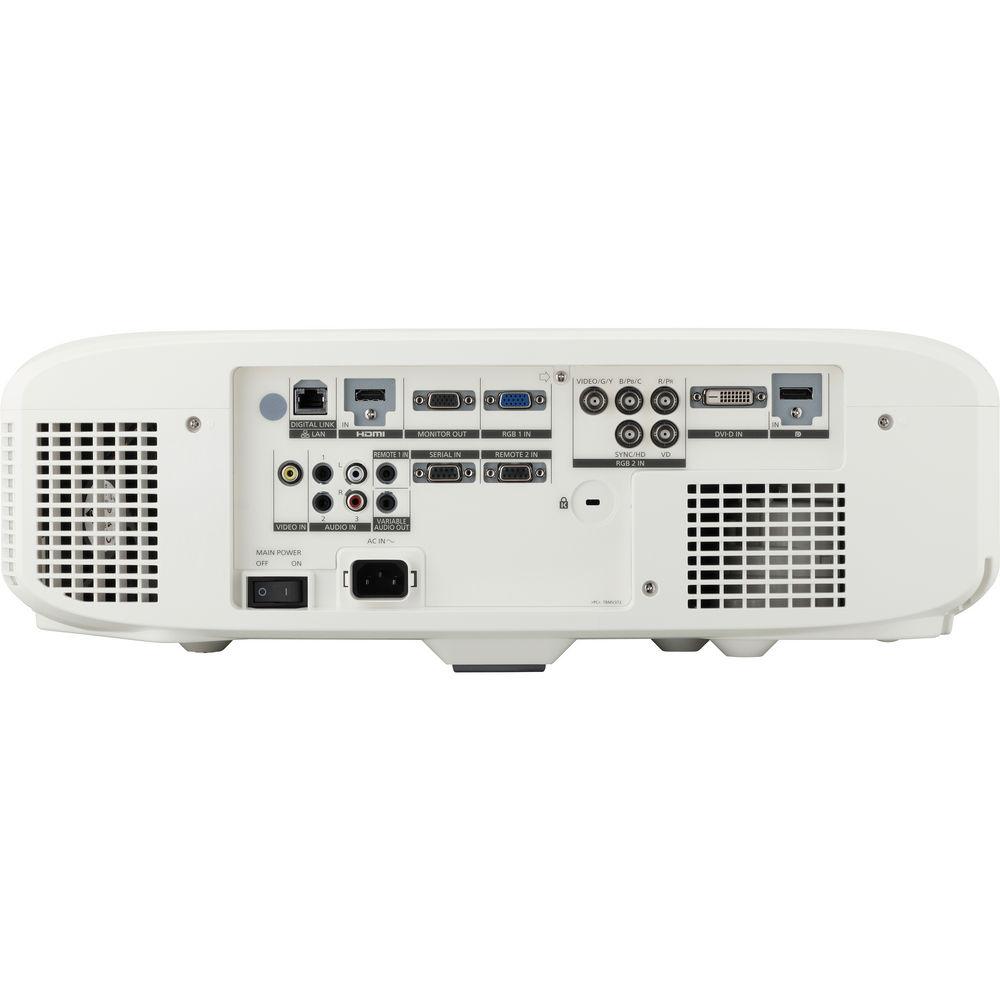

Expanded connectivity with HDMI, DVI-D, DisplayPort, Digital Link, RGB, and RS-232C terminals
Audio pass-through on standby when connected to an audio system
Universal system control via Web browser from any computer
Automated email error notification to remote projector operators
Multiple projector control from one computer using Panasonic Multi Projector Monitoring & Control software
Set projector network operation schedules remotely
Anti-theft measures include customizable startup logo, passwords, and security bar
Closed caption decoder included (NTSC only)
Drive Method: Active matrix
Built-In Speaker: 1.5" (3.7 cm) round shape x 1

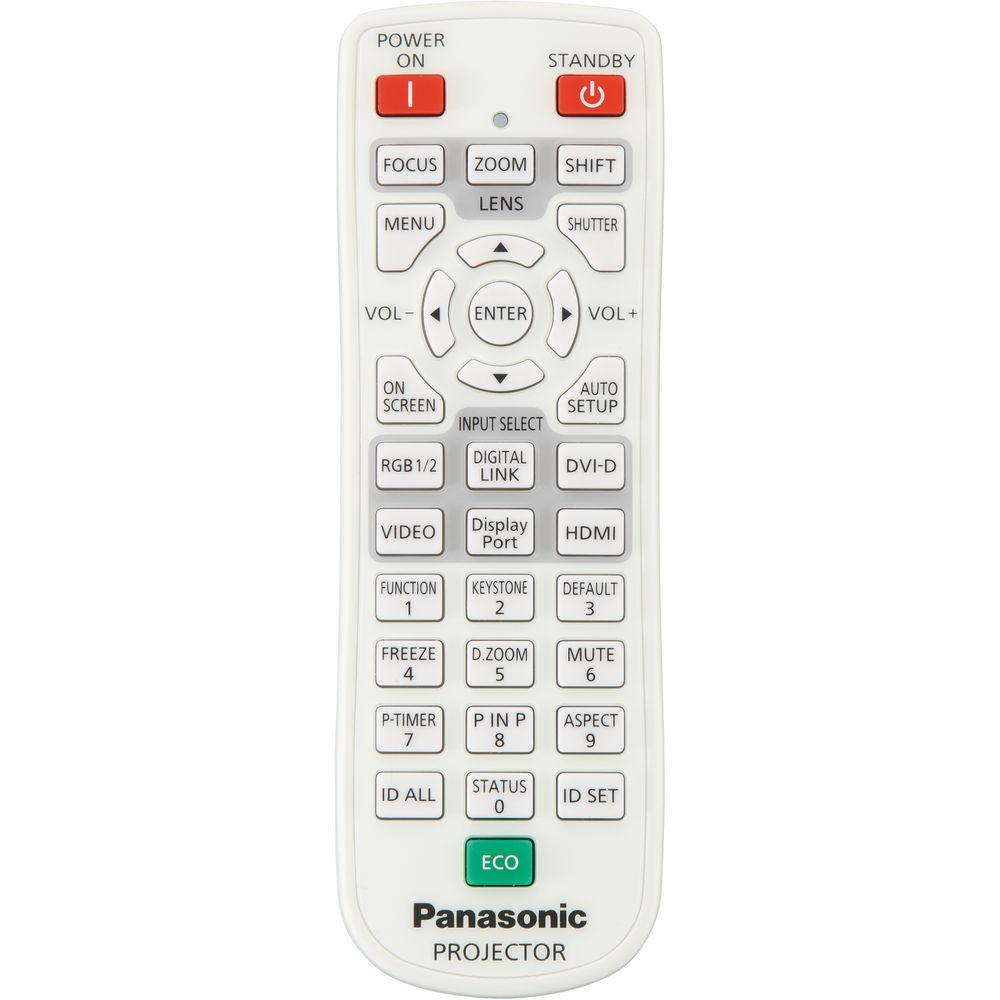

Cabinet Materials: Molded plastic (PC + ABS) UPC: 885170178571 In the Box Panasonic PT-EX800ZLU XGA LCD Projector Wireless/Wired Remote Control Unit Power Cord 2 x AAA/R03 or AAA/LR03 Batteries Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-EX800ZLU XGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-EX800ZLU Specs | | | Display System | 3-Chip 0.79" LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | VGA - 640 x 480 | | Max Brightness | 7500 Lumens | | Uniformity | 90% | | Aspect Ratio | 4:3 | | Contrast Ratio | 5000:1 | | DLP Link 3D | None | | Scan | Horizontal: 15 - 91 kHz
Vertical: 24 - 120 Hz | | | | Keystone Correction | Vertical: ± 40°
Horizontal: ± 30° | | Picture-in-Picture | Yes | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x DVI-D Video (Input)
1 x HDMI Audio/Video (Input)
1 x DisplayPort Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 5BNC Video (Input)
1 x Composite (BNC) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Ethernet (RJ45) LAN
2 x RS-232C (Unspecified Connector) Control (Input)
1 x M3 Remote (Input)
1 x M3 Audio (Output)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x Composite (RCA) Video (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHM) | | Lamp Power | 400 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 4500 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 31 dB
Low Brightness: 29 dB | | Security | Password Protection
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 575 W
Standby Mode (Lamp Off): 10 W
Low Brightness: 0.3 W 37 W Standby (with audio on) | | Max Operating Altitude | 8858' / 2699 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 20.9 x 7.0 x 15.2" / 530.9 x 177.8 x 386.1 mm Without Lens | | Weight | 21.6 lb / 9.80 kg Without Lens | | | | Package Weight | 35.4 lb | | Box Dimensions (LxWxH) | 26.0 x 23.0 x 11.5" |
