Product description

High Brightness and Contrast
• The projector delivers brightness of up to 7500 lumens with a contrast ratio of 5000:1. The iris automatically adjusts to suit ambient lighting conditions

XGA Resolution for HD Images
• With native XGA 1024 x 768-pixel widescreen resolution, the projector is capable of displaying video in detail

DICOM-Compatible for Medical Presentations and Training
• The projector is compatible with DICOM standards for presentations relating to medicine. DICOM Simulation Mode reproduces X-rays, with high levels of detail and contrast

Daylight View Basic Technology
• Panasonic's Daylight View Basic technology resolves hidden details in dark images that are normally difficult to see in bright conditions. Using an ambient light sensor, Daylight View Basic adjusts halftone color and brightness to suit the room. Resulting images are clear, bright, and easy to see

Color Adjustment Function
• A color adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection, particularly in side-by-side configuration. Correction is performed on three or seven colors

Powered Lens Shift, Zoom, and Focus

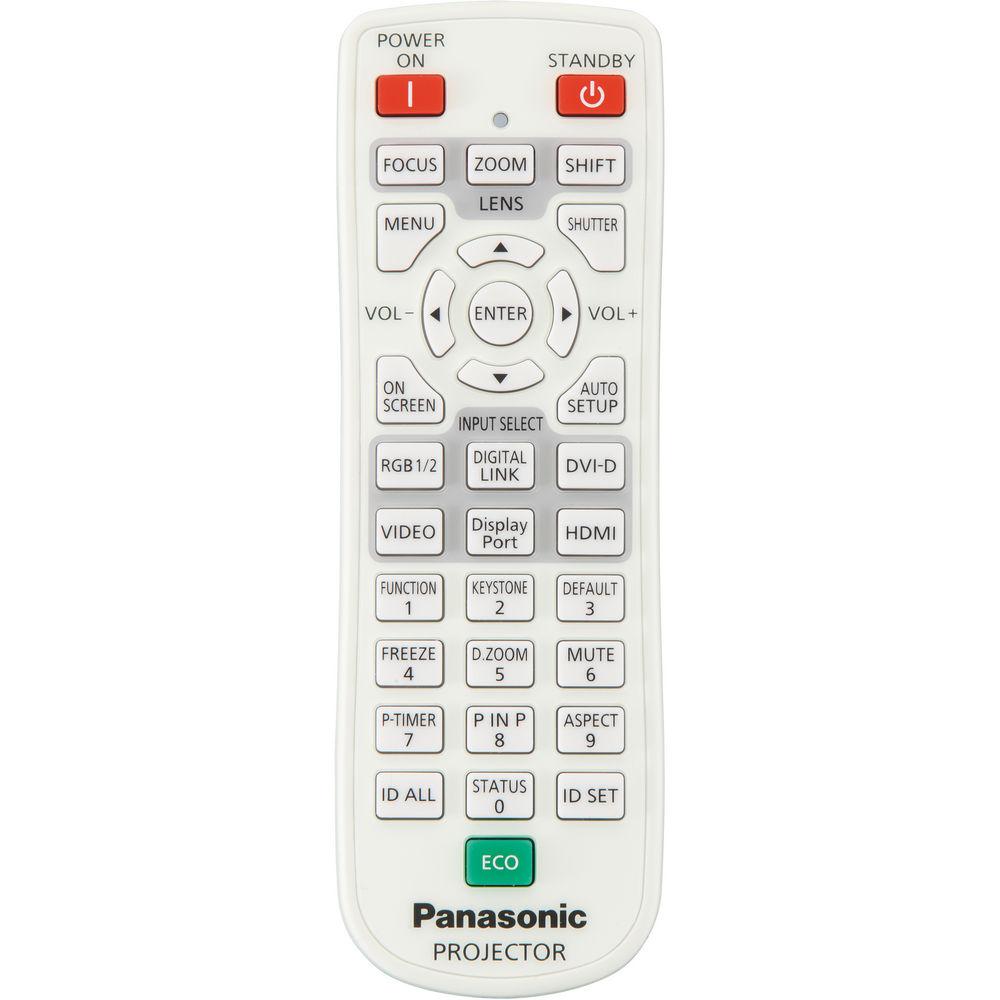

• The projector has powered vertical and horizontal lens shift, zoom, and focus capabilities, allowing you full control of picture adjustment via remote control

Crestron Connected and PJLink Integration
• The projector integrates into an existing projection system controlled by Crestron Connected software. The PJLink Class 1 and AMX system control standards are also supported

Dust-Resistant Cabinet and Long-Life Eco Filter
• The projector offers resistance to the effects of dust, extending maintenance to 15,000 hours for the Eco Filter (which may be washed and reused). The cabinet incorporates a straight airflow path, extensive optical shielding, and improved sealing for the Eco Filter and electrostatic Micro Cut Filter to keep the projector running clean and bright

Intelligent Lamp Control Reduces Power Consumption
• When in Auto Mode, the Intelligent Lamp Control manages lamp output levels in real time, reducing power by up to 58% when maximum output is not needed (in darker scenes, for example). Shift correction technology preserves the optimal color balance as lamp output fluctuates

Lamp Replacement Cycle of up to 4500 Hours
• Users need not pay for higher brightness and imaging quality with increased running costs. The projector has a recommended lamp replacement cycle of up to 4500 hours, delivering considerable savings over the life of the product

Integrated Digital Link and DisplayPort Connections
• Digital Link bundles uncompressed HD video, analog A/V, and Ethernet/RS-232C control commands through a single cable for distances of up to 328'. DisplayPort, meanwhile, enables a single high-bandwidth connection to the latest PCs while optional Digital Interface Box connects multiple source devices to the projector, routing signals via a single CAT5e cable for fast input switching via remote control

Ecological Features
• Power-saving Eco Standby Mode draws just 0.3W of power
  Eco management functions are easily adjusted to suit conditions via the ECO remote control button
  Ecologically conscious design with full RoHS compliance
  Easy lamp and air-filter replacement with unit installed on ceiling
  The direct power off function enables safe projector shutdown via breaker
  Ultra-quiet operation with only 29 dB of noise on ECO 2 Mode

Additional Features
• Side-by-side and Picture-in-Picture Mode for simultaneous multi-source viewing
  Inorganic LCD materials used to maintain image quality longer
  Offers a wider range of easy-change lenses to suit every space
  Mounting flexibility with 360° cabinet rotation and lens-centered design
  Corner keystone correction for angled projection situations

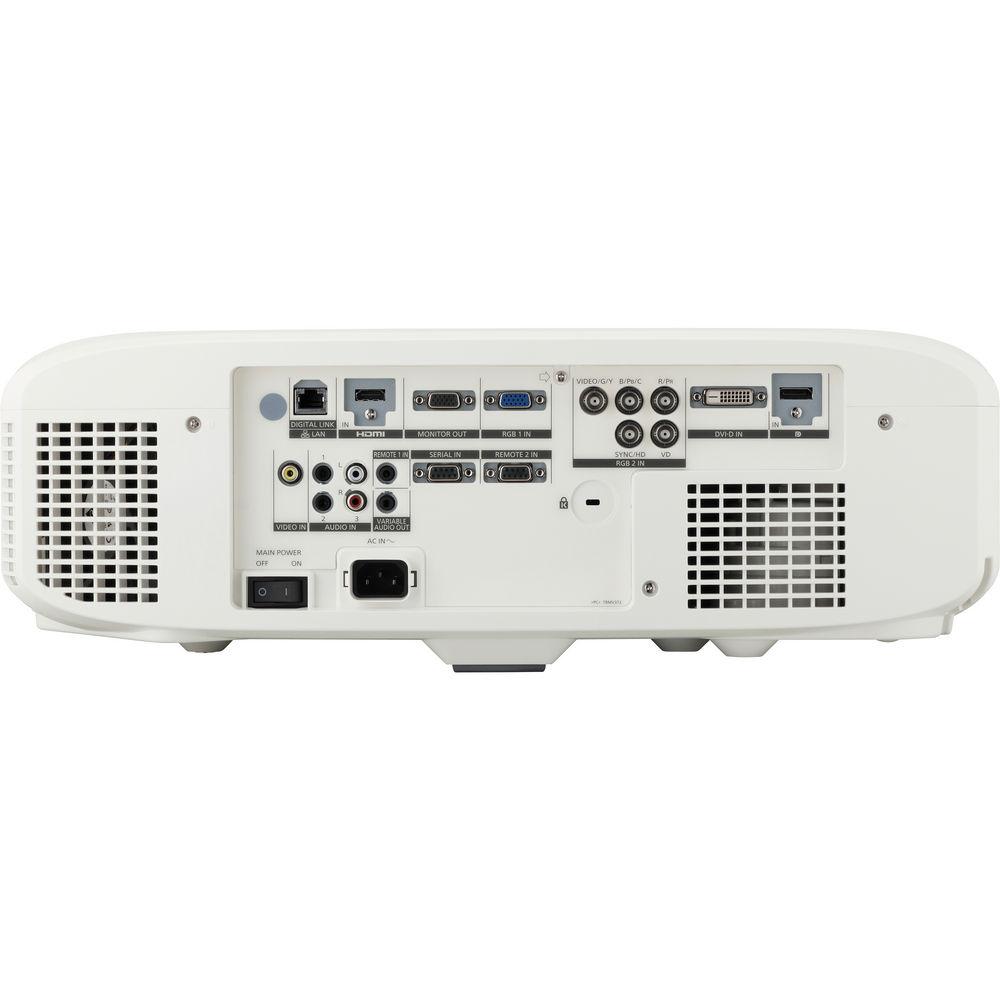

  Expanded connectivity with HDMI, DVI-D, DisplayPort, Digital Link, RGB, and RS-232C terminals
  Audio pass-through on standby when connected to an audio system
  Universal system control via Web browser from any computer
  Automated email error notification to remote projector operators
  Multiple projector control from one computer using Panasonic Multi Projector Monitoring & Control software
  Set projector network operation schedules remotely
  Anti-theft measures include customizable startup logo, passwords, and security bar
  Closed caption decoder included (NTSC only)
  Drive Method: Active matrix
  Built-In Speaker: 1.5" (3.7 cm) round shape x 1
  Cabinet Materials: Molded plastic (PC + ABS)
  Mechanical lens shutter prevents light leakage when on standby
