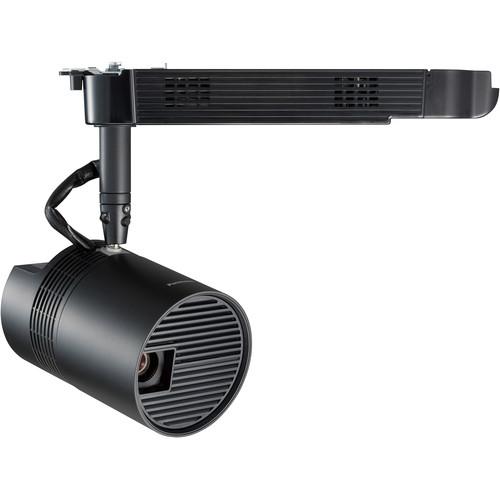

User Manual for Panasonic PT-JW130H WXGA 1000-Lumen Space Player DLP Track-Mount Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-JW130H WXGA 1000-Lumen Space Player
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
|
User manual for the Panasonic PT-JW130H WXGA 1000-Lumen Space Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The black PT-JW130H WXGA 1000-Lumen Space Player DLP Projector from Panasonic is a lighting device that combines the functions of traditional lighting and a video projector to offer non-conventional ambient lighting, as well as image projection. You can combine color and motion to help bring attention to your space. Images and text data can be displayed simultaneously and video can be projected with brand logos for dynamic content.
The projector track-mounts and covers all downward directed projections from the horizontal level. The content to be displayed can be directly controlled with buttons 1 to 6 on the remote control. Furthermore, the content can be automatically played according to a preset schedule. Devices can be connected by a wired LAN network for easy simultaneous playback. The CMS (Content Management Software) makes it possible to create the schedule data on a local computer, without connecting to the Space Player. - Suitable for spaces that emphasize design
- Projection can cover all downward directions from the horizontal level
- Image input: SD card, HDMI, wireless LAN
- Content to be displayed can be directly controlled with buttons 1 to 6 on the remote control
- Playback is matched to the timing, making it easy to achieve surprise effects
- Content can be automatically played according to a preset schedule
- Devices can be connected by a wired LAN network for easy simultaneous playback
- CMS (Content Management Software) makes it possible to create the schedule data on a local computer, without connecting to the Space Player
- HDMI scanning frequency 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60
In the Box Panasonic PT-JW130H WXGA 1000-Lumen Space Player DLP Track-Mount Projector (Black) Remote Control 2 x LR03/AAA Battery Software CD-ROM (Multi Monitoring & Control Software, Wireless Manager) Card Slot Cap HDMI Terminal Cap LAN Terminal Cap Allen Wrench Adapter Adapter Cover Connector Secure Lock String Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-JW130H WXGA 1000-Lumen Space Player DLP Track-Mount Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-JW130HBU Specs | | | Display System | 1-Chip 0.45" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA @ 60 Hz
SVGA @ 56 Hz
SVGA @ 60 Hz
XGA @ 60 Hz
SXGA @ 60 Hz
1280 x 720 @ 50 Hz
1280 x 720 @ 60 Hz
1280 x 768 @ 50 Hz
1280 x 768 @ 60 Hz
1280 x 800 @ 50 Hz
1280 x 800 @ 60 Hz
1600 x 900 @ 50 Hz
1600 x 900 @ 60 Hz | | Max Brightness | 1000 Lumens | | Contrast Ratio | 1000:1 | | | | Lens | f/2.0 - 2.7 (f = 15.2 - 32.7 mm) | | Lens Shift | Vertical: + 50% | | Optical Zoom | Powered: 2.2x | | Throw Ratio | 1.5 - 3.3:1 | | Projection Size | 30 - 200" / 76.20 - 508.00 cm | | | | Keystone Correction | Vertical: ± 40°
Horizontal: ± 40° | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x Ethernet (RJ45) LAN (Input/Output)
1 x M3 Audio (Output)
1 x USB Video (Output) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Lamp Power | 36 W | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 36 dB
Low Brightness: 30 dB | | Power Consumption | Full Brightness: 125 W
Standby Mode (Lamp Off): 0.3 W Standby Mode Set to Network: 6 W
Standby Mode Set to Normal: 11 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 - 80% | | Dimensions (W x H x D) | 8.7 x 5.9 x 8.1" / 22.0 x 15.0 x 20.5 cm | | Weight | 7.1 lb / 3.2 kg approximately |
