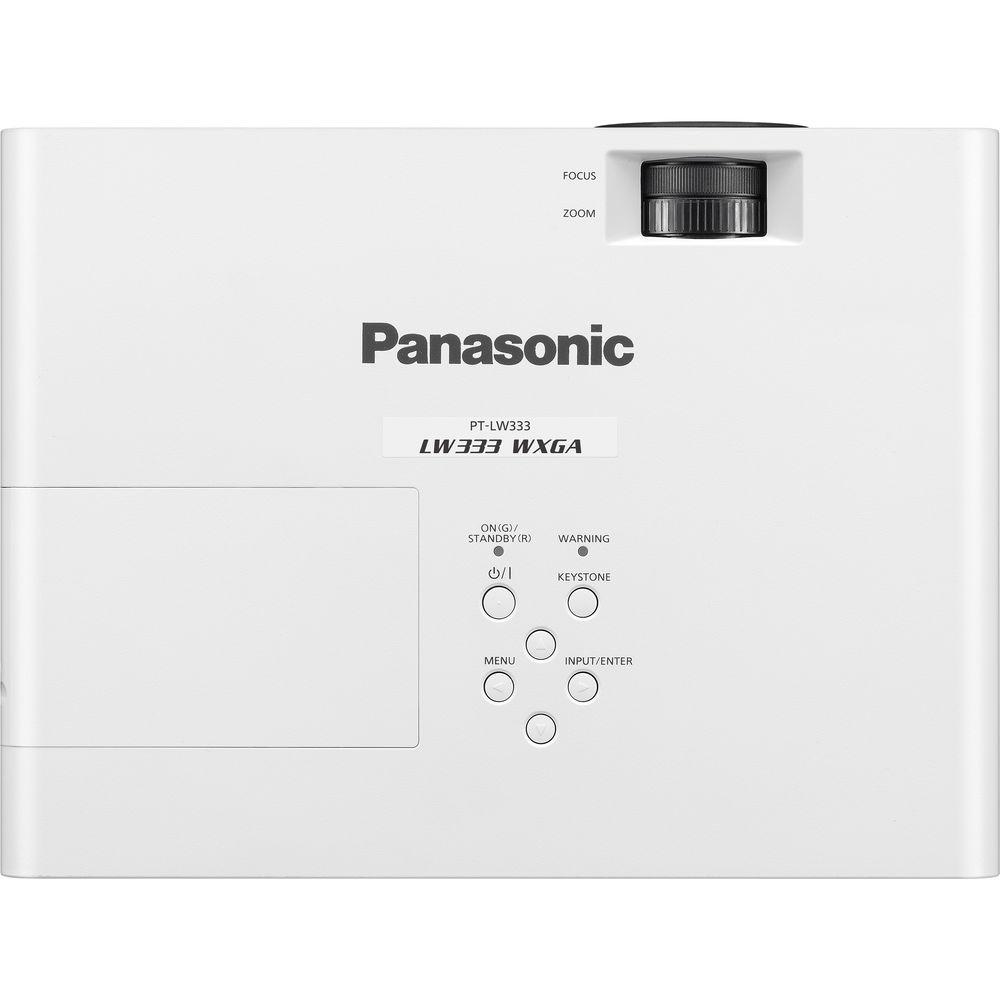

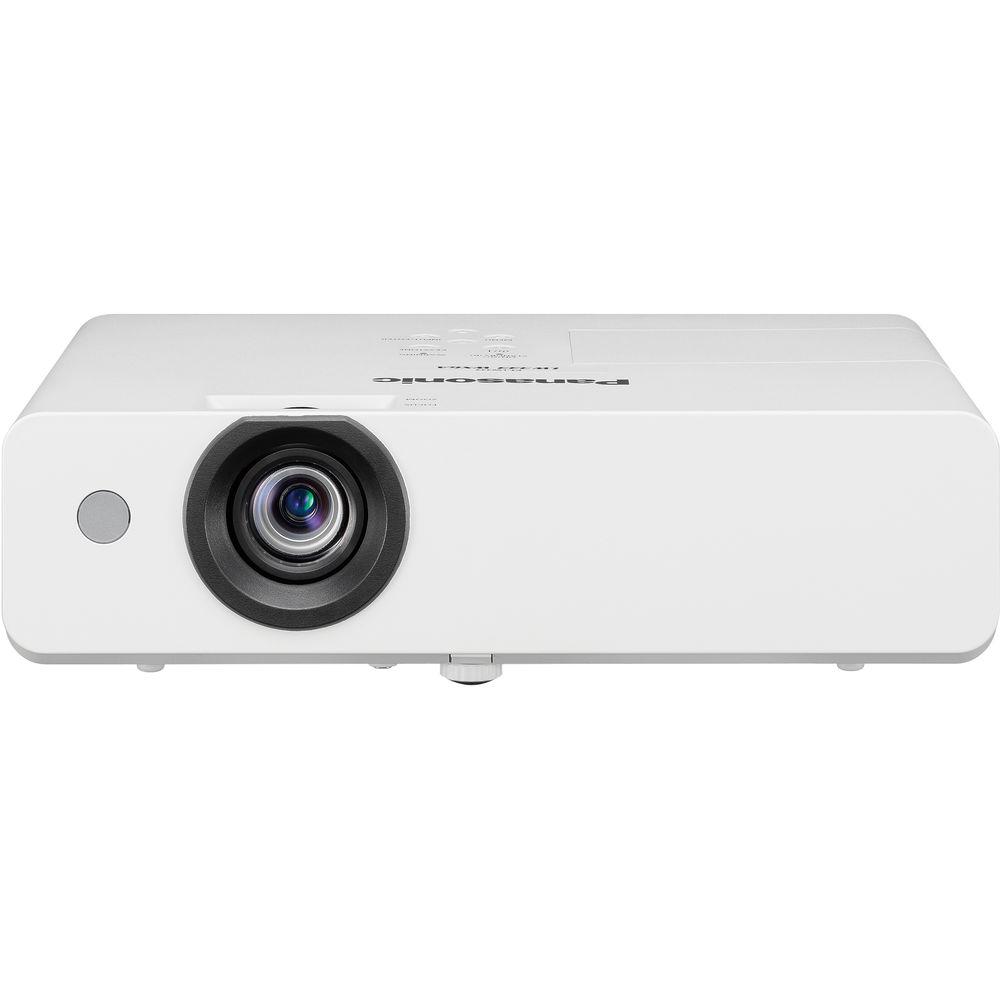

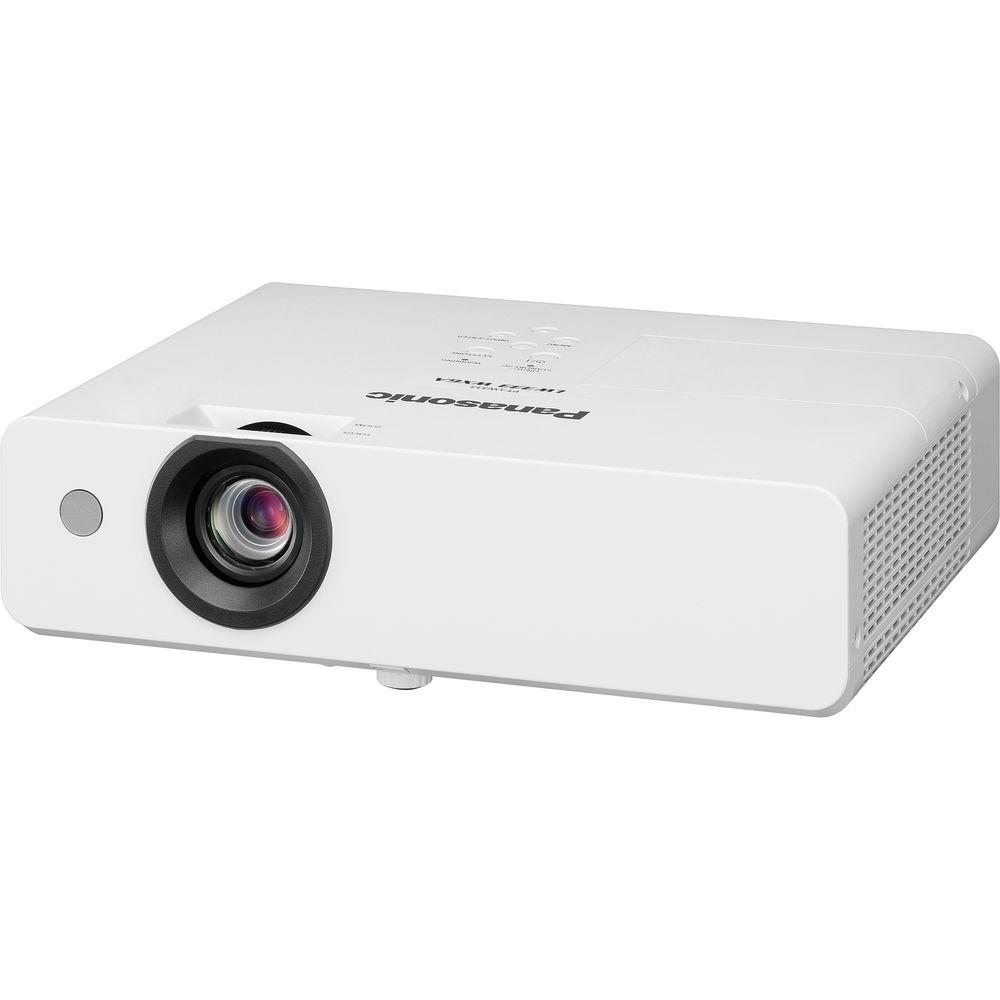

User Manual for Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description New Panasonic Projectors to Brighten Up Your Presentation Read More zdabqxff Enjoy bright images in many everyday settings with the Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector. Its 3100 lumens of brightness and 16,000:1 dynamic contrast ratio will work together to overcome light in moderately bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WXGA native resolution for viewing detailed video, pictures, or data. The projector's 1.47 to 1.77:1 throw ratio offers a wide range of throw distances for focused images.
The PT-LW333U features HDMI, RCA composite video, and two VGA inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice. The projector is controllable via the included remote control, Ethernet, or RS-232 with various control software options. Designed for Brilliant Performance in a Compact Body - 3100 Lumens of Brightness and High Dynamic Contrast
- With 3100 lumens of brightness and a 16,000:1 dynamic contrast ratio, this projector will produce an easy-to-see image in many lighting conditions.
- Bright Images in Artificial Light
- Daylight View Lite uses sensor information to enhance the color and brightness according to ambient light levels. This function is conveniently accessed using the included remote control.
- Low-Noise Operation Minimizes Distractions
- With an operating noise as low as 28 dB in Eco2 Mode, distractions due to a loud internal fan are reduced.
- Low Maintenance Helps Reduce TCO
- Select a lamp power mode to suit your presentation style and efficiency requirements to achieve high performance at a lower cost. Lamp and filter replacement timing is the same in any mode, helping to further streamline maintenance procedures.
Setup and Management Ease - Corner Keystone Correction for Angled Projection
- If on-site conditions require off-center projection, simply designate four screen corners, and Horizontal and Vertical Corner Keystone Correction performs the necessary adjustments to minimize distortion in your image.
- Curved Screen Correction
- Curved Screen Correction is designed to easily correct barrel and pincushion distortions when projecting onto a curved surface.
- 1.2x Zoom Adds Versatility
- The PT-LW333U has a 1.2x zoom lens to support a variety of throw distances. This is useful when presenting in rooms of different sizes.
- Multi-Projector Monitoring Capability
- In fixed installations, the Multi Monitoring and Control Software helps make management of multiple projectors easy from a single computer. The integrated wired LAN port supports the PJLink protocol, while the serial port is RS-232C compatible for remote control.
- Designed for Simple Lamp and Filter Replacement
- The lamp and filter are accessed via panels on the top and side of the projector, expediting periodic maintenance, even with the projector attached to a ceiling-mount bracket.
Practical Features Help Simplify Daily Usage - Memory Viewer Function
- Insert a USB memory device into the USB port and start projecting content without connecting a computer.
- USB Display Function Projects Media over a USB Cable
- Transmission of A/V content via a Windows computer to the projector is supported over a USB cable with the USB Display Mode.
- HDMI and VGA Inputs
- Transmit Full HD video using the HDMI input, or view computer graphics through either of the two VGA inputs. A VGA output is also onboard.
- Project Wirelessly with an Optional Module
- Project media wirelessly from a computer using Presenter Light or a compatible third-party application for iOS and Android devices. Just connect the optional ET-WML100 Wireless Module to the projector's USB input.
- Presenter Light Ver.1.0 for Windows Computers
-
- Supports images, video, and documents such as PDF and PowerPoint
- Mirrors the computer screen through the projector
- Project media from up to four Windows computers simultaneously in Split Screen Mode
UPC: 885170304826 In the Box Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector Remote Control 2 x AAA Batteries Software CD-ROM RGB Signal Cable Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-LW333U 3100-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-LW333U Specs | | | Display System | 3-Chip 0.59" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3100 Lumens | | Uniformity | 80% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 16,000:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 85 Hz | | | | Focus | Manual | | Lens | f/2.1 - 2.25 (f = 19.11 - 22.94 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 2.9 - 35.9' / 0.884 - 10.942 m | | Throw Ratio | 1.47 - 1.77:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 30°
Manual-Vertical: ± 30°
Manual-Horizontal: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI with MHL Support Audio/Video (Input)
1 x USB Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Type-B Female (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 230 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 33 dB
Low Brightness: 28 dB | | Security | Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 300 W
Standby Mode (Lamp Off): 6 W
Standby Mode (Lamp Off): 0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 13.2 x 3.8 x 9.9" / 335.0 x 96.0 x 252.0 mm | | Weight | 6.4 lb / 2.90 kg Approximately | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 17.717 x 17.402 x 8.11" |
