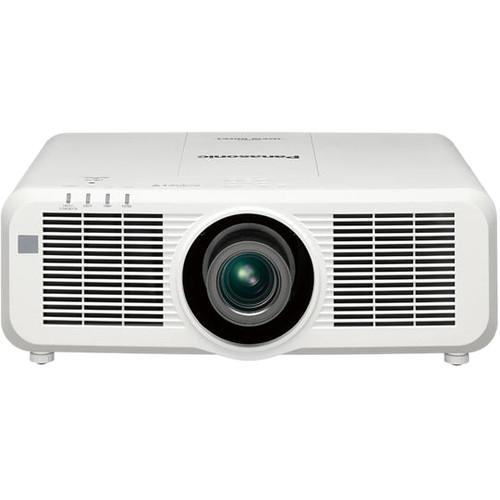

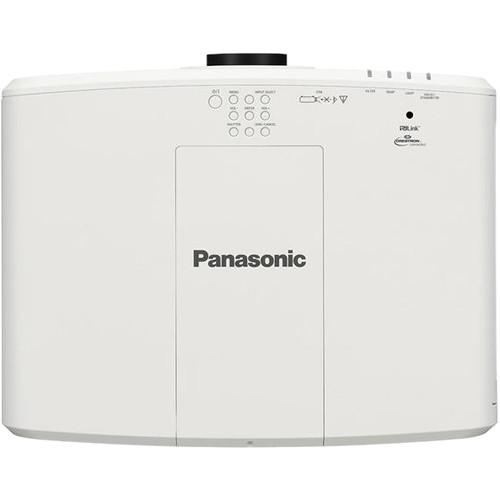

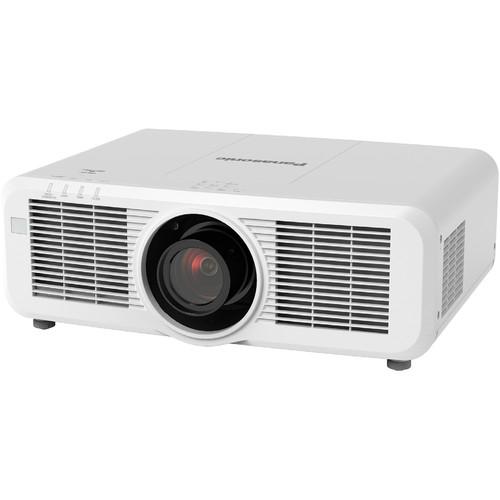

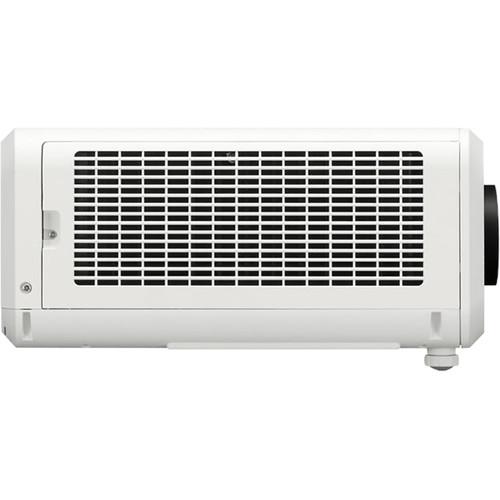

User Manual for Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Laser Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Laser
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most everyday settings with the Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Projector. Its 5500 lumens of brightness and 3,000,000:1 dynamic contrast ratio will work together to overcome light in moderately bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The projector's 1.7 to 2.8:1 throw ratio offers a range of throw distances for focused images.
The PT-MZ570U features 5BNC, VGA, RCA, and two HDMI inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice, and the VGA input output enables daisy-chaining of multiple projectors or displays. The projector is controllable via the included wireless/wired remote control, Ethernet, RS-232, or DIGITAL LINK with various control software options. - Picture Quality Features
-
- SOLID SHINE laser phosphor drive with 3LCD optical engine helps provide bright, vivid, detailed images
- Brightness of up to 5500 lumens
- Dynamic contrast ratio of 3,000,000:1 helps ensure legible text and enhanced picture quality thanks to the laser light source and WUXGA native resolution
- Detail Clarity Processor 4 helps enhance image clarity and sharpness
- Daylight view basic helps provide clear and crisp images in bright environments
- DICOM Simulation Mode for medical presentations
- Color adjustment function corrects color variations in multiple-projection
- Low Maintenance & ECO Features
-
- Continuous operational period for the laser light source up to 20,000 hours
- Inorganic LCD panel and polarizing plate help maintain image quality over time
- Estimated maintenance time for the reusable filter is up to 20,000 hours
- One-way airflow design enhances lens assembly sealing to reduce dust intrusion
- Dust-resistant cabinet improves sealing of filter module and air-intake duct
- ECO management system designed to help reduce power consumption
- System Flexibility Features
-
- DIGITAL LINK supports transmission of uncompressed Full HD video, audio, and control commands over a single CAT 5e or higher STP cable for distances up to 492'
- Powered lens shift, zoom, and focus via the included remote control
- Corner keystone and curved screen correction

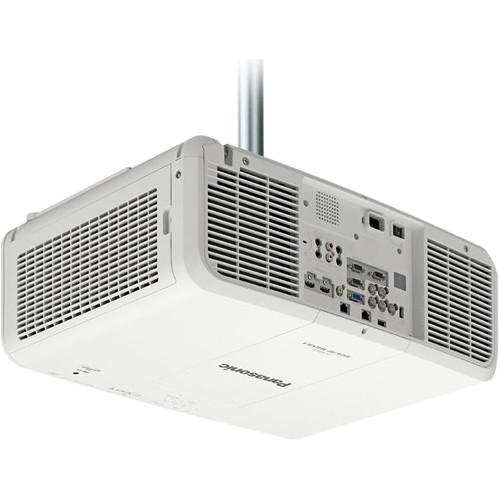

- 360° projector cabinet rotation
- Various lens options to suit multiple rooms and applications
- Network function via LAN for remote operation
- Supports multi-monitoring and free control software
- Wireless projection possible with the optional ET-WM300 wireless adapter
UPC: 885170321847 In the Box Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Laser Projector Wireless/Wired Remote Control 2 x AAA Batteries Power Cord Power Cord Holder Limited 3-Year Warranty on Projector Limited 3-Year or 10,000-Hour Warranty on Illumination Parts, Whichever Comes First Limited 30-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-MZ570U 5500-Lumen WUXGA 3LCD Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-MZ570U Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 5500 Lumens | | Uniformity | 90% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 3,000,000:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 100 Hz | | | | Focus | Manual Powered | | Lens | f/1.7 - 2.3 (f = 26.9 - 45.5 mm) | | Lens Shift | Vertical: ± 67%
Horizontal: ± 35% | | Optical Zoom | Powered: 1.69x | | Throw Ratio | 1.7 - 2.8:1 | | Projection Size | 40 - 400" / 1.02 - 10.16 m | | | | Keystone Correction | Vertical: ± 30°
Horizontal: ± 25° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x 5BNC Video Input
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Service, Video Input
1 x Composite (RCA) Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 2RCA Audio Input
2 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control Input
1 x DE-9 Control Input
1 x 1/8" (3.5 mm) Mini Control Input
1 x Ethernet (RJ45) LAN Input
1 x USB 2.0 (USB Type-A) Audio, Data, Video Input
1 x USB 2.0 (USB Type-A) Power Output | | Memory Card Slot | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 33 dB
Low Brightness: 28 dB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 20 - 80% | | Dimensions (W x H x D) | 22.0 x 8.1 x 17.4" / 560.0 x 205.0 x 443.2 mm With included lens | | Weight | 35.3 lb / 16.0 kg Approximate | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 40.0 x 23.0 x 14.0" |
