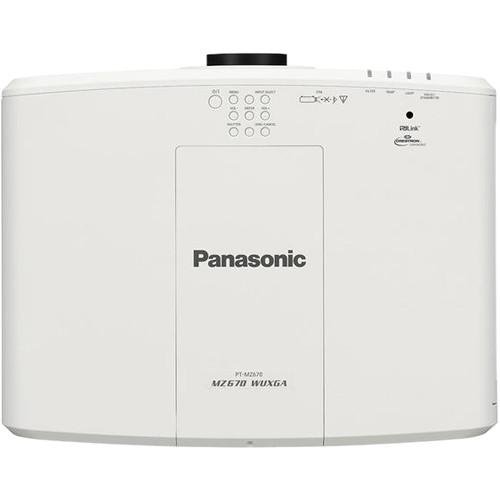

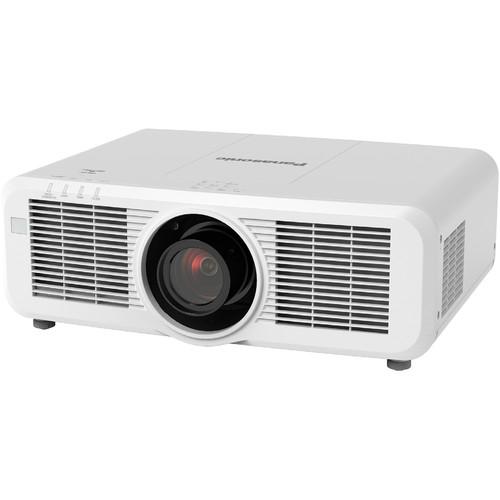

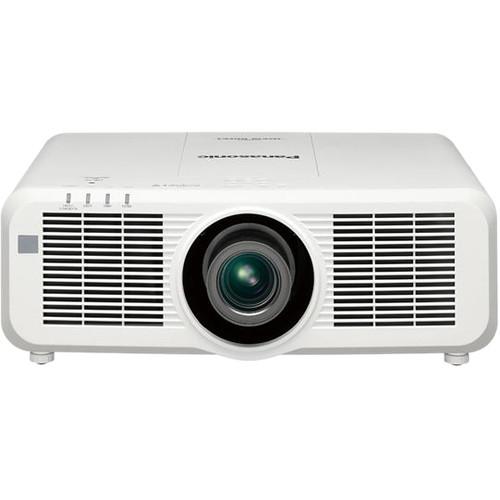

User Manual for Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most everyday settings with the white Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD Projector. Its 6500 lumens of brightness and 3,000,000:1 dynamic contrast ratio will work together to overcome light in moderately bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. This projector uses separately sold lenses with varying throw ratio and zoom options to provide enhanced installation flexibility.
The PT-MZ670LU features 5BNC, VGA, RCA, and two HDMI inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice, and the VGA output enables daisy-chaining of multiple projectors or displays. The projector is controllable via the included wireless/wired remote control, Ethernet, RS-232, or DIGITAL LINK with various control software options. Picture Quality - Engineered to Provide Vivid Images in Bright Environments
- The SOLID SHINE laser phosphor drive with LCD optical engine helps project bright, vivid, detailed images, even in rooms with high levels of artificial light, reproducing text clearly and legibly while retaining color saturation and contrast in graphics.
- High Dynamic Contrast Ratio for Natural Image Expression
- Laser power output modulation helps the projector achieve a high dynamic contrast ratio of up to 3,000,000:1 for enhanced expression of light and dark scenes to produce a more natural viewing experience.
- Daylight View Basic Optimizes Images in Bright Spaces
- Daylight View Basic enables the projector to deliver clear and sharp images by enhancing detail, particularly in dark areas of the image, that are difficult to see in brightly lit rooms. A sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness to suit surrounding light levels.
- Detail Clarity Processor 4
- This circuitry is designed to analyze individual video frames to help clarify areas of each image containing fine details. Algorithms then pull information from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for enhanced image clarity.
- Color Adjustment
- Color Adjustment helps make it easy to correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configurations. Correction is performed on either three or seven colors.
Low-Maintenance Design - No Light Source Replacement for up to 20,000 Hours
- The laser light source can last up to 20,000 hours, cutting running costs, labor, and waste compared to lamp-based projectors. By reducing the use of consumable parts, organizations can also streamline spare part inventories.
- ECO Management System with Intelligent Light Source Control
- Energy efficiency is enhanced by automatically reducing light source output power in dim rooms and by transitioning to a low-power mode when no signal is detected.

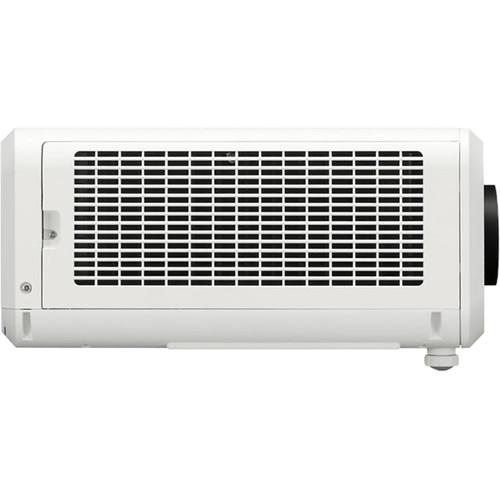

- Dust-Resistant Cabinet with a One-Way Airflow Design
- The dust-resistant cabinet features an unobstructed one-way airflow design with hermetic sealing around the filter module and air-intake duct.
- Reusable Eco Filter
- The Eco Filter includes a Micro Cut Filter engineered to collect minute dust particles with an electrostatic effect. Together with the dust-resistant projector cabinet, the Eco Filter enables long-term use in dusty conditions with less downtime. Filter replacement is scheduled for roughly 20,000 hours, and the filter can be washed and reused.
System Flexibility - Powered Lens Shift, Zoom, and Focus
- The wide adjustment range of the powered horizontal/vertical lens shift function helps enhance convenience and versatility during installation. Powered zoom and focus are controlled with the included remote control; a lens is required and sold separately.
- Auto Image Rotation

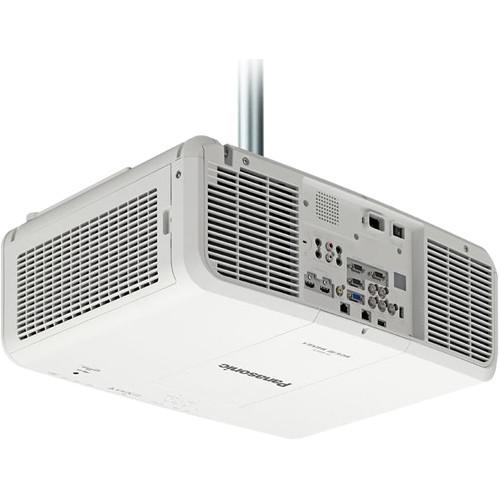

- Images are automatically rotated, depending on whether the projector is suspended from a ceiling or placed on a table, using a built-in angle sensor.
- Designed for Quiet Operation
- The projector can keep noise levels as low as 26 dB in Quiet Mode, helping to minimize distractions during presentations.
- Single-Cable DIGITAL LINK Connection for A/V and Control Signals
- Based on HDBaseT technology, DIGITAL LINK supports transmission of video, audio, and control commands over a single Cat 5e or higher STP cable for distances up to 492'.
- Optional Wireless Projection Module
- The optional ET-WM300 wireless module supports media projection from Windows and Mac computers, and iOS and Android devices with an appropriate app installed, mitigating the need for cables and supporting a variety of file formats. Insert a USB memory device into the projector's USB terminal and in a moment, a configuration setting file and application are copied. Plug the USB memory device into your computer, click the player icon, and transmit video and still images wirelessly to the projector with no software or network setup required.
- Multi Monitoring & Control Software
- Panasonic Multi Monitoring & Control Software supports up to 2048 devices over LAN and features system map visualization or auto-search of devices to be registered. This free software enables real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve virtually seamless control and real-time monitoring while preventing potential problems, saving time and enhancing system reliability.
- Quick Start and Quick Off
- The laser light source doesn't require any time to warm up, so images appear almost instantly on the screen. There's also no cool-down needed when turning the power off, making it safe to switch the projector on and off whenever you want.
- Fade In and Fade Out
- Laser output modulation also enables a Fade In/Fade Out function, which allows you to commence or conclude your presentation with a professional look.
- Additional Features
-
- Free 360° installation for flexible projection from nearly any angle
- Screen adjustment functions for complex screen surfaces
- Data cloning via USB or LAN
- DICOM Simulation Mode
- Compatible with PJLink (Class 2), Crestron Connected, EXTRON XTP, and AMX Device Discovery
- Direct power off
- Audio Standby Mode
- Scheduling function
- Smart projector control
- Presentation support function
- Supports Panasonic LinkRay
- Class 3R laser diodes
- Active matrix drive method
- Molded plastic & ABS cabinet
UPC: 885170321816 In the Box Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD Projector (White, No Lens) Wireless/Wired Remote Control 2 x AAA Batteries Power Cord Power Cord Holder Limited 3-Year Warranty on Projector Limited 3-Year or 10,000-Hour Warranty on Light Source, Whichever Comes First Limited 30-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-MZ670LU 6500-Lumen WUXGA Laser 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-MZ670LU Specs | | | Display System | 3-Chip 0.76" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 6500 Lumens | | Uniformity | 90% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 3,000,000:1 | | | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDBaseT (RJ45) Audio, Control, Video Input/Output
1 x 5BNC Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x RCA Video Input
1 x 2RCA Audio Input
2 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (USB Type-A) LAN Input
1 x Ethernet (RJ45) LAN
1 x DE-9 Remote Input
1 x DE-9 Control Input
1 x 1/8" (3.5 mm) Mini Remote Input | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 26 dB | | Security | Cable Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 525 W | | Max Operating Altitude | 8858' / 2700 m | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 20 - 80% | | Dimensions (W x H x D) | 22.0 x 8.1 x 16.9" / 560.0 x 205.0 x 428.0 mm | | Weight | 35.5 lb / 16.10 kg Approximately | | | | Package Weight | 51.05 lb | | Box Dimensions (LxWxH) | 30.4 x 23.3 x 14.0" |
