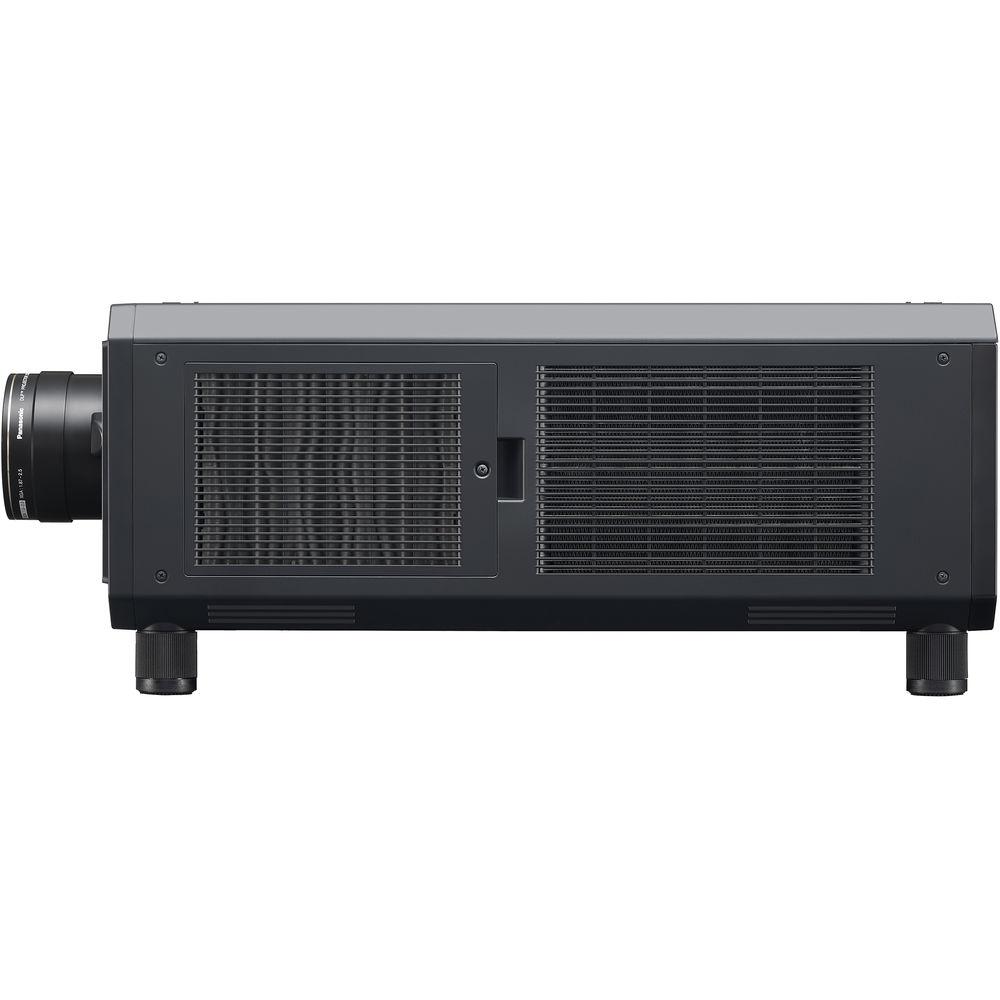

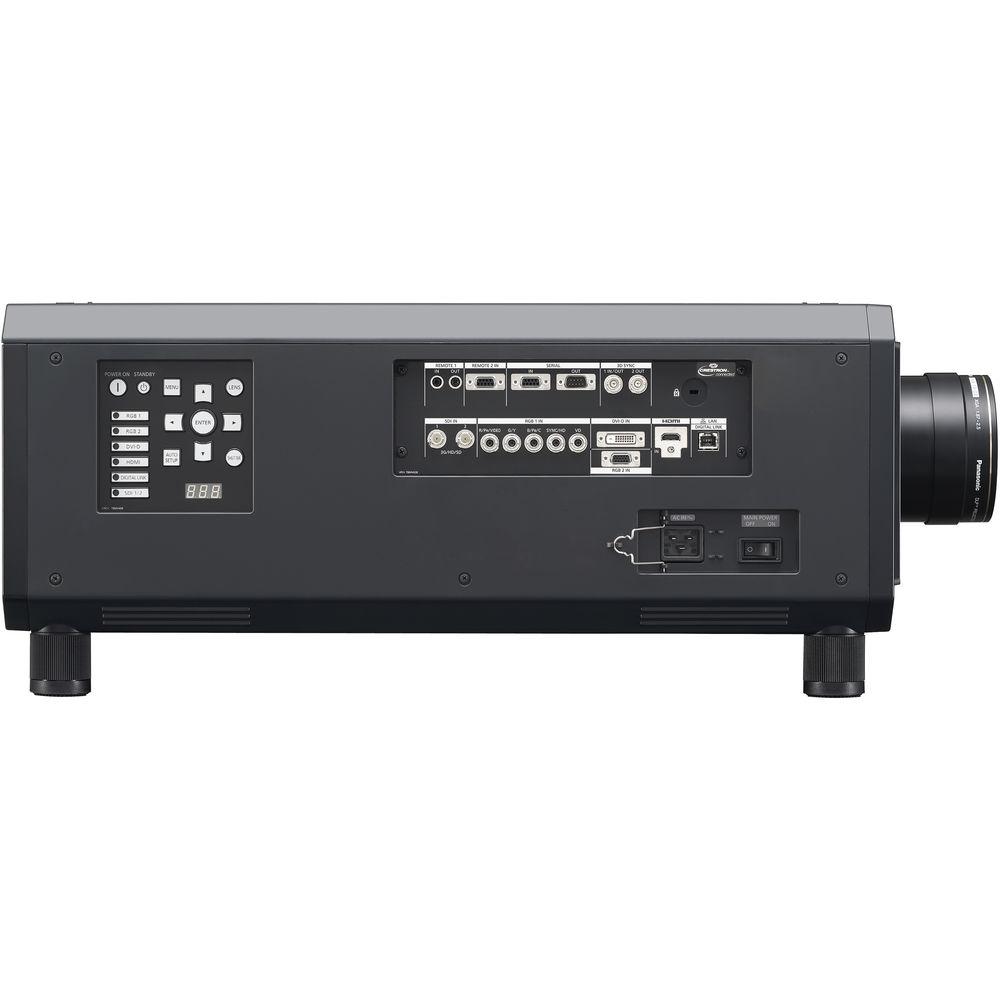

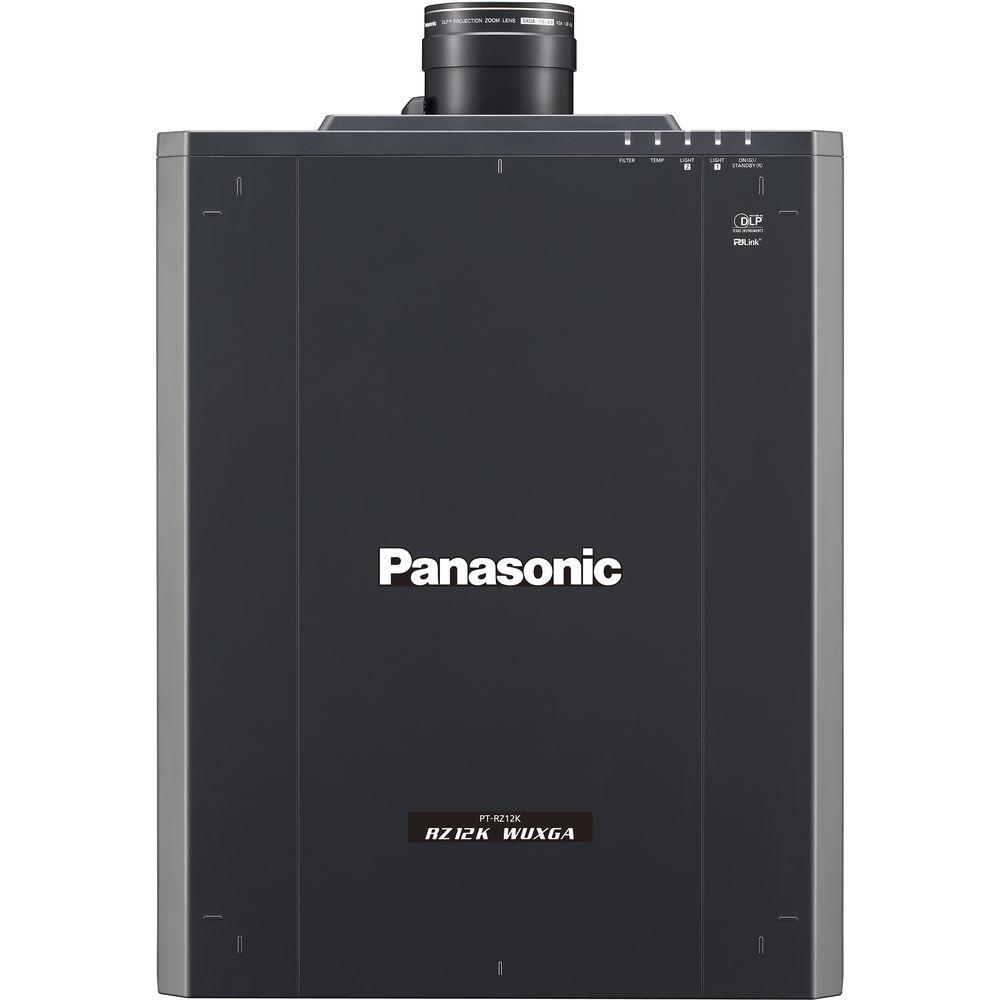

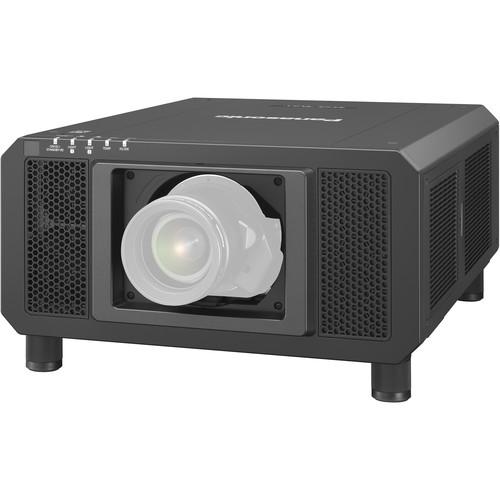

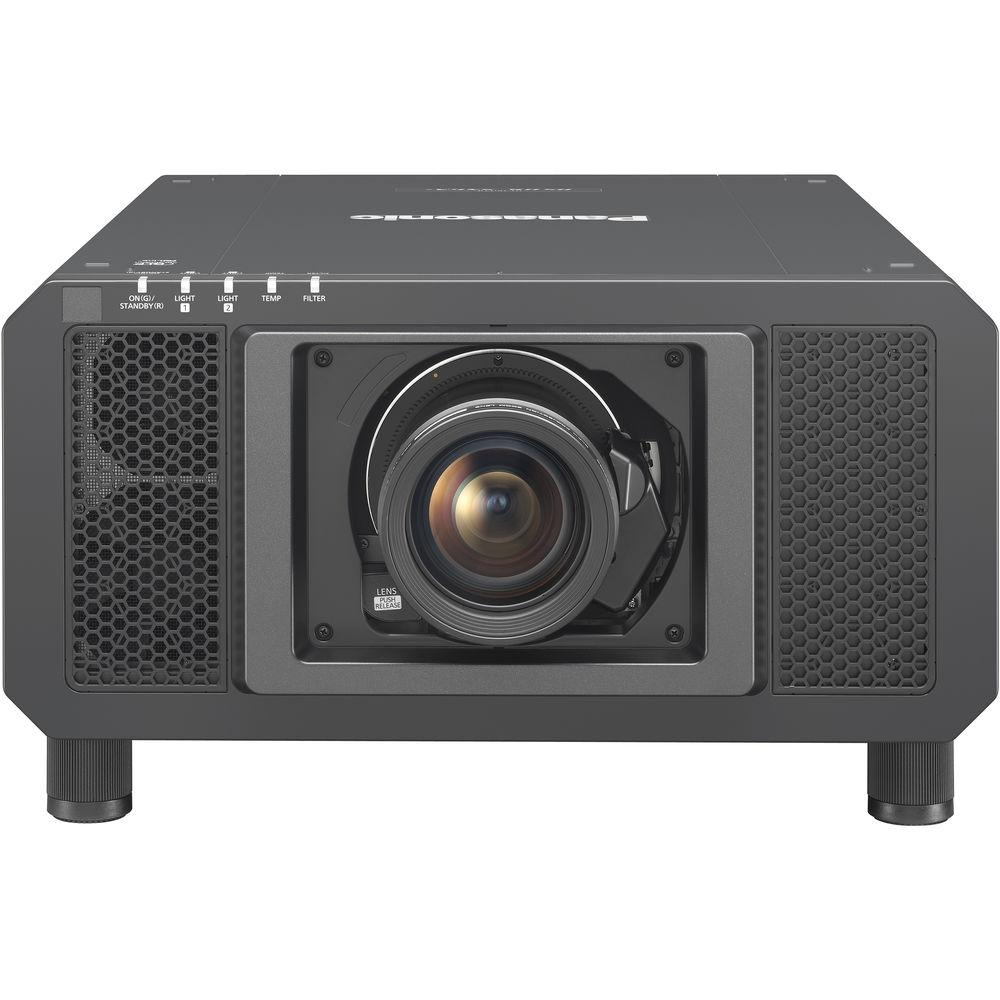

User Manual for Panasonic PT-RZ12KU WUXGA 3-DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-RZ12KU WUXGA 3-DLP Projector
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-RZ12KU WUXGA 3-DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The PT-RZ12K WUXGA 3-DLP Projector from Panasonic offers WUXGA (1920 x 1200) resolution, 12000 lumens of brightness, and features long lamp replacement cycles of up to 20,000 hours. These features make this projector great for large-venue applications. Its real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction. Dynamic contrast achieves 20,000:1 contrast ratio by controlling laser light. This projector has System Daylight View 3 for enhanced color performance in bright rooms and mapping applications, and DICOM Simulation Mode for medical presentations and training. Its liquid cooling system, along with a highly efficient quad-lamp system, reduces operational noise. Rec. 709 Mode reproduces colors accurately for HDTV projection. - Consistent color reproduction with no image deterioration over time
- Laser light source engine allows 24/7 operation
- Dust-resistant optical block
- Wide powered lens-shift range
- Vertical, horizontal, and 360-degree tilting projection enabled by laser light source
- Multi-screen support seamlessly joins screens with edge blending, color matching, and multi-screen processing
- Geometric adjustment for projection on curved or spherical surfaces
- Multi-unit brightness control
- Compatible with Panasonic's Multi-Projector Monitoring and Control Software
- Single-cable DIGITAL LINK connection transmits video, audio, and control signals up to 328'
- Compatible with Art-Net DMX lighting control protocol
UPC: 885170246683 In the Box Panasonic PT-RZ12KU WUXGA (1920 x 1200) 3-DLP Projector (No Lens) Power Cord with Secure Lock Wireless/Wired Remote Control Unit 2 x R6/AA Batteries Logo Transfer Software Multi-Projector Monitoring and Control Software Limited 3-Year Warranty on Projector Limited 90-Day Warranty on Lamps Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-RZ12KU WUXGA 3-DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-RZ12KU Specs | | | Display System | 3-Chip 0.96" DLP | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 12,000 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:10 | | Contrast Ratio | 20000:1 | | | | Keystone Correction | Vertical: ± 40°
Horizontal: ± 15° | | | | Inputs/Outputs | 2 x Composite (BNC) Video (Input)
1 x 5BNC Video (Input)
1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x Unspecified Signal (DE-9) Control (Input)
1 x Unspecified Signal (DE-9) Control (Output)
1 x M3 Control (Input)
1 x M3 Control (Output)
1 x Unspecified Signal (DE-9) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | AC Input Power | 240 VAC, 50 Hz | | Max Operating Altitude | 8858' / 2700 m | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 10 - 80% | | Dimensions (W x H x D) | 22.8 x 10.6 x 28.0" / 578.0 x 270.0 x 710.0 mm without lens | | Weight | 94.80 lb / 43 kg without lens |
