Product description

Flexible Installation Options

Portrait and 3D Projection Modes
• By mounting it with an optional compatible ceiling mount, the image can be displayed in portrait orientation. You can even line up several portrait projection screens vertically, with the edges blended, to create a single, tall screen. 3D projection using active shutter glasses is also possible. A 3D system can be configured by connecting an additional 3D IR transmitter to the projector's 3D SYNC OUT terminal.

Multi-Screen Installations Supported
• Edge Blending allows the edges of adjacent screens to be blended and their luminance is controlled. Color Matching is designed to correct for slight variations in the color reproduction range of individual projectors.

Multi-Unit Brightness Control
• This function automatically corrects the brightness fluctuations that can occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2048 projectors by using Multi Projector Monitoring & Control Software.

2x Zoom Lens
• For a 120"-diagonal widescreen, the projection distance extends from approximately 12.8' to 25.7'.

Horizontal and Vertical Lens Shift
• The lens shift range can accommodate various room sizes and shapes. When lights or ventilation holes are in the way, you can simply relocate the projector to avoid them.

Lens-Centered Design
• The lens-centered, symmetrical design helps provide ease of installation by eliminating the need for any special considerations when planning the installation site.

360° Installation
• The PT-RZ470UW can be rotated vertically, allowing you to install it at any up/down angle you want, accommodating different installation conditions.

Additional Features

Combination LED/Laser Light Source
• With no need to replace the light source or air filter, the PT-RZ470UW is designed to provide enhanced reliability and brightness for up to 20,000 hours of use, reducing the total cost of ownership.

Quick Start, Quick Off
• The image appears almost instantly upon powering up, and there is no need for cooling after turning the power off. The power can be turned on immediately after being turned off, and it can be turned on and off as often as you want.

Dust-Resistant Structure with an Airtight Optical Block
• The area between the LED/laser, DLP chip, and prism is hermetically sealed to form an airtight structure for the optical block to resist the effects of dust and other particles in the air, enabling use of the projector in a wide range of environments.

Daylight View Basic Helps Ensure Visibility in Bright Rooms
• Panasonic's Daylight View Basic technology is designed to produce sharp, easy-to-see images with detail in dark image areas by using a built-in sensor to measure the ambient light and adjusting the halftone color and brightness level according to the surrounding illumination.

30x Drive Switching Prevents Color Breaking
• Color breaking is a condition in which incorrect color expression causes color flickering. The PT-RZ470UW uses on/off switching of the LED/laser-combined light source in tandem with a power supply circuit which uses time-division multiplexing with a 30x drive to create images with virtually no color breaking.

Heat Pipe Cooling System Maintains Stable Operation
• Laser cooling is performed by releasing the heat to cooling fins, then cooling with a heat pipe cooling system, suppressing temperature rises inside the projector and allowing stable operation up to an ambient temperature of 113°F. This cooling system also helps achieve quiet operation of 29 dB, enabling viewers to concentrate on the presentation or movie.

DICOM Simulation Mode
• DICOM Simulation Mode is similar to DICOM part 14, a medical imaging standard, helping to reproduce X-ray images with augmented clarity.

Rec. 709 Mode for HDTV Projection
• Enhanced color reproduction can be achieved with Rec. 709 Mode for images from an HDTV source.

Multiple Connectivity Options

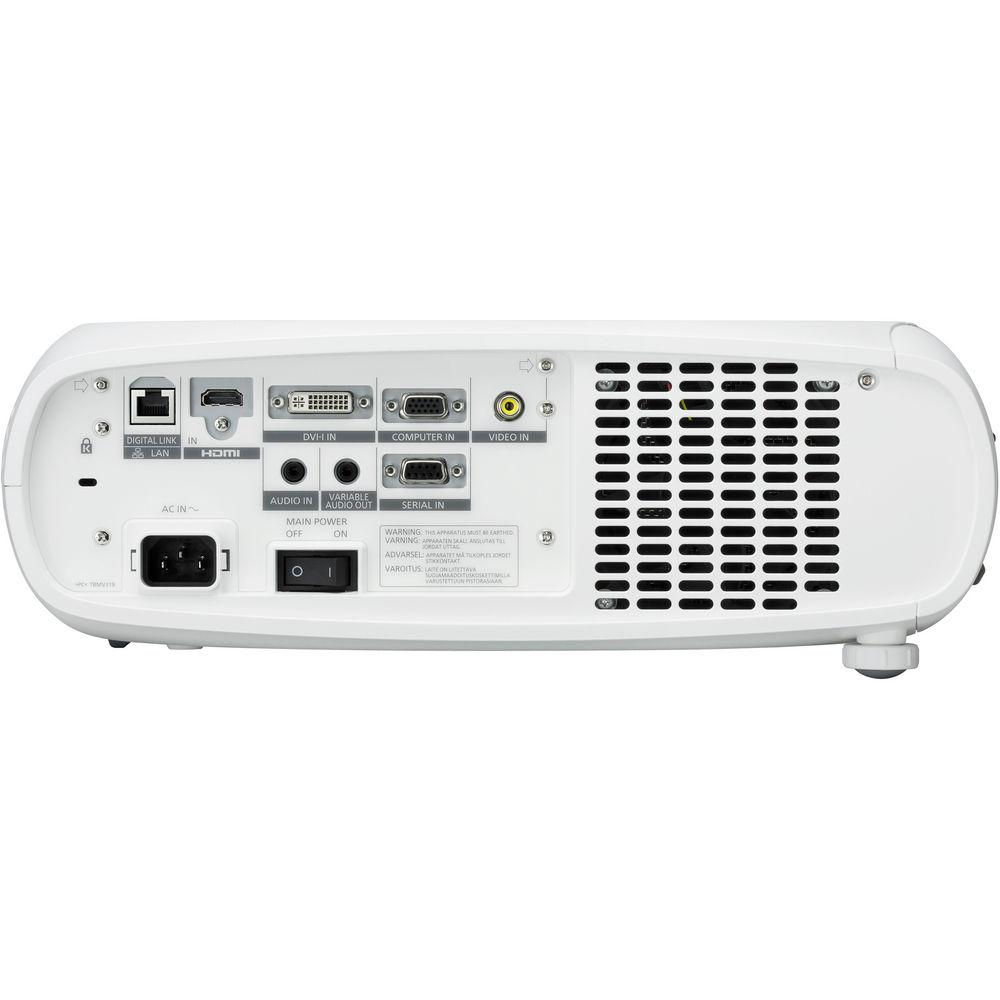

• Interfaces include HDMI and DVI-I inputs. The RS-232C serial terminal has an Emulate function that lets you continue using existing control systems when replacing previous Panasonic models. You can also output audio during Standby mode, a convenient feature when connecting an external audio system through the projector. A closed caption decoder is also built-in.

Remote Monitoring and Control via LAN
• The web browser on your computer connected through a LAN lets you remotely operate projectors and check their status. An email messaging function can also notify you of the projector's overall status. Multi Projector Monitoring and Control Software is also available to allow you the same levels of monitoring and control on multiple compatible Panasonic projectors from a single computer. The projector's LAN terminal is compatible with PJLink (class 1), an open protocol used by many manufacturers, to enable integrated control of systems that contain different brands of projectors. You can also control the PT-RZ470UW with Crestron RoomView via its LAN port.

24/7 Operation
• Thanks to the LED/laser light source and heat pipe cooling system, the PT-RZ470UW is capable of 24/7 operation.

Scheduling Function
• Scheduled operation is possible using the built-in timer function without the need for a computer and software.

Security Features
• You can change the default Panasonic start-up logo to any logo you want. A new logo can be uploaded by connecting the projector to a computer through the LAN or serial connection with the Logo Transfer Software. Other security measures include a key lock, security bar, and security password.

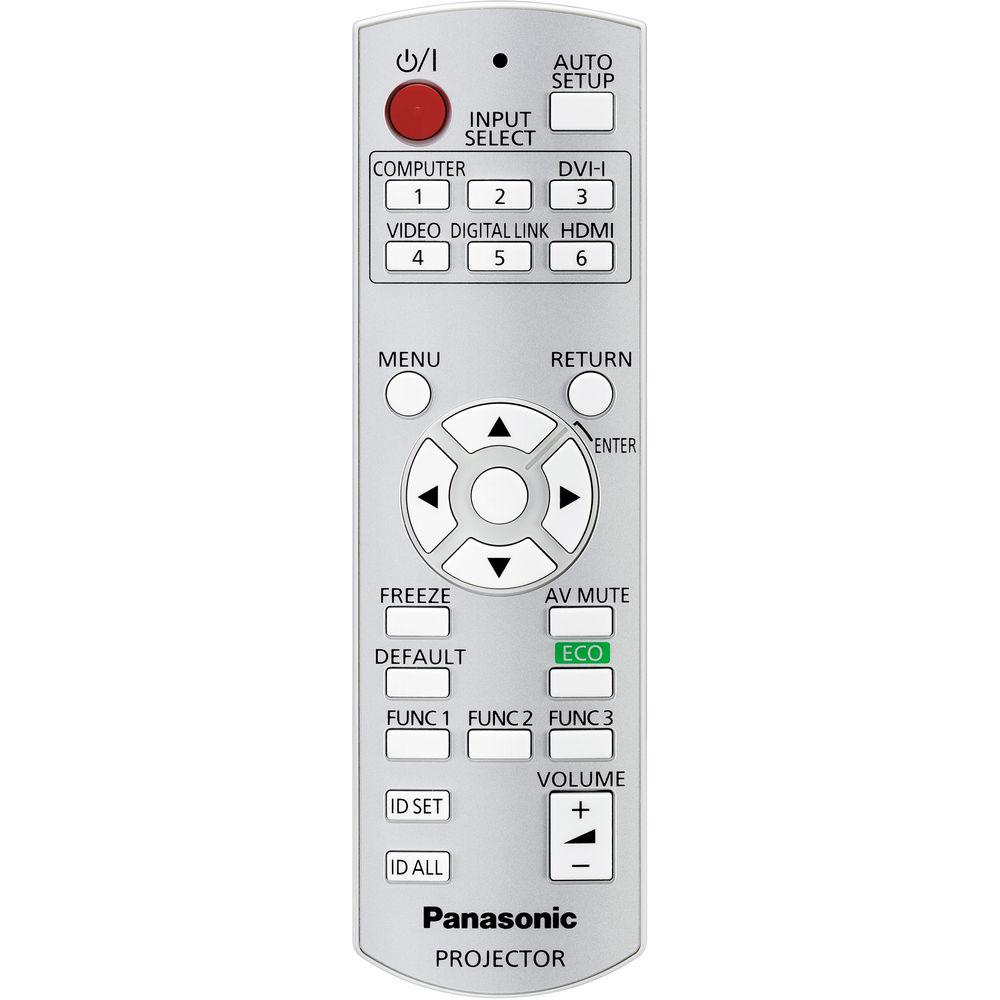

49'-Range Remote Control
• A unique ID number can be assigned to each projector using the supplied remote control, allowing operation of a specific projector when multiple units are set up at the same location. Three frequently used functions can be assigned to the Function buttons for instant recall.

Eco Management Functions

Selectable Light Source Modes
• • Normal: Prioritizes brightness
  • EcoSave 1: Reduces power consumption by approximately 20% on average while leaving brightness almost unchanged
  • EcoSave 2: Minimizes brightness reduction while reducing power consumption by approximately 30% on average
  • Low: Prioritizes low power consumption

Additional Eco Features
• • The projector can adjust the brightness according to ambient light conditions, reducing the light source power
  • The PT-RZ470UW also reduces the light source power when there is no signal input or if it is in AV Mute Mode
  • RoHS compliant
  • No halogenated flame retardants are used in the cabinet
  • Non-coated cabinet for easy recycling
  • Lead-free glass is used for the lens
  • Standby power consumption of only 0.5W in STANDBY: ECO Mode
  • Auto Off Timer switches the projector to standby mode when no input signal is received for a preset time
