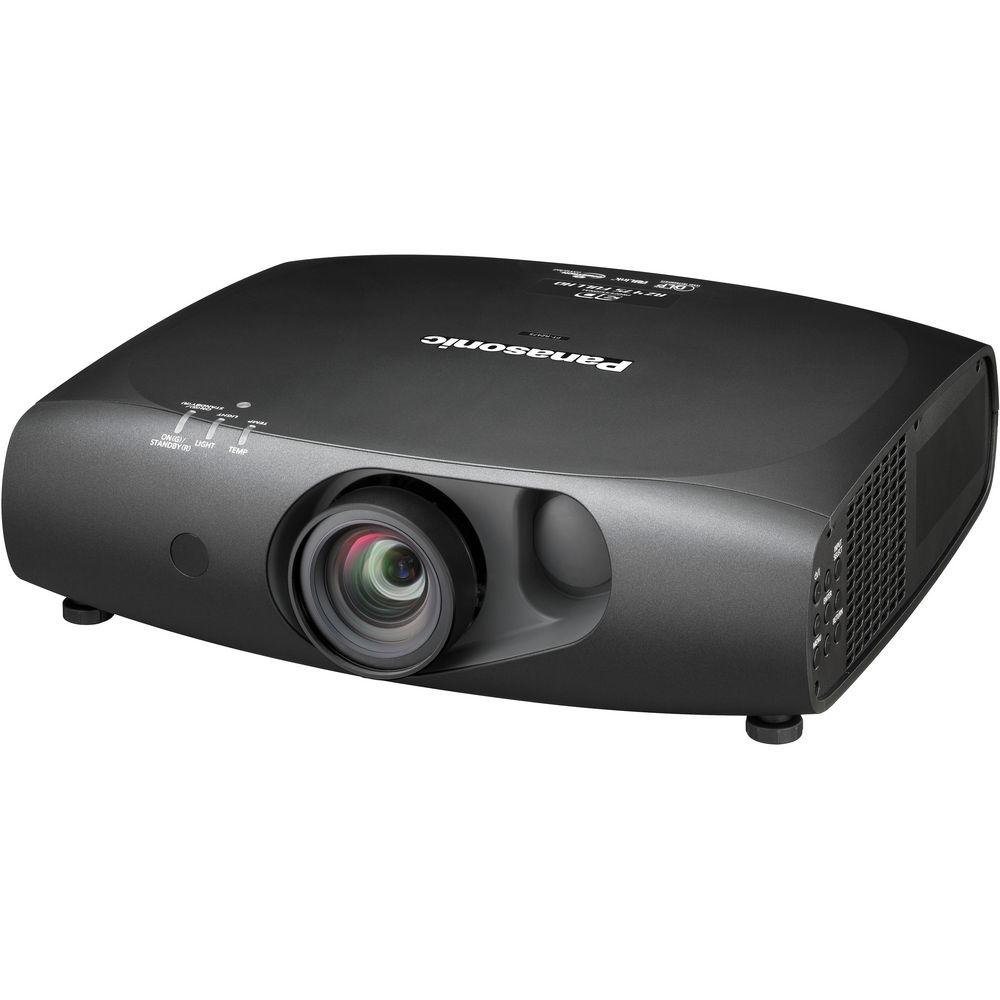

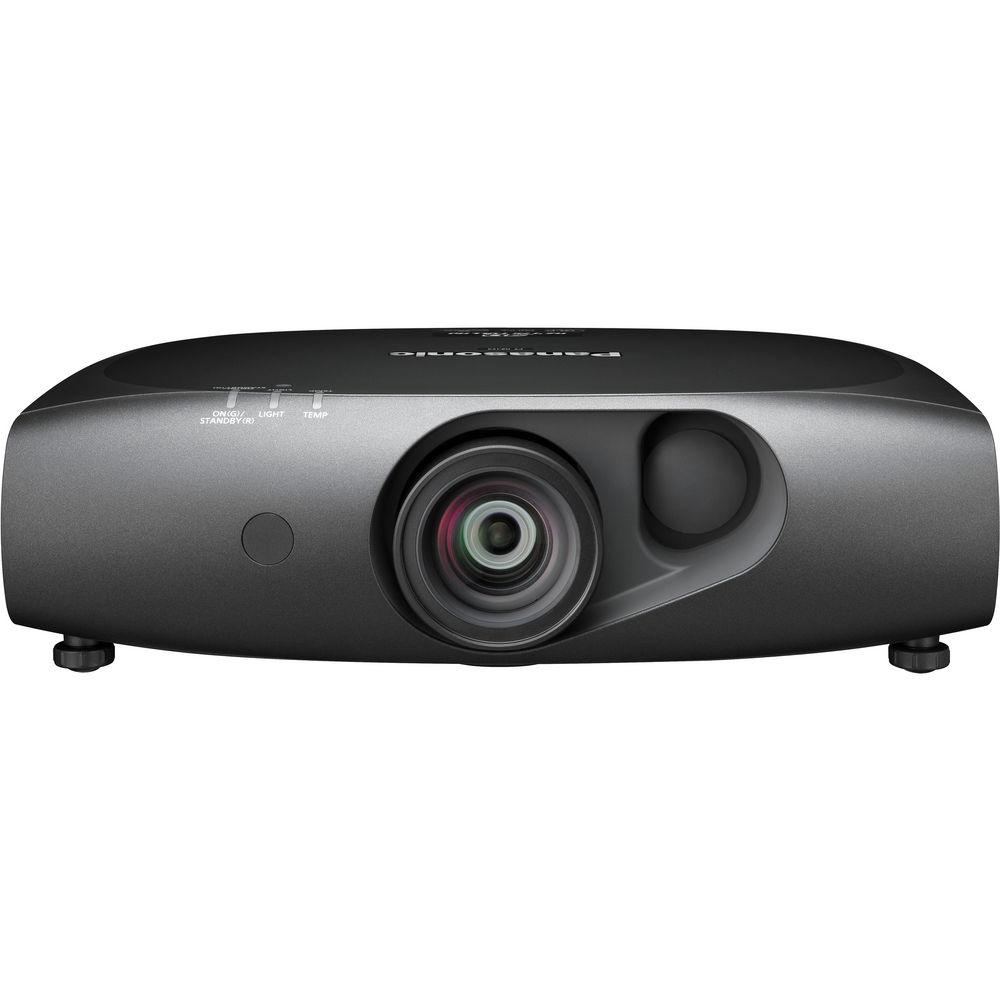

User Manual for Panasonic PT-RZ475 3000 Lumen Solid Shine Full HD 1-Chip DLP Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-RZ475 3000 Lumen Solid Shine
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-RZ475 3000 Lumen Solid Shine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The PT-RZ475 3000 Lumen Solid Shine Full HD 1-Chip DLP Projector from Panasonic is a solid-state projector requiring virtually no bulb replacement or filter cleaning. These features, alongside a simple and effective heat dissipation system, permit long-lasting, maintenance-free usage. Capable of running 24/7 continuously for a full ten years while maintaining the original brightness and picture quality, it is optimal for heavy-duty use. With no warm-up or cool-down periods, the RZ475 is ideal in educational institutions and training facilities requiring extensive uptime. Rear projection capability and the high-precision short-throw lens make it suitable for use in close quarters or smaller venues. The lack of an incandescent lamp precludes fading and yellowing, and the LEDs produce clear, beautiful pictures. Multiple-screen function, connectivity with other projectors, seamless image merging and portrait mode capability add further versatility to the projector. - LED & Laser-Diode Combined Technology Provides Continuous, Long-Lasting Operation
- The sealed optical block means a filter is not necessary. Running cost is lowered due to savings on lamps, maintenance, and labor.
- High Quality Picture Even with Continuous Operation for Long Periods
- Brightness deterioration rate in the LED/Laser-Diode combined light source is slow compared to lamp-based projectors. The Solid Shine drive uses a built-in sensor to constantly monitor the intensity of the light source and correct corresponding changes in white balance. This helps maintain excellent picture quality for long periods. 20,000:1 high contrast ratio remains constant even after prolonged operation, and images are reproduced with a wide dynamic range.
- Multi-Screen Support System
- Multiple projector linking enables larger screens for large venues or special applications. The digital processor control optimally adjusts multiple aspects of multi-screen projection, such as edge blending and color matching.
- Color Reproduction Without Color Breaking
- LED & LD (laser diode)-based light source produces higher level color purity than ordinary lamps, resulting in high-fidelity, vibrant color reproduction.
- Multi-Unit Brightness Control
- Automatically corrects brightness fluctuations between individual projectors when used as a multi-screen system. Up to eight connected projectors can be controlled via a hub, and can be increased to a maximum of 2,048 projectors using the Multi Projector Monitoring & Control software.
- Instant On, Off and Restart
- No-lamp technology means there is no downtime. The projector is always ready for immediate performance; no need for warm-up, cool-down and no waiting periods before restarting.
- Dust-Resistant Optical Block Housing
- The optical block, the heart of the projector, is hermetically sealed to resist the effects of dust and other particles in the air. There is no filter to replace and worry about.
- Remote Controlled Lens for Enhanced Installation
- Optimized for rear-projection, the focus and lens axis angle are controllable via remote, for easy adjustments without having to get behind the screen.
- Environmentally Friendly
- RoHS compliant
Stand-by power consumption of only 0.3 W
Lead-free solder used to mount components on the printed circuit boards
Auto Power Save activates standby mode when no signal is input
No halogenated flame retardants used in the cabinet
- Additional Features
-
- Digital Link
- 360-degree installation
- Normal/ECO1/ECO2
- 15 m range remote
- Custom startup logo
- Scheduling feature
- 30x Drive Switching
- DICOM Medical-application imaging system
- Daylight View
- Rec. 709 mode
UPC: 885170114616 In the Box Panasonic PT-RZ475 3000 Lumen Solid Shine Full HD 1-Chip DLP Projector Power Cord with Secure Lock Wireless Remote Control Unit 2 x R6/LR6/AA Type Batteries Software CD-ROM Including Logo Transfer Software, Multi Projector Monitoring & Control Software Limited 3-Year Warranty on Projector User Manual PDF 16.6mbwqezxbzuzscxazcsystqxbzwrrffcwacsfurvu Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-RZ475 3000 Lumen Solid Shine Full HD 1-Chip DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-RZ475U Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1920 x 1080 (WUXGA) | | Supported Resolutions | Full HD 1080p - 1920 x 1080 | | Max Brightness | 3000 Lumens | | Uniformity | 90% | | Aspect Ratio | 16:9 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | Scan | Horizontal: 27 - 100 kHz
Vertical: 24 - 120 Hz HDMI/DVI-I(digital) | | | | Lens | f/1.8 (f = 11.9 mm) | | Lens Shift | Vertical: ± 10%

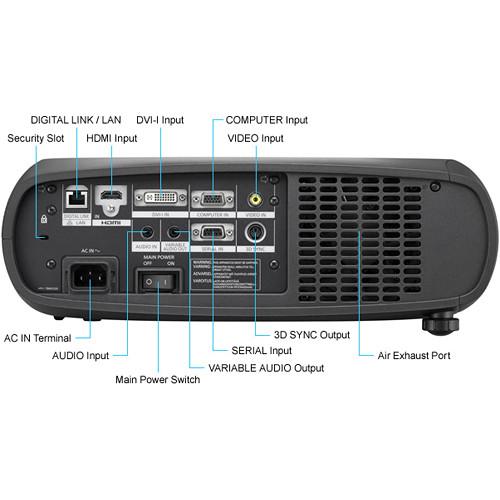

Horizontal: ± 3.4% | | Throw Ratio | 0.8:1 | | Projection Size | 40 - 200" / 101.60 - 508.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 1 x HDMI Video (Input)
1 x DVI-I Video (Input)
1 x VGA (DE-15) Type-A Female (Input)
1 x 1/8" (3.5 mm) Mini Video (Input)
1 x M3 Audio (Input)
1 x M3 Audio (Output)
1 x Unspecified Signal (DE-9) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x VESA 3D Sync Control/Service (Output) | | | | Light Source | LED | | Fan Noise | Medium Brightness: 35 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 430 W
Low Brightness: 230 W
Low Brightness: 170 W
Standby Mode (Lamp Off): 8 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Operating
32 to 113°F (0 to 45°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 17.9 x 5.4 x 16.1" / 454.7 x 137.2 x 408.9 mm | | Weight | 25.4 lb / 11.5 kg | | | | Package Weight | 38.65 lb | | Box Dimensions (LxWxH) | 26.0 x 23.0 x 12.3" |
