User Manual for Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

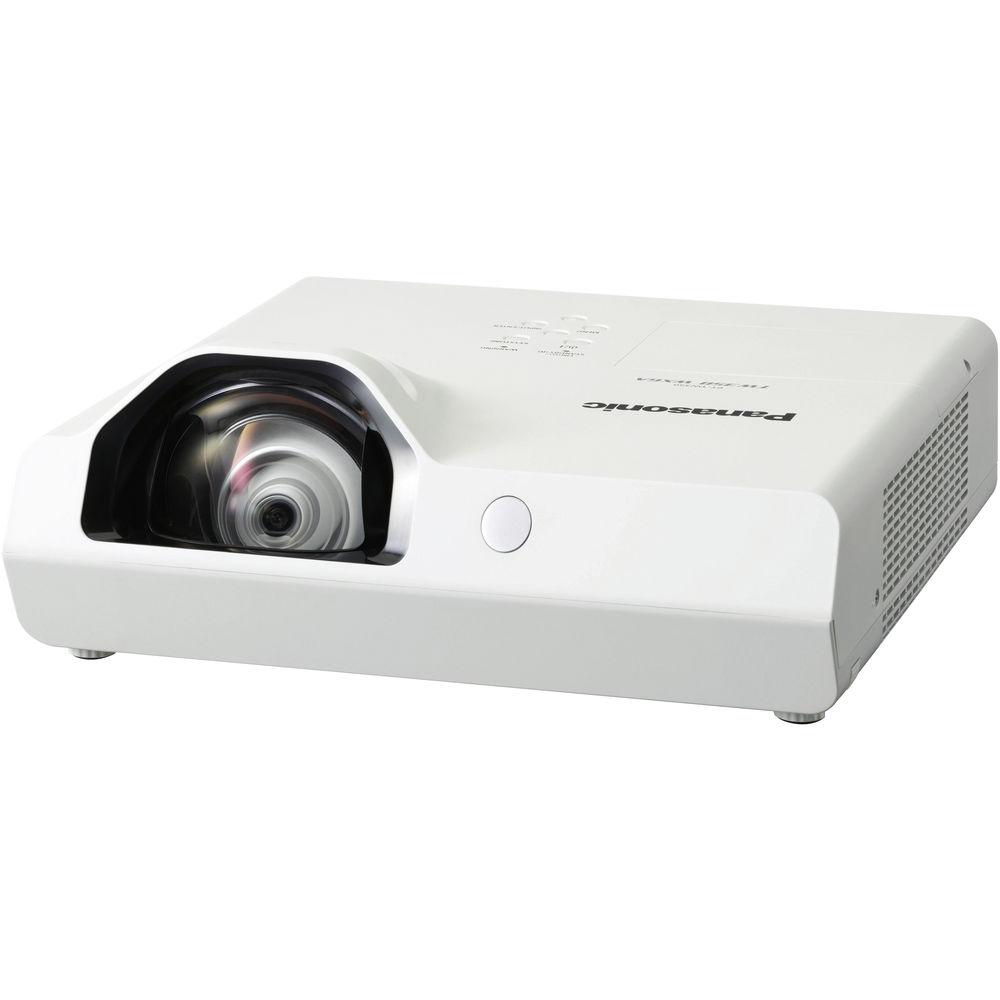

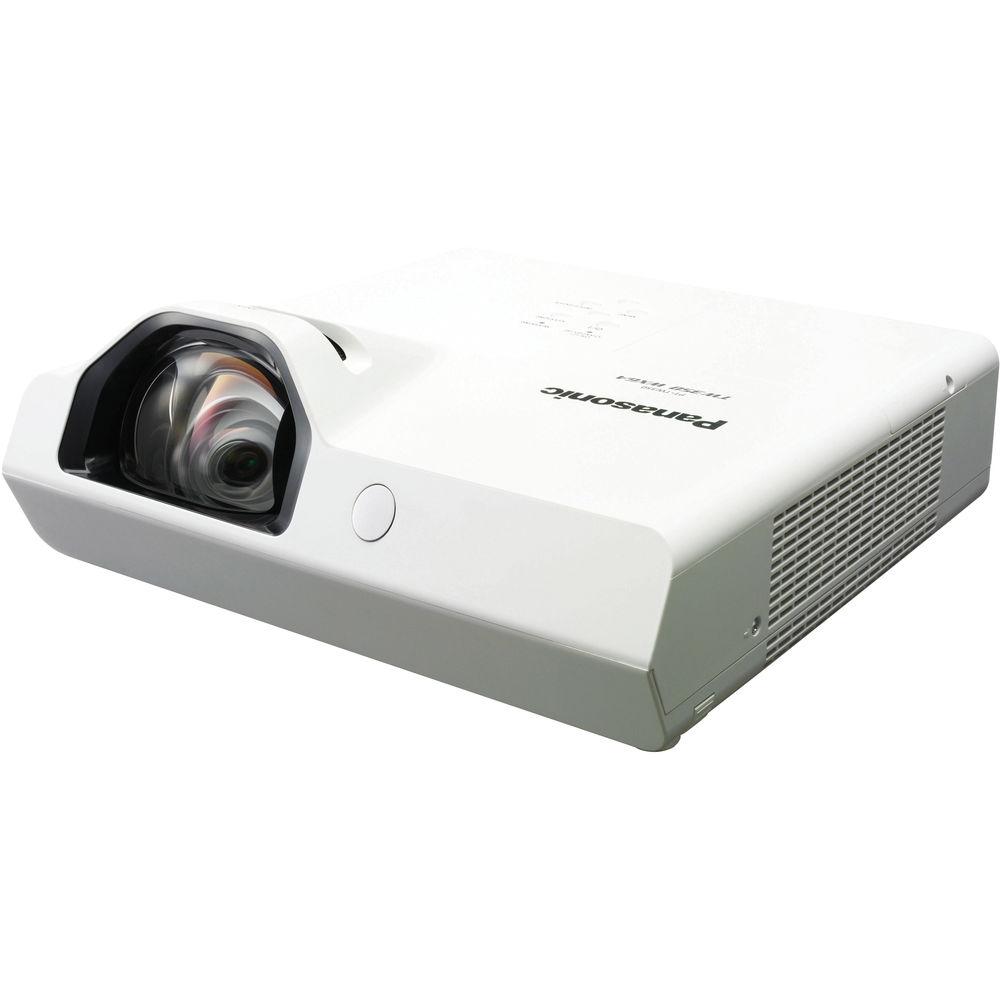

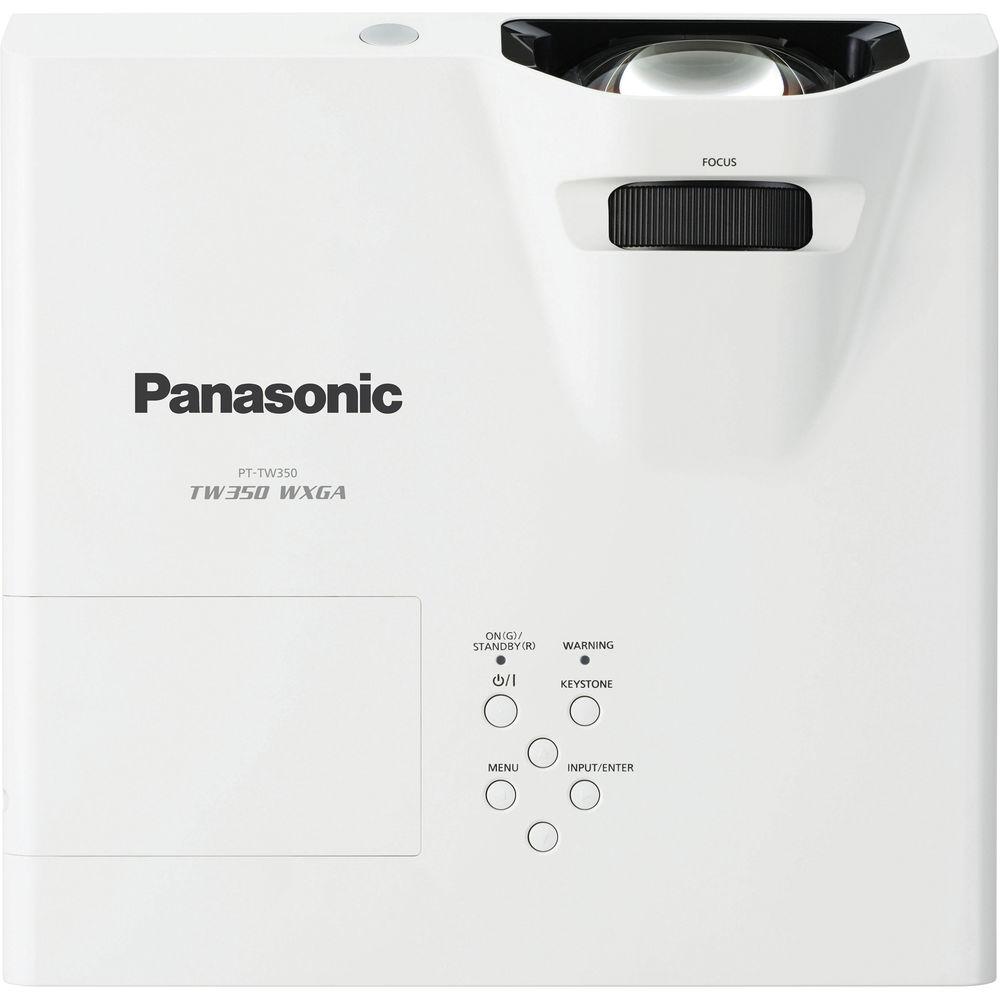

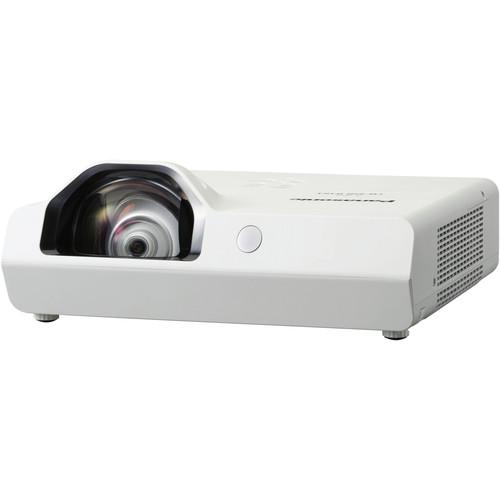

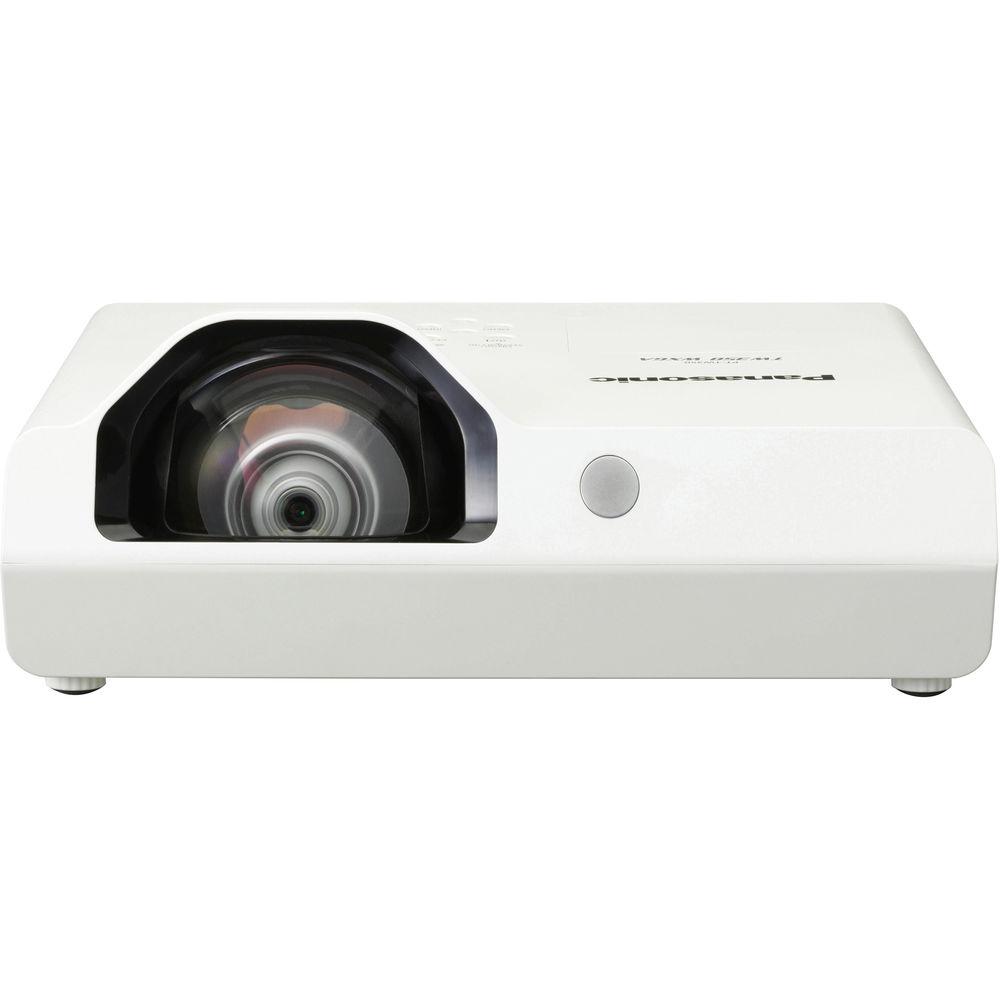

Product description New Panasonic Projectors to Brighten Up Your Presentation Read More Present without casting shadows on the screen with the Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD Projector. Its throw ratio of 0.46:1 enables you to place it near the projection surface to virtually eliminate the possibility of shadows caused by someone walking in front of it. Its brightness of 3300 lumens will be able to overcome ambient light in many settings, while its dynamic contrast ratio of 16,000:1 and native resolution of 1280 x 800 will produce clear images at most viewing distances.
The PT-TW350U will connect to most video sources with its HDMI, RCA composite video, and two VGA inputs. It also has analog audio inputs and a 10-Watt speaker so audio can accompany your video. Furthermore, a VGA and analog audio output will allow you to daisy-chain the projector to other projectors or displays, enabling them to show the same video and audio feeds. This model is controllable via an RS-232 connection, and includes both an RGB signal cable and an IR remote control. - Versatile Short-Throw Projection
- Achieve up to 80" images from just a step away with the short 0.46:1 throw ratio of the PT-TW350U projector.
- 3300 Lumens of Brightness
- The projector's 3300 lumens of brightness provide legible graphics, clear text, and bright images and video, even with the lights on.
- Extend Part Replacement up to 10,000 Hours
- Choose a lamp power mode to balance presentation style and efficiency requirements to achieve your desired performance level at a lower cost—up to 10,000 hours maintenance-free in ECO2 Mode. Lamp and filter replacement timing is the same in any mode, streamlining maintenance.
- Daylight View Lite
- Daylight View Lite uses sensor information to optimize color and brightness in accordance with ambient lighting levels. This function is accessed using the supplied remote control.
- Corner Keystone Correction for Angled Projection
- If conditions call for off-axis projection, simply designate four screen corners, and Horizontal & Vertical Corner Keystone Correction performs the necessary adjustments, for distortion-free image presentation.
- Curved Screen Correction
- Barrel and pincushion distortions are easily corrected using controls on the unit. This allows you to project natural, distortion-free images onto curved or cylindrical surfaces, such as sculpted corporate reception walls, large pillars, and other rounded surfaces.
- Designed for Quiet Operation for Distraction-Free Viewing
- Operating noise is as low as 28 dB in ECO2 Mode, reducing the chance of distraction during presentations or quiet video scenes.

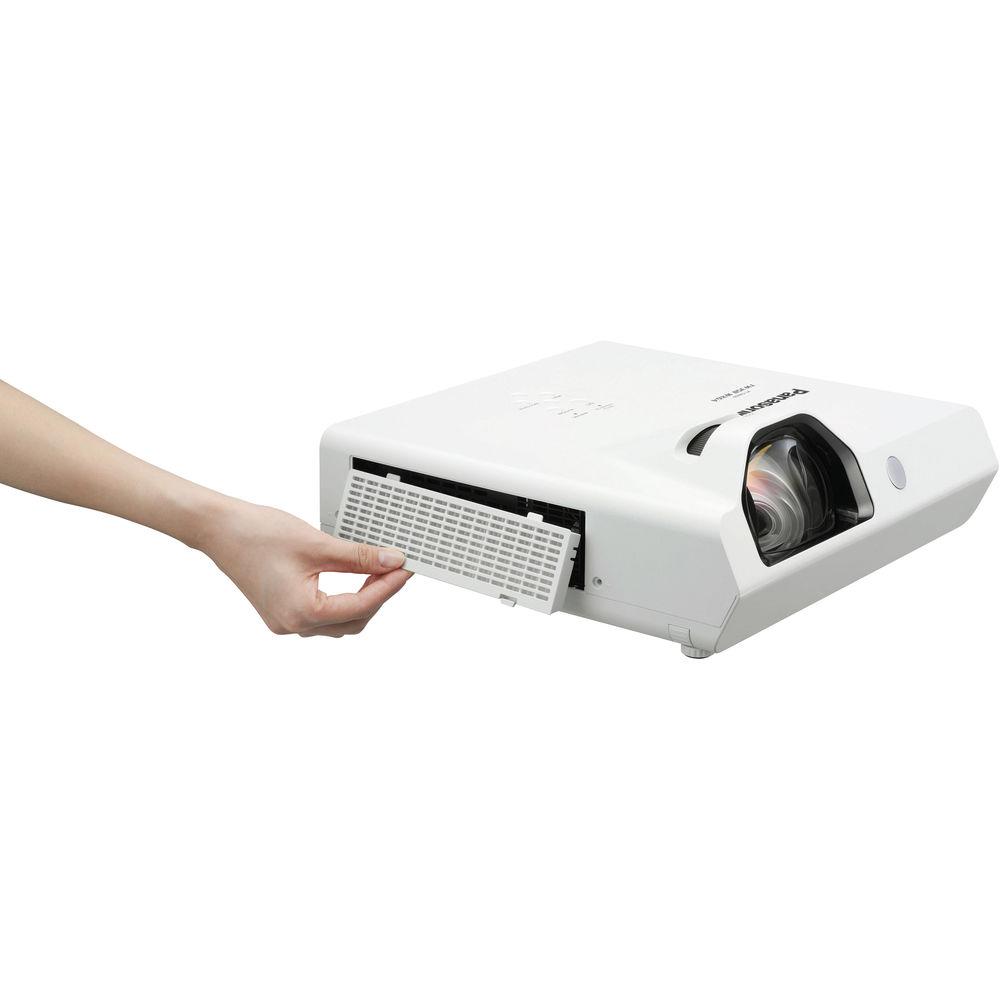

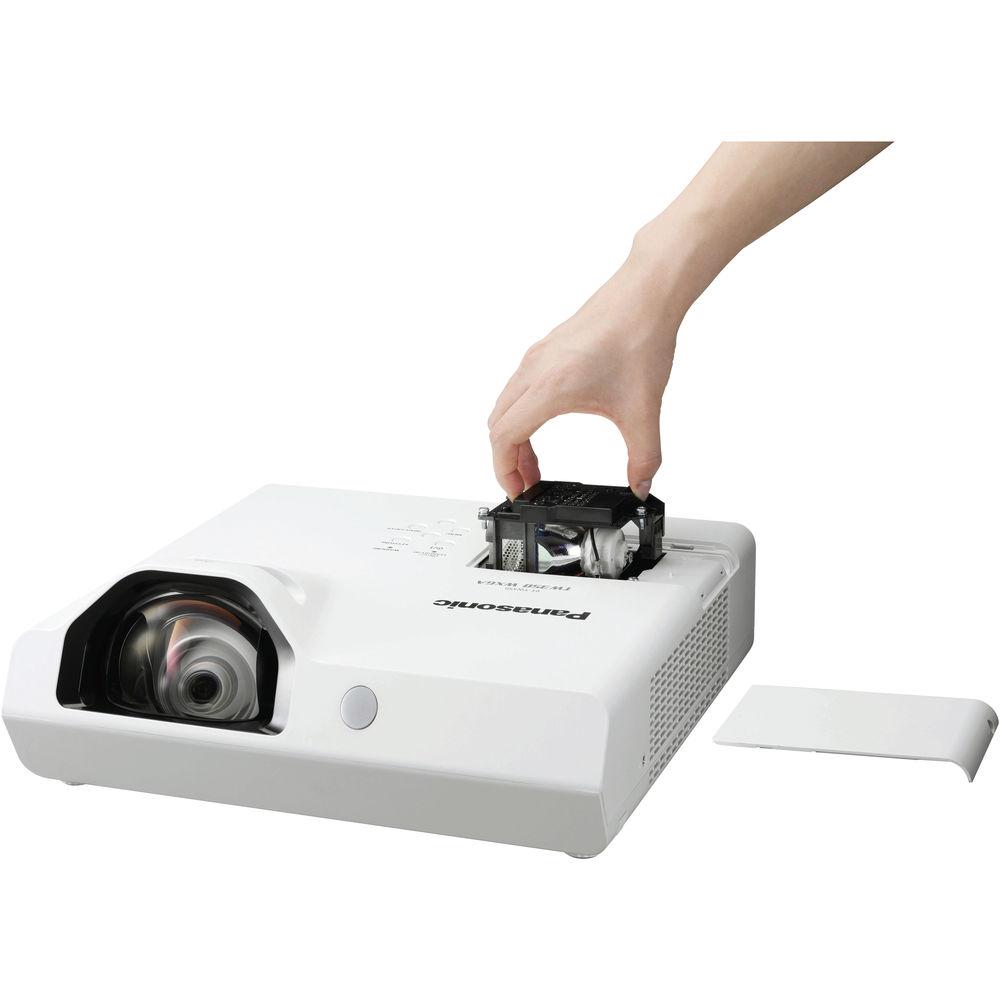

- Designed for Easy Lamp and Filter Replacement
- To reduce hassle, the filter can be replaced from the side and the lamp from the top of the projector. There's no need to remove the unit from its ceiling mount for periodic maintenance.
- Memory Viewer Function
- Insert a USB memory device into the USB port and start projecting stored content without a computer. The USB media player supports a variety of image files, such as JPEG and PNG.
- USB Display Function
- Transmission of audio and video content from your computer to the projector is supported over a USB cable with the projector set to USB Display Mode. No need to install software—just plug and play and start presenting immediately.
- Direct Power Off
- You can unplug the power cord right after use thanks to the Direct Power Off function. An internal cooling fan continues operating after disconnection, using power from an internal supply, and automatically stops when the projector is sufficiently cool.
- Project Wirelessly with an Optional Module
- Project media wirelessly via your computer using Presenter Light or the VueMagic Pro application for iOS and Android. Just connect an optional ET-WML100 Wireless Module to the projector's USB input.
- Additional Features
-
- Multi-monitoring and control software
- Startup logo function
- Supports PJLink protocol
- Built-in 10W speaker
- Color-board and blackboard modes
- Built-in closed caption decoder
UPC: 885170304833 In the Box Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD Projector Remote Control 2 x AAA Batteries RGB Signal Cable Software CD-ROM Power Cord Limited 3-Year Warranty on Projector Limited 90-Day or 2000-Hour Warranty on Lamp, Whichever Comes First Limited 30-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-TW350U 3300-Lumen WXGA Short-Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-TW350U Specs | | | Display System | 3-Chip 0.59" TRP LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3300 Lumens | | Uniformity | 80% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 16,000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual | | Lens | f/1.8 (f = 6.08 mm) | | Optical Zoom | None | | Throw Ratio | 0.46:1 | | Projection Size | 50 - 100" / 127.00 - 254.00 cm | | | | Keystone Correction | Auto-Vertical: ± 15°
Manual-Vertical: ± 15°

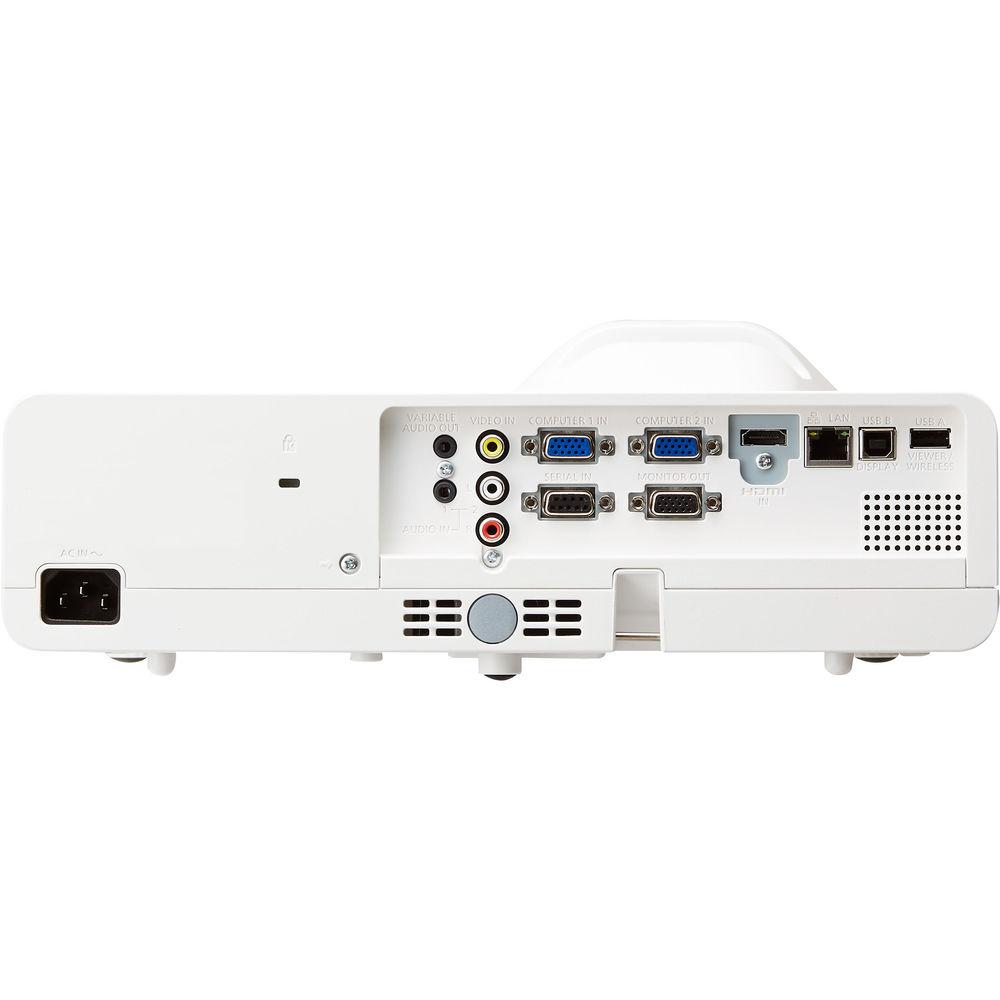

Manual-Horizontal: ± 15° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x USB Audio/Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Type-B Female (Output) | | | | Light Source | Lamp (1 x UHM) | | Lamp Power | 230 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 33 dB
Low Brightness: 28 dB | | Supported Photo File Types | JPEG, PNG | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 300 W
Standby Mode (Lamp Off): 6 W
Standby Mode (Lamp Off): 0.5 W | | Max Operating Altitude | 8858' / 2699 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 13.2 x 5.3 x 13.0" / 335.0 x 134.1 x 329.0 mm With legs at shortest position | | Weight | 8.6 lb / 3.90 kg Approximately | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 21.181 x 18.11 x 8.976" |
