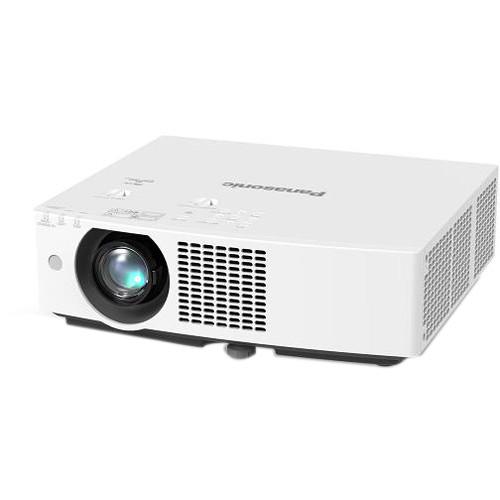

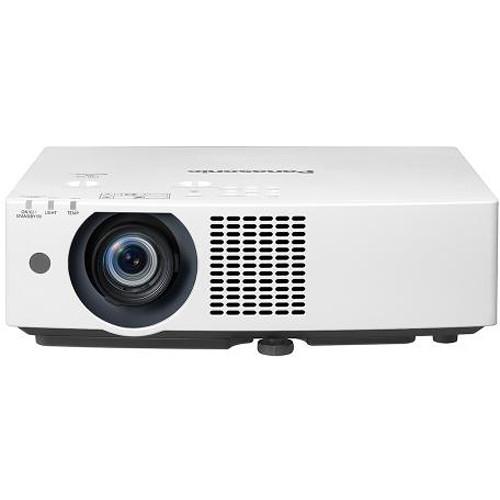

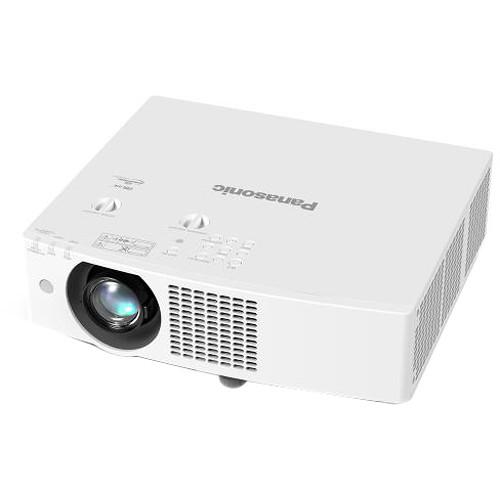

User Manual for Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in most settings with the Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser Projector. Its 5000 lumens of brightness and 3,000,000:1 dynamic contrast ratio work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The 1.09 to 1.77:1 throw ratio offers a range of throw distances for focused images from nearly anywhere in the room.
The PT-VMZ50U features DIGITAL LINK via Ethernet, composite video, VGA, and two HDMI inputs to connect to nearly any device. One VGA port can act either as a second input or an output to daisy-chain multiple projectors or displays. The projector is controllable via the included wireless remote control, DIGITAL LINK, or RS-232 with various control software options. - Bright Images from a Compact Design
- The PT-VMZ50U outputs up to 5000 lumens of brightness from a 15.9 lb body, bringing dynamic images where you need them.
- Enhanced Efficiency
- The SOLID SHINE laser light source is designed to deliver up to 20,000 hours of consistent brightness and color accuracy.
- Flexible Installation Features
- The projector's 1.6x zoom, horizontal and vertical lens shift, and 1.09 to 1.77:1 throw ratio help it fit in a variety of installation settings.
- Enhanced Connectivity
- The PT-VMZ50U supports 4K UHD signals via HDMI and DIGITAL LINK, and features a separate LAN terminal.
- Reusable Filter
- The included filter can be washed and reused twice, providing a reduced total cost of ownership.
- Optional Wireless Projection
- With a separately sold adapter, you can project wirelessly from your compatible source device.
UPC: 885170353442 In the Box Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser Projector Wireless Remote Control 2 x AAA Batteries Lens Cap and String Limited 3-Year or 2000-Hour Warranty on Projector, Whichever Comes First Limited 90-Day Warranty on Lamp Limited 30-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-VMZ50U 5000-Lumen WUXGA 3LCD Laser Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-VMZ50U Specs | | | Display System | 3-Chip 0.64" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Maximum: UHD 4K - 3840 x 2160 @ 30 Hz | | Max Brightness | 5000 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 3,000,000:1 | | | | Focus | Manual | | Lens | f/1.6 - 2.12 (f = 15.3 - 24.64 mm) | | Lens Shift | Vertical: 0 to 44%
Horizontal: ± 20% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 2.231 - 37.664' / 0.68 - 11.48 m | | Throw Ratio | 1.09 - 1.77:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical: ± 25°
Horizontal: ± 35° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Projection Tilt Option | Yes | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x Ethernet (RJ45) Audio, Control, Data, Power, Video
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Input/Output
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x RS-232 (DE-9/DB-9) Control Input
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) Data Input | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Full Brightness: 20,000 Hours | | Fan Noise | Full Brightness: 37 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection | | Supported Photo File Types | BMP, GIF, JPEG, JPG, PNG, TIFF | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Italian
Japanese
Kazakh
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 370 W
Standby Mode (Lamp Off): <71 W | | Max Operating Altitude | 8858' / 2700 m | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 20 - 80% | | Dimensions (W x H x D) | 15.7 x 5.3 x 13.7" / 39.9 x 13.5 x 34.8 cm With Feet at Shortest Position
15.7 x 4.5 x 13.7" / 39.9 x 11.4 x 34.8 cm Excluding Protruding Parts | | Weight | 15.87 lb / 7.20 kg | | | | Package Weight | 24.245 lb | | Box Dimensions (LxWxH) | 22.4 x 17.5 x 10.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
