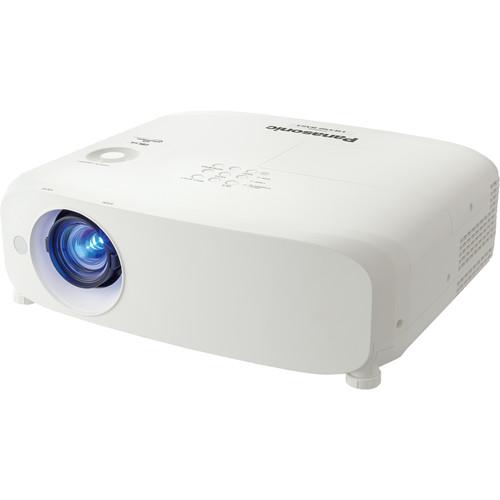

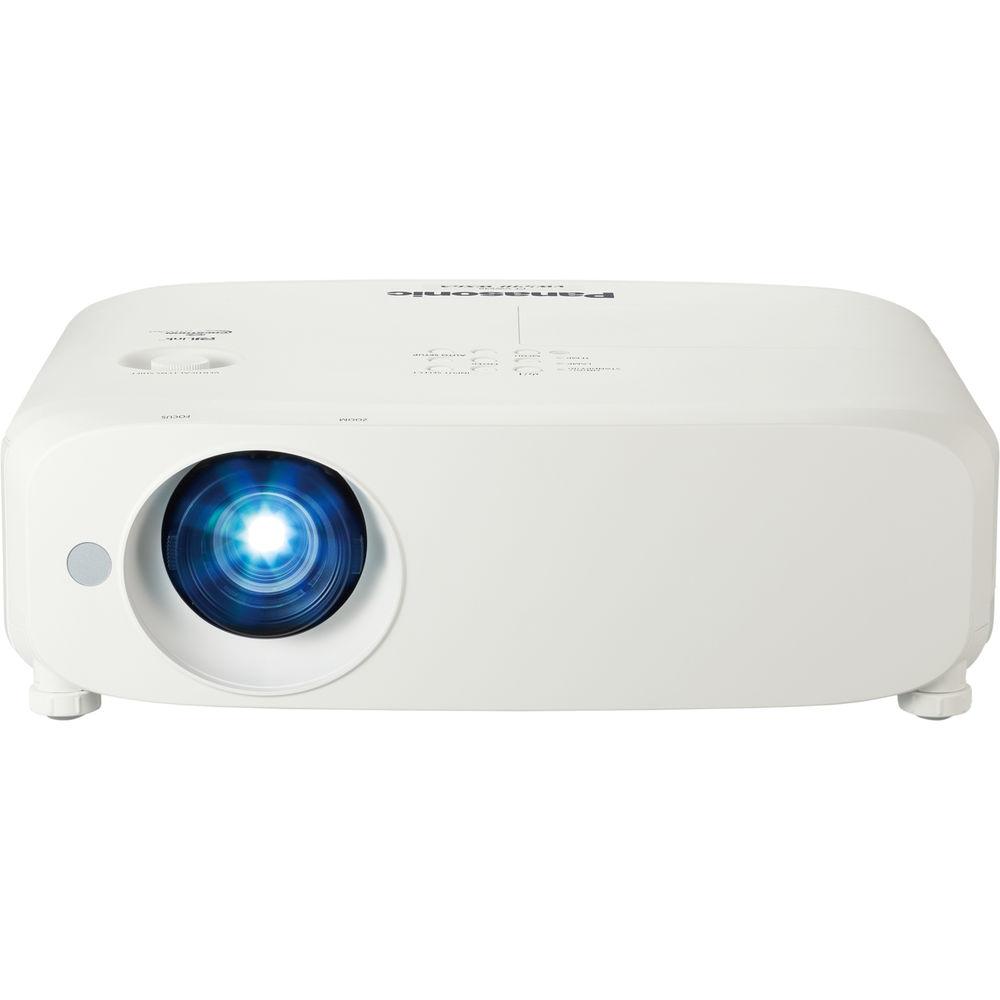

User Manual for Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector
- Product category: Multimedia Projectors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Multimedia Projectors
 |
User manual for the Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Enjoy bright images in many everyday settings with the Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector. Its 5500 lumens of brightness and 16,000:1 dynamic contrast ratio will work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1280 x 800 WXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.08 to 1.76:1 throw ratio and 1.6x manual zoom provide a range of throw distances for focused images.
The PT-VW540U features RCA composite video, two HDMI, and two VGA inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice, and one VGA input can instead act as an output to daisy-chain multiple projectors or displays together. The PT-VW540U is controllable via the included remote control or Ethernet, with various control software options. - Designed for Bright, High-Quality Images
- The WXGA (1280 x 800) resolution native to the PT-VW540U brings HD imagery to meeting spaces and classrooms for immersive viewing. With 5500 lumens of brightness and a dynamic contrast ratio of 16,000:1, your audience will enjoy legible text and detailed colors.
- 6-Color Adjustment and Color Correction Functions
- Users can correct for slight color variations in the reproduction range of individual projectors set up for multi-projection. This is particularly useful for side-by-side configurations; large images can be seamlessly presented in auditoriums and boardrooms.
- Low-Maintenance Design
- The PT-VW540U is designed for enhanced efficiency. Its air filter replacement cycle is up to 7000 hours, and the filter can be washed and reused twice to minimize waste. Lamp life is also extended to 7000 hours in ECO2 Mode, meaning part replacement can be performed together to reduce downtime.
- Daylight View Basic
- This technology is designed to deliver sharp, comfortably viewed images by enhancing fine details, particularly in dark areas of the image, which are typically difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic (when set to AUTO Mode) adjusts halftone color and brightness to suit ambient illumination.
- Designed for Quiet Operation
- The projector's technologies combine to keep noise levels down to just 29 dB in ECO2 Mode, so the sound of the cooling fan is hardly noticeable, helping to keep attention focused on the presentation and video scenes.

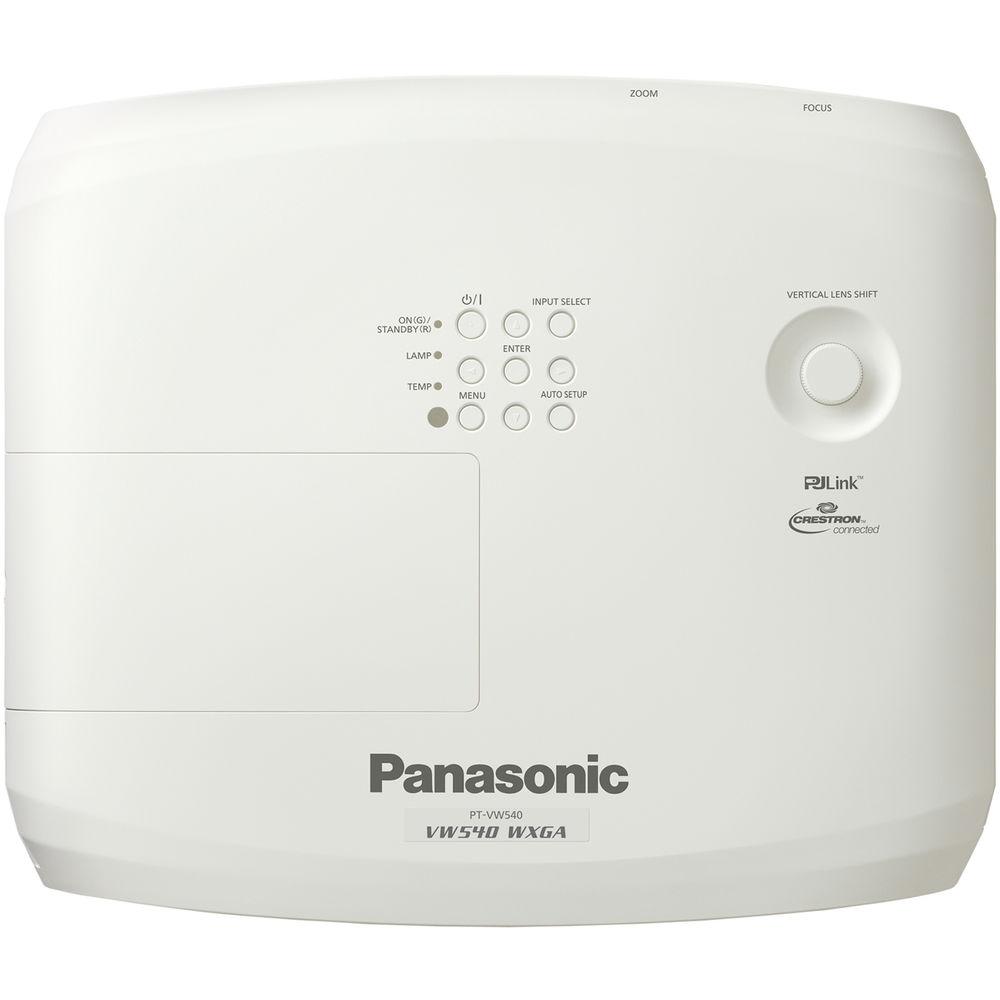

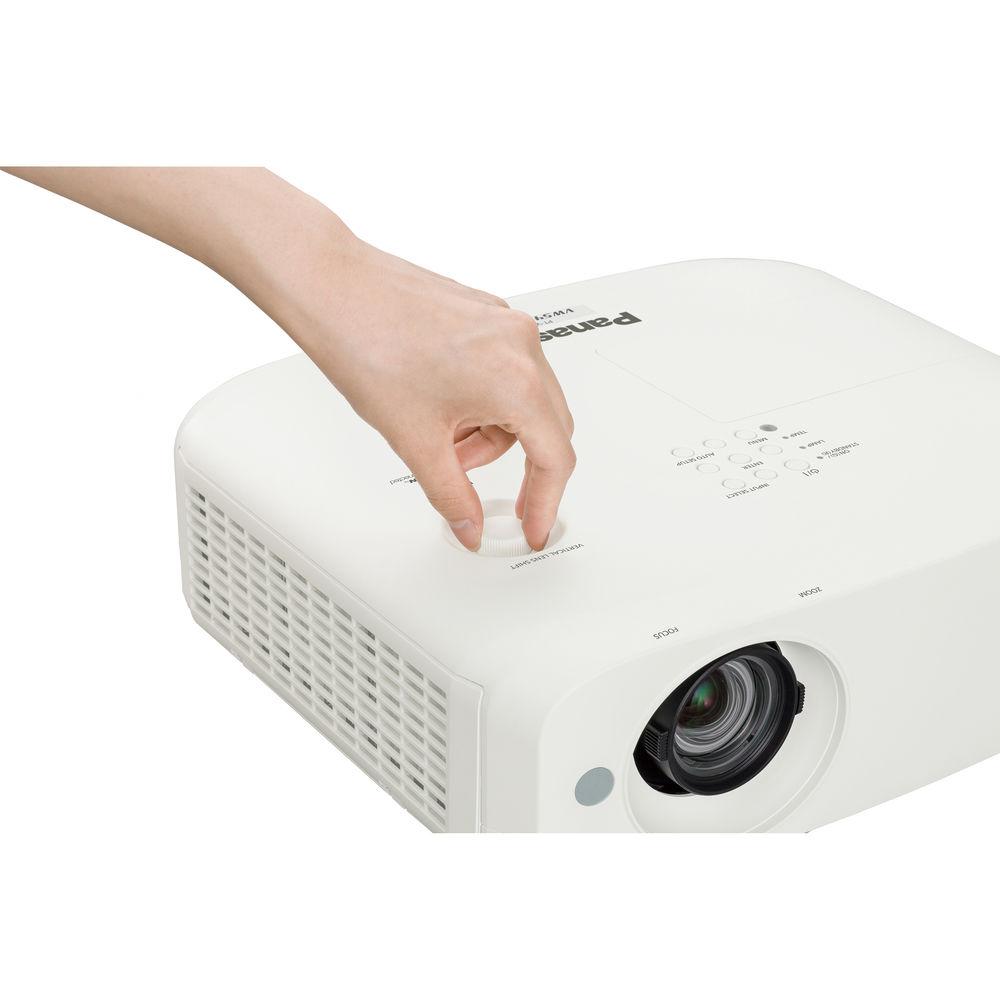

- 1.6x Zoom Lens and Lens Shift Function
- The zoom lens allows you to project from a range of distances from tabletops or ceilings. Use the vertical lens shift to adjust the image position without distortion.

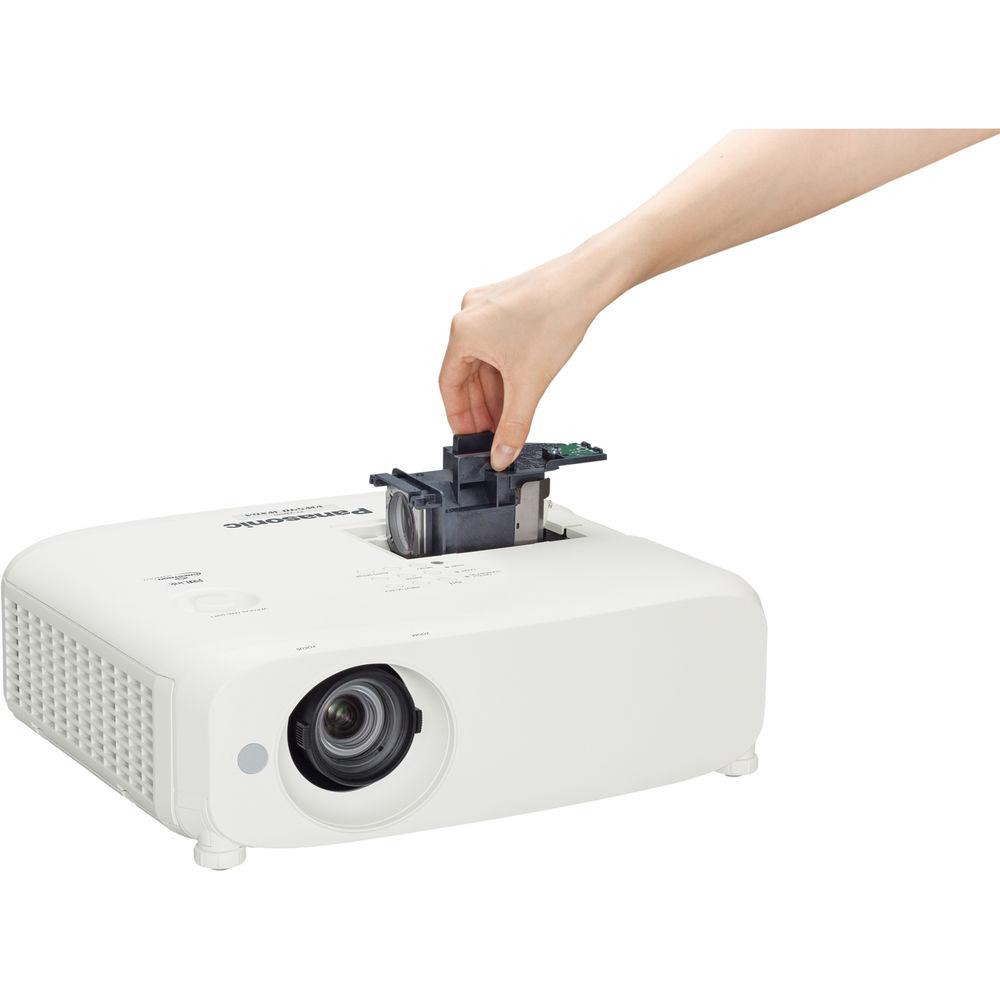

- Designed for Quick Lamp and Filter Replacement
- To reduce hassle, the filter can be replaced via the side and the lamp from the top of the projector, so there's no need to remove the projector from its ceiling mount for periodic maintenance.
- Auto Screen Image Rotation
- Images can automatically be rotated depending on installation orientation – upside down from the ceiling or set on a table – using a built-in angle sensor.
- Horizontal, Vertical, and Corner Keystone Correction
- Horizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle.
- Additional Features
-
- DC out via USB
- Direct power off
- Built-in 10W speaker
- ECO management function
- Whiteboard and blackboard mode
- Emulation mode
- Crestron Connected, AMX DD, and PJ Link compatible
- Designed for easy monitoring and control over LAN
- Auto input signal search
- Early warning software compatible (optional)
- Startup logo function
- Presentation support function
- Auto standby mode
- Digital zoom function
- Anti-theft features
- NTSC closed captioning
UPC: 885170312524 In the Box Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector Remote Control 2 x AAA Batteries VGA Cable Power Cord with Power Cord Holder Lens Cap Limited 3-Year or 2000-Hour Warranty on Projector Limited 90-Day Parts Warranty on Lamp Limited 30-Day Warranty on Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-VW540U 5500-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-VW540U Specs | | | Display System | 3-Chip 0.64" LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Minimum: 640 x 400
Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 5500 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 16,000:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 100 Hz | | | | Focus | Manual | | Lens | f/1.6 - 1.9 (f = 15.31 - 24.64 mm) | | Lens Shift | Vertical: 0 to 44% | | Optical Zoom | Manual: 1.6x | | Throw Ratio | 1.08 - 1.76:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Power (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input/Output) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHM) | | Lamp Power | 280 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 35 dB
Low Brightness: 29 dB | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | Medium Brightness: 385 W
Standby Mode (Lamp Off): 8 W
Standby Mode (Lamp Off): 0.5 W | | Max Operating Altitude | 8858' / 2700 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 15.3 x 4.9 x 13.1" / 389.0 x 125.0 x 332.0 mm | | Weight | 10.58 lb / 4.8 kg Approximately | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 23.0 x 17.0 x 11.0" |
