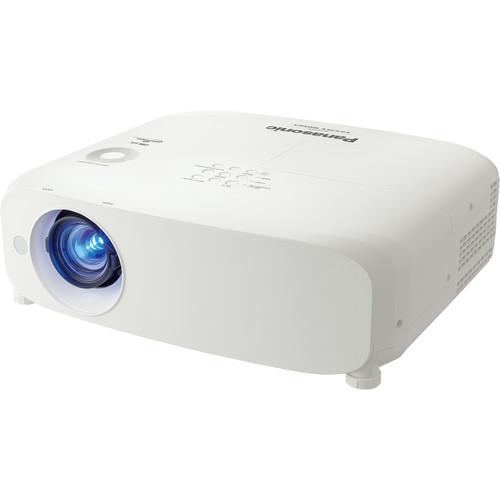

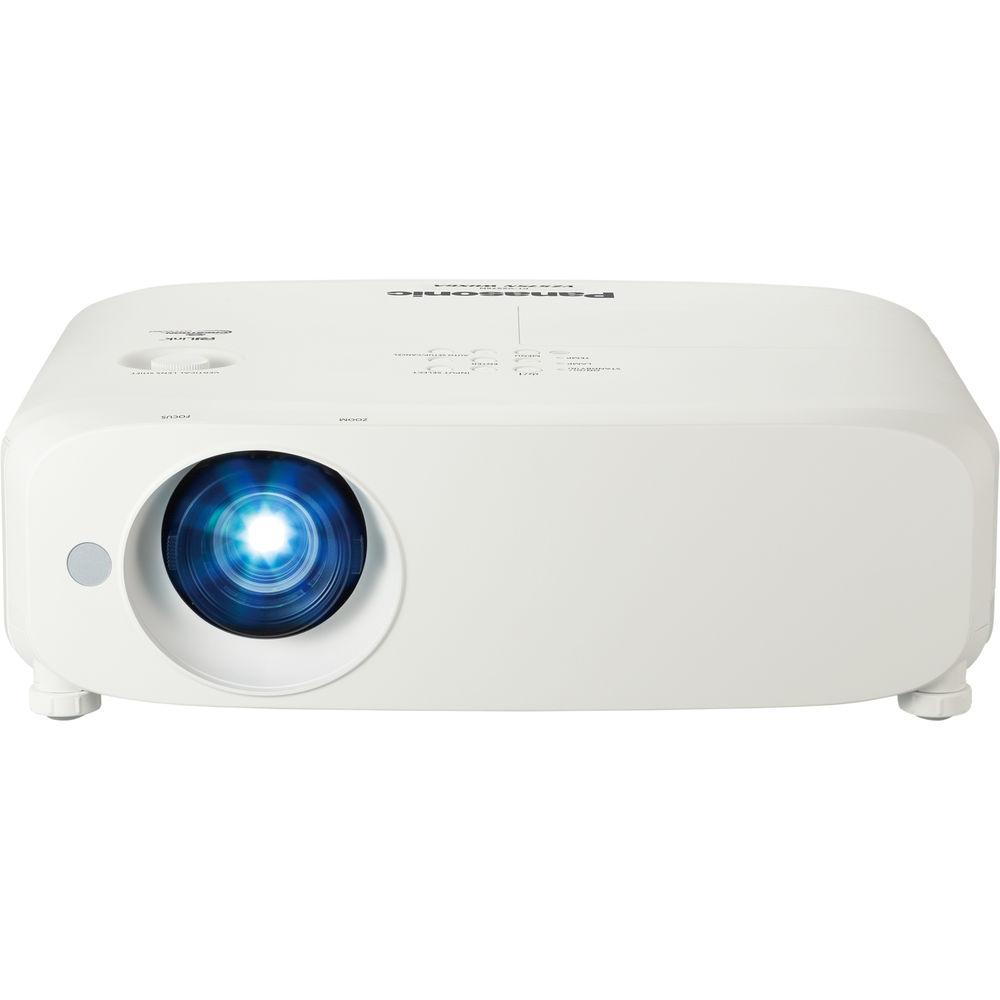

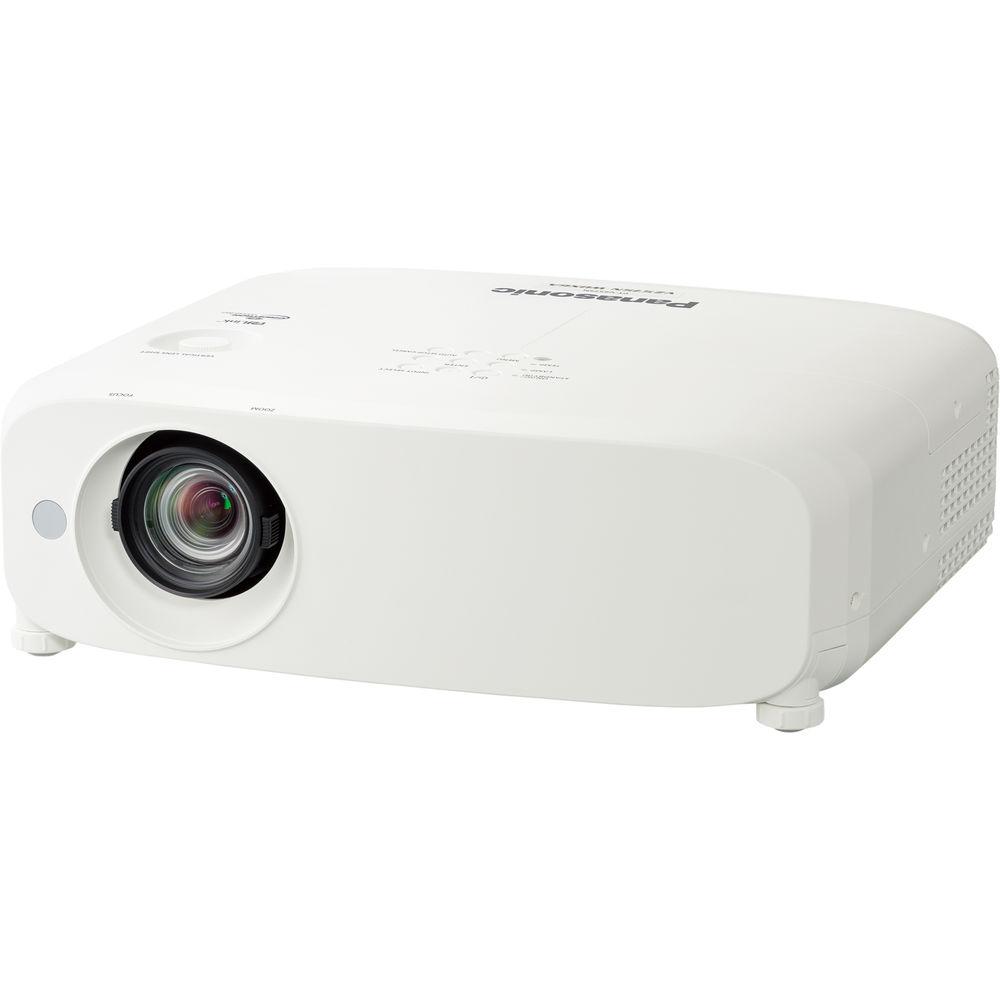

Product description New Panasonic Projectors to Brighten Up Your Presentation Read More Enjoy bright images in many everyday settings with the Panasonic PT-VZ470U 4400-Lumen WUXGA 3LCD Projector. Its 4400 lumens of brightness and 10,000:1 dynamic contrast ratio will work together to overcome light in relatively bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.1 to 1.8:1 throw ratio and 1.6x manual zoom provide a range of throw distances for focused images.
The PT-VZ470U features RCA composite video, two HDMI, and two VGA inputs to connect to nearly any device. Its analog audio input and output will allow you to pass sound through the projector to your sound system of choice, and one VGA input can act instead as an output to daisy-chain multiple projectors or displays together. The projector is controllable via the included remote control, Ethernet, or RS-232 with various control software options. - Portable Projection with WUXGA Resolution
- The PT-VZ470U portable LCD projector features WUXGA (1920 x 1200) resolution to bring Full HD video to big screens in small spaces. It is designed to produce images that are sharp, smooth, and loaded with detail for an immersive viewing experience.
- Bright and Clear Image Quality
- The PT-VZ470U outputs up to 4400 lumens. High brightness brings colors to life, enhancing realism in presentations in well-lit rooms.
- Designed for Quiet Operation
- The PT-VZ470U produces only 29 dB of fan noise in Eco Mode.
- 10,000:1 Dynamic Contrast Ratio
- The 10,000:1 dynamic contrast ratio helps produce deep blacks, pure highlights, and crisp, easy-to-read text and graphics.
- Daylight View Basic Helps Overcome Ambient Light
- Daylight View Basic helps prevent the picture from washing out in bright rooms by sensing ambient light levels and adjusting the picture accordingly. Halftone color and brightness are automatically optimized to make images sharper and brighter in nearly any environment.

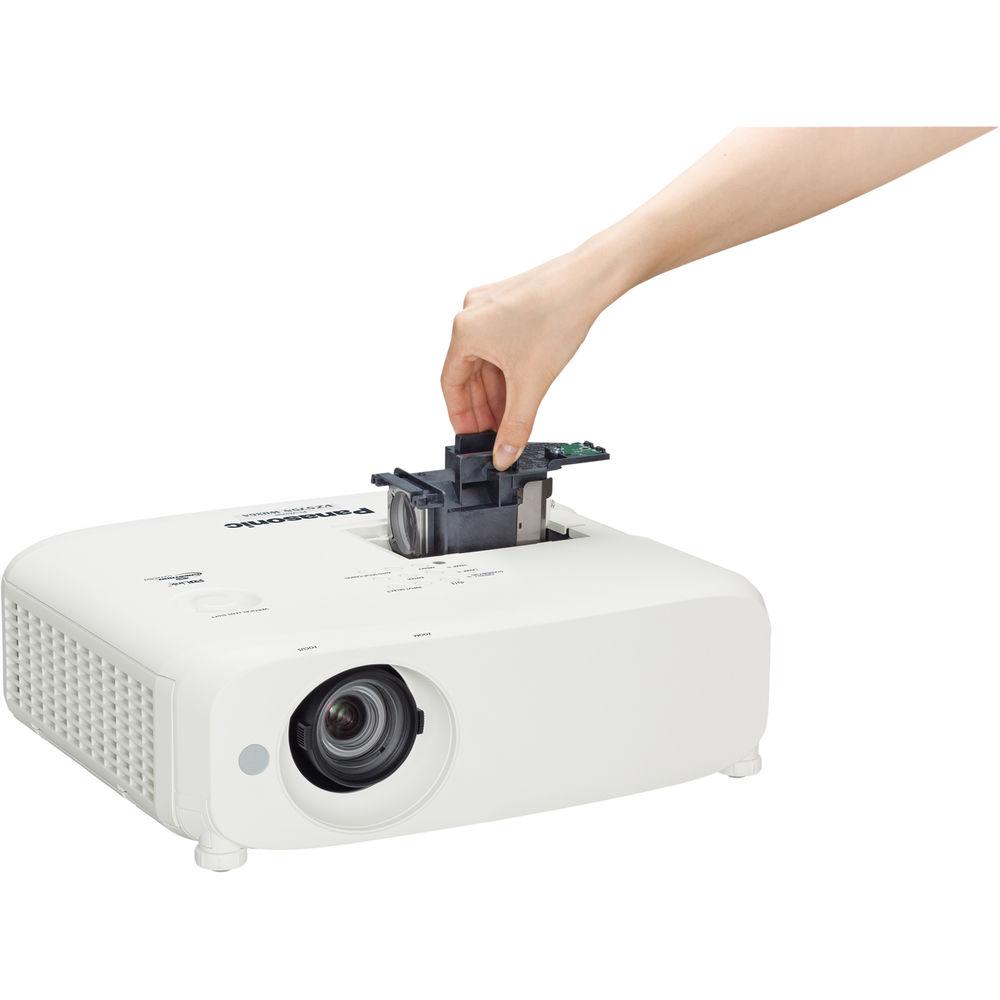

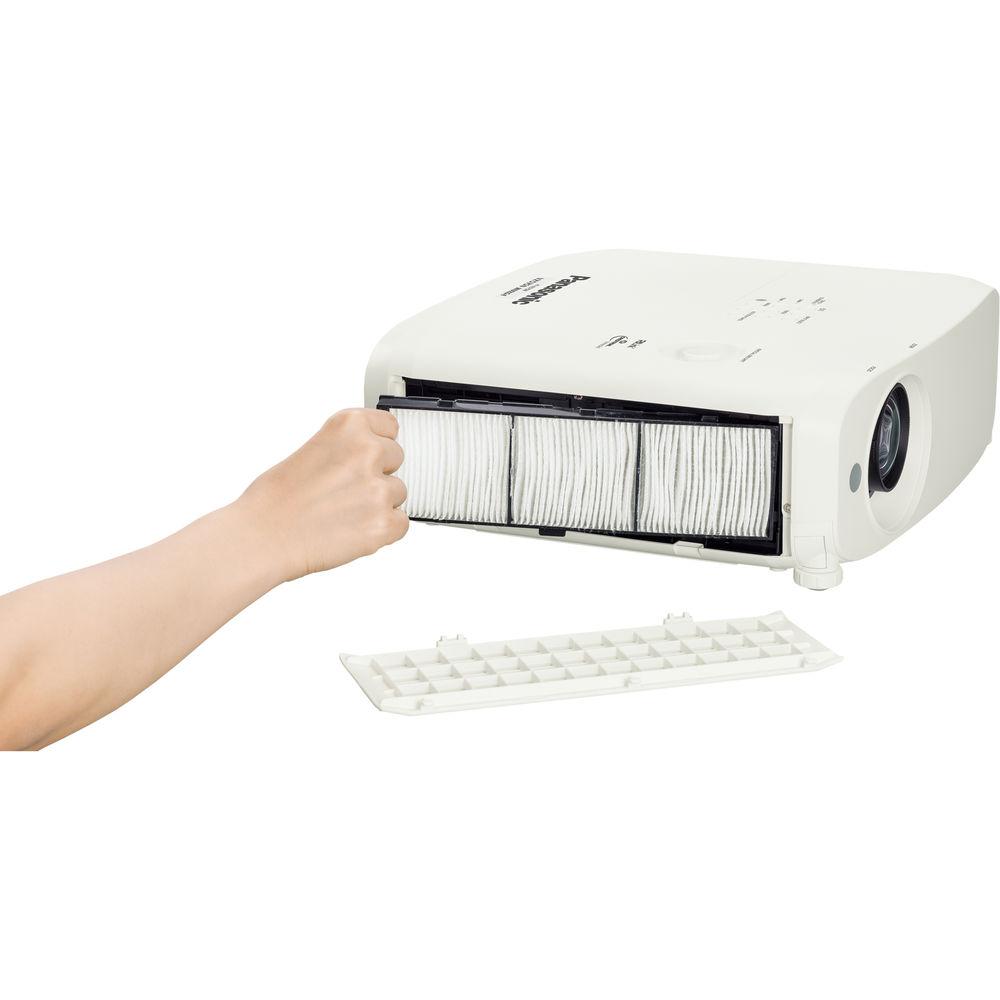

- Lamp and Filter Replacement Extended to 7000 Hours
- The PT-VZ470U extends lamp and filter operational life to 7000 hours in Eco mode. When maintenance is eventually due, you can replace both the lamp and filter at the same time when used in Eco mode, even with the projector mounted on the ceiling.

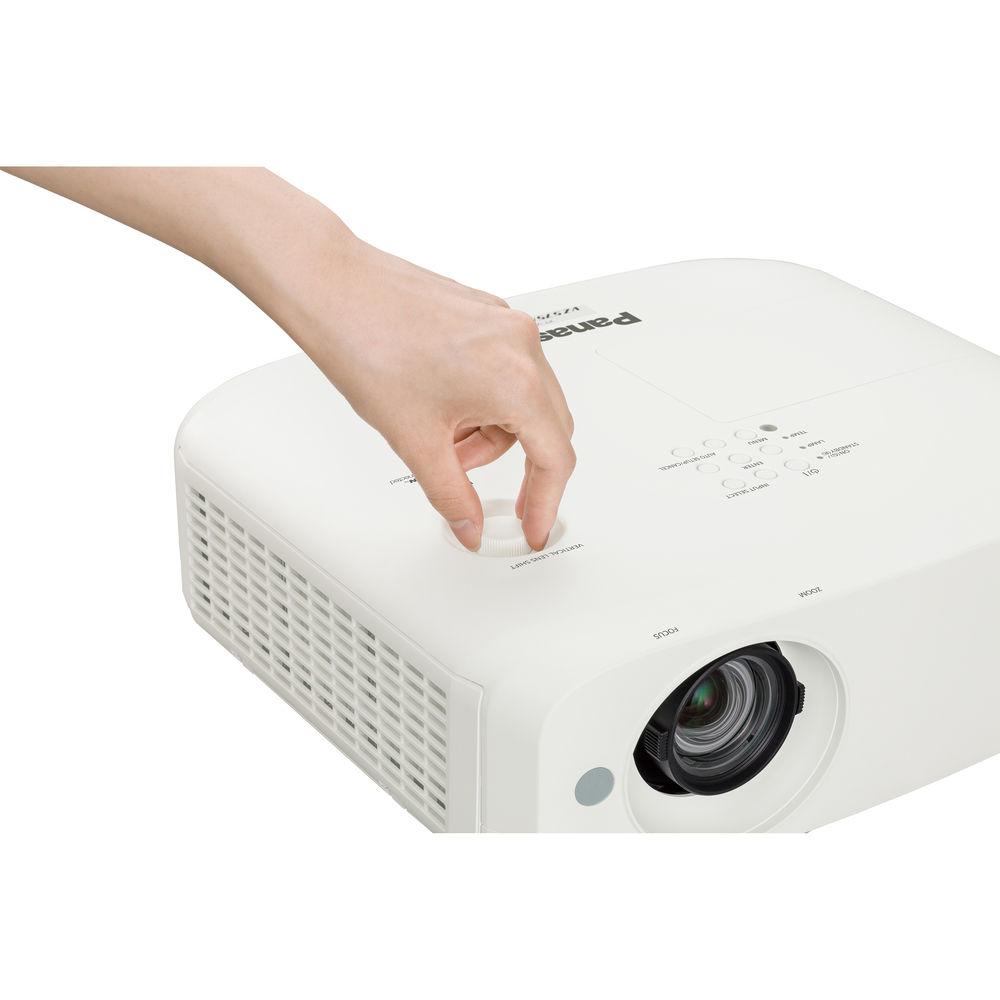

- Vertical Lens Shift
- The PT-VZ470U features a vertical lens shift function that allows you to move the image up or down without distorting the picture. This is useful for quick image corrections in portable applications.
- Horizontal, Vertical, and Corner Keystone Correction
- Horizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Should the vertical projection angle be altered during operation, real-time keystone correction senses the change and makes any necessary corrections for optimal viewing.
- Project onto Curved Surfaces
- Curved screen correction is designed to allow you to project natural, distortion-free images onto curved or cylindrical surfaces, such as sculpted corporate reception walls, large pillars, etc.
- Compatible with Popular Control Systems
- The PT-VZ470U plugs into existing projection networks controlled by Crestron Connected, PJLink Class 1, and AMX software. Multi-Projector and Monitoring Software enables control of multiple projectors from a computer.
- Project in Small or Large Spaces with 1.6x Zoom
- The PT-VZ470U projector can be positioned almost anywhere with a variety of projection distances, made possible by the 1.6x zoom lens function. It enables projection distances of between 7.7 and 12.5' from a 100"-wide screen for large-format pictures in small, medium, or large rooms.
- More Input Terminals Means More Versatility
- Whether you're planning to install your projector on the ceiling or take it with you to a meeting, a selection of input terminals is included to connect a variety of source devices, including two HDMI terminals and two VGA ports for a computer.
- Additional Features
-
- Direct Power Off function enables safe projector shutdown via breaker switch
- Anti-theft measures include customizable startup logo, password protection, and a security bar
- Auto Input Signal Search selects the input channel based on incoming signals
- Color-Board and Blackboard color-adjustment modes for projection in rooms without a screen
UPC: 885170293434 In the Box Panasonic PT-VZ470U 4400-Lumen WUXGA 3LCD Projector Wireless Remote Control 2 x AAA Batteries RGB Cable Lens Cap Multi-Projector Monitoring and Control Software Logo Transfer Software Power Cord with Power Cord Holder Limited 3-Year or 2000-Hour Warranty, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic PT-VZ470U 4400-Lumen WUXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic PT-VZ470U Specs | | | Display System | 3-Chip 0.64" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Max Brightness | 4400 Lumens | | Uniformity | 85% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 10,000:1 | | Scan | Horizontal: 15 to 91 kHz
Vertical: 24 to 100 Hz | | | | Focus | Manual | | Lens | f/1.6 - 2.12 (f = 15.3 - 24.64 mm) | | Lens Shift | Vertical: 0 ± 44% | | Optical Zoom | Manual: 1.6x | | Throw Distance | 2.2 - 37.7' / 0.671 - 11.491 m | | Throw Ratio | 1.1 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: ± 25°
Manual-Vertical: ± 25°
Manual-Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Ethernet (RJ45) LAN (Input) | | | | Light Source | Lamp (1 x UHM) | | Lamp Power | 270 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 7000 Hours | | Fan Noise | Medium Brightness: 37 dB
Low Brightness: 29 dB | | Security | Password Protection
Security Bar | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | Medium Brightness: 372 W
Standby Mode (Lamp Off): 8 W
Standby Mode (Lamp Off): 0.2 W | | Max Operating Altitude | 8858' / 2700 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 15.3 x 4.9 x 13.1" / 389.0 x 125.0 x 332.0 mm | | Weight | 10.58 lb / 4.8 kg Approximate | | | | Package Weight | 19.4 lb | | Box Dimensions (LxWxH) | 23.5 x 17.5 x 17.5" |
