User Manual for Panasonic Remote Camera Controller Click to enlarge the picture
Contents of the user manual for the Panasonic Remote Camera Controller
- Product category: Camera Controllers Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camera Controllers
 |
User manual for the Panasonic Remote Camera Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

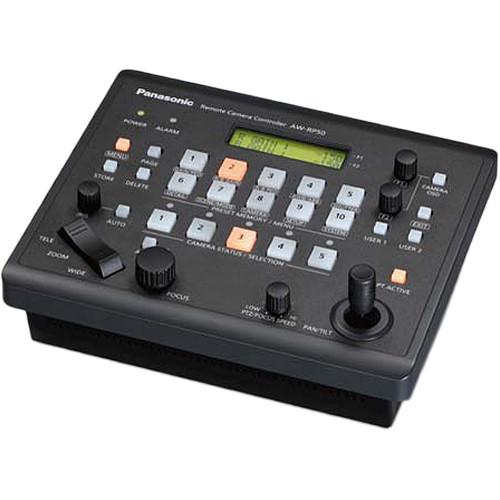

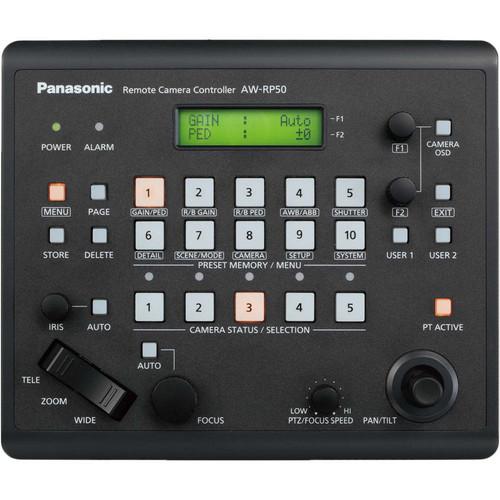

Product description The Panasonic Remote Camera Controller uses serial and IP control to support Panasonic pan/tilt heads, integrated, and box cameras. Simple to set up and operate, the controller offers automatic IP setup and can be configured via your PC. Using the Remote Camera Controller, you can control 1 camera simultaneously with up to 5 AW-RP50 via IP or serial control. It also allows you to control up to 100 AW-HE50S/H units via an IP connection when using a network hub (switching hub). The Automatic IP Address Setup function automatically assigns IP addresses to the AW-HE50S/H or AW-HS50 units. Camera functions including pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance, and switch scene files can be adjusted remotely via the device. The controller is subcompact at 8.26 x 2.63 x 6.96" (210 x 67 x 177 mm) and weighs 2.4lb (1.1kg). Ergonomically designed, the controller is ideal for use in remote production, educational purposes, and houses of worship use. - Uses serial and IP control to support up to 5 Panasonic pan/tilt heads, integrated, and box cameras
- Simple to set up and operate and offers automatic IP setup
- Can be configured via your PC
- Allows you to control up to 100 AW-HE50S/H units via IP connections when using a network hub (switching hub)
- Allows you to control 1 remote camera simultaneously by up to 5 AW-RP50 units via IP connection or serial control
- Automatic IP Address Setup function - allows IP addresses to be automatically assigned to the AW-HE50S/H or AW-HS50 units
- Adjustable camera functions - pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance, and switch scene files
- Subcompact 8.26 x 2.63 x 6.96" (210 x 67 x 177 mm)
- Ideal for use in remote production units, education institutions, and houses of worship
UPC: 885170023499 In the Box Panasonic Remote Camera Controller Operating Manual CD-ROM (Operating Instructions & Setup Software) AC Adapter Power Cable 1-year Warranty for Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Remote Camera Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AWRP50NJ Specs | Remote Control | Protocol - IPv4, RS-422 (Panasonic AW series protocol)
Connection - Serial: Up to 5 cameras / IP: Up to 100 cameras (Up to 100 when Serial and IP are used together)
Adjustment functions - Pan/Tilt, Zoom, Focus, Iris, Gain, Pedestal, Shutter, Detail,White Balance (Auto, R/B Gain), Black Balance (Auto, R/B Pedestal), Switch scene files
Preset memory - Up to 100 | | Switcher Control | Connection - IP: 1
Switcher Supported - AW-HS50N

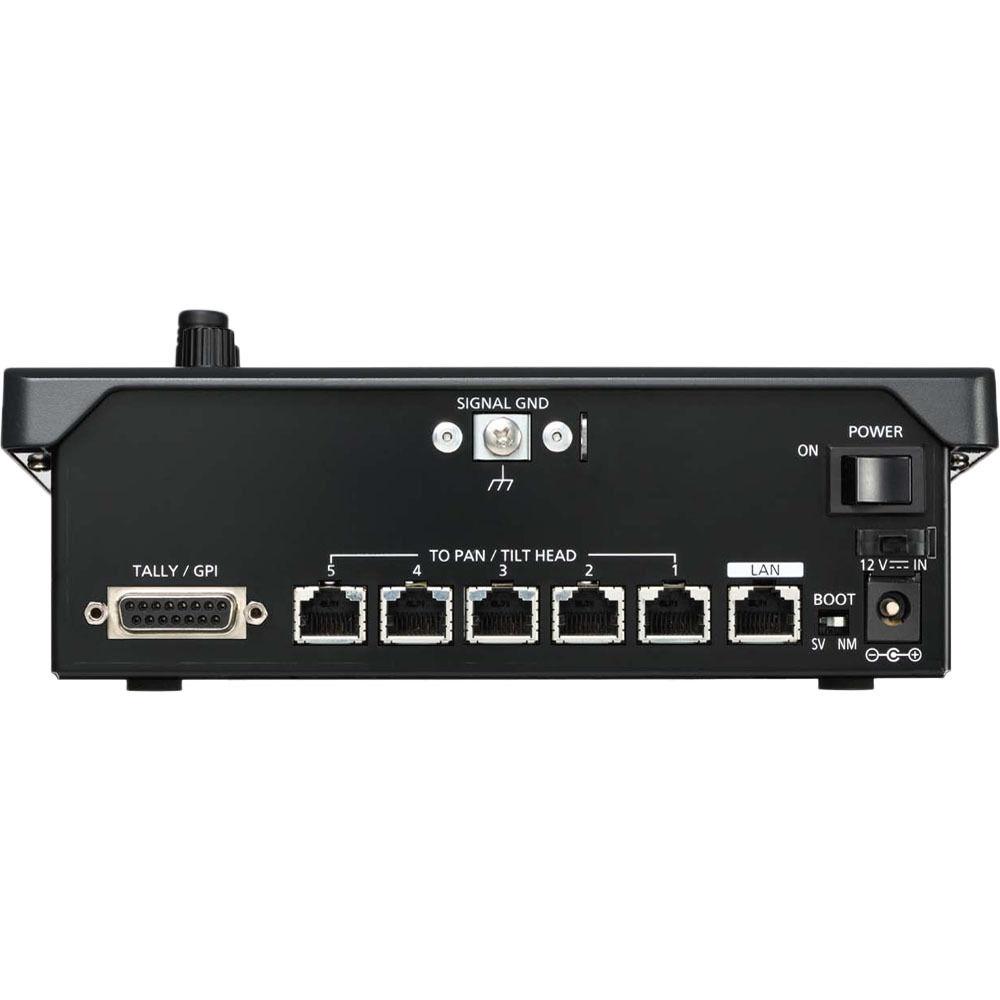

Linkage - Camera information display, TALLY information imported, BUS material selection (AUX/PVW/PinP/KEY-F), Parameter changes (Pan/Tilt lever, Zoom button) | | Interface | TALLY/GPI - TALLY input x 5 channels, GPI INPUT x 4 channels, GPI OUTPUT x 4 channels, D-sub 15 pin (female x 1)
LAN - 10BASE-T/100BASE-TX (for IP control), RJ45 x 1
Pan/Tilt head - RS422 (for Serial control), RJ45 x 5 | | | | Power Requirements | DC 12V ±10 % (AC adapter provided) | | Power Consumption | 2.0 A | | Operating Temperature | 0°C to +40°C | | Operating Humidity | 10% to 90% (no condensation) | | Weight | 2.42lb (1.1kg) | | Dimensions (WxHxD) | 8.26 x 2.63 x 6.96" (210 x 67 x 177 mm) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 13.0 x 11.5 x 7.4" |
