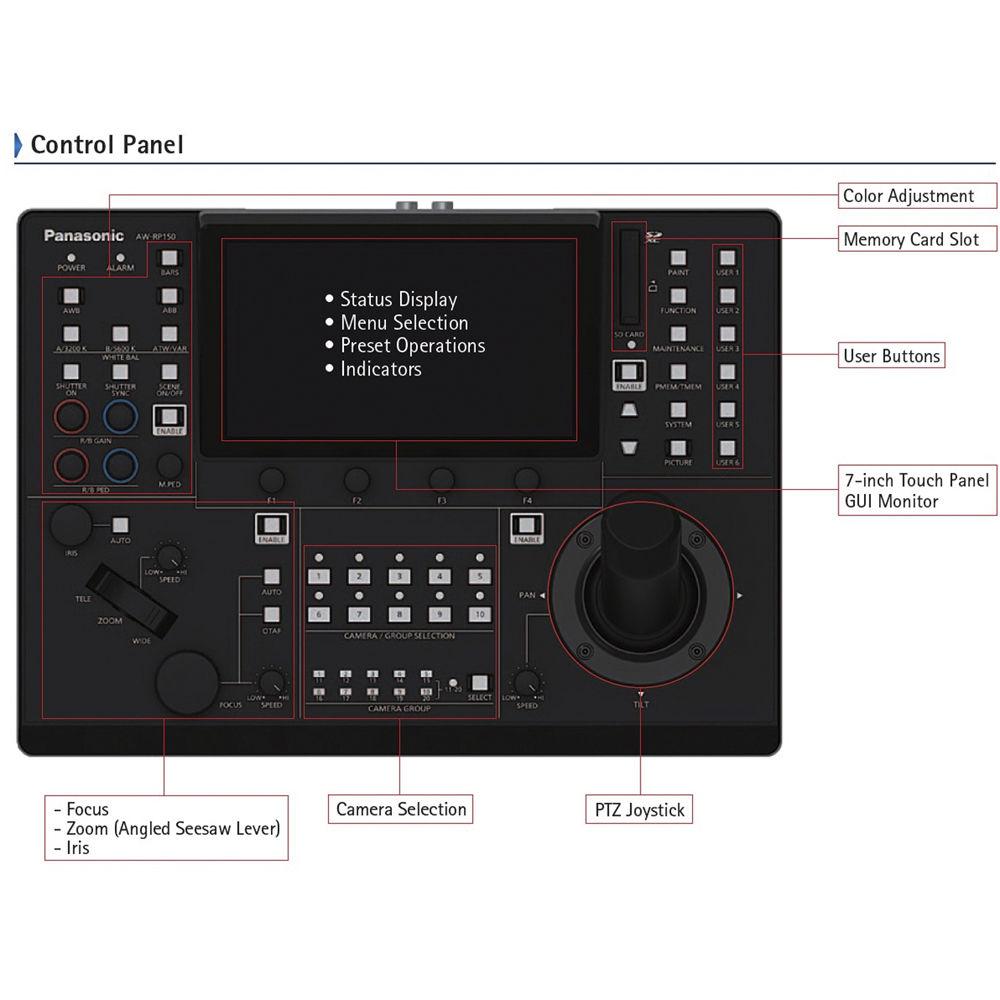

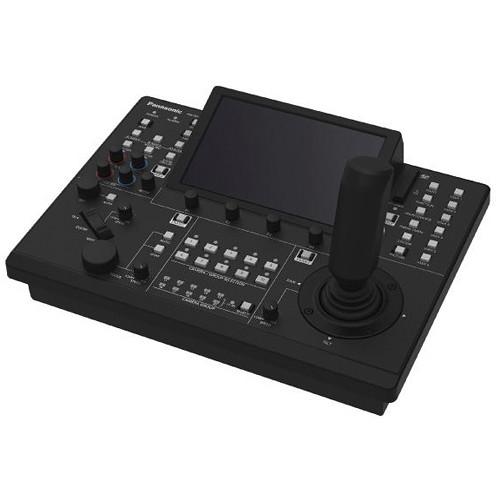

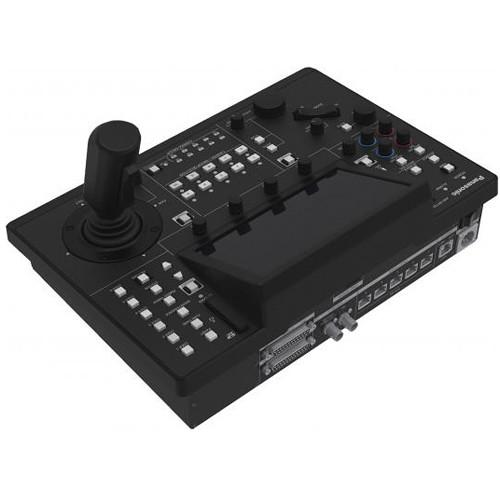

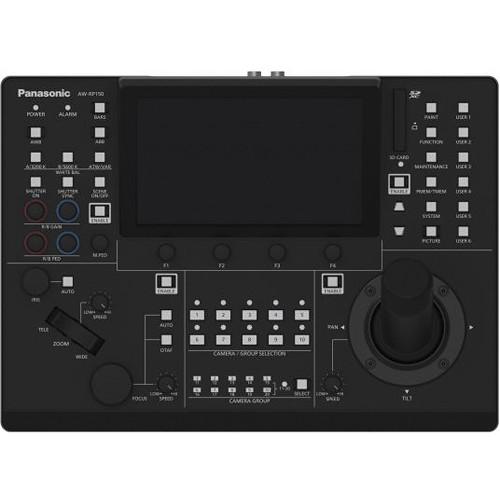

Product description The Remote Camera Controller from Panasonic is designed for controlling the AW-UE150W/K, AW-HR140, AW-HE130W/K, AW-HN130W/K, AW-UE70W/K, AW-UN70W/K, AW-HE40 Series, AW-HN40HW/HK, AW-HE38HW/HK, and AW-HN38HW/HK cameras. A zoom/focus rocker mounted on the joystick manages pan and tilt operations for control and intuitive single-handed operation. The built-in 7" touch display allows for easy and quick operation of all essential camera functions.
The AW-RP150GJ can control up to 200 remote cameras with IP connection or up to five cameras in a serial connection. The controller features an SD card slot. Scene files, system settings files, and other camera settings can be saved on the SD card, reducing on-location setup time when shooting at events with large numbers of cameras. - Up to 100 memory presets for simple camera control
UPC: 885170349773 In the Box Panasonic Remote Camera Controller with 7" Touchscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Remote Camera Controller with 7" Touchscreen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

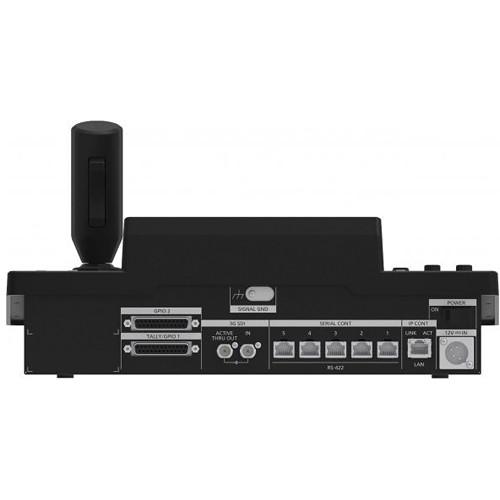

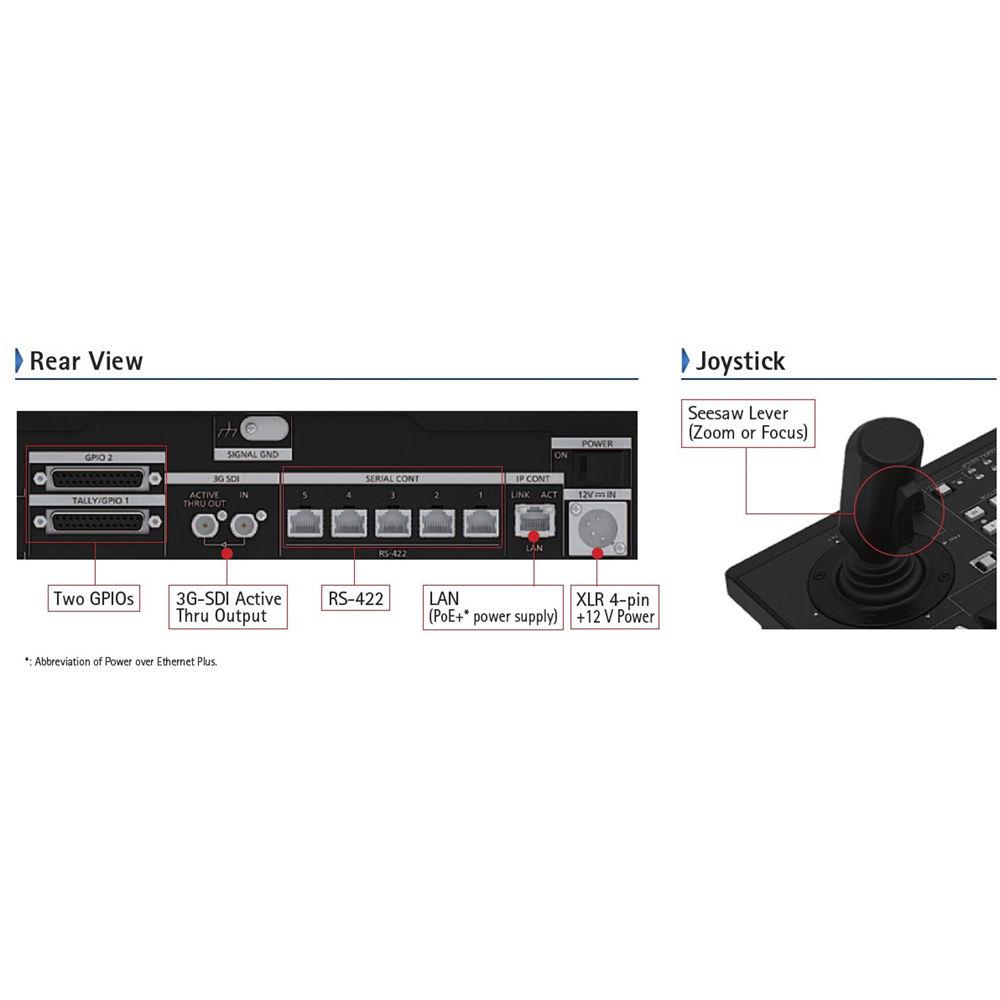

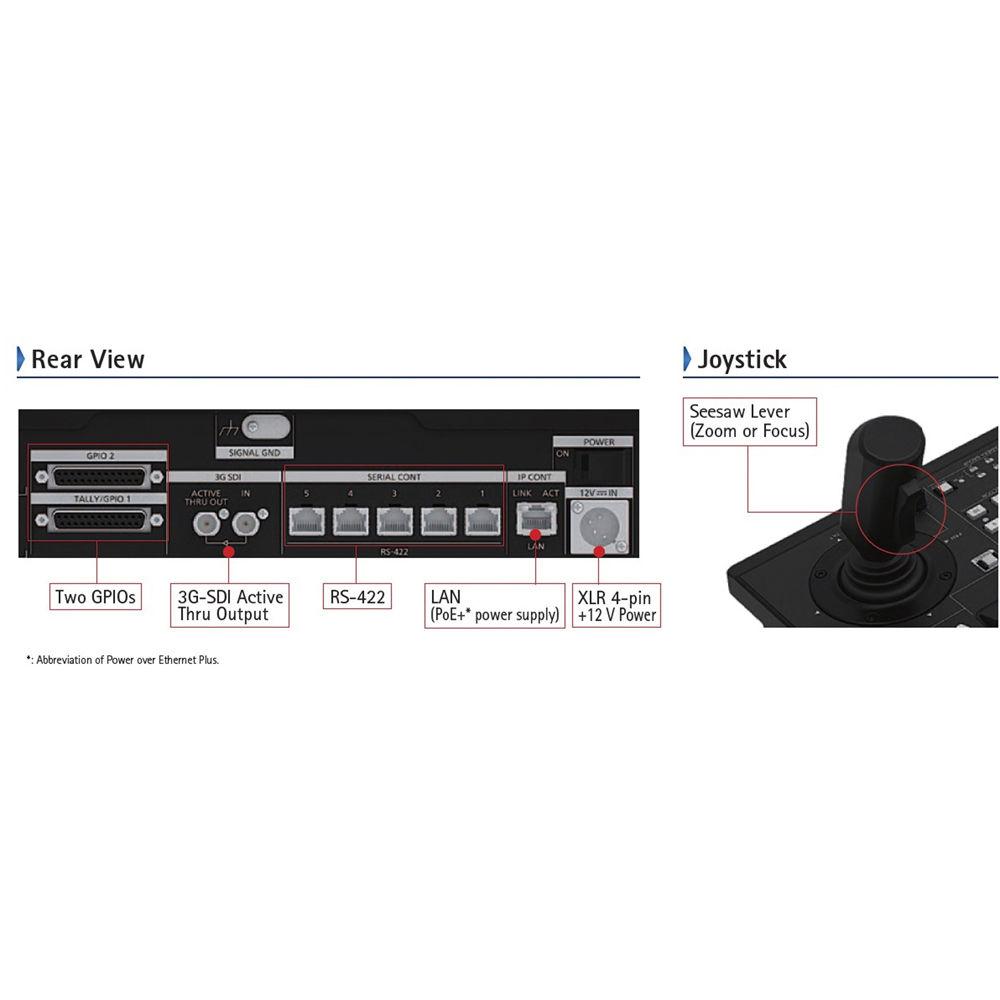

Technical parametersPanasonic AW-RP150GJ Specs | Compatible Cameras | AW-UE150W/K, AW-HR140, AW-HE130W/K, AW-HN130W/K, AW-UE70W/K, AW-UN70W/K, AW-HE40 Series, AW-HN40HW/HK, AW-HE38HW/HK, and AW-HN38HW/HK | | Supported Input Formats | 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF | | Display | 7" / 17.8 cm LCD | | Touch Panel | Yes | | Resolution | 800 x 480 | | Memory | SDHC/SDXC Memory Card Slot | | Connectors | 1 x BNC, 3G-SDI Video Input
1 x BNC, 3G-SDI Video Loop Output
1 x RJ45, LAN Port
5 x RJ45, RS-422 Control Port
1 x 25-Pin Sub-D Female, TALLY/GPIO 1
1 x 25-Pin Sub-D Female, GPIO 2
1 x 4-Pin XLR Male, 12 VDC Power Input | | Maximum Connectable Devices | IP: 200
RS-422: 5 | | Buttons | Camera Selection Buttons: 10 | | Camera Grouping | 20 (10 Units per Group) | | Presets | 100 | | Assignable Buttons | Six + up to 10 on the LCD Menu | | Pan/Tilt Speed | Seven Levels | | Tally LED Indicator | Green/Red | | Power Requirements | 12 VDC, 10.8 to 13.2 V | | PoE+ | IEEE802.3at Standard: 42 to 57 VDC | | Current Consumption | Connector Input: 1 A
PoE+ Power Supply: 0.6 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 122°F / -20 to 50°C | | Humidity | 20 to 90% | | Dimensions | 13.5 x 7.0 x 9.6" / 34.2 x 17.8 x 24.5 cm | | Weight | 7.05 lb / 3.2 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 19.0 x 15.4 x 13.0" |
