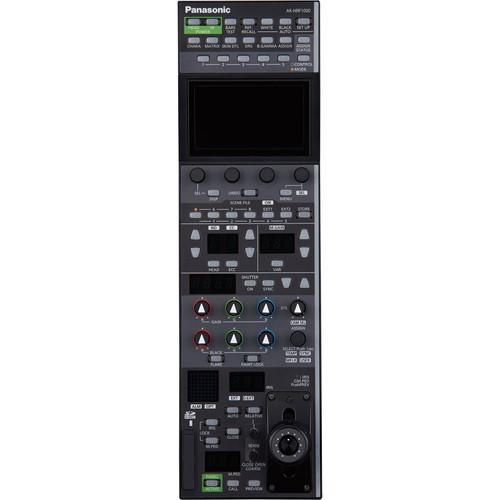

User Manual for Panasonic Remote Operation Panel for AK-UC3000 AK-HC5000 Studio Camera Click to enlarge the picture
Contents of the user manual for the Panasonic Remote Operation Panel for AK-UC3000
- Product category: RCPs & MCPs Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic RCPs & MCPs
|
User manual for the Panasonic Remote Operation Panel for AK-UC3000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Remote Operation Panel from Panasonic is a full operation panel remote control designed to be used with the AK-UC3000 or AK-HC5000 studio camera. It features LCD panels with enhanced visibility and supports camera serial control and IP control via an RJ45 LAN cable (available separately). Using a Cat5e or faster LAN cable, it also supports PoE. This remote control is equipped with an SD memory card slot for saving user and scene files and updating firmware versions. - Can be used for remote control of Panasonic camera recorders, convertible cameras, and HD integrated cameras
- Functions for studio camera scene file registration and retrieval
In the Box Panasonic Remote Operation Panel for AK-UC3000/AK-HC5000 Studio Camera (1/4 Rack) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Remote Operation Panel for AK-UC3000 AK-HC5000 Studio Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AK-HRP1000GJ Specs | Power Supply | 12 VDC
Power Supply from Camera: 10 to 16 VDC
PoE Power Supply: 42 to 57 VDC | | Power Consumption | 0.51 A (Power Supply from Camera: 10 to 16 VDC)
0.15 A (PoE Power Supply) | | Camera Control | Control Signals: Camera, CCU Control
Power Supply: 16 VDC (CCU Connected)
12 VDC (Camera Connected) | | Connections | 1 x RJ45 LAN Port
1 x 4-Pin Preview Port
1 x 10-Pin CCU Port | | Maximum Cable Length | When Camera Connected: 65.7' / 20 m
When CCU Connected: 164' / 50 m | | LCD Panel | Height: 3.5" / 8.9 cm | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 90% | | Rack Size | 1/4 Width | | Dimensions (W × H × D) | 4.0 x 15.2 x 4.4" / 10.2 x 38.5 x 11.3 cm | | Weight | 3.75 lb / 1.7 kg Approx. |
