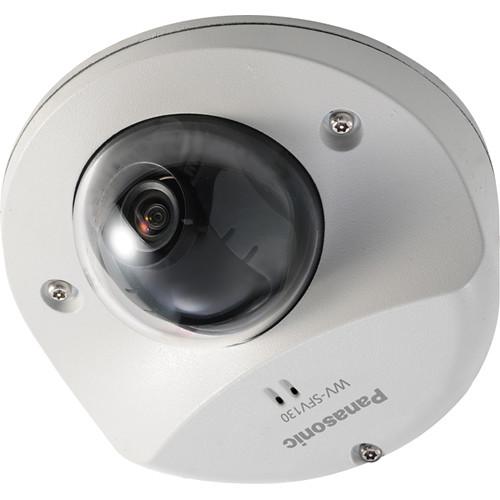

User Manual for Panasonic Super Dynamic 1080p WV-SFV130M Outdoor Network Dome Camera with 2.8mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Panasonic Super Dynamic 1080p WV-SFV130M Outdoor
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic Super Dynamic 1080p WV-SFV130M Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Super Dynamic 1080p WV-SFV130M Outdoor Network Dome Camera from Panasonic features a 1/3" type MOS image sensor for capturing high-quality images in 1920 x 1080 resolution at up to 30 fps. Enhanced Super Dynamic and ABS (Adaptive Black Stretch) provide a 122 dB wide dynamic range. The camera offers 3 levels of digital zoom, 1x, 2x, and 4x, and captures clear images in a minimum illumination of 0.01 lux (color) and 0.08 lux (B&W) at f/2.3. Face Super Dynamic technology ensures clear face images, and the 3D-MNR (Multi-process Noise Reduction) feature provides noise reduction in varying conditions. - Camera and Lens
-
- 1920 x 1080 images up to 30 fps
- Multiple H.264 (High profile) and JPEG streams provide simultaneous real-time monitoring and high-resolution recording
- Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 122 dB Wide Dynamic Range
- 3D-MNR provides noise reduction in various conditions and FDF (Frequency Divided Filter) provides the network bandwidth and the disk space of recorder can be saved
- Light sensitivity of 0.01 lux (color) and 0.08 lux (B&W) at f/2.3 with day and night functionality
- Progressive scan for clear images with less motion blur and no tearing even when the subject is moving
- Camera title displays up to 20 alphanumeric characters in the browser
- Prioritized Stream Control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or client PC can maintain frame rate
- Image Enhancement
-
- VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain high image quality while the excluded area will have a low image quality, which enables low bit rates and smaller file sizes
- Smart Coding Technology: Group of Pictures (GOP) control function removes unnecessary information from the frame for realizing efficient encoding
- ELC (maximum exposure time): Lighting control will be automatically performed by adjusting shutter speed in the range of ELC
- 2x, 4x digital zoom controlled by browser
- VMD (Video Motion Detection) with 4 programmable detection areas, 15-step sensitivity level, and 10-step detection size
- Privacy Zone can mask up to 8 private areas, such as windows and entrances/exits of a house
- Face detection function (optional) detects the position of a human face and the information is sent via XML or video stream
- Face Super Dynamic technology ensures clear images of faces
- Fog compensation function equipped as standard
- HLC (High Light Compensation) technology reduces strong light sources such as vehicle headlights to prevent camera being blinded
- Alarm Function
-
- Alarm sources including VMD and Panasonic alarm command can trigger actions such as FTP image transfer, email notification, indication on browser, and Panasonic alarm protocol output
- JPEG image compression ratio can be changed by alarm for better quality images
- SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
- Intelligent extension software (optional) can be added to complement the built-in VMD (Video Motion Detection), alarm function
- Additional Features
-
- H.264 bit rate/client and total bit rate control allows flexible network traffic management
- Frame rate priority mode controls the bit rate and compression ratio to provide the specified frame rate
- Internet Mode: H.264 images can be transmitted over HTTP protocol
- Multi-Language Support: English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
- IPv4/IPv6 protocol supported
- Supports SSL, DDNS (viewnetcam, RFC2136)
- ONVIF-conformant
- Low profile design for discrete installation
- Wide coverage at (108 ° horizontal and 60 ° vertical at 16:9 mode)
- Approved for use on rolling stock EN50155-T3 (railroad standard) / EN50121, EN45545 compliant ECE-R10 (E approval) EN50498 compliant
- Vandal resistant mechanism for high reliability
- The camera conforms to the IP66, Type 4X (UL50) is compliant with NEMA 4X ratings
In the Box Panasonic Super Dynamic 1080p WV-SFV130M Outdoor Network Dome Camera with 2.8mm Varifocal Lens (M12) Limited 3-Year Warranty Mount Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Super Dynamic 1080p WV-SFV130M Outdoor Network Dome Camera with 2.8mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-SFV130M Specs | | | Sensor | 1/3" MOS | | Effective Pixels | 1.3 MP | | Scanning Mode | Progressive scan | | Scanning Area (H x V) | 7/32 x 1/8" (5.28 x 2.97 mm) | | Minimum Illumination | Color: 0.1 lux (f/2.3, Maximum Shutter: Off (1/30s), AGC: High)
0.007 lux (f/2.3, Maximum Shutter: Max. 16/30s, AGC: High)
B&W: 0.08 lux (f/2.3, Maximum Shutter: Off (1/30s), AGC: High)
0.005 lux (f/2.3, Maximum Shutter: Max. 16/30s, AGC: High) | | White Balance | AWC (2000 to 10,000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K) | | Light Control Mode | ELC / indoor scene 50 Hz / indoor scene 60 Hz | | Shutter Speed | Maximum 1/10,000, 1/4,000, 1/2,000, 1/1,000, 1/500, 1/250, 1/120, 1/100, 2/120, 2/100, 3/120, 3/100, 1/30, 2/30, 4/30, 6/30, 10/30, 16/30 sec | | Super Dynamic | On (high) / On (normal) / Off | | Face Super Dynamic | On / Off (Only at Super Dynamic: On) | | Adaptive Black Stretch | On / Off (Only when Super Dynamic: Off) | | Backlight Compensation | On / Off (Only when Super Dynamic: Off) | | Defog | Fog Compensation: On / Off (only when Super Dynamic/ Adaptive Black Stretch is Off) | | HLC | On / Off (Only when Super Dynamic / Backlight Compensation (BLC): Off) | | AGC (Automatic Gain Control) | On (low, mid, high) / Off | | Day & Night | Off / Auto | | Dynamic Range | 122 dB (typical) (Only when Super Dynamic On) | | Digital Noise Reduction (DNR) | High / Low | | Video Motion Detection | 4 definable areas
Sensitivity: 15 steps, Detection Size: 10 steps | | Privacy Zone | 8 zones (maximum) | | VIQS | 8 zones (maximum) | | Adjusting Angle | Ceiling Installation:
Horizontal: -20 to 20°, Vertical: -20 to 0° (right under) to 90° (right beside)
Wall Installation:
Horizontal: 90 to -90°, Vertical: -20 to 0° (right beside) to 90° (right under) | | | | Focal Length | 2.8mm | | Angular Field of View | 16:9 Mode
Horizontal: 108°, Vertical: 60°
4:3 Mode
Horizontal: 89°, Vertical: 66° | | Maximum Aperture Ratio | 1:2.3 | | Focusing Range | 19.7" (0.5 m) to infinity | | Image Resolution | 2 MP [16: 9]
1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
1920 x 1080 only for H.264 (1), H.264 (2)
br>2 MP [4: 3]
1600 x 1200 / 1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
1600 x 1200 only for H.264 (1), H.264 (2)
br>3 MP [4: 3]
2048 x 1536 / 1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA / 160 x 120
2048 x 1536 only for H.264 (1), H.264 (2) | | | | Cropping | Off / JPEG (1) / JPEG (2) / JPEG (3) / H.264 (1) / H.264 (2) / H.264 (3) / H.264 (4) / H.264 (all) | | Alarm Actions | On / Off | | Camera Control | Brightness | | Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different quad screens or a 16-split screen (JPEG only)
20 characters camera title available | | Digital Zoom | 1x, 2x, 4x controlled by browser GUI | | Zoom Ratio | 1x, 3x Extra zoom at 2.0 MP, [16: 9] mode | | Clock Display | Time: 12 hours or 24 hours
Date: 5 formats in the browser, summer time (manual) | | Camera Title (OSD) | Up to 20 alphanumeric characters | | One Shot Capture | A still picture will be displayed on a newly opened window | | SD Memory Data Download | Still or motion images recorded on the SDXC/SDHC/SD memory card can be downloaded | | GUI Language | Setup Menu: English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | System Log | Up to 100 (internal) error logs
Up to 4,000 (on SDXC/SDHC/SD memory when the recording format is set to JPEG) error logs | | Supported OS | Microsoft Windows 7 / 8 / 8.1 / 10 Refer to "Notes on Windows 7 / 8 / 8.1 / 10" on the provided CD-ROM for further information about system requirements for a PC and precautions | | Supported Browsers | Internet Explorer 8 / 9 / 10 / 11 (32-bit) | | | | Transmission mode | Constant bit rate / Variable bit rate / Frame rate priority / Best effort / Advanced VBR Transmission for 4 streams can be individually set | | Frame Rate | 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps | | Bit Rate/Client | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192 / 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30,720 / 40,960 kbps | | Image Quality | Constant Bit Rate / Best Effort: Low / Normal / Fine
Variable Bit Rate: 0 Super Fine / 1 Fine / 2 / 3 / 4 / 5 Normal / 6 / 7 / 8 / 9 Low | | Transmission Types | Unicast / multicast | | | | Image Quality | 10 steps | | Refresh Interval | 0.1 to 30 fps | | Transmission Types | Pull / push | | | | Audio Compression | G.726 (ADPCM) 32 / 16 kbps, G.711 64 kbps, AAC-LC 64 kbps, AAC-LC (high quality) 64 / 96 / 128 kbps | | Built-In Microphone | Non-directional electret condenser microphone | | | | Network Interface | 10Base-T/100 Base-TX, RJ45 port | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Operating Bandwidth | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps | | FTP Client | Alarm image transmission, FTP periodic transmission When the FTP transmission fails, backup on an optional SDXC/SDHC/SD memory card is available. | | Number of Simultaneous Users | Up to 14 users, depends on network conditions | | Compatible Memory Cards | SD (SDHC/SDXC) Cards (Except miniSD and microSD Cards)
SDXC Memory Card: 64, 128 GB
SDHC Memory Card: 4, 8, 16, 32 GB
SD Memory Card: 2 GB Cards manufactured by Panasonic (SD speed class 4 or higher) recommended. | | Cellular Phone Compatibility | JPEG image | | Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android Terminal | | | | Alarm Source | VMD, command alarm, audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification, indication on browser, FTP image transfer, Panasonic protocol output | | Alarm Log | 5,000 logs (maximum) for each SDXC / SDHC / SD memory card (SD card available separately) | | Schedule | VMD | | | | Approvals | Safety: UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMC: FCC (Part15 Class A), ICES003 Class A, EN55022 Class B, EN55024
Electronics equipment used on rolling stock EN50155-T3 (railroad standard) / EN50121, EN45545 compliant ECE-R10 (E approval)EN50498 compliant | | Power Source | PoE (IEEE 802.3af) | | Power Consumption | 48 VDC: 90 mA / approximately 4.3 W (class 2 device) | | Ambient Operating Temperature | -40 to 140°F (-40 to 60°C)
Power on Range: -22 to 140°F (-30 to 60°C) | | Ambient Operating Humidity | 10 to 90% (non-condensing) | | Finish | Main Body: Aluminum die cast
Dome: Clear acrylic resin
Tamper-resistant enclosure Component that has a structure on which the screws that are accessible after installation cannot be screwed or unscrewed using an ordinary screwdriver. | | Dimensions (Ø x H) | Mount Bracket Installation: 4.2 x 2.7" (109 x 70 mm)
Wall or Ceiling Installation: 4.2 x 1.8" (109 x 47 mm)
Dome Radius: 2.1" (54 mm) | | Weight | With Mount Bracket: 0.9 lb (410 g)
Without Mount Bracket: 0.77 lb (350 g) |
