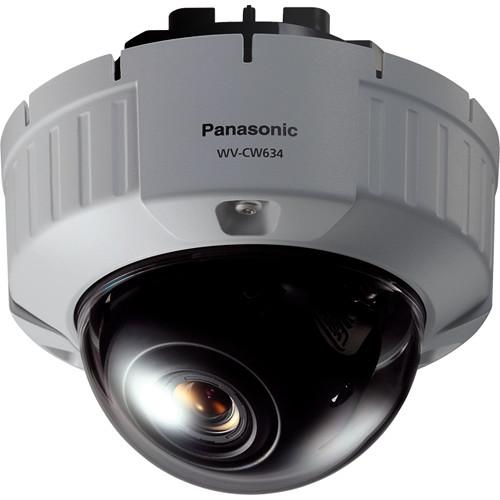

Product description The Super Dynamic 6 Fixed Dome Camera from Panasonic features a 1/3" Interline Transfer CCD with 3.8-8mm varifocal lens, 2.1x optical zoom, 2x digital zoom, and 700 TVL color resolution, to provide high-quality images. Low light sensitivity of 0.008 lux in B&W and 0.08 lux in color mode with ABS (Adaptive Black Stretch) to compensate for dark areas, help provide clear images in low light conditions. Featuring VMD (Video Motion Detection) technology, the SD 6 camera captures video of moving objects without distortion. Accurate focusing, in both color and B&W modes, is achieved by using a built-in Auto Back Focus that not only adjusts the position of the CCD sensor but also lessens post-installation intervention. The 2-piece mounting bracket design of the fixed dome camera is designed for easy installation. The IP66-rated Super Dynamic 6 Fixed Dome Camera is resistant to dust, moisture, and vandalism. It has 24 VAC or 12 VDC power options and includes a clear dome and flush mount. - IR cut filter switches on/off to enhance sensitivity in B&W mode
- VMD (Video Motion Detection) including video motion detection and scene change detection when lens is covered, spray painted, removed or defocused
- ABF (Auto Back Focus) for stable focus in both color and B&W modes
- 3-dimensional color conversion function for natural color reproduction
- Adaptive digital noise reduction - Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions
- ABS technology to compensate for dark areas
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization
- Over the coaxial cable data communication
- 16 alphanumeric camera title display
- Multi language - English, French, Italian, Spanish, Portuguese, German, Russian, Japanese
- Monitor output and 3-way hinge (horizontal, vertical and swivel rotation) for easier installation
- 2-piece mounting bracket structure for easy cable connection
- IP66 rated, resistant to dust and moisture
In the Box Panasonic Super Dynamic 6 Outdoor Dome Camera with 3.8-8mm Varifocal Lens (Flush Mount) Clear Dome Cover Attachment Plate Bit for Tamperproof Screw Waterproof Tape Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Super Dynamic 6 Outdoor Dome Camera with 3.8-8mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CW634F Specs | | | Signal System | NTSC | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace scan | | Scanning Area | 0.18 x 0.14" / 4.8 x 3.6 mm | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Lines | Scanning: 525 lines | | Resolution | Horizontal: 700 TVL or more
Vertical: 350 TVL or more (at center) | | Minimum Illumination | Color: 0.08 lux, 0.0024 lux (SENS UP: 32x)
B&W: 0.008 lux, 0.00024 lux (SENS UP: 32x) | | Signal-to-Noise Ratio | 52 dB (AGC Off) | | White Balance | ATW1 (2700 to 6000K), ATW2 (2000 to 6000K), or AWC (2000 to 10,000K) | | Light Control | ALC/ALC+/ELC | | AGC | On (High/Mid/Low) / Off | | Super Dynamic 6 | On/On | | Dynamic Range | 52 dB typical (Super Dynamic 6 On) | | Electronic Shutter | Off (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000, 1/120,000 s | | Electronic Sensitivity UP | Off/Auto (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x) | | Digital Noise Reduction | High/Low | | Black and White Mode | Mode : Auto1/Auto2/On/Off | | Compensation | Fog: On/Off | | HLC | On 1 / On 2 / Off | | Digital Zoom | Electronic: On (up to 2x) / Off | | Scene File | 2 patterns | | Video Motion Detection | Off / Video Motion Detection / Scene Change Detection | | Privacy Zone | On 1 / On 2 / Off | | Auto Image Stabilizer | On/Off | | Camera Title | Up to 16 characters | | Lens Mount | CS-mount | | Back Focus | ABF / Manual / switching between color and B&W interlocking | | Synchronization | INT (internal sync) / VD2 | | | | Focal Length | 3.8-8mm | | Zoom | 2.1x optical | | Field of View | Horizontal: 74.9 to 33.6°
Vertical: 55.7 to 25.2° | | Aperture | 1.4-1.9 | | Focusing Range | 3.9' to ∞ / 1.2 m to ∞ | | Lens ALC Drive | DC | | | | Panning Range | ±170° | | Tilting Range | ±75° | | Azimuth | ±100° | | | | Video Output | VBS: 1.0 V p-p / 75 Ohms
NTSC, BNC connector | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms
NTSC, RCA jack | | | | Setup Method | OSD setup menu | | Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | Safety/EMC Standard | UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DoC (ICES003 ClassA) | | Power Source | 24 VAC 60 Hz, 3.0 W, 13.2 W | | Power Consumption | 12 VDC, 241 mA | | Ambient Operating Temperature | 14 to 140°F / -10 to 60°C
-22 to 140°F / -30 to 60°C | | Ambient Operating Humidity | 10 to 90 % (no condensation) | | Water and Dust Resistance | IP66, IEC60529 measurement standard compatible | | Impact Protection | 50J, IEC60068-2-75 | | Dimensions | ⌀6.1 x 5.7" / ⌀15 x 14 cm | | Weight | Main Body: 2.97 lb / 1.35 kg
Attachment Plate: 0.22 lb / 0.09 kg |
