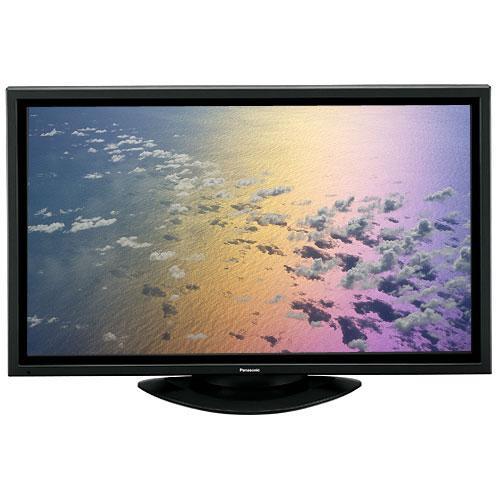

User Manual for Panasonic TH-50PF11UK 50" Plasma Display Click to enlarge the picture
Contents of the user manual for the Panasonic TH-50PF11UK 50" Plasma Display
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic TH-50PF11UK 50" Plasma Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic TH-50PF11UK is a 50" plasma display designed for the most demanding home theater and professional applications. It contains technology that improves color rendition, brightness and contrast while achieving new standards in power efficiency and functional lifetime. It can be used as the ultimate home theater display or as a panel for corporate presentations and commercial signage. The display features true 1080p resolution, on a high contrast panel. The multi-function slots support additional input boards such as BNC, Serial, RGB, and HDMI. - Advanced Dual Picture Mode
- Panasonic plasma displays feature a new Advanced Dual Picture Mode in addition to the conventional Dual Picture Mode. This new mode lets you overlay a video image onto a full-screen PC image. For example, you can superimpose text information from a PC over a video clip, giving you a more effective way to present information. When displaying two separate images, you can select the audio output from either source (where previous models reproduced audio from the main source only). Playing back the audio from the sub-source can be useful in teleconferencing.
- Optional Connections
- The TH-50PF11UK comes with standard analog video and computer connections along with audio capabilities. The user can customize this monitor for their specific needs with three option slots for specialty cards. There are digital cards that provide HDMI, SDI or HD-SDI. Another card adds additional computer connections. Still another will add wireless PC interface.
- Deep Black and High Contrast
- The front protective glass of the TH-50PF11UK display panel incorporates a deep black filter that suppresses light transmittance, dramatically reducing the amount of external light reflected. By reducing this when displaying blacks, the Panasonic Black Drive system provides deeper, richer shadows with a stunning 30,000:1 contrast ratio. The result is dramatically enhanced images with unsurpassed clarity and realism.
- Go Vertical
- The TH-50PF10UK has the ability to be displayed vertically. This feature is an essential component of any commercial or industrial display. Make life easy with a plasma sign, not only will it gain more attention but presents virtually limitless possibilities. Whether it's a simple slide show or a motion advertisement, change them on the fly as often as you want!
- Multi-Screen Technology
- Multi-Screen Technology is an easy solution to a complex scenario. The plasma allows the operator to choose a certain segment of the total frame, in normal increments. The result is an easy way to create large video walls. Simply tile multiple displays together in an array and choose corresponding areas of the frame. This will create the same effect as a normal video wall. Bravo!
- 100,000 Hours Life
- An advanced drive circuit and inner panel improvements give Panasonic plasma panels a long service life of approximately 100,000 hours even with their increased brightness. A recently developed phosphor also raises the plasma displays resistance to static-image screen burning to the same level as CRT displays.
UPC: 037988242221 In the Box Panasonic TH-50PF11UK 50" Plasma Display Remote Control with Batteries BNC Component Video Terminal Board (in Slot 3) Dual HDMI Terminal Board (in Slot 2) 6ft. AC Power Cord 2 Fixing Bands (Cable Ties) 2-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TH-50PF11UK 50" Plasma Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TH-50PF11UK Specs Signal System | Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC
Video Signal 480/60i, 60p 575/50i, 50p 720/60p, 50p 1080/60i, 50i, 24p, 24sF, 25p, 30p, 60p, 50p 1080/50i
PC Signal VGA, SVGA, WVGA, WSVGA, XGA, SXGA, XGA+, SXGA+, WXGA | Screen Size | 50" | Aspect Ratio | 16:9 | Resolution | 1920 x 1080 | Contrast Ratio | 30,000:1 | Input and Output Connectors | Fixed Terminals PC: 15-Pin DSub Audio: 3.5mm Jack (x1 Input) HDMI: HDMI (x2 Input) Component: BNCx3 (x1 Input) | Speakers | Optional, 16W (8Wx2) | Power Requirements | 120 VAC, 50/60 Hz | Power Consumption | Not specified by the manufacturer | Dimensions (WxHxD) | 47.6 x 28.5 x 3.7" (121 x 72.4 x 9.5cm) | Weight | 81.6 lbs (37 kg) | | Package Weight | 96.4 lb | Box Dimensions (LxWxH) | 52.0 x 32.0 x 16.0" |
