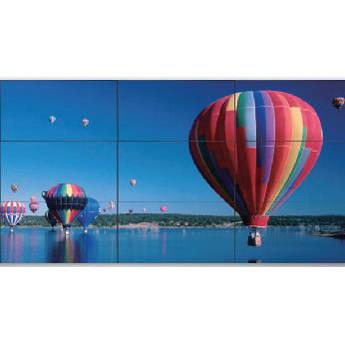

User Manual for Panasonic TH-55LFV50U 3x3 Video Wall Bundle Click to enlarge the picture
Contents of the user manual for the Panasonic TH-55LFV50U 3x3 Video Wall Bundle
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic TH-55LFV50U 3x3 Video Wall Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic TH-55LFV50U 3x3 Video Wall Bundle is designed to be an all-in-one solution to your video wall needs. It includes nine Panasonic TH-55LFV50U displays and wall mounts; a keyboard and mouse; IR, serial, and DVI cables; and an overfame kit. The included serial and IR cables will offer control of all of the displays at once by daisy-chaining them together, while the included DVI cables will allow your video signal to also be daisy-chained through all of the displays, simplifying your setup process. Lastly, the included overframe kit provides additional uniformity to your installation. - Multi-Screen System Dynamically Displays Images in Large Spaces
- The Multi-Display function enlarges images up to five times their original size, both vertically and horizontally. It enlarges images by the same zoom ratio in both directions or by different ratios in order to effectively use vertically or horizontally elongated spaces. LCD display versatility can be further enhanced by freely selecting the zoom ratio to match the installation space.
- Narrow Bezel with 0.21" (5.3mm) Thinness
- The narrow bezel results in joints that are only 0.21" (5.3mm) wide for video wall installations, enhancing the impact of displayed images.
- Pre-Calibration for a Uniform Video Wall
- Colors are pre-calibrated prior to factory shipment to minimize the color differences between displays for multi-screen use.
- Daisy-Chain up to 25 Displays
- The terminal board for the TH-55LFV50U is equipped with DVI-I and serial output terminals. DVI video signals for up to 10 displays and serial signals for up to 25 displays can be transmitted by a daisy-chain connection. This enables your video wall to be configured using only displays and video sources with no need for a video splitter, signal booster, or other device. Using an optional Remote Control Kit, up to 25 displays can be operated by a single remote control.
In the Box Panasonic TH-55LFV50U 3x3 Video Wall Bundle 9 x 55" Ultra-Narrow Thin Bezel LED Display Wall Mounts Overframe Kit IR Cables Serial Cables DVI Cables Keyboard Mouse Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TH-55LFV50U 3x3 Video Wall Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic 55LFV503X3VW Specs | | | Screen Size (Diagonal) | 54.6" | | Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Brightness | 800 cd/m
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
