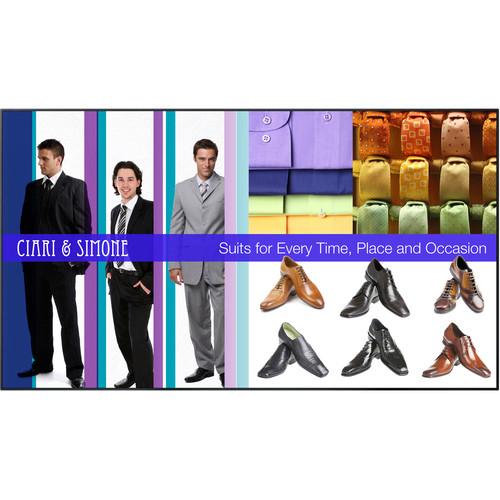

User Manual for Panasonic TH-55LFV60U 55"-Class Full HD Video Wall LCD Display Click to enlarge the picture
Contents of the user manual for the Panasonic TH-55LFV60U 55"-Class Full HD Video
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic TH-55LFV60U 55"-Class Full HD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The black LFV6U Series 55” Full HD Class Ultra Narrow Bezel Video Wall LCD Display from Panasonic features a 0.14” ultra-narrow bezel that makes it suitable for video wall installations. Even in large-screen configurations, the screen borders can barely be seen, so images are clear and natural. It offers a maximum resolution of up to 1920 x 1080 and a brightness rating of 700 cd/m2.The display features an extensive display menu that allows you to easily choose from a wide selection of display modes to suit different content, video sources, and lighting environments to achieve optimal results. Multi-Screen Video Synchronization - Incorporates video playback synchronization function for vertically adjacent displays in multi-screen configuration
- Frame Control - Adjusts timing or images to reproduce enlarged video more naturally
- Reverse Scan - Reverses direction of image scanning to smoothly play enlarged video on multiple screens
High-Performance Imaging Engine - Color and image quality can be fine-tuned and customized to assure seamless uniformity across all displays in multi-screen configuration
- Color matching function corrects any unevenness in colors between multiple screens
- R (red), G (green), and B (blue) along with intermediate colors (cyan, magenta, and yellow) are corrected individually on each display
- Color enhancement features helps in displaying images with enhanced color intensity
- Refine enhancer corrects blurry image contours that result from resizing to improve the resolution
- Gradation smoother extracts and eliminates noise components from input video signals for noise-free image reproduction
Multi-Screen Imaging Syncing via USB and Changing Content via LAN - Can be quickly adapted for digital signage
- Connect USB memory devices to inputs on each display in 2 x 2 multi-screen configuration for automatically synchronized 4K (4 x 1080p) images (No external devices or processors are required)
- Also serves as a backup in case the primary video source fails
- Multi Monitoring & Control Software allows for easy replacement of content stored on USB via LAN in situations where the display is difficult to access
Installation Frame Simplifies Setup - Optional installation mount makes it easier to configure a video wall
- Eliminates the need for display positioning
- Minimizes fluctuations between different installers
Failover and Failback Functions Support Emergency Situations - Equipped with 1 DVI-D, 2 HDMI, and 1 USB ports
- If the main video and audio signals are interrupted, the system immediately switches to alternative signals, making it suitable for mission critical control rooms and surveillance centers
Video Wall Manager Software and Auto Display Adjustment Upgrade Kit - Works with Video Wall Manager software (Ver.1.1 or later)
- Can be used for calibrating the display color using a color sensor (optional), adjusting display settings, and controlling and managing data via PC
- Optional TY-VUK10 Auto Camera Adjustment Kit allows you to adjust brightness and color among multiple displays automatically using a compatible camera (Nikon D5200/D5300/D5500)
UPC: 885170259379 In the Box Panasonic TH-55LFV60U 55"-Class Full HD Video Wall LCD Display (Anti-Reflection, Black) AC Cord (6.5') Remote Control 2 x AAA Battery 3 x Clamper DVI-D Cable IR Cable External IR Receive Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TH-55LFV60U 55"-Class Full HD Video Wall LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TH-55LFV60U Specs | | | Screen Size (Diagonal) | 54.6" | | Native Resolution | 1920 x 1080 | | Panel Type | IPS-Type LCD | | Brightness | 700 cd/m
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
