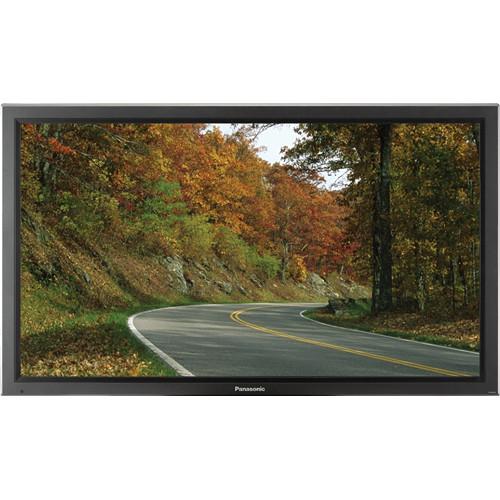

User Manual for Panasonic TH50BT300U 50" HD Professional Plasma Display Click to enlarge the picture
Contents of the user manual for the Panasonic TH50BT300U 50" HD Professional Plasma
- Product category: Commercial Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Commercial Monitors
|
User manual for the Panasonic TH50BT300U 50" HD Professional Plasma contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic TH50BT300U 50" HD Professional Plasma Display is primarily designed for broadcast and post-production use, and with those types of environments, the plasma display is designed to be a workhorse. The 100,000 hour rated panel will satisfy the busiest of users while reducing image retention when running program material for long periods of time. The TH50BT300U boasts HDMI, component, DVI, PC and RS-232C inputs/outputs but also allows the addition of more mounting boards like SLOT 2.0, which is developed to defeat obsolescence and promote expandability. The 1920 x 1080 panel features a wide color gamut backed by an unheard of 5,000,000:1 contrast ratio which recreates crisp detail in any installation regardless of viewing angle. Speaking of color gamut, the TH50BT300U includes the ability for users to customize their color gamut response to their needs as well as many other studio grade features never found before on a plasma display monitor. The TH50BT300U treats viewers to steady, blur-free, fast moving images and is the perfect fit for any environment that needs 24/7 operation. - Designed primarily for broadcast and post-production use, the TH50BT300U includes the ability for users to customize the color gamut response to their needs as well as many other studio grade features never found before on a plasma display monitor
- The TH50BT300U offers superb images with stunning colors for displaying materials in all their natural beauty. Six modes are provided, including the color gamut modes for broadcasting and post production use including (SMPTE-C/EBU/BT.709) and digital cinema Color and native. Custom mode allows you to set the hue for each RGB color while viewing a simplified chroma diagram
- It also provides a motion-image performance that is 1.5 times that of conventional models. The Full-HD moving picture resolution speed index is 1200 pps (1080 lines of moving picture resolution). This treats viewers to steady, blur-free, fast-moving images such as sports scenes and action films
- In addition, a variety of markers can be used when editing images and when used as a broadcast monitor; the standardized gamma characteristics can be reproduced when γ1.0, γ2.2, γ2.35, γ2.4, or γ2.6 is selected
UPC: 885170051003 In the Box Panasonic TH50BT300U 50" HD Professional Plasma Display Remote Control with Batteries Operating Instruction Book Clamper AC Power Cord Ferrite Core 2-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TH50BT300U 50" HD Professional Plasma Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TH-50BT300U Specs | Glass | Anti-reflection | | Screen Size | 50" (1268mm) | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080
Full HD moving picture resolution speed: 1200 pixel per second
Display moving picture resolution: 1080 lines | | Display Area | 43.5 x 24.5" (1105 x 622mm) | | Pixel Pitch | 0.6 x 0.6mm | | Contrast Ratio | 5,000,000:1 | | Life | Approx. 100,000 hours | | 3D | Full HD 3D ready | | Input and Output Connectors | Video in/Audio in (L/R): BNC x 1/RCA pin jack x 1 set
Component/RGB in/Audio in (L/R): BNC x 3/RCA pin jack x 1 set
HDMI in: HDMI Type A x 1
DVI-D in/Audio in (L/R): DVI-D x 1 / M3 jack x 1 (common terminal with PC)
PC in/Audio in (L/R): D-sub 15-pin x 1/M3 jack x 1 (common terminal with DVI)
LAN: RJ-45 10Base-T/100Base-TX, compatible with PJ Link
Serial: D-sub 9-pin x 1, RS-232C compatible
3D shutter out:M3 jack x 1
DC 8V out for 3D IR transmitter: center plus for EIAJ 4mm plug
SLOT 2.0: Yes | | Color | Black | | Environmental Conditions | Temperature: 32-104°F (0- 40°C)
Humidity (non-condensation): 20-80%
Altitude: 0-9100' (0-2800 m) | | Regulations | UL60065, CAN/CSA-22.2No60065:03
Radiation Regulations: FCC Part 15 Class-B, ICES-003 | | ENERGY STAR Qualified | Yes | | Power Requirements | 110-127 V AC, 50/60Hz | | Power Consumption | 420W
On mode average power consumption: Approx. 205W
Power-off condition: 0.2W
Standby condition: Save off 0.7W, save on 0.4W | | Speaker Output | 6Ω, 16W [8W + 8W] (10%THD) | | Dimensions (WxHxD) | 47.7 x 28.5 x 3.5" (1210 x 724 x 89mm) | | Weight | 75 lbs (34kg) | | | | Package Weight | 90.0 lb | | Box Dimensions (LxWxH) | 54.0 x 32.5 x 11.0" |
