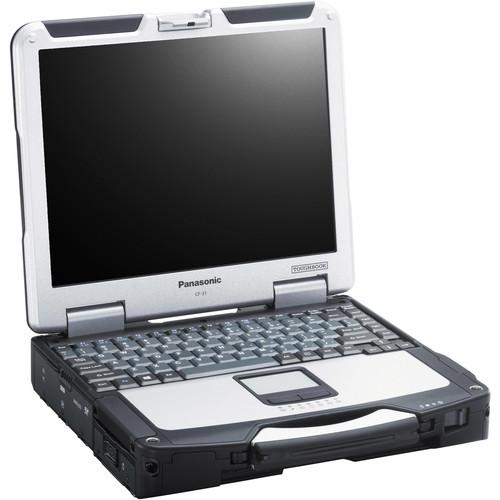

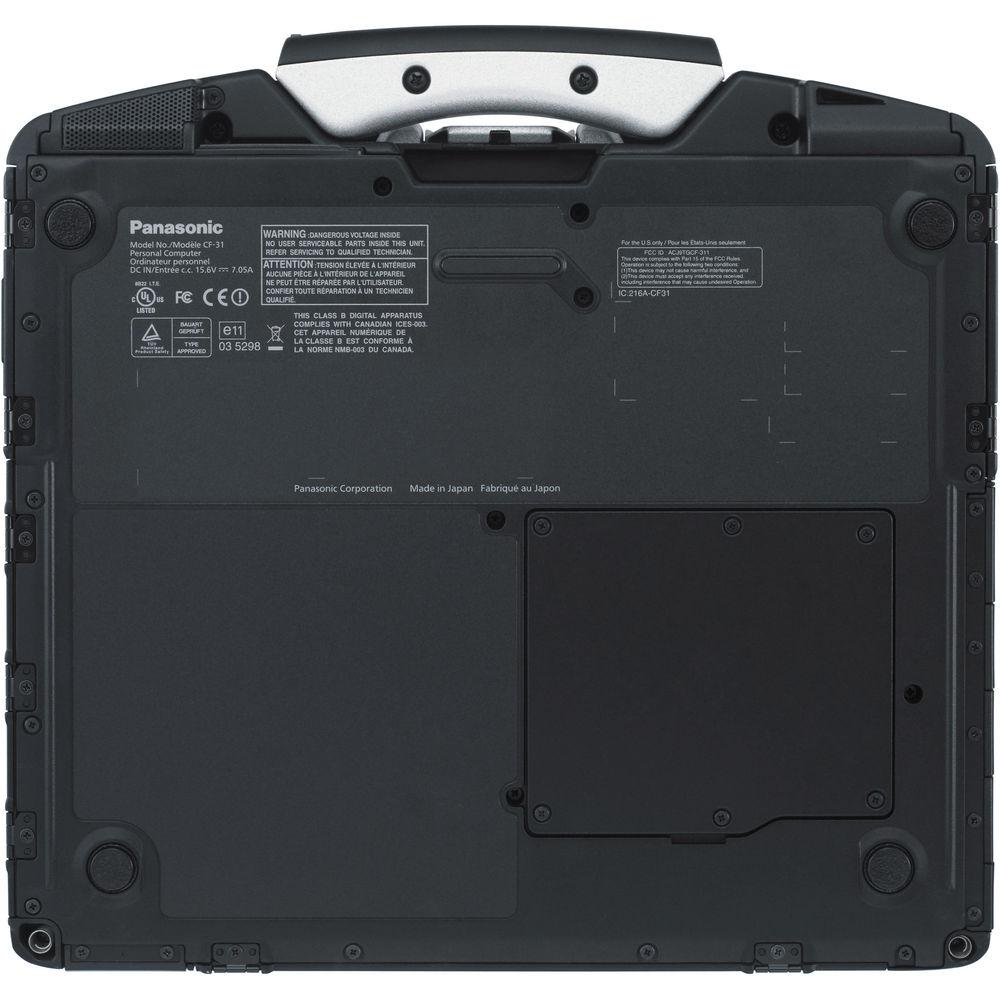

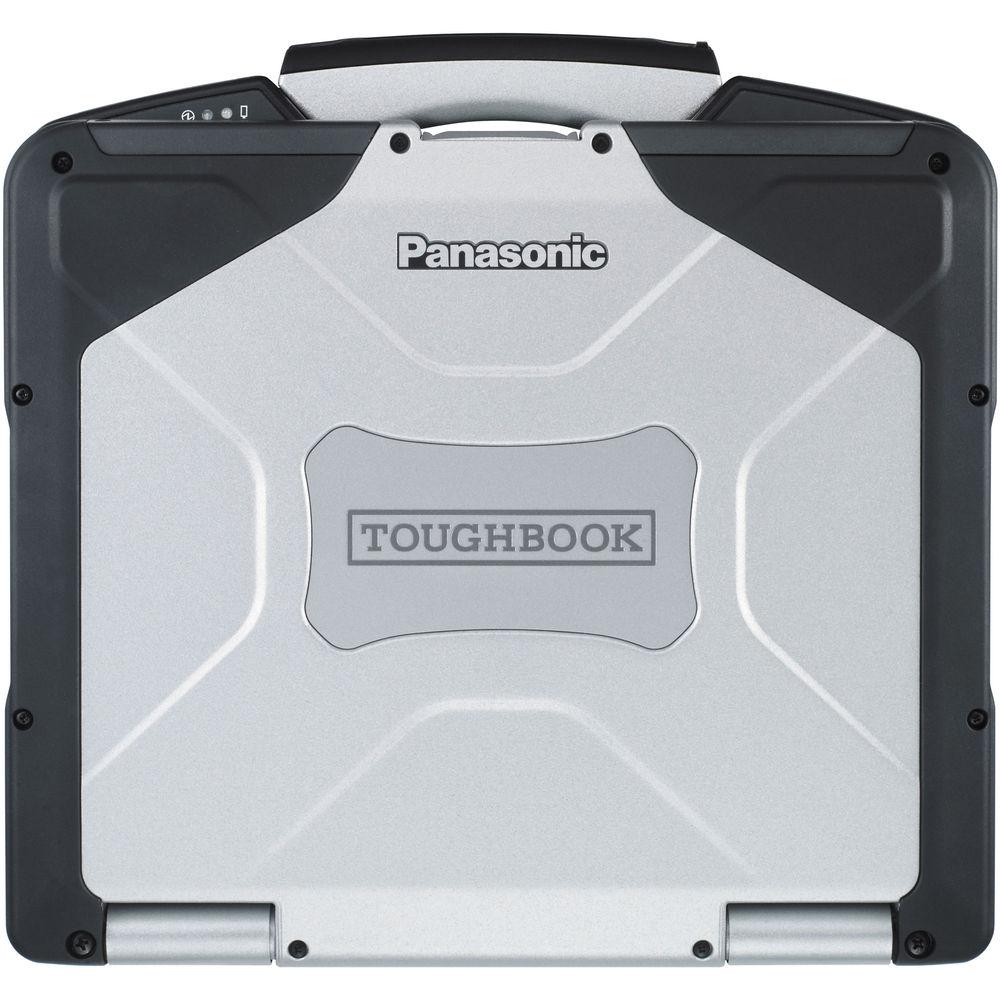

User Manual for Panasonic Toughbook 31 13.1" HD LED Laptop Computer with Intel Core i7 5600U Processor Click to enlarge the picture
Contents of the user manual for the Panasonic Toughbook 31 13.1" HD LED
- Product category: Notebooks Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Notebooks
 |
User manual for the Panasonic Toughbook 31 13.1" HD LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

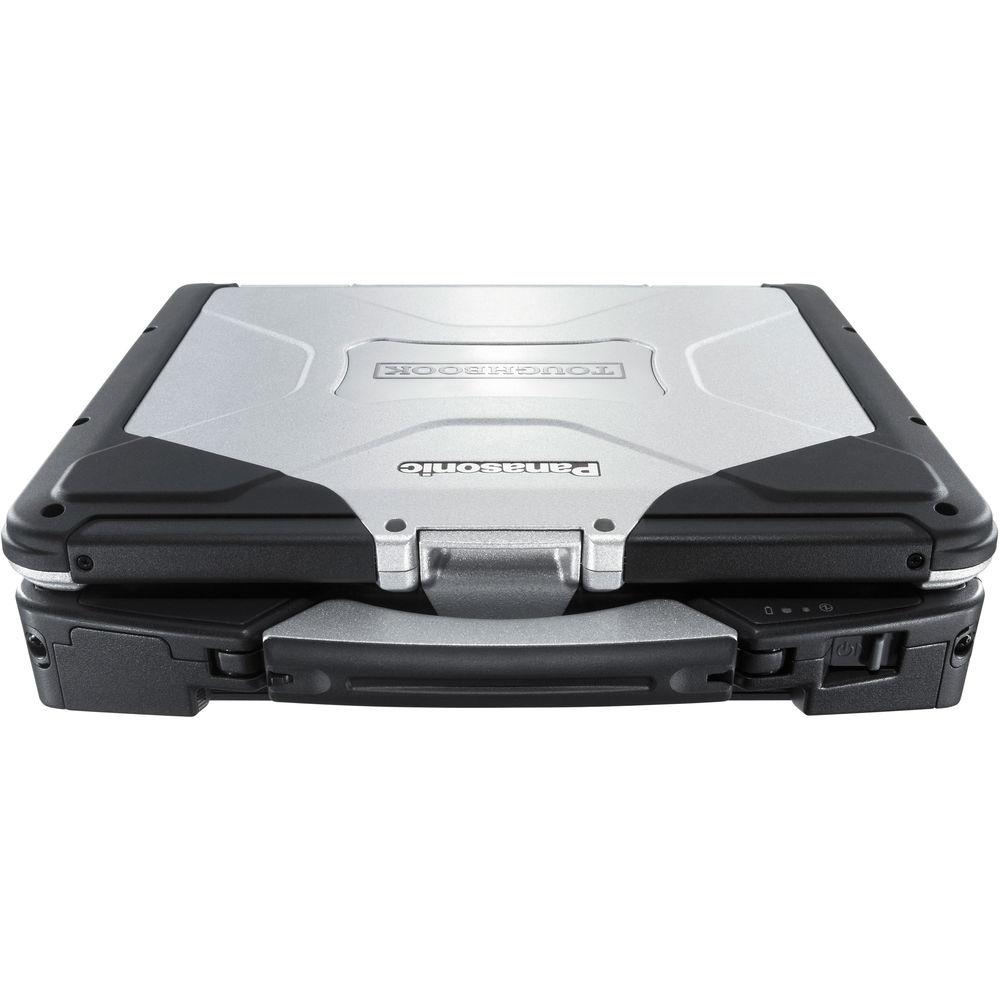

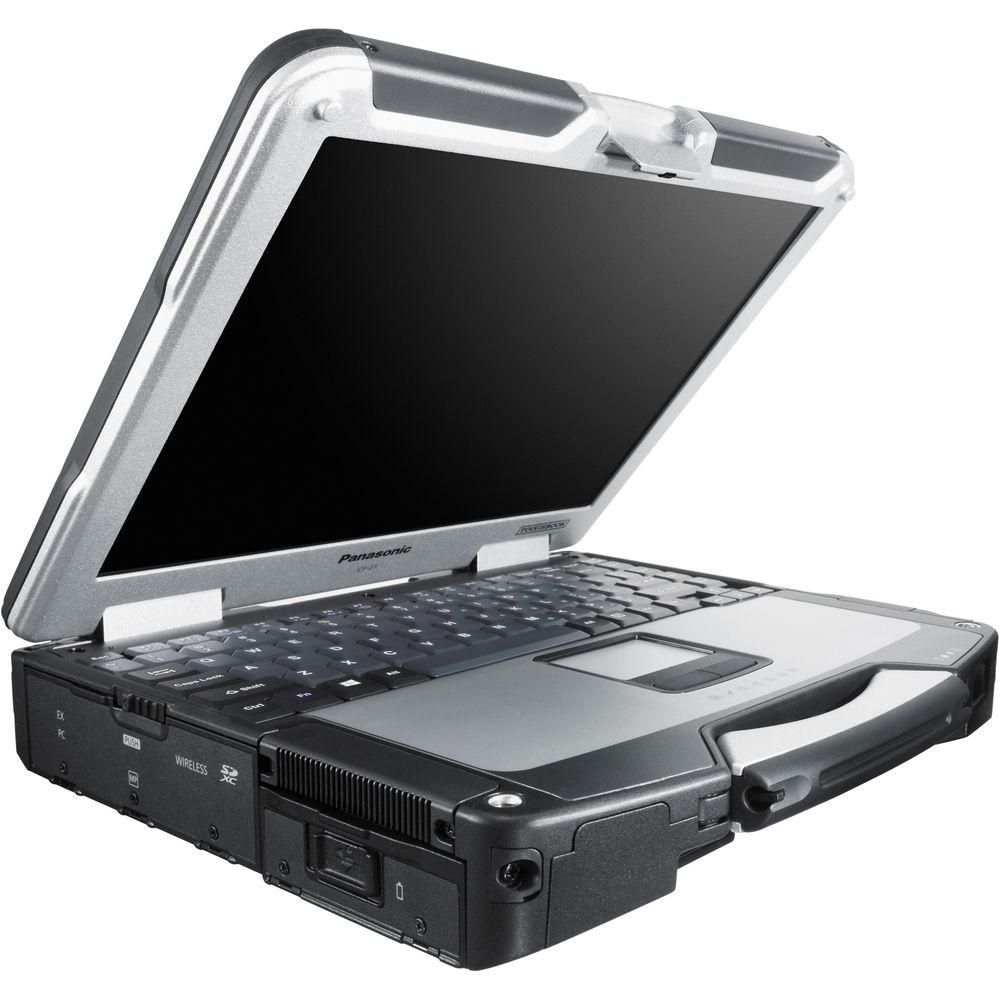

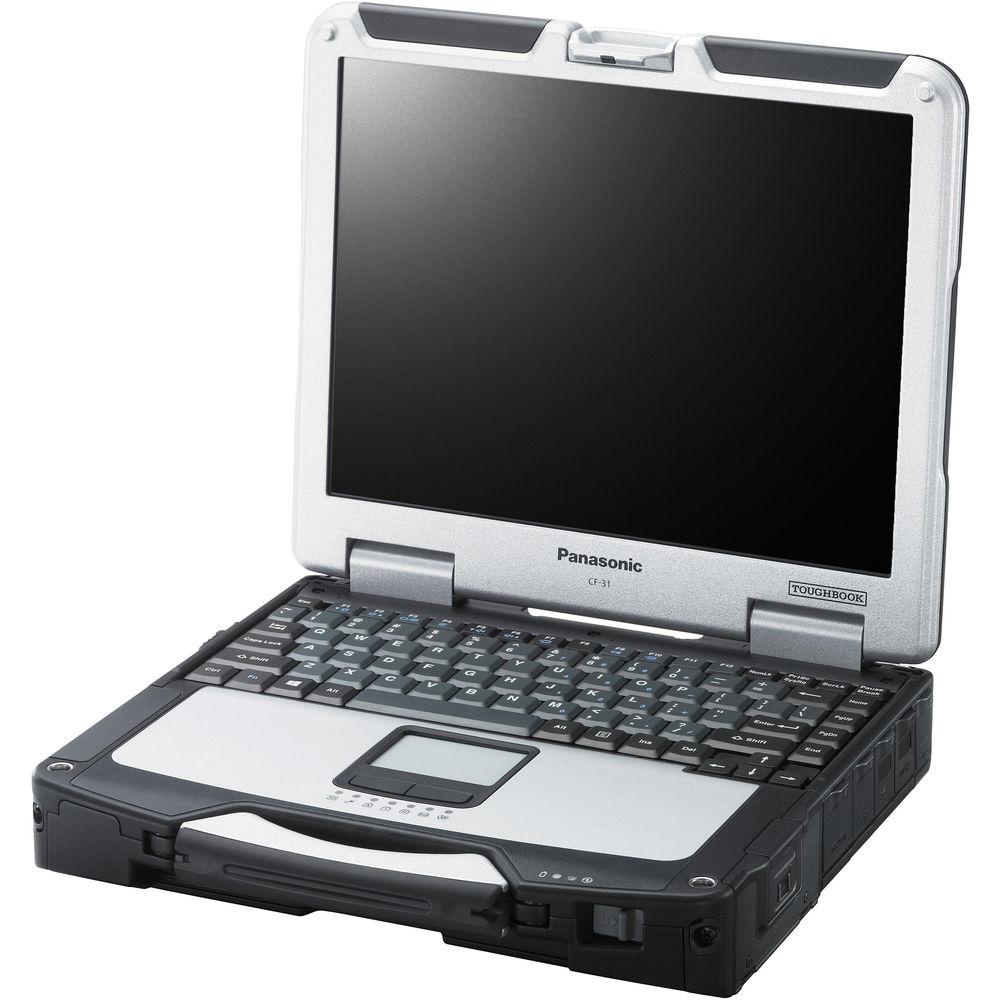

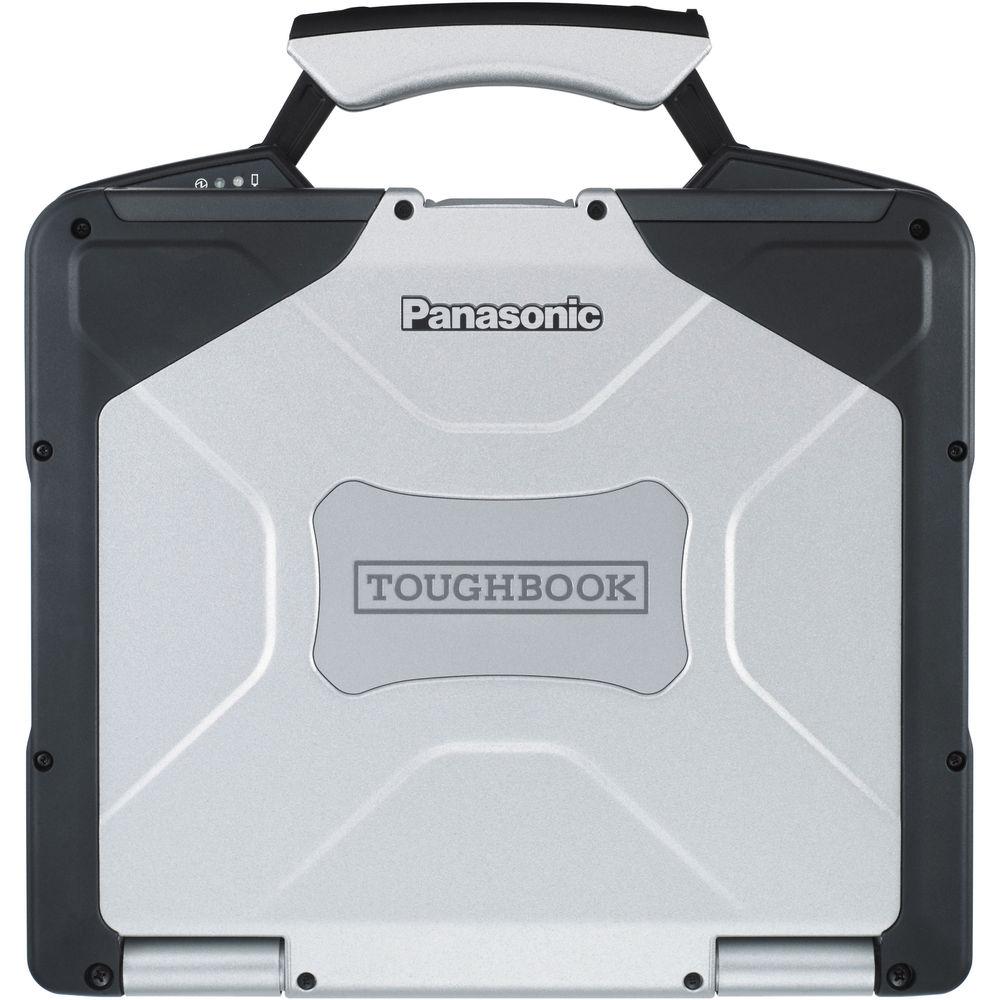

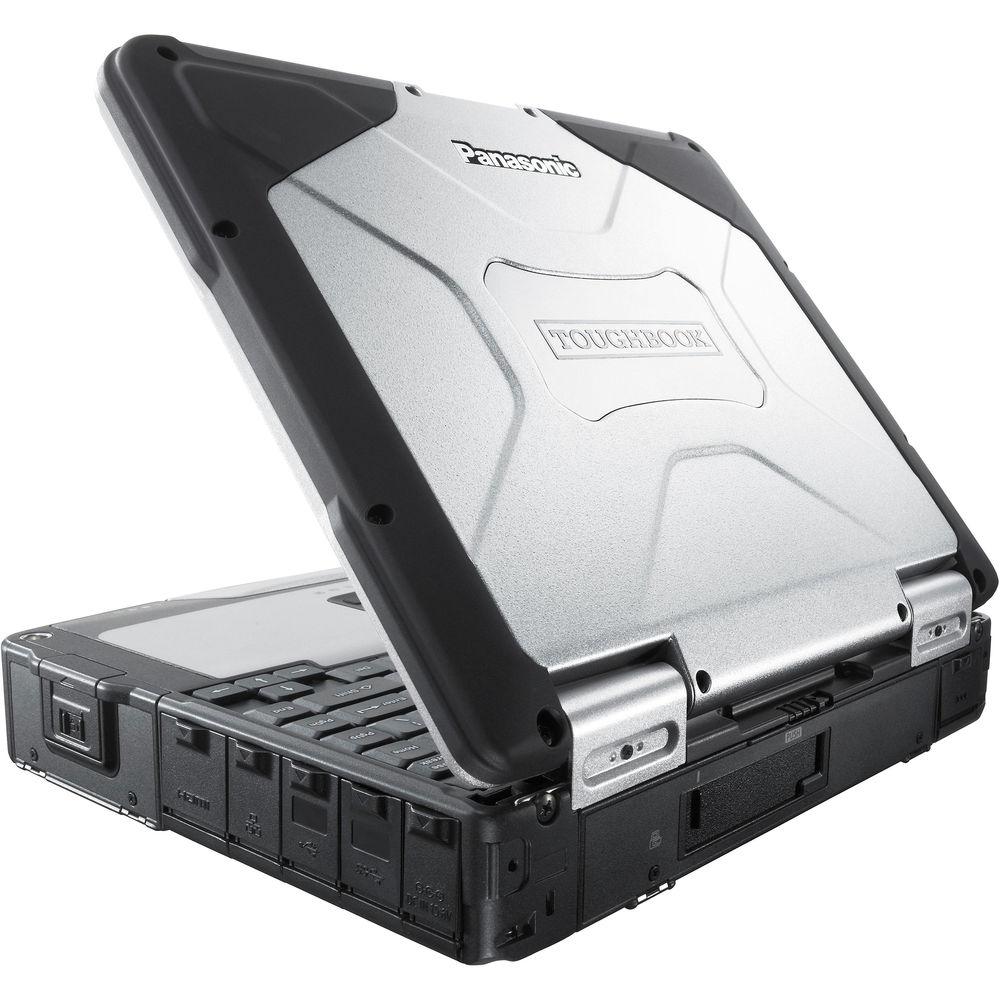

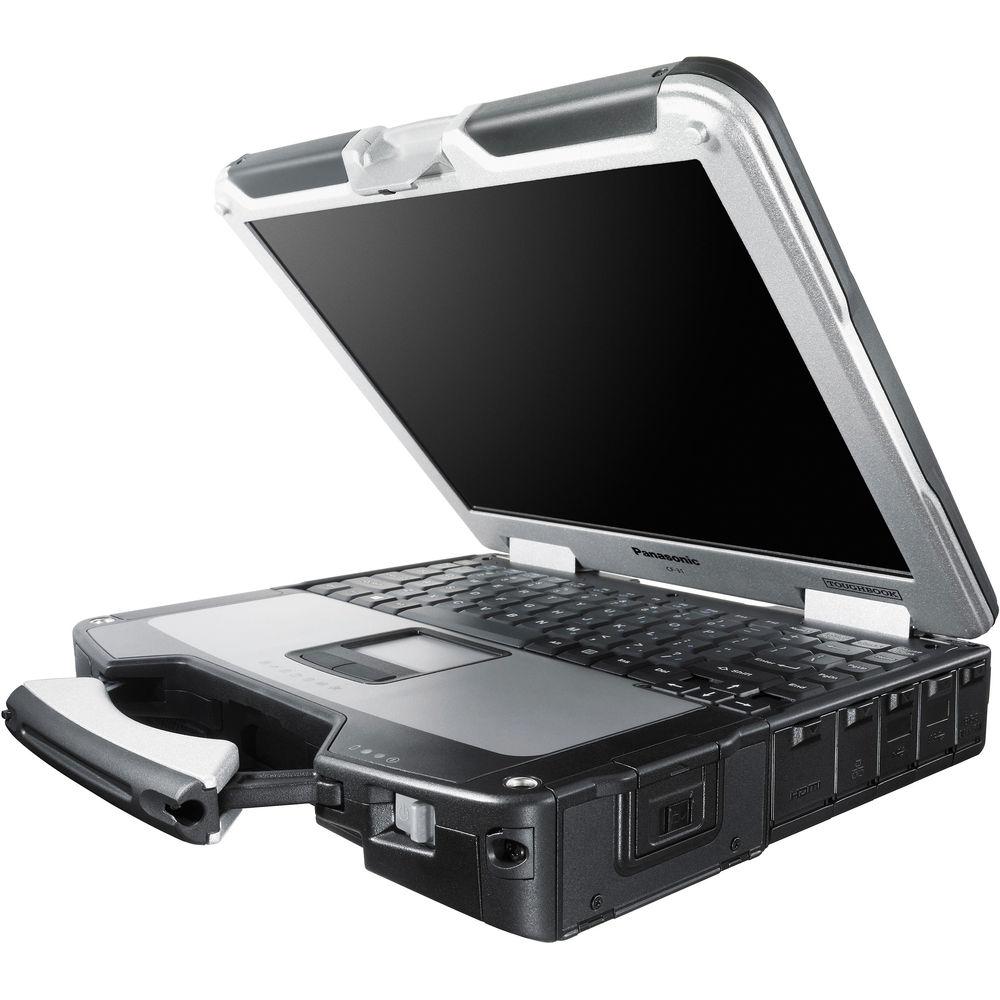

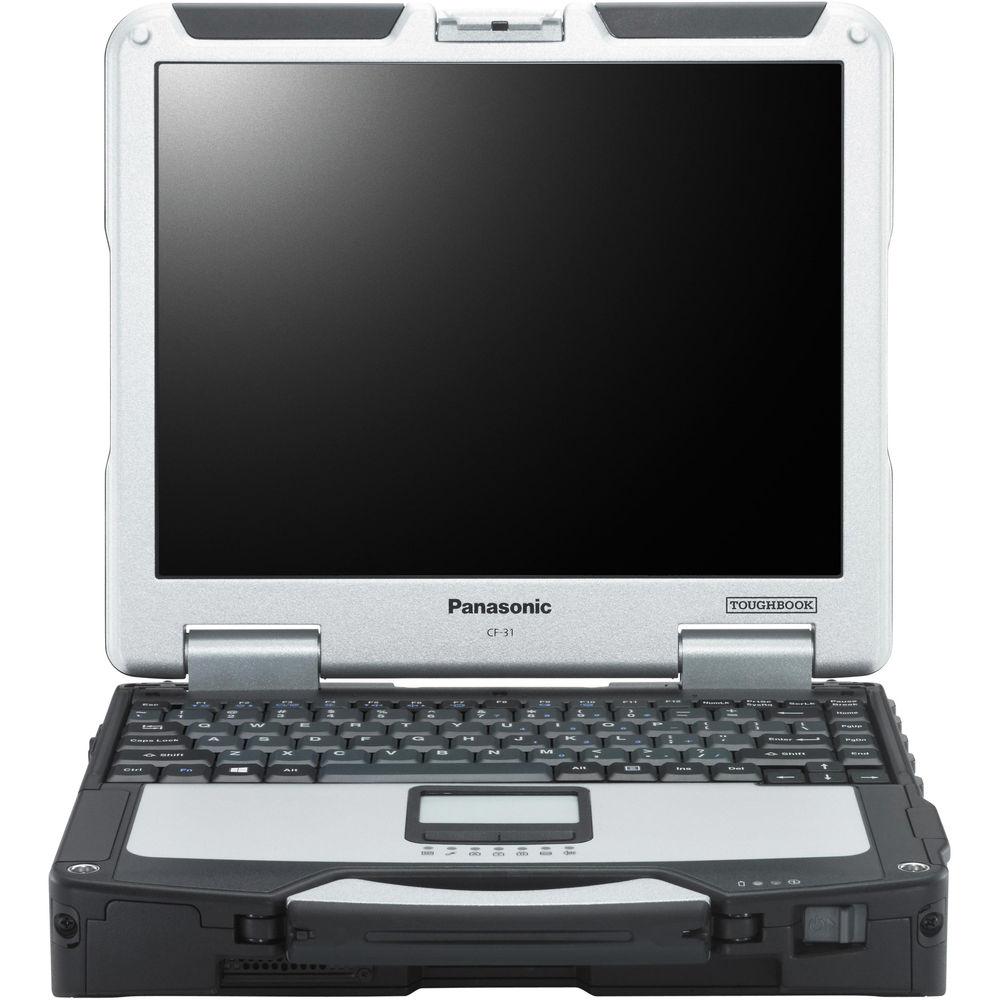

Product description Designed with outdoor mobile workers in mind, the Panasonic Toughbook 31 13.1" HD LED Laptop Computer is built to withstand shocks due to drops, inclement weather, and temperature changes in extreme environments. Encased in a magnesium alloy chassis with a built-in carry handle, the Toughbook 31 has been tested and proven to withstand drops up to 6', shock, vibration, dust, high altitudes, high/low temperatures, temperature shock, and humidity.
The 13.1" XGA sunlight-viewable touchscreen is LED-backlit, which means it brightens faster, uses less power, and provides better image quality than its CCFL counterparts. The screen has a 1024 x 768 native resolution powered by integrated Intel HD Graphics 5500.
The Toughbook 31 is powered by the 2.6 GHz Intel Core i7-5600U vPro dual-core processor that can be overclocked up to 3.2 GHz. The system comes with 4GB of installed RAM, a 500GB 7200 rpm hard drive, and an SDXC flash drive slot for memory expansion. It is equipped with 802.11a/b/g/n/ac Wi-Fi, Bluetooth 4.0, and Gigabit Ethernet connectivity. One USB 3.0 and three USB 2.0 ports are provided for attaching peripherals, and a 54 Slot ExpressCard and a Type II PC Card are included for inserting a memory card reader, TV tuner, or other expansion cards. The system comes with HDMI and VGA ports are available for outputting video onto a separate display.
The Toughbook 31 comes with a Kensington lock slot, TPM security, and Computrace theft protection for added protection. This system runs Windows 7 Professional (with Windows 10 Pro COA). - Rugged & Durable
- Toughbooks are engineered to withstand use in extreme environments. Some of the CF-53's features and durability certifications include the following:
- MIL-STD-810G certified - a US Military Standard that ensures products withstand the environmental stresses they are likely to encounter. The Toughbook has been tested to withstand 6' drops, shock, vibration, dust, high altitudes, high/low temperatures, temperature shock, and humidity
- IP65-certified sealed all-weather design
- Magnesium alloy chassis with handle
- Shock-mounted hard drive
- Hard drive heater
- Backlit keyboard
- Reinforced locking port covers
- Pre-installed replaceable screen film
- XGA sunlight-viewable touchscreen with Panasonic CircuLumin technology
- 4MB cache
- Connectivity
-
- 10/100/1000 Mb/s Gigabit Ethernet (RJ-45)
- 802.11a/b/g/n/ac Wi-Fi
- Bluetooth 4.0
- Security Features
-
- Password Security: Supervisor, User, Hard Disk Lock
- Kensington cable lock slot
- Trusted platform module (TPM) security chip v.1.2
- Computrace theft protection agent in BIOS
- Intel Anti-Theft Technology
- Wireless Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
- Wireless Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
- Audio
-
- Intel high-definition audio compliant
- Integrated front-facing speaker
- Keyboard volume and mute controls
- Power Management
- Suspend/resume function, hibernation, standby, ACPI BIOST
In the Box Panasonic Toughbook 31 13.1" HD LED Laptop Computer with Intel Core i7 5600U Processor Limited 3-Year Warranty User Manual PDF 2.6mbrrtzwvbcxevqdabqffdcrwtfdaysxcxc Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Toughbook 31 13.1" HD LED Laptop Computer with Intel Core i7 5600U Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic CF-3110558KM Specs | | | Processor | Intel Core i7-5600U Dual-Core | | Base Clock Speed | 2.6 GHz | | Maximum Boost Speed | 3.2 GHz | | Total Installed Memory | 4 GB | | Graphics Type | Integrated | | GPU | Intel HD Graphics 5500 | | | | Panel Type | LCD | | Size | 13.1" | | Native Resolution | 1024 x 768 | | Touchscreen | Yes | | Finish | Matte | | Maximum Brightness | 1200 cd/m2 | | External Resolution | Up to 1280 x 1024 | | | | Ports | 3 x USB 2.0
1 x USB 3.1 Gen 1
1 x Docking Connector
1 x DE-9 Serial | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" (3.5 mm) Headphone Output
1 x 1/8" (3.5 mm) Microphone Input | | Expansion Slots | 1 x PCMCIA Type II Slot
1 x ExpressCard/54 Slot | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.0 | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | | | Operating System | Windows 7 Professional | | Security | HDD User Password Protection, Kensington Lock Slot | | Keyboard | 87-Key Standard Notebook Keyboard (Backlight) | | Pointing Device | TouchPad & Stylus | | Dimensions (W x H x D) | 11.9 x 2.9 x 11.5" / 30.2 x 7.4 x 29.2 cm | | Weight | 7.9 lb / 3.6 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
