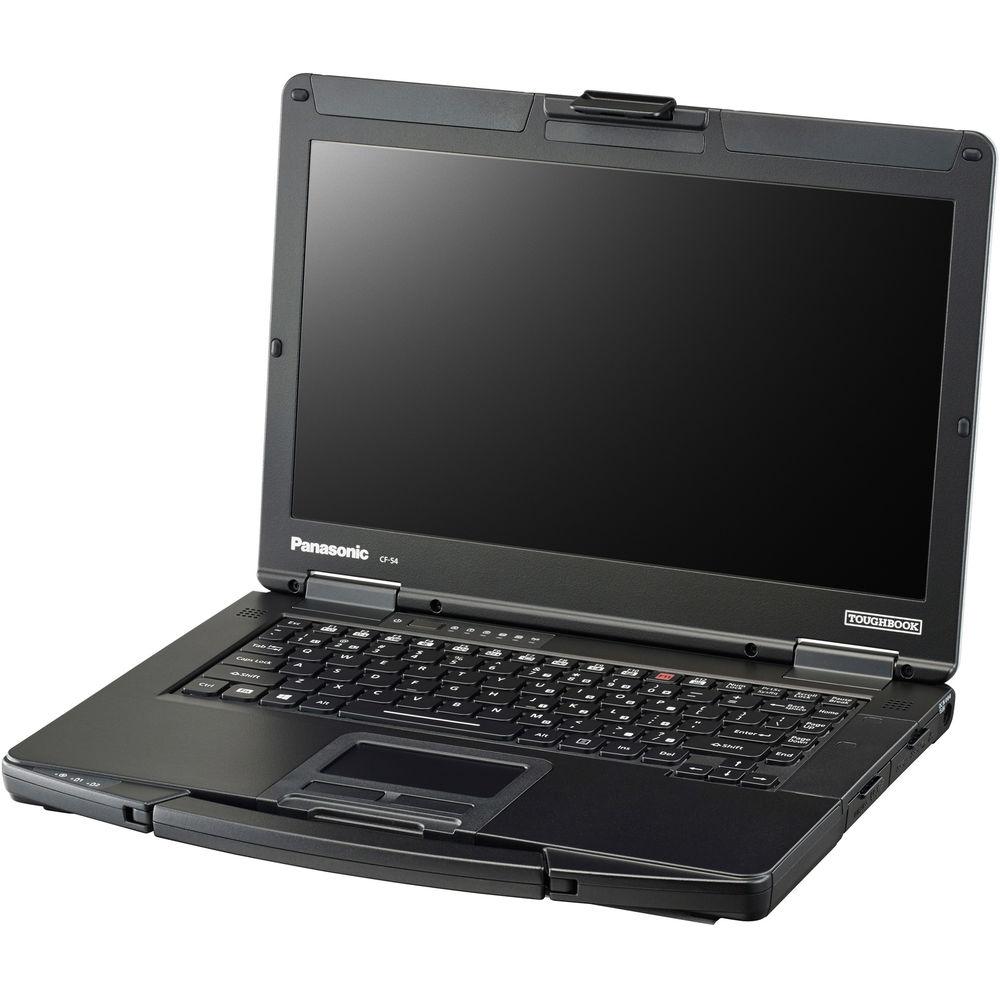

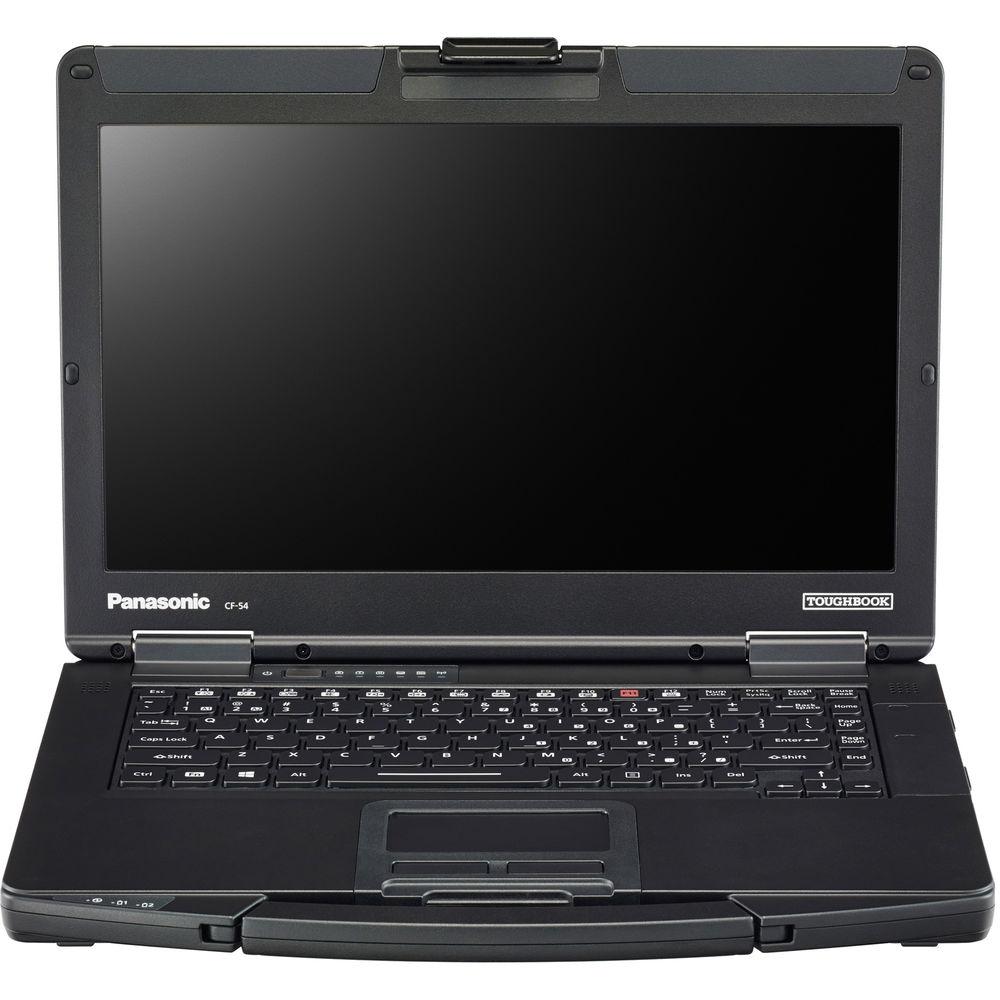

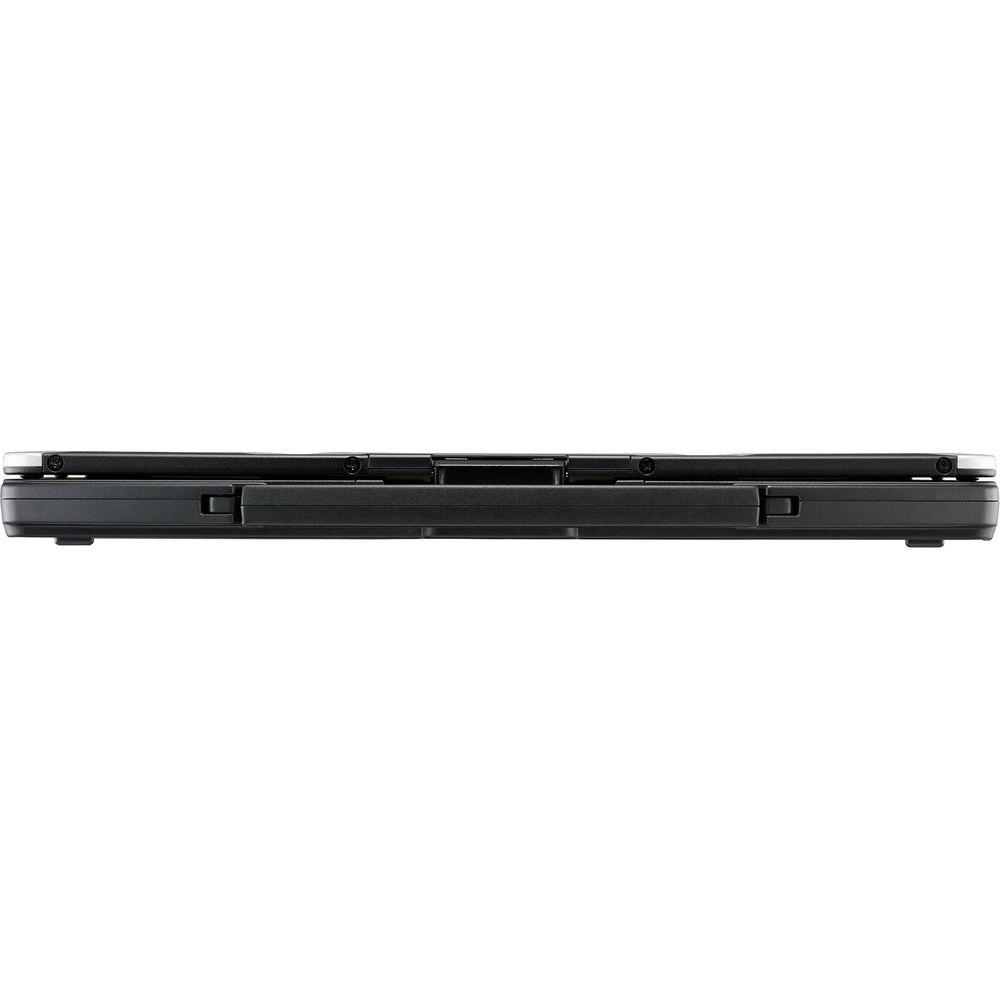

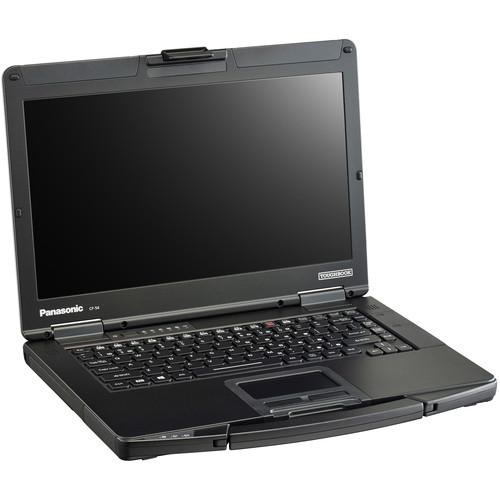

User Manual for Panasonic Toughbook 54 CF-54D0001KM 14" Touchscreen Laptop Computer Click to enlarge the picture
Contents of the user manual for the Panasonic Toughbook 54 CF-54D0001KM 14" Touchscreen
- Product category: Notebooks Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Notebooks
 |
User manual for the Panasonic Toughbook 54 CF-54D0001KM 14" Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Work Laptops The Toughbook 54 CF-54D0001KM 14" Touchscreen Laptop Computer from Panasonic features a spill-resistant, full magnesium alloy design, hard drive heater, and backlit keyboard. It is MIL-STD-810G certified and offers 3' drop, shock, vibration, dust, altitude, high/low temperature, temperature shock, and humidity resistance. It offers anti-glare and anti-reflective screen treatments and offers dual drives.
The notebook features Intel Core i5 processor that delivers optimum performance with battery life of up to 11 hours. It also comes with integrated 4G LTE multi-carrier mobile broadband with satellite GPS. The system is pre-installed with Windows 7 Professional. Rugged Design - The notebook is MIL-STD-810G certified and offers 3' drop, shock, vibration, dust, altitude, high/low temperature, temperature shock, and humidity resistance. It comes with a magnesium alloy case with a handle and features an IP51 certified sealed all-weather design. The Toughbook also features a shock-mounted flex-connect hard drive with quick-release, and hard drive heater.
LED-Backlit Display - The Toughbook 54 has a 14" touchscreen display with LED backlit. The integrated Intel HD Graphics 520 provides a 1366 x 768 native resolution. The display also features anti-reflective and anti-glare screen treatments.
Keyboard and Input - The notebook is equipped with a backlit emissive keyboard. Along with 87 keys and a dedicated Windows key, it also has an electrostatic touchpad with multi-touch support.
Wireless Connectivity - The notebook has Intel Dual Band Wireless-AC7265 802.11a/b/g/n/ac Wi-Fi connectivity. It also has Bluetooth v4.0 and EDR (Class 1). The Toughbook comes with integrated 4G LTE multi-carrier mobile broadband with satellite GPS. The notebook supports LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, and PEAP authentication and CKIP, TKIP, 128-bit and 64-bit WEP, and hardware AES encryption. The notebook also features password security for supervisor and user, a hard disk lock, a Kensington lock slot, a Trusted Platform Module (TPM) security chip v.1.2, a Computrace theft-protection agent in BIOS, and Intel anti-theft technology. It comes with single-pass user-selectable antenna pass-through.
- Ports
- Includes 1 high-powered 1.5A USB
Rugged Fischer USB (Core Series) 5-pin port - Audio
- Toughbook features Intel High Definition Audio-compliant with integrated speakers and keyboard volume and mute controls.
- Indicator
- Battery status and hot swap LED indicator
UPC: 885170281363 In the Box Panasonic Toughbook 54 CF-54D0001KM 14" Touchscreen Laptop Computer (Prime Model) Limited 3-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Toughbook 54 CF-54D0001KM 14" Touchscreen Laptop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic CF-54D0001KM Specs | Operating System | Windows 7 Professional | | | | CPU | 2.4 GHz Intel Core i5-6300U Dual-Core | | Maximum Boost Speed | 3 GHz | | Graphics Type | Integrated | | GPU | Intel HD Graphics 520 | | | | Panel Type | Unspecified LCD | | Size | 14" | | Resolution | 1366 x 768 | | Touchscreen | Yes | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1)
1 x Docking Connector | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.0 | | | | Keyboard | 87-Key Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | HDD User Password Protection, Kensington Lock Slot | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 10.7 x 13.6 x 1.2" / 27.2 x 34.5 x 3 cm | | Weight | 4.4 lb / 2 kg |
