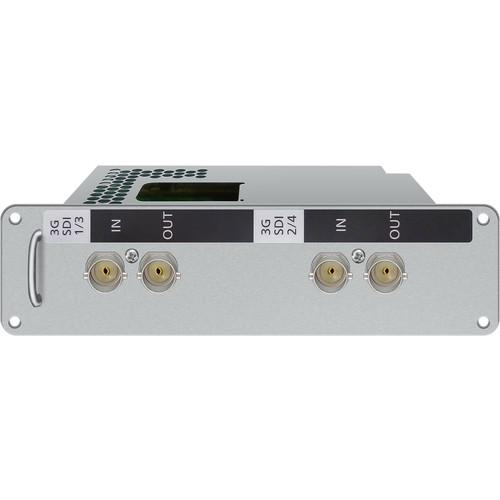

User Manual for Panasonic TY-TBN03G 3G-SDI Board for 4K Professional Panel Displays Click to enlarge the picture
Contents of the user manual for the Panasonic TY-TBN03G 3G-SDI Board for 4K
- Product category: Modules & Interface Cards Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Modules & Interface Cards
|
User manual for the Panasonic TY-TBN03G 3G-SDI Board for 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The TY-TBN03G 3G-SDI Board from Panasonic is designed to provide simultaneous video and audio signal transmission to 4K professional panel displays via a single BNC cable. It is applicable for SLOT NX compatible models and is compatible with SD, HD, 2K, and 4K video signals. - Compatible with SD, HD, 2K, and 4K video signals
- Provides simultaneous video and audio signal transmission (up to 16 channels) using a single cable
- Supports 4K transmission mode of both Square division and 2 sample interleave division
- Applicable for SLOT NX compatible model (LQ70 series and up) 1
Please Note: Cannot be mounted to displays compatible with SLOT 2.0 close In the Box Panasonic TY-TBN03G 3G-SDI Board for 4K Professional Panel Displays Terminal Function Label 4 x Screws Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TY-TBN03G 3G-SDI Board for 4K Professional Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TY-TBN03G Specs | Slots | SLOT NX Model: Slot 1, Slot 2 | | Connectors | 3G-SDI Input: 2 x BNC, 0.8 V p-p (75 ohms)
3G-SDI Output: 2 x BNC, active through | | Standard Compliance | Video: (3G) SMPTE 424M/425M-1, (DL) SMPTE 372M, (HD) SMPTE 274M/296M, (SD) SMPTE 259M/ITU-R BT 656-4
Audio: (3G,HD) SMPTE 299M, (SD) SMPTE 272M | | Video Formats | 4K: 4096/60p, 50p, 3840/60p, 50p, 4096/30p, 25p, 24p, 3840/30p, 25p, 24p
2K: 2048/30p, 25p, 24p
HD: 1080/60p, 50p, 30p, 25p, 24p, 1080/60i, 50i, 720/60p, 50p
SD: 525/59.94i, 625/50i For 50p requires 2 boards | | Audio Formats | 3G-SDI: 48 kHz, 20/24 bit, 16 channels, synchronized video
HD-SDI: 48 kHz, 20/24 bit, 8 channels, synchronized video
SD-SDI: 48 kHz, 20/24 bit, 4 channels, synchronized video | | Dimensions | 6.0 x 5.6 x 1.6" (151 x 142 x 38.5 mm) | | Weight | Approx. 0.7 lb (340 g) |
