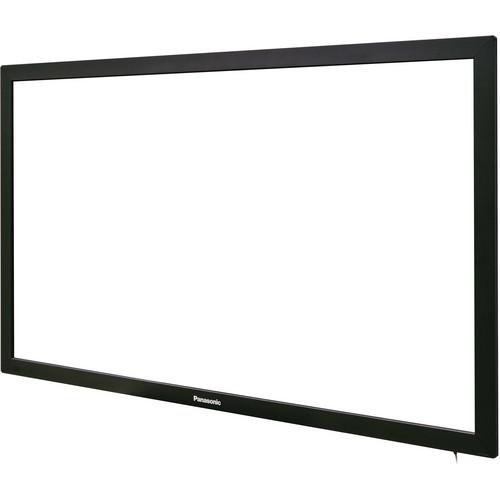

User Manual for Panasonic TY-TP65P30K Touch Panel 65" Plasma Display Click to enlarge the picture
Contents of the user manual for the Panasonic TY-TP65P30K Touch Panel 65" Plasma
- Product category: Monitors Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Monitors
|
User manual for the Panasonic TY-TP65P30K Touch Panel 65" Plasma contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic TY-TP65P30K Touch Panel 65" Plasma Display achieves a high resolution of approximately 2297 x 1289, and has a thin and compact design. With a built-in USB interface, the touch panel can be easily connected to peripheral devices of equipment such as PCs. UPC: 037988159918 In the Box Panasonic TY-TP65P30K Touch Panel 65" Plasma Display Quick Start Guide USB Cable (2.2 yd / 2 m) Mounting Bracket Screws 2 x Touch Pen CD-ROM with Operating instructions & Calibration Management Software for Windows XP / Vista 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic TY-TP65P30K Touch Panel 65" Plasma Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic TYTP65P30K Specs | Detection Functions | Infrared retroreflective detection | | Aperture | Panel (W x H): 57.8 x 33.1" (146.8 x 84.1 cm) | | Detection Range | (W x H): 56.5 x 31.7" (143.5 x 80.5 cm) | | Effective Detection Area | 1 mm above detection range; top, bottom, right, left | | Resolution | W x H: 533 x 301 (hardware processing)
W x H: 2129 x 1201 (smoothing software processing) | | Pitch | Detection: 0.09 x 0.09" (2.5 x 2.5 mm) | | Interface | USB 1.1 compliance | | Compliance | +DATA, -DATA, VCC, GND | | Connector | I/F: TYPE A (cable connector) | | Shape | Flat panel | | Material | Aluminum (Filter made of polycarbonate) | | Power Supply | 5 VDC ± 10% (supplied from USB bus power) | | Current | 5 VDC, maximum 500 mA | | Supported OS | Windows XP 32-bit (Single touch), XP 64-bit (Single touch), Vista 32-bit (Single touch), Vista-64-bit (Single touch), Windows7 32-bit / 64-bit (Dual touch) | | Temperature | Temperature Gradient under 77°F/hour (25°C/hour): 32 to 104°F (0 to 40°C) For touch panel only. When the panel is attached to a plasma display, please follow the conditions for use of the plasma display | | Humidity | No condensation: 20 to 80% | | Dimensions (W x H x D) | 61.5 x 36.8 x 0.5" (156.2 x 93.47 x 1.27 cm) excluding protruding parts and mounting bracket | | Weight | Excluding Mounting Bracket: Approximately 6.6 lb (3 kg)
Gross Weight: 27.1 lb (12.3 kg) |
