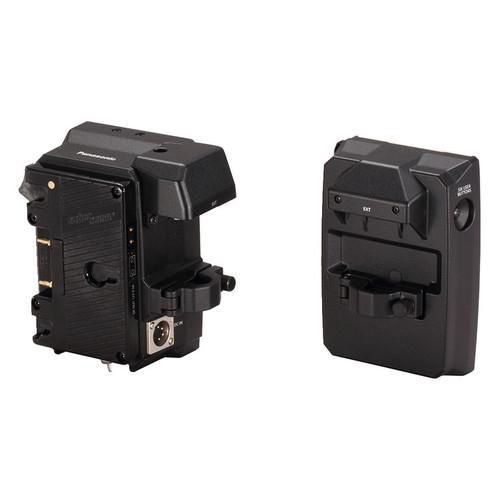

User Manual for Panasonic Varicam Extension Module for Varicam 35 HS - Includes Camera-Side and Recorder-Side Modules Click to enlarge the picture
Contents of the user manual for the Panasonic Varicam Extension Module for Varicam
- Product category: Camera Adapters & Interfaces Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Camera Adapters & Interfaces
|
User manual for the Panasonic Varicam Extension Module for Varicam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Take advantage of the modular nature of your Varicam 35 with Panasonic's Varicam Extension Module, which allows you to separate the camera head from the recorder unit by over 65 feet. The extension module consists of a camera-side and recorder-side unit, which connect together for storage and transport.
With the extension module you can mount the camera head in places the full sized camera can't fit, or the full weight of the camera/recorder would be an issue such as on jibs, cranes and helicopter applications. The camera component features a gold-mount battery plate that matches the plate on the camera's recording unit. Once the modules are mounted on both the camera and recorder unit, you will need an extension cable, which is required but not included. - The module maintains the full functionality of the Varicam 35/HS, including 120 fps recording
- Each half of the module attaches to its complement
- The module for the camera head incorporates a Gold Mount battery mount to power the camera head and extension module
- The recorder module also requires power
In the Box Panasonic Varicam Extension Module for Varicam 35/HS - Includes Camera-Side and Recorder-Side Modules Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic Varicam Extension Module for Varicam 35 HS - Includes Camera-Side and Recorder-Side Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic AU-VEXT1G Specs | Power | Voltage: 12 VDC (11.0 to 17.0)
Consumption (Body Only): 33 W (body only) / 63 W (all optional accessories)
Battery Plate (Camera Extension Module): Gold Mount
External Connector: 4-Pin XLR (pin-1 gnd, pin-4 +12 VDC)
DC Out (Camera Extension Module): 12 VDC 1.0 A | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Humidity: 10 to 85% (no condensation) | | Dimensions | Camera Extension Module: 4.8 x 5.6 x 2.9" / 12.1 x 14.3 x 7.3 cm
Recording Extension Module: 4.2 x 5.6 x 2.4" / 10.6 x 14.3 x 6.1 cm | | Weight | Camera Extension Module: 2.09 lb / 0.95 kg
Recording Extension Module: 1.43 lb / 0.65 kg |
