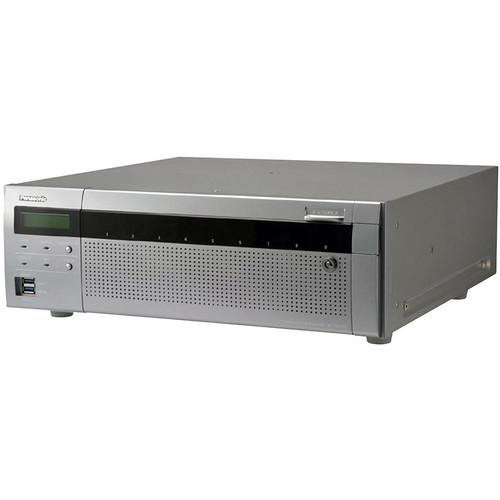

User Manual for Panasonic WJ-NX400 i-Pro Extreme 64-Channel 12MP NVR with 54TB HDD Click to enlarge the picture
Contents of the user manual for the Panasonic WJ-NX400 i-Pro Extreme 64-Channel 12MP
- Product category: Network Video Recorders (NVRs) Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Network Video Recorders (NVRs)
|
User manual for the Panasonic WJ-NX400 i-Pro Extreme 64-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Stream and record video from up to 64 surveillance cameras with the WJ-NX400 i-Pro Extreme 64-Channel 12MP NVR from Panasonic at resolutions up to 4000 x 3000. If your application requires more than 64 channels, additional licenses (available separately) enable you to increase capacity to handle a maximum of 128 channels. Equipped with nine drive bays, each of which can accommodate an HDD up to 6TB, this NVR supports up to 54TB of internal storage (54TB preinstalled). Up to five 9-bay WJ-HXE400 extension units (available separately) can be added for a maximum total storage capacity of 324TB.
When connected to i-Pro Extreme cameras that comply with FIPS 140-2 level-1 standards, the WJ-NX400 supports full data encryption streaming recording to keep your video secure from spoofing and snooping activities. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.265, H.264, or JPEG compression. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - 64 channels, expandable to 128
- Supports H.265/H.264 mixed recordings
- 640 Mb/s total throughput (including 384 Mb/s recording bandwidth)
- Symantec device certificates preinstalled
- No camera license fees, no annual license updates required
- Built-in GUI and dual HDMI (4K/1080p) outputs
- Automatic camera configuration
- Sub-stream recording for mobile access and low-bandwidth system environments
- Nine integrated drive bays, RAID 5/6
- WJ-HXE400 extension units available separately for storage expansion up to 324TB
- Dynamic HDD power management increases HDD life
- TURBO-RAID for quick RAID recovery without sacrificing recording bandwidth and performance
- Suitable for use in airports, train & subway stations, banks, retail stores, hospitals, education facilities, casinos, stadiums, factories, highways, and more
In the Box Panasonic WJ-NX400 i-Pro Extreme 64-Channel 12MP NVR with 54TB HDD Mouse Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WJ-NX400 i-Pro Extreme 64-Channel 12MP NVR with 54TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WJ-NX400 Specs | | | Compatibility | iPro Series network cameras
ONVIF NVT conformant cameras and encoders | | Compression | H.265 (HEVC), H.264, and JPEG | | Audio Format | G.711 for ONVIF, G.726 (ADPCM) 32 kb/s | | Channels | 64 (expandable to up to 128) | | | | Resolution | Aspect Ratio 4:3
4000 x 3000, 2560 x 1920, 2048 x 1536, 1280 x 960, 800 x 600, 640 x 480
Aspect Ratio 16:9
3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360
Aspect Ratio 1:1
2992 x 2992, 2816 x 2816, 2048 x 2048, 1280 x 1280
Aspect Ratio 9:16
1080 x 1920, 720 x 1280, 360 x 640 | | Modes | Event, schedule, emergency | | Pre-Alarm | Up to 15 sec | | Sub-Stream | 768 kb/s (fixed data size) | | Scheduled Recording | 16 x programs, 3 x time zones/day, independent setup for each day of the week | | Frame Rate | Up to 60 fps per camera (depending on the camera) | | | | Camera Control | Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus, aux, wiper (for WV-SUD638) | | Multi-Screen Display | Main Monitor:
4/9/16 split-screen display
3/4/6/9/12/16/24/32/64 split-screen display or 1-screen sequence
4 (9, 16) split-screen sequence on a full screen
64-multiscreen is available when sub monitor isn't on
Sub Monitor:
1-screen sequence
4 (9, 16) split-screen sequence
9 (16) 32 split-screen display | | Playback Control | Play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 sec) | | Search Modes | Time/date, playback by designating a timeline, VMD, thumbnail | | Copy | Recorded data of selected cameras and time/date range can be copied to USB storage | | Camera Title | Up to 16 characters | | Clock Display | Time: 12/24 hours
Date: 5 formats | | Digital Zoom | Live/Play: 1.25x, 1.5x, 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x
(Only for 1-screen or 4-screen) | | System Log | Operator access (500), network error (100), error (1000), event (1000), operation (500) | | System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, simplified Chinese, and Japanese | | 360 Camera Dewarp | Only in 1-channel display mode | | Re-Encoding | 2Client (only when in 64-channel mode) | | Time Synchronization | Terminal (slave), NTP (server/client) | | Summer Time | User definable (using menu setup) | | Remote Monitoring | 2Client
Panasonic Security Viewer v.3.0 or later is required on smartphone / tablet PC | | | | Camera Control | Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, aux, wiper (for WV-SUD638) | | Playback Control | Rec, play, rev play, pause, stop, FF, FR, prev record, next record, prev image, next image, go to date, go to last (30 sec) | | Search Modes | Time/date, event type, VMD, camera number | | Display Mode | 1/4 screen | | Image Download | Recorded data of selected camera and time range can be downloaded to a PC
Viewer software available separately for download | | SD Memory Data Download | Automatic transfer of images recorded in the SD card of iPro series cameras to the recorder (H.265/H.264) | | Copy | Recorded data of selected cameras and time/date range can be copied to USB storage | | Camera Title | Up to 16 characters | | Clock Display | Time: 12/24 hours
Date: 5 formats | | Alarm Control | Reset | | Digital Zoom | Live/Play: 2x, 4x
(Only for 1 screen) | | System Log | Operator access (500), network error (100), error (1000), event (1000), operation (500) | | GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, simplified Chinese, and Japanese | | PC Requirements | CPU: Intel Core i7-860 or faster
RAM: 4 GB or more
VRAM: 128 MB or more (SD Memory Data Download minimum 64 MB), Microsoft DirectX 9.0c or later | | | | Alarm Source | 32 x terminal inputs
128 x camera alarms (Panasonic alarm protocol)
128 x command alarms | | Event Response | Off/on | | Alarm Actions | Alarm recording, email notification, alarm message, camera positioning, terminal output, Panasonic alarm protocol output, buzzer, indicator | | Alarm Control | Reset | | Event Log | 1000 | | | | Spot Output | 1 x 1 V p-p / 75 Ohms (BNC) NTSC/PAL (selectable in setup menu) | | HDMI Resolutions | Main Monitor:
HDMI 4K UHD (3840 x 2160) at 30 Hz, 4K UHD (3840 x 2160) at 25 Hz, 1920 x 1080 at 60 Hz, 1920 x 1080 at 50 Hz, 1920 x 1080i at 60 Hz, 1920 x 1080i at 50 Hz, 720 x 576 at 50 Hz, 720 x 480 at 60 Hz
Sub Monitor:
HDMI 1920 x 1080 at 60 Hz, 1920 x 1080 at 50 Hz, 1920 x 1080i at 60Hz, 1920 x 1080i at 50 Hz, 720 x 576 at 50 Hz, 720 x 480 at 60 Hz | | Audio Output Connector | 1 x RCA pin jack, -10 dBv, 600 Ohms, unbalanced | | Alarm / Control Connectors | D-sub 25-pin | | Alarm | Alarm input 1-32, alarm output, alarm reset input 1-4 | | Control | Time adjustment input, 2 x 5 V output | | Error/Status Reporting | Network error output, HDD error output, camera error output, recorder error output, recording error output, emergency recording input, outage detection input, external recording mode switching input, outage processing end output | | Mouse Interface | 2 x ports (1 x on front panel, 1 x on rear panel) | | Network Ports | 2 x 10Base-T/100Base-TX/1000Base-T (RJ45) | | USB Storage | USB 3.0/2.0 memory, USB 3.0/2.0 connected HDD (except bus powered device)
(Available separately) | | External Storage | Up to 5 x WJ-HXE400 (available separately) | | | | Network Interface | 2 x 10Base-T/100Base-TX/1000Base-T (RJ45)
Maintenance Network Port: 1x 10Base-T/100Base-TX (RJ45) | | Recording Rate | Up to 384 Mb/s | | Bandwidth | Up to 640 Mb/s, total | | Supported Protocols | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP
IPv6: ICMPv6 | | Email Notifications | Upon alarm or warning | | Number of Simultaneous Users | Up to 16 | | User Registration | Up to 32 users | | User Levels | 3 levels (programmable) | | Partitioning | User level - camera (view & control, no access) | | Security | User authentication (ID and password), host authentication, alteration detection, SSL/TLS | | | | Drive Bays | 9 x integrated drive bays, RAID 5/6
Each drive bay supports HDD up to 6TB
54 TB (9 x 6 TB) preinstalled | | Drive Expansion | Supports up to 5 x WJ-NX400 (available separately)
Each WJ-NX400 supports up to 9 x 3.5" / 8.89 cm SATA HDDs, up to 6 TB each
Hardware RAID: Single, RAID 1, 5, 6 | | | | Record / Playback Control | Play, rev play, pause, FF, FR, prev record, next record, prev image, next image | | Additional Functions | Alteration detection, save as JPEG, 2x zoom, print, copy | | Supported OS | Software Language: English or Japanese | | | | Safety / EMC Standard | UL (UL60065), FCC (part 15, class A), C-UL (CAN/CSA C22.2 No. 60065), DOC (ICES003 class A) | | Power Source | 120 VAC, 60 Hz | | Power Consumption | Approx. 125 W (with 9 x 6 TB HDDs) | | Ambient Operating Temperature | Main Body: 41 to 113°F / 5 to 45°C
Mouse: 41 to 104°F / 5 to 40°C | | Ambient Operating Humidity | 5 to 90 % (non-condensing) | | Maximum Operating Altitude | 6562' / 2000 m above sea level | | Dimensions | 16.94 x 5.19 x 5.75" / 43.0 x 13.2 x 40.0 cm, excluding rubber feet and projections | | Weight | Without HDDs: 25.4 lb / 11.5 kg
With 9 HDDs Installed: 44.1 lb / 20 kg |
