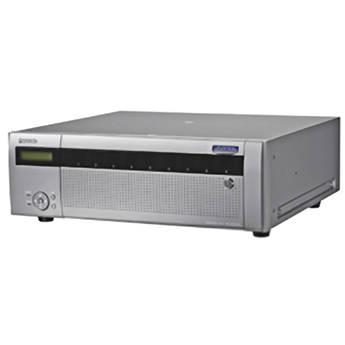

User Manual for Panasonic WJHDE4003000T3 Expansion Unit with 3 TB HDD Click to enlarge the picture
Contents of the user manual for the Panasonic WJHDE4003000T3 Expansion Unit with 3
- Product category: Dedicated Storage Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Dedicated Storage
|
User manual for the Panasonic WJHDE4003000T3 Expansion Unit with 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The Panasonic WJHDE4003000T3 Expansion Unit with 3 TB HDD is designed for the recorder (such as network disk recorder WJ-ND400K). Operation in the RAID (Redundant Arrays of Inexpensive Disks) mode is available with this extension unit. - HDD fault-tolerance system
- The RAID function is available as the HDD fault-tolerance system. In addition to the RAID 5 mode that recovers data when a single hard disk drive becomes faulty, there is RAID 6 mode that can recover data even if 2 hard disk drives became faulty. Operation in the RAID mode is one of the solutions as the HDD fault-tolerance system that prevents data loss when handling a large amount of data on a large amount of storage.
- To use in the RAID 5 or the RAID 6 mode, it is necessary to install 3 or more hard disk drives and 4 or more hard disk drives respectively.
- Logical disk capacity when using in the RAID 5 mode
Logical disk capacity = Capacity of the smallest among the hard disk drives in the recorder x (number of the hard disk drives in the recorder - 1)- Logical disk capacity when using in the RAID 6 mode
Logical disk capacity = Capacity of the smallest among the hard disk drives in the recorder x (number of the hard disk drives in the recorder - 2)- Depending on the model of the hard disk drive, the available capacity may be a few percent smaller.
- Easy replacement of HDDs
- It is easy to insert or remove the HDD unit from the HDD slots in the extension unit. When 2 or more HDD units are already installed, it is possible to replace the HDD units without stopping the current recording. When using a network disk recorder, malfunctions can be decreased and replacement of the HDD unit can easily be done by following the guidance displayed on the LCD.
To install hard disk drive in the extension unit, it is necessary to assemble an HDD unit (encase the hard disk drive in the HDD canister). The HDD unit can be easily be installed or removed in or from the HDD slots inside the front cover. In the Box Panasonic WJHDE4003000T3 Expansion Unit with 3 TB HDD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WJHDE4003000T3 Expansion Unit with 3 TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WJ-HDE400-3000T3 Specs | | | Power Source | NTSC model: 120 VAC, 60 Hz
PAL model: 220 VAC to 240 VAC, 50 Hz | | Input/Output | External input connector (EXT IN): 1x High-speed serial interface, 1.5 Gbps(theoretical value) | | Power Consumption | 130 W | | Ambient Operating Temperature | 41 to 113°F (5 to 45°C) | | Ambient Operating Humidity | 5 to 90 % (non condensing) | | Maximum Operating Altitude | 6,562' (2,000) m above sea level | | Dimensions (W x H x D) | 16.93 x 5.20 x 15.95" (430 x 132 x 400 mm)
(excluding rubber feet and projections) | | Mass | 29.8 lb (13.5 kg)
(When no HDD is installed) |
