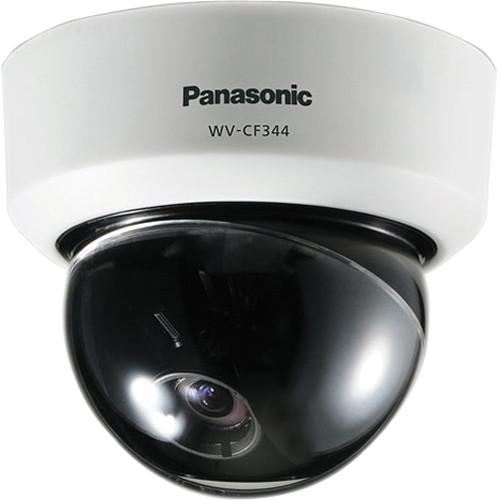

Product description The Panasonic WV-CF344 Day/Night Indoor Fixed Dome Camera comes with advanced features such as Adaptive Black Stretch technology, color compensation, and Adaptive Digital Noise Reduction that make it a suitable solution for retail and healthcare applications. It features a 1/3" interline transfer CCD image sensor that captures clear images of the surveillance area at 650 TVL (976 x 494 effective pixels). This highly sensitive WV-CF344 Fixed Dome Camera has a varifocal auto iris lens (2.8 to 10mm) for wider coverage of surveillance area. The camera can record footage at a sensitivity of 0.08 lux in color mode and 0.05 in B&W mode. Its built-in image stabilizer ensures that you will always get blur-free images despite vibrations, knocking or any other type of jerky movement. A 16-axis matrix color compensation function delivers excellent image reproduction with natural color balance. Enabled with Adaptive Digital Noise Reduction (2D-DNR and 3D-DNR), the camera delivers clear images by removing signals that could result in video noise (grainy images). In night mode, Adaptive Black Stretch technology increases the visibility of subjects in dark areas of the video footage without degrading image quality. Three-way hinge (horizontal, vertical, and swivel rotation) and multiple mounting options (surface and embedded options) make the WV-CF344 camera easy to install. - 1/3" interline transfer CCD offers 650 TVL in low-lit conditions (0.05 lux in B/W and 0.08 lux in color)
- Adaptive Black Stretch technology increases the visibility of subjects in dark areas of a video scene without degrading image quality in the brighter areas
- Auto-image stabilizer ensures clear and focused footage even in windy scenarios
- Adaptive Digital Noise Reduction ensures clear images by removing signals that could make video footage grainy
- Various adjustment features including BLC (Backlight Compensation), ATW (Auto Tracing White Balance), and ALC (Automatic Light Control)
- Focus Assist function allows for accurate camera focus adjustment
- Varifocal auto iris lens (2.8 to 10mm) for clear images
- 2x digital zoom and electronic shutter from 1/100 to 1/120,000 sec
- Adjustable PTZ angle functions for continuous viewing of the subject
- 3-way hinge (horizontal, vertical and swivel rotation)
- Over-the-coax cable data communication
- Lens distortion correction and on-screen display menu
- Internal / line-lock / multiplexed vertical drive (VD2) synchronization
- 16-alphanumeric camera title display
- Mounting options include surface mount and embedded ceiling mount
- Monitor output and ELC mode for easier lens adjustment upon installation
- Suitable for applications like such as shopping mall, hotels, and hospitals
UPC: 885170064263 In the Box Panasonic WV-CF344 Day/Night Indoor Fixed Dome Camera Installation Guide CD-ROM Installation Template Panel 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CF344 Day Night Indoor Fixed Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CF344 Specs | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace | | Scanning Area (H x V) | 0.18 x 0.14" (4.8 x 3.6 mm) | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux (F/1.4, sens up: Off, AGC: High)
B&W: 0.05 lux (F/1.4, sens up: Off, AGC: High) | | Signal-to-Noise Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2000 - 10,000 K), ATW1 (2700 - 8000 K), ATW2 (2400 - 8000 K) | | Light Control | ALC / ALC+ / ELC | | AGC (Automatic Gain Control) | On (low, mid, high) / Off | | Electronic Shutter | Off (1/60); Auto, 1/100, 1/250, 1/500, 1/1000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 | | Electronic Sensitivity UP | 32x maximum Auto, 512x maximum fix | | Day/Night | Day & Night (electrical) off / auto | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On (1) / On (2) / Off, up to 8 zones | | Auto Image Stabilizer | On / off | | Camera Titles | 16 alphanumeric characters | | Synchronization | Internal (INT) / multiplexed vertical drive (VD2) | | Focal Length | 2.8 to 10 mm | | Zoom Ratio | 3.6x | | Angular Field of View | 27.6° (tele) - 100.3° (wide), V: 20.7° (tele) - 73.5° (wide) | | Maximum Aperture Ratio | 1:1.3 (wide) - 3.1 (tele) | | Focusing Range | 0.98' (0.3 m) - ∞ | | Adjustable Angle Range | Pan: 180 to -170°
Tilt: ±90°
Azimuth: ±100° | | Video Output | 1.0 Vp-p / NTSC composite 75 | | Controller Interface Type | Coaxial multiplex system | | Setup Method | OSD setup menu | | Password Lock | All menus | | Language | English, Russian, German, French, Italian, Spanish, Chinese, Japanese | | Safety / EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (E60065), DOC (ICES-003) | | Power Source and Consumption | 12 VDC, 180 mA
24 VAC, 60 Hz, 2.1 W | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 90% or less (without condensation) | | Finish | ABS resin / sail white | | Dimensions (Ø x H) | 4.25 x 3.75" (108 x 94 mm) | | Mass | 0.70 lb (320 g) | | | | Package Weight | 1.32 lb | | Box Dimensions (LxWxH) | 7.2 x 6.0 x 5.4" |
