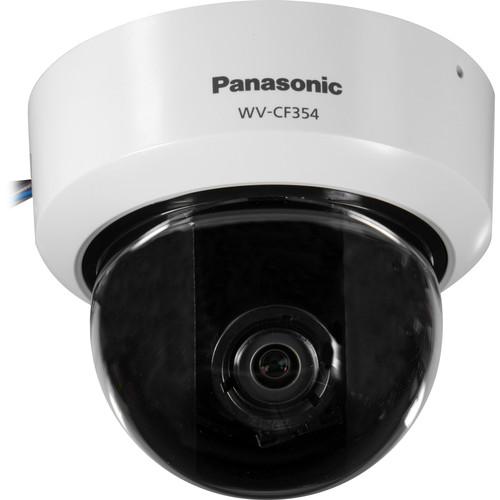

User Manual for Panasonic WV-CF354 650 TVL PTZ Dome Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CF354 650 TVL PTZ Dome
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CF354 650 TVL PTZ Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Featuring a 1/3" interline transfer CCD image sensor, the WV-CF354 650 TVL PTZ Dome Camera from Panasonic offers up to 650 TVL resolution for high-quality video surveillance in both day and night lighting conditions. Equipped with a 2.8-10mm varifocal auto-iris lens, this camera provides a 3.6x optical zoom for use with wide and tele applications, enabling you to use the lens in a variety of scenarios. Furthermore, the camera can be panned 180 to -170° and tilted 90° to choose the field of view you would like to monitor.
Adaptive Black Stretch technology increases visibility in dark areas without degrading image quality in bright areas for clear video in a wide range of settings. An auto image stabilizer reduces blur in windy or vibrating settings, and adaptive 2D- and 3D-DNR ensures noise reduction in a variety of conditions. Additional image settings include Backlight Compensation, Auto Tracing White Balance, and Automatic Light Control. Furthermore, 16-axis matrix color compensation enables a wide range of natural color adjustments.
The camera title can be displayed using up to 16 alphanumeric characters, and the menu is multi-language for versatile use. A monitor output and ELC mode provide lens adjustment during installation, and a 3-way hinge (horizontal, vertical, and swivel rotation) allows you to position the camera to capture the specific area you would like to monitor. This camera can be surface mounted or embedded in a ceiling when combined with the WV-Q174 Embedded Ceiling Mount (available separately). - 1/3" CCD image sensor produces high-quality 650 TVL video resolution
- High-sensitivity with electronic day/night function
- Adaptive Black Stretch technology increases visibility in dark areas without degrading image quality in bright areas
- Auto-image stabilizer ensures clear and focused footage even in windy conditions
- Auto Back Focus automatically focuses the camera lens during installation and when switching from color to B/W
- Adaptive Digital Noise Reduction integrated 2D- and 3D-DNR for noise reduction in various environments
- Image enhancements including Backlight Compensation, Auto Tracing White Balance, and Automatic Light Control
- 2.8-10mm varifocal auto iris lens produces a 3.6x optical zoom
- 100.3° horizontal field of view with lens distortion correction for a wide coverage area
- 2x digital zoom for focusing within your field of view
- 16-axis matrix color compensation produces a wide range of natural color adjustment
- 180 to -170° panning and ±90° tilting for easy angle adjustments
- 16 alphanumeric characters for displaying the camera title
- Multi-language OSD menu allows for versatile use
- 3-way hinge (horizontal, vertical, and swivel rotation) for installation
- Over-the-coax cable data communication
- Monitor output and ELC mode for lens adjustment
UPC: 885170064270 In the Box Panasonic WV-CF354 650 TVL PTZ Dome Camera Installation Template Panel Limited 1-Year Warranty Brochure PDF 1.2mbwedqcyudwfbxcqubbveqwyrttwwbeeuvftbf Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CF354 650 TVL PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CF354 Specs | | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace | | Scanning Area (H x V) | 0.18 x 0.14" (4.8 x 3.6 mm) | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux (Sens Up: Off, AGC: High)
B&W: 0.05 lux (Sens Up: Off, AGC: High) | | Signal-to-Noise Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2,000 to 10,000K), ATW1 (2,700 to 8,000K), ATW2 (2,400 to 8,000K) | | Light Control | ALC / ALC+ / ELC | | AGC (Automatic Gain Control) | On (Low, Mid, High) / Off | | Electronic Shutter | Off (1/60), Auto, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 | | Electronic Sensitivity UP | Auto: 32x maximum, Fix: 512x maximum | | Day/Night | Day & Night (Electrical) Off / Auto | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On (1) / On (2) / Off, up to 8 zones | | Auto Image Stabilizer | On / Off | | Camera Titles | 16 alphanumeric characters | | Synchronization | Internal (INT) / Multiplexed Vertical Drive (VD2) | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x | | Angular Field of View | Horizontal: 27.8 (tele) to 100.3° (wide)
Vertical: 20.9 (tele) to 73.4° (wide) | | Maximum Aperture Ratio | 1:1.3 (wide) to 3.0 (tele) | | Focusing Range | 0.98' (0.3 m) to ∞ | | Adjustable Angle Range | Pan: 180 to -170°
Tilt: ±90°
Azimuth: ±100° | | | | Video Output | 1.0 V p-p / NTSC composite 75 | | Controller Interface Type | Coaxial multiplex system | | | | Setup Method | OSD setup menu | | Password Lock | All menus | | Language | English, Russian, German, French, Italian, Spanish, Chinese, Japanese | | Safety / EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (E60065), DOC (ICES-003) | | Power Source and Consumption | 12 VDC, 180 mA
24 VAC, 60 Hz, 2.1 W | | Ambient Operating Temperature | 14 to 122° F (-10 to 50° C) | | Ambient Operating Humidity | 90% or less (without condensation) | | Housing | ABS resin | | Dimensions | Ø4.3 x 3.7" (Ø108 x 94 mm) | | Weight | 0.7 lb (320 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.2 x 6.1 x 5.4" |
