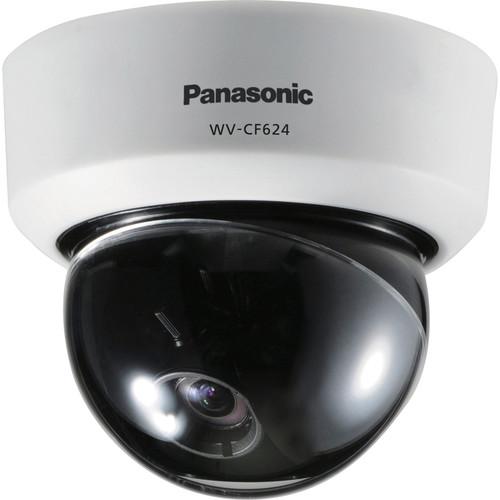

User Manual for Panasonic WV-CF624 Day Night Fixed Dome Analog Camera with Super Dynamic 6 Technology Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CF624 Day Night Fixed Dome
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CF624 Day Night Fixed Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The white WV-CF624 Day/Night Fixed Dome Analog Camera with Super Dynamic 6 Technology from Panasonic offers a 128x wide dynamic range and a high resolution of 650 TVL. It features a 3.6x varifocal auto iris lens and a 1/3" CCD sensor for clear image reproduction. The camera also features 3-dimensional color conversion function for natural color reproduction even in lower color temperature situations.
ABS (Adaptive Black Stretch) enhances the visibility in dark areas without degrading the image quality in the bright areas. The camera also has intelligent features like ATW (Auto Tracing White Balance) and ALC (Automatic Light Control). The smart look of the camera suits various environments such as in shopping malls, hotels, and hospitals. - Super Dynamic 6 technology delivers 128x wide dynamic range
- High sensitivity with day/night functionality
- 0.08 lux (color), 0.008 lux (B&W) at F1.4
- IR cut filter switches on and off to enhance sensitivity in B&W mode
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Lens Distortion Compensation
- 2.8 to 10mm, 3.6x varifocal auto-iris lens
- Over the coaxial cable data communication
- Horizontal coverage of 100.8°, vertical coverage of 73.8°
- ABS (Adaptive Black Stretch) enhances visibility of dark areas without degrading image quality in bright areas of a scene
- Adaptive Digital Noise Reduction allows integration of 2D-DNR and 3D-DNR, and ensures noise reduction in various environments
- Internal / Multiplexed Vertical Drive (VD2) synchronization
- Various mounting options such as surface mount, embedded mount (with optional WV-Q174, not included), mounting to a junction box (sold separately)
- 3-way hinge (horizontal, vertical, and swivel rotation) for easy installation
- 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
- Various image enhancement features including ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
- Electronic Sensitivity Enhancement: Auto (Up to 32x) / Manual (Up to 512x)
- Electronic shutter from 1/100 to 1/120,000 sec
- 16 alphanumeric camera title display
- Monitor output and ELC mode for easier lens adjustment upon installation
- Multi-language display English, French, Italian, Spanish, German, Russian, Chinese, Japanese
- Smart look for various applications such as shopping malls, hotels, and hospitals
UPC: 885170096035 In the Box Panasonic WV-CF624 Day/Night Fixed Dome Analog Camera with Super Dynamic 6 Technology (NTSC, White) Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CF624 Day Night Fixed Dome Analog Camera with Super Dynamic 6 Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CF624 Specs | | | Image Sensor | 1/3-type interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning System | 2:1 interlace | | Scanning Area (H x V) | 0.19 x 0.16" (4.80 x 3.60 mm) | | Scanning frequency (H, V) | 15.73 kHz x 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux
B/W : 0.008 lux at F1.4 | | Signal-to-Noise Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2,000 to 10,000K), ATW1 (2,700 to 6,000K), ATW2 (2,000 to 6,000K) | | Light Control | ALC/ALC+/ELC | | AGC Action | On (Low, Mid, High) / Off | | Super Dynamic 6 | On / Off | | Dynamic Range | 52 dB typical (Super Dynamic 6: ON) | | Electronic Shutter | OFF (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 sec | | Electronic Sensitivity UP | 32x maximum Auto, 512x maximum Fix | | Day & Night | IR: Auto1/Auto2/On/Off | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On(1) / On(2) / Off | | Image Stabilizer | On / Off | | Camera Title | 16 alphanumeric characters | | Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2) | | | | Focal Length | 2.8 to 10.0 mm | | Zoom Ratio | 3.6x | | Angular Field of View | H: 100.8° (Wide) to 27.6° (Tele)
V: 73.8° (Wide) to 20.7° (Tele) | | Maximum Aperture Ratio | 1:1.3 (Wide) to 3.1 (Tele) | | Focusing Range | 0.98' (0.3 m) to infinity | | | | Video Output | 1.0 Vpp NTSC composite video signal 75 Ω | | Controller Interface | Coaxial Multiplex System | | | | Setup Method | OSD setup menu | | Language | English, French, Italian, Spanish, German, Russian, Chinese, Japanese | | Safety/EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (E60065), DOC (ICES-003) | | Power Source | 24 VAC / 12 VDC | | Power Consumption | 2.5 W @ 24 VAC
220 mA @ 12 VDC | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 90% or less (no condensation) | | Construction | ABS resin (Sail white) | | Dimensions (Ø x H) | 4.3 x 3.7" (10.8 x 9.4 cm) | | Weight | 0.71 lb (0.32 kg) |
