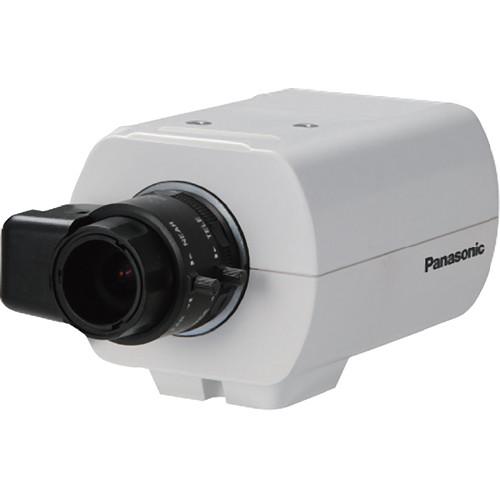

User Manual for Panasonic WV-CP300 Series 650 TVL Day Night IR Dual Voltage Fixed Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CP300 Series 650 TVL Day
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CP300 Series 650 TVL Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The PaV-CP300 Series 650 TVL Day/Night IR Dual Voltage Fixed Camera is a compact unit with features such as Adaptive Black Stretch technology, lens distortion compensation, auto image stabilization, and digital noise reduction, making it suitable for 24/7 surveillance. Equipped with a 1/3" interline transfer CCD image sensor, the camera captures clear and crisp images at 650 TVL.
Designed for low-light surveillance, this camera features day & night switching and offers a sensitivity of 0.08 lux in color at f/1.4. During night surveillance, the camera's Adaptive Black Stretch feature transforms dark areas of the video footage without degrading image quality. Furthermore, the camera has an auto-image stabilizer that eliminates the effects of vibration caused by wind. 2D/3D digital noise reduction technology can be switched on to record videos with minimal blur. - 1/3" interline transfer CCD captures NTSC videos at a high resolution up to 650 TVL
- Privacy masking allows you to mask up to 8 user-programmable zones of a scene for privacy reasons
- Motion detection feature triggers an alarm in case of any movement in a designated portion of the video display
- Lens distortion compensation ensures that a wide-angle lens produces distortion-free images
- An electronic shutter helps the camera capture clear images of fast-moving objects
- Adaptive black stretch technology increases the visibility of subjects in dark areas of a video scene without degrading image quality in the brighter areas
- Auto image stabilization for clear and focused footage even in windy weather conditions
- Adaptive digital noise reduction ensures clear images by removing signals that could make video footage grainy
- 16-axis matrix color compensation for enhanced color adjustment
- Electronic light control (ELC) mode for quick lens adjustment upon installation
- 16-character alphanumeric camera title display
UPC: 885170062610 In the Box Panasonic WV-CP300 Series 650 TVL Day/Night IR Dual Voltage Fixed Camera (No Lens) CD-ROM Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CP300 Series 650 TVL Day Night IR Dual Voltage Fixed Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CP304 Specs | Image Sensor | 1/3 type interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace | | Scanning Area (H x V) | 0.18 x 0.14" (4.8 x 3.6 mm) | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux (f/1.4, sens-up off, AGC high)
0.008 lux (f/1.4, sens-up off, AGC high) | | Signal-to-Noise Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2,000 - 10,000K), ATW1 (2,700 - 8,000K), ATW2 (2,400 - 8,000K) | | Light Control | ALC / ALC+ / ELC | | AGC (Automatic Gain Control) | On (low, mid, high) / off | | Electronic Shutter | Off (1/60), Auto, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 | | Electronic Sensitivity UP | 32x maximum auto, 512x maximum fix | | Day/Night | Day and Night IR : Off, auto 1, auto 2, on | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On (1) / On (2) / Off, up to 8 zones | | Auto Image Stabilizer | On / Off | | Camera Titles | 16 alphanumeric characters | | Synchronization | Internal (INT) / Multiplexed vertical drive (VD2) | | Video Output | 1.0 V p-p / NTSC composite 75 | | Controller Interface Type | Coaxial multiplex system | | Setup Method | OSD setup menu | | Language | English, Russian, German, French, Italian, Spanish, Chinese, Japanese | | Safety / EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (E60065), DOC (ICES-003) | | Finish | ABS resin / sail white | | Power Source and Consumption | 12 VDC, 210 mA
24 VAC 60 Hz, 2.3 W | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 90% or less (without condensation) | | Dimensions | 2.8 x 2.2 x 3.2" / 7.2 x 5.5 x 8.1 cm | | Weight | 5.6 oz / 160 g | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 7.2 x 6.6 x 4.0" |
