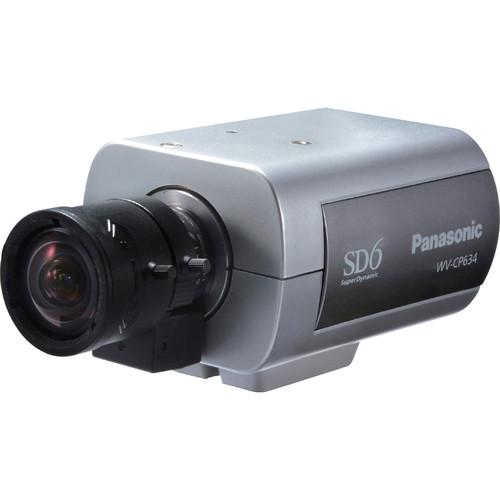

User Manual for Panasonic WV-CP634 Super Dynamic 6 700 TVL Box Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CP634 Super Dynamic 6 700
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CP634 Super Dynamic 6 700 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description Featuring a 1/3" interline transfer CCD image sensor, the WV-CP634 Super Dynamic 6 700 TVL Box Camera from Panasonic offers up to 700 TVL resolution for video surveillance in both day and night lighting conditions. Equipped with a CS lens mount, this camera can be used with all CS-mount lenses for compatibility with a wide range of lenses (available separately). The Super Dynamic 6 combines Super Dynamic and Adaptive Black Stretch technologies to increase visibility in dark areas without degrading image quality in bright areas for clear video in a wide range of settings. An auto image stabilizer reduces blur in windy or vibrating settings, and adaptive 2D- and 3D-DNR ensure noise reduction in a variety of conditions. This camera uses coax cables for data communication, and alarm input and output terminals allow you to expand your surveillance system to create a comprehensive setup. The camera title can be displayed using up to 16 alphanumerical characters, and there is a multi-language menu. - The Super Dynamic 6 provides better image quality by fusing Super Dynamic and ABS (adaptive black stretch) functions
- IR cut filter switches on/off to enhance sensitivity in B/W mode
- 3D color conversion function for natural color reproduction even in lower color temperature situations
- Integration of 2D-DNR and 3D-DNR for noise reduction in various conditions
- Features electronic sensitivity enhancement
- Electronic shutter from 1/100 to 1/12,000 sec
- Supports digital zoom of up to 2x
- Alarm input and alarm output terminals
- Auto image stabilizer for applications where vibration or wind is a concern
- Internal/line-lock/multiplexed vertical drive (VD2) synchronization
- Coaxial cable data communication
- 16-character alphanumeric camera title display
- Multi-language support; English, French, Italian, Spanish, German, Russian, Portuguese, Japanese
UPC: 885170213647 In the Box Panasonic WV-CP634 Super Dynamic 6 700 TVL Box Camera (No Lens) Power Cord Plug Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CP634 Super Dynamic 6 700 TVL Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CP634 Specs | | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | NTSC: 976 x 494
PAL: 976 x 582 | | Scanning Mode | 2:1 interlace scan | | Scanning Area (H x V) | 0.2 x 0.1" / 4.8 x 3.6 mm | | Scanning Frequency | NTSC:
Horizontal: 15.734 kHz
Vertical: 59.94 Hz
PAL:
Horizontal: 15.625 kHz
Vertical: 50 Hz | | TV Scan Lines | NTSC: 525 lines
PAL: 625 lines | | Horizontal Resolution | 700 TV lines | | Minimum Illumination | Color: 0.08 lux (SENS UP: OFF), 0.003 lux (SENS UP: 32x) at f/1.4
B/W: 0.008 lux (SENS UP: OFF), 0.0003 lux (SENS UP: 32x) at f/1.4 | | Signal-to-Noise Ratio | 52 dB (AGC Off, Weight On) | | White Balance | AWC (2,000 to 10,000K), ATW1 (2,700 to 6,000K), ATW2 (2,000 to 6,000K) | | Light Control | ALC / ALC+ / ELC | | AGC (Automatic Gain Control) | On (High / Mid / Low) / Off | | Super Dynamic | On / Off | | Dynamic Range | NTSC: 52 dB typical (Super Dynamic ON)
PAL: 54 dB typical (Super Dynamic ON) | | Electronic Shutter | NTSC: Off (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/12,000 seconds
PAL: Off (1/50), 1/120 / 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/12,000 seconds | | Electronic Sensitivity UP | Off / Auto (2x, 4x, 6x, 10x, 16x, 32x)
FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x) | | Digital Noise Reduction (DNR) | Low / High | | Day & Night | Auto1 / Auto2 / On / Off | | Digital Zoom | On (up to 2x) / Off | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion detection / Scene change | | Privacy Zone | On (1) / On (2) / Off | | Auto Image Stabilizer | On / Off | | Camera Title | English letter, Numbers and symbols: Up to 16 characters | | Lens Mount | CS-mount | | Lens ALC Drive | DC drive | | Back Focus | ABF / Manual / switching between color and BW interlocking | | Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2, NTSC only), Line-Lock (LL) | | Upside Down | On / Off | | Lens Distortion Correction | 0 to 255 | | | | Video Output | NTSC:
1 V p-p / NTSC composite
75 Ohms / BNC connector multiplexed
VD2 and control data capable
PAL:
1 V p-p / NTSC composite
75 Ohms / BNC connector multiplexed
VD2 and control data capable | | External I/O Terminals | Alarm In: 1 (Off / Alarm / VMD permit / BW)
Alarm Out: 1 (Off / Alarm / BW) | | | | Setup Method | OSD setup menu | | Language | English, Russian (for setup menu and camera title), German, French, Italian, Spanish, Portuguese (for setup menu), Japanese (only for camera title; setup menu is in English) | | Safety/EMC Standard | NTSC: UL (UL60065), FCC (Part 15 Class A), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 Class A)
PAL: CE (EN60065, EN55022 Class B, EN55024) | | Power Source | NTSC: 24 VAC, 60 Hz, 2.5 W / 12 VDC, 220 mA
PAL: 24 VAC, 50 Hz, 2.5 W / 12 VDC, 220 mA | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | Less than 90% | | Dimensions | 2.84 x 2.56 x 4.06" (7.20 x 6.50 x 10.35 cm) | | Weight | 0.77 lb (0.35 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 6.2 x 5.2" |
