User Manual for Panasonic WV-CP634 Super Dynamic 6 Box Camera with 2.8-12mm Lens and EH1000HBW Housing Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CP634 Super Dynamic 6 Box
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CP634 Super Dynamic 6 Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|

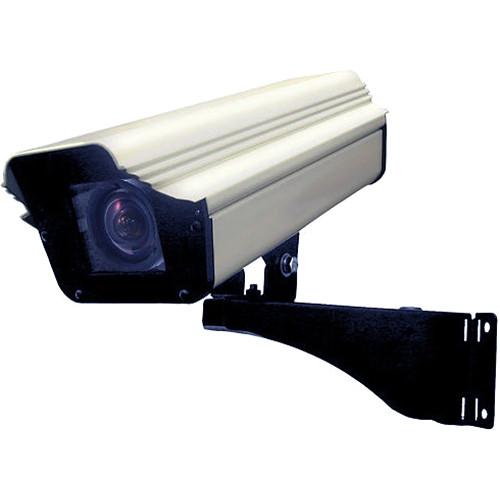

Product description The WV-CP634 Super Dynamic 6 Box Camera with 2.8-12mm Lens and EH1000HBW Housing from Panasonic features a 1/3" interline transfer CCD image sensor, offering up to 700 TVL resolution for video surveillance in both day and night lighting conditions. The camera comes with a 2.8-12mm lens, providing an optical zoom of 4.3x, and an EH1000HBW camera housing.
The Super Dynamic 6 combines Super Dynamic Range and Adaptive Black Stretch to increase visibility in dark areas without degrading image quality in bright areas for clear video in a wide range of settings. An auto image stabilizer reduces blur in windy or vibrating environments, and adaptive 2D- and 3D-DNR ensure noise reduction in a variety of conditions. This camera uses coax cables for data communication, and alarm input and output terminals allow you to expand your surveillance system to create a comprehensive setup. - IR cut filter switches on/off to enhance sensitivity in B&W mode
- 3D color conversion function for natural color reproduction, even in low color temperature situations
- Features electronic sensitivity enhancement
- Electronic shutter from 1/100 to 1/12,000 sec
- Internal/line-lock/multiplexed vertical drive (VD2) synchronization
- 16-character alphanumeric camera title display
- Suitable for both indoor and outdoor use
In the Box Panasonic WV-CP634 Super Dynamic 6 Box Camera with 2.8-12mm Lens and EH1000HBW Housing Power Cord Plug Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CP634 Super Dynamic 6 Box Camera with 2.8-12mm Lens and EH1000HBW Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CP634 Specs | | | Image Sensor | 1/3" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace scan | | Scanning Area (H x V) | 0.2 x 0.1" / 4.8 x 3.6 mm | | Scanning Frequency | Horizontal: 15.734 kHz
Vertical: 59.94 Hz | | TV Scan Lines | 525 lines | | Horizontal Resolution | 700 TV lines | | Minimum Illumination | Color: 0.08 lux (SENS UP: OFF), 0.003 lux (SENS UP: 32x) at f/1.4
B&W: 0.008 lux (SENS UP: OFF), 0.0003 lux (SENS UP: 32x) at f/1.4 | | Signal-to-Noise Ratio | 52 dB (AGC Off, Weight On) | | White Balance | AWC (2000 to 10,000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K) | | Light Control | ALC/ALC+/ELC | | AGC (Automatic Gain Control) | On (High/Mid/Low) / Off | | Super Dynamic | On/Off | | Dynamic Range | 52 dB typical (Super Dynamic ON) | | Electronic Shutter | Off (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10,000, 1/12,000 seconds | | Electronic Sensitivity UP | Off/Auto (2x, 4x, 6x, 10x, 16x, 32x)
FIX (2x, 4x, 6x, 10x, 16x, 32x, 64x, 128x, 256x, 512x) | | Digital Noise Reduction (DNR) | Low/High | | Day & Night | Auto1/Auto2/On/Off | | Digital Zoom | On (up to 2x) / Off | | Lens Focal Length | 2.8-12mm | | Optical Zoom | 4.3x | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion detection / Scene change | | Privacy Zone | On (1)/On (2)/Off | | Auto Image Stabilizer | On/Off | | Camera Title | English letter, Numbers and symbols: Up to 16 characters | | Back Focus | ABF / Manual / switching between color and B&W interlocking | | Synchronization | Internal (INT), Multiplexed Vertical Drive (VD2, NTSC only), Line-Lock (LL) | | Upside Down | On/Off | | Lens Distortion Correction | 0 to 255 | | | | Video Output | 1 V p-p / NTSC composite
75 Ohms / BNC connector multiplexed
VD2 and control data capable | | External I/O Terminals | Alarm In: 1 (Off/Alarm/VMD permit/BW)
Alarm Out: 1 (Off/Alarm/BW) | | | | Setup Method | OSD setup menu | | Language | English, Russian (for setup menu and camera title), German, French, Italian, Spanish, Portuguese (for setup menu), Japanese (only for camera title; setup menu is in English) | | Safety/EMC Standard | UL (UL60065), FCC (Part 15 Class A), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 Class A) | | Housing | EH1000HBW camera housing | | Power Source | 24 VAC, 60 Hz, 2.5 W / 12 VDC, 220 mA | | Ambient Operating Temperature | 14 to 122°F / -10 to 50°C | | Ambient Operating Humidity | Less than 90% | | Dimensions | 2.84 x 2.56 x 4.06" / 7.20 x 6.50 x 10.35 cm | | Weight | 0.77 lb / 0.35 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Panasonic WV-CP634 Super Dynamic 6 Box Camera with 2.8-12mm Lens and EH1000HBW Housing
| Subject: request for quotation | | Date: 20.08.2022 07:34:36 | Name: AAN TRADERS | Material No: 1680377
QTY# 10 PC
CAMERA, DIGITAL; TYPE: FIXED CAMERA ,
P/N: NTSC WV-CP634 SERIES, MNFR: PANASONIC | | Post reply |
