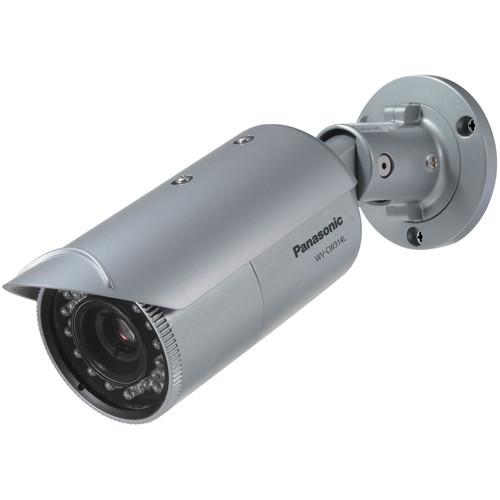

Product description The Panasonic WV-CW314L Weather-Resistant IR LED Day/Night Fixed Color Camera (NTSC) features a high-performance DSP (Digital Signal Processor) that offers improved image quality. Utilizing the Adaptive Black Stretch technology, the DSP uses image processing to automatically detect dark areas inside an image and apply the most suitable gamma correction curve. This image processing algorithm transforms shadows and dark areas into natural and crisp images in real-time. True Day/Night operation can be manually or automatically selected. The camera delivers videos in 650 TVL horizontal resolution in color mode and thanks to the high-performance DSP and circuit, a minimum illumination intensity of 0.08 lux is achievable in color mode using the 2.8 to 10mm F1.3 lens. The IR LEDs of the camera provide visibility up to 164’ (50m). - High resolution of 650 TVL
- High sensitivity with Day/Night function (0.08 lux in color & 0 lux in B&W with LED on) at f/1.3
- IR cut filter switches on/off to enhance the sensitivity in B&W mode
- Equipped with infrared LEDs which make it possible to capture images at 0 lux
- IR LED irradiation distance of 164' (50m)
- LED AUTO mode helps achieve the best possible brightness level automatically when the IR LED is on
- ABS (Adaptive Black Stretch) enhances visibility of the dark area without degrading image quality in the bright area
- ABF (Auto Back Focus) ensures easy installation
- Various adjustment features including BLC (Backlight Compensation), ATW (Auto Tracing White Balance), and ALC (Automatic Light Control)
- 2.8 to 10mm 3.6x varifocal auto-iris lens
- 16-axis matrix color compensation function enables wider range of natural color adjustment
- Adaptive Digital Noise Reduction (integration of 2D-DNR and 3D-DNR) to ensure noise reduction in various conditions
- Electronic sensitivity enhancement up to 32x (auto) & 512x (fix)
- Electronic shutter from 1/100 to 1/120,000 sec
- Auto Image Stabilizer for applications where vibration or wind is a concern
- Data communication over coaxial cable
- 16 alphanumeric characters on camera title display
- Lens distortion correction
- ELC mode for easy lens adjustment upon installation
- IP66 rated for water and dust resistance
- Compatible with IEC60529 measurement standard
UPC: 885170151611 In the Box Panasonic WV-CW314L Weather-Resistant IR LED Day/Night Fixed Color Camera (NTSC) Waterproof Tape Desiccant Installation Template Label Spring Washer Limited 3-Year Warranty on Parts & Labor Brochure PDF 622.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CW314L Weather-Resistant IR LED Day Night Fixed Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CW314L Specs | | | Image Sensor | 1/3" type interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Mode | 2:1 interlace | | Scanning Area (H x V) | 0.18 x 0.14" (4.8 x 3.6 mm) | | Scanning Frequency | Horizontal: 15.73 kHz
Vertical: 59.94 Hz | | Horizontal Resolution | 650 TVL | | Minimum Illumination | Color: 0.08 lux (0.008 fc) (color mode)
B&W: 0.008 lux (0.0008 fc) (B&W mode - IR LED Off)
B&W: 0 lux (0 fc) (B&W mode - IR LED On) | | Signal-to-Noise Ratio | 52 dB (AGC: Off) | | White Balance | AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K) | | Light Control | ALC / ALC+ / ELC | | BLC | On / Off | | Adaptive Black Strech | On / Off | | AGC (Automatic Gain Control) | On (low, mid, high) / Off | | Electronic Shutter | Off (1/60); Auto, 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/120,000 | | Electronic Sensitivity UP | 32x maximum Auto, 512x maximum Fix | | Day/Night | IR: Auto1 / Auto2 / On / Off | | LED | Off / Auto / Fix Available for D&N AUTO2 mode or D&N ON mode. | | Digital Noise Reduction (DNR) | High or low | | Scene File | 2 patterns | | Video Motion Detection | Off / Motion Detection / Scene Change | | Privacy Zone | On (1) / On (2) / Off | | Image Stabilizer | On / Off | | Auto Focus System | Lens AF / Manual | | IR LED | Irradiation Distance: 164' (50 m) | | Synchronization | Internal (INT) | | | | Focal Length | 2.8 to 10 mm | | Zoom Ratio | 3.6x | | Angular Field of View | Horizontal: 100° 50’ (Wide) to 27° 39’ (Tele)<br>Vertical: 73° 51' (Wide) to 20° 45' (Tele) | | Maximum Aperture Ratio | f/1.3 (Wide) to 3.1 (Tele) | | Focusing Range | 0.98' (0.30 m) to infinity | | | | Video Output | 1 Vpp / NTSC composite 75 Ω | | Controller Interface Type | Coaxial multiplex system | | Setup Method | OSD setup menu | | Language | English, French, Italian, Spanish, German, Russian, Chinese, and Japanese | | Power Source and Consumption | 12 VDC, 560 mA (LED On)
24 VAC, 5.2 W | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 90% or less (without condensation) | | Dimensions (Ø x H) | 3.11 × 9.66” (78.99 x 245.36 mm) | | Mass | 2.31 lb (1.04 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 23.2 x 14.2 x 5.7" |
