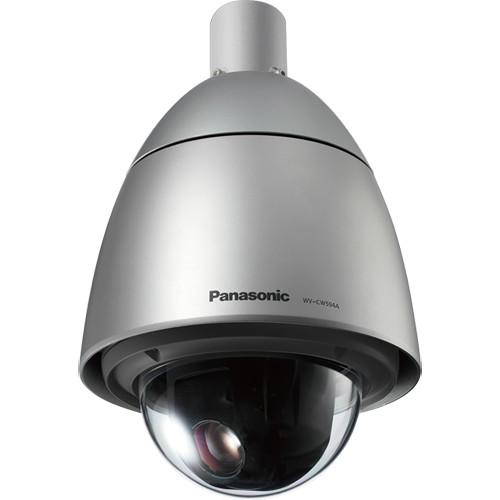

User Manual for Panasonic WV-CW594A 650 TVL Outdoor PTZ Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Panasonic WV-CW594A 650 TVL Outdoor PTZ
- Product category: Wired Analog & HD Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired Analog & HD Cameras
|
User manual for the Panasonic WV-CW594A 650 TVL Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The WV-CW594A 650 TVL Outdoor PTZ Dome Camera from Panasonic features Super Dynamic 6 (SUPER-D6) technology that allows it to capture images of subjects in varied illumination. The camera can be configured to automatically switch to black-and-white mode under low light conditions for clear images, even at night. With digital flip, the camera can tilt from 0 to 180° in a single motion. The privacy zone function can mask specific areas of the scene from view, while the patrol function can store manual camera movement routines for automatic playback. The system can be configured so any motion will trigger an alarm signal. - DSP for High Sensitivity
- A noise reduction system lowers minimum illumination to 0.5 lux in color mode and 0.04 lux in black-and-white mode.
- Digital Flip
- Normally, a camera needs to stop when it points straight down during a tilt operation. With digital flip, however, the camera is able to tilt from 0 to 180° in a single motion. This makes it possible to track subjects passing directly under the camera more smoothly.
- Privacy Zone Function
- The privacy zone function can mask specific areas of the scene from view.
- Patrol Function
- The patrol function can store manual camera movement routines for automatic playback.
- Camera Position Memory
- The system can be configured with up to 256 camera positions. A particular camera position can be selected and viewed by entering the applicable pre-set number on the system controller.
- Motion Detection
- The system can be configured so any motion detected triggers an alarm signal.
- Internal Heating Fan
- Prevents snow and frost from building up on the dome cover.
- Dome Cover with Rain Wash Coating
- The rain wash coating is applied to the surface of the dome cover to make it hard for water droplets to adhere to the dome cover.
In the Box Panasonic WV-CW594A 650 TVL Outdoor PTZ Dome Camera with Heater Front Sunshield Rear Sunshield Protection Cover Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-CW594A 650 TVL Outdoor PTZ Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-CW594A Specs | | | Image Sensor | 1/4" interline transfer CCD | | Effective Pixels (H x V) | 976 x 494 | | Scanning Area (H x V) | 0.15 x 0.09" (3.66 x 2.74 mm) | | Signal | NTSC | | Synchronization | Internal (INT), multiplexed vertical drive (VD2) | | Scanning | 2:1 interlace | | Scanning Frequency (H/V) | 15.734 kHz, 59.94 Hz | | Video Output | VBS: 1 V p-p / 75 Ohms (BNC plug) | | Resolution | Center: Horizontal: 650 TV lines typical
Vertical: 350 TV lines minimum | | Minimum Illumination | 0.5 lux (color mode)
0.04 lux (black-and-white mode)
Sense-Up: OFF; AGC: HIGH | | Dynamic Range | 52 dB typical (SUPER-D6: ON) | | S/N Ratio | 52 dB minimum (AGC: OFF) | | | | Zoom Ratio | 36x (Approximately 720x with digital zoom) | | Focal Length | 3.3-119mm | | Maximum Aperture Ratio | 1:1.4 (Wide) to 4.2 (Tele) | | Minimum Distance | Object: 6.6' (2 m) | | Iris Range | f/1.4 to 22, close | | Angular Field of View | Horizontal: 60.2 (WIDE) to 1.7° (TELE)
Vertical: 46 (WIDE) to 1.3° (TELE) | | | | Controller Interface | Coaxial multiplex system, RS-485 | | Control Features | Pan and tilt, zoom and focus, 256 preset positions, home position, patrol | | AGC | On (low), On (mid), On (high), Off | | Title | ID: On, Off (Preset ID, camera ID, area title: 16 alphanumeric characters) | | Zoom | 1x to 720x (Over 36x is digital zoom) | | Password Lock | All menus | | Auto Focus Modes | MANUAL/AUTO (PAN, TILT, ZOOM linked) | | Iris | ALC (Adjustable OPEN/CLOSE output target level)/MANUAL | | Shutter | Off (1/60), AUTO, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 | | Electronic Sensitivity Enhancement | 32x maximum AUTO, 512x maximum FIX | | Auto Mode | OFF, SEQ, SORT, AUTOPAN, PATROL, AUTOTRACK | | Auto Pan | SEQ, SORT, AUTOPAN, PATROL, AUTOTRACK | | Digital Flip | Off/on | | Alarm I/O | 4 x Input
2 x Output | | Mode Switch | Black and White: Auto / On / Off | | Privacy Zone | On/Off (8 zone settings) | | Patrol | Stop / Play / Learn | | Mode | Cleaning: On/Off | | Image Hold | On/Off | | Auto Image Stabilizer | On/Off | | Scene Select Setting | Indoor (L) / Indoor (H) / Outdoor (L) / Outdoor (H) | | Languages | Japanese, English, German, French, Italian, Spanish, Russian, Chinese, Portuguese | | | | Panning Range | 360° endless | | Modes | Panning: Manual, Auto, Manual Position, Sequential Position | | Panning Speed | Manual: Approximately 0.065 to 120°/s 8 steps, 16 steps, 64 steps
Preset: Approximately 400°/s | | Tilting Range | -5 to 185° (horizontal - vertical - horizontal) | | Modes | Tilting: Manual, Manual Position, Sequential Position | | Tilting Speed | Manual: Approximately 0.065 to 120°/s 8 steps, 16 steps, 64 steps
Preset: Approximately 400°/s | | | | Power Requirements | 24 VAC, 60 Hz | | Power Consumption | 98 W | | Ambient Operating Temperature | -58 to 122°F (-50 to 50°C)
Humidity 90% maximum (non-condensation) | | Water Resistance | IP66 protection from water jets from a nozzle (IEC60529) | | Material | Camera: Die-cast aluminum
Sunshield: ASA resin
Dome Cover: Clear polycarbonate resin | | Dome Diameter | 5.90" (150 mm) | | Dimensions (HxD) | 14.18 x 9.96" (360 x 229 mm) | | Weight | Approximately 9.92 lb (4.5 kg) including front and rear sunshields | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 20.1 x 15.0 x 13.6" |
