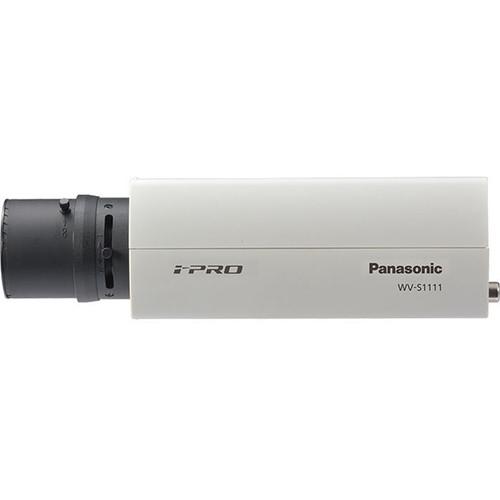

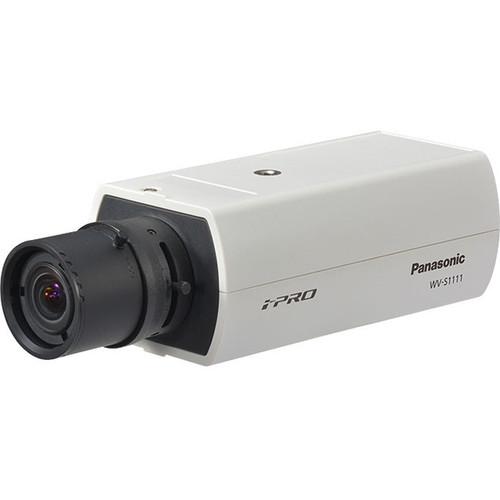

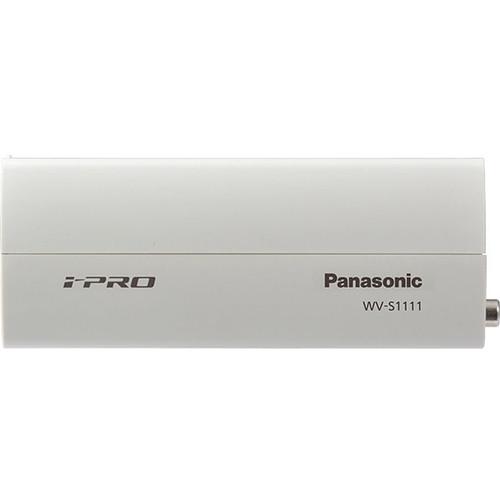

Product description The WV-S1111 Super Dynamic 720p Network Box Camera from Panasonic features a 1/2.8" MOS sensor for capturing images at a maximum resolution of 1280 x 720. The Intelligent Auto (iA) function monitors scene dynamics and motion to adjust key camera settings automatically in real time. This reduces distortion caused by motion blur on moving objects. In addition, the camera features Super Dynamic technology that offers a dynamic range of up to 144 dB. - Day / night functionality with ICR (IR cut filter)
- Minimum illumination of 0.007 lux (color) and 0.003 lux (B&W) at f/1.4
- H.265 compression and smart coding technology
- Intelligent Face Compression provides high picture quality in the "Face best shot area" while reducing resolution in less important areas to conserve network bandwidth and disk space
- Encryption and alteration detection functions for enhanced security

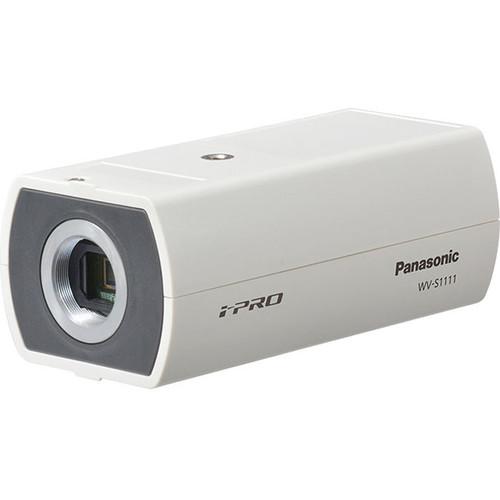

In the Box Panasonic WV-S1111 Super Dynamic 720p Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S1111 Super Dynamic 720p Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S1111 Specs | | | Image Sensor | Approximately 1/2.8" MOS | | Minimum Illumination | Color: 0.007 lux at f/1.4, Maximum Shutter: 1/30 sec, gain on high
B&W: 0.003 lux
Color: 0.0005 lux at f/1.4, Maximum Shutter: 16/30 sec, gain on high
B&W: 0.0002 lux | | White Balance | AWC (2000 to 10,000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only | | Intelligent Auto | On / Off | | Super Dynamic | On / Off, the level can be set in the range of 0 to 31
Automatically set off on 60 fps mode | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | Compensation | BLC (Black light compensation) / HLC (High light compensation) / Off (only when Super Dynamic and Intelligent Auto are off)
Fog: On / Off (only when Intelligent Auto is off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | Digital Noise Reduction | The level can be set in the range of 0 to 255 | | Video Motion Detection | On / Off, 4 areas available | | Privacy Zone | On / Off (up to 8 zones available) | | Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual / Adjusting method (Auto / Preset / Fix) | | | | Camera Control | Brightness, AUX On / Off | | Audio | Mic (Line) Input: On / Off
Volume Adjustment: Low / Middle / High
Audio Output: On / Off
Volume Adjustment: Low / Middle / High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network IF | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 1.3 MP (16:9) (30/60 fps): 1280 x 720 / 640 x 360 / 320 x 180
1.3 MP (4:3) (30 fps): 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission mode | H.265/H.264
Constant bit rate / VBR / Framerate priority / Best effort | | Transmission Type | Unicast / Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream (1)
GOP (Group of pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265 | | Audio Compression | G.726 (ADPCM): 32 kbps / 16 kbps
G.711: 64 kbps
AAC-LC: 64 kbps / 96 kbps / 128 kbps
Only use AAC-LC (Advanced Audio Coding - Low Complexity) when recording audio on an SD memory card | | Audio Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (Depends on network conditions) | | Memory Card Slot | SDXC/SDHC/SD
H.265 / H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Cards: Panasonic 2 GB, 4 GB (SDHC card), 8 GB (SDHC card), 16 GB (SDHC card), 32 GB (SDHC card), 64 GB, 128 GB ((SDXC card / except miniSD card and microSD card) | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 terminals input, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, RCA jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | 3.5 mm stereo mini jack (Applicable Microphone: Plug-in power type)
Supply Voltage : 2.5 V ±0.5 V | | Audio Output | 3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x ALARM IN 1 (DAY/NIGHT IN, Auto time adjustment)
1 x ALARM IN 2 (ALARM OUT)
1 x ALARM IN 3 (AUX OUT) | | | | Power | DC Power Supply: 12 VDC / 390 mA / approximately 4.7 W
PoE (IEEE 802.3af) Device: 48 VDC / 110 mA / approximately 5.3 W (Class 2 device) | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 10 to 90% (no condensation) | | ONVIF Conformance | Yes | | Material | Main Body: PC / ABS resin | | Dimensions (W x H x D) | 2.9 x 2.25 x 5.75" (75 x 57 x 146 mm) | | Weight | 12.3 oz (350 g) |
