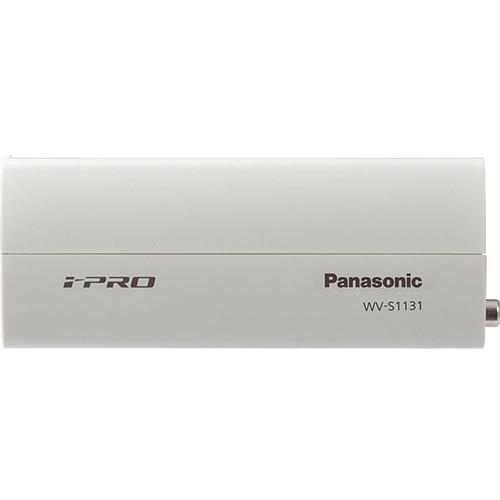

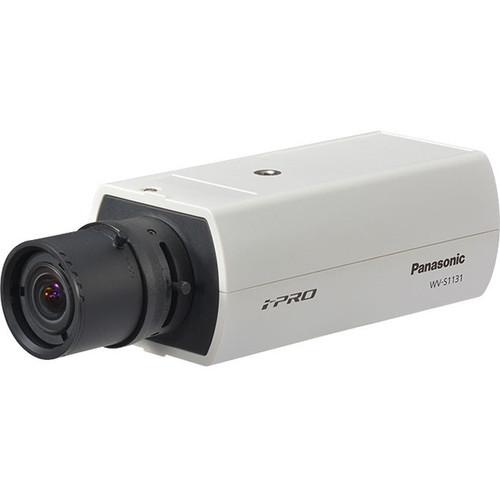

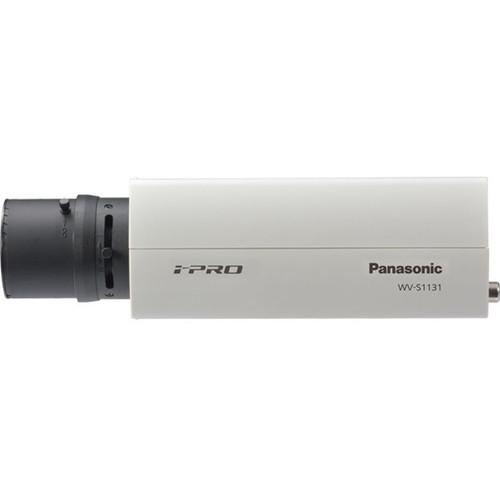

User Manual for Panasonic WV-S1131 i-PRO Extreme 2MP Network Box Camera Click to enlarge the picture
Contents of the user manual for the Panasonic WV-S1131 i-PRO Extreme 2MP Network
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
 |
User manual for the Panasonic WV-S1131 i-PRO Extreme 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The sail white WV-S1131 i-PRO Extreme 2MP Network Box Camera from Panasonic features an intelligent Auto (iA) function that monitors scene dynamics and motion to adjust key camera settings automatically in real time. This reduces distortion caused by motion blur on moving objects. The 144 dB dynamic range delivers balanced scene exposure in dynamic and highly backlit environments. The camera supports H.265 Smart Coding compression and is compliant with FIPS 140-2 Level 1 security standards. - Auto Shutter speed control for fast moving vehicles
- Super Dynamic technology provides 144 dB range
- Self-learning ROI (Region of Interest) encoding (Auto VIQS) dynamically detects motion for clearer pictures while lowering overall system bandwidth
- Fully encrypted SD card edge recording to keep your data safe
- Full end-to-end system encryption with supported VMS systems and devices to protect from IP snooping/spoofing and detect data alteration

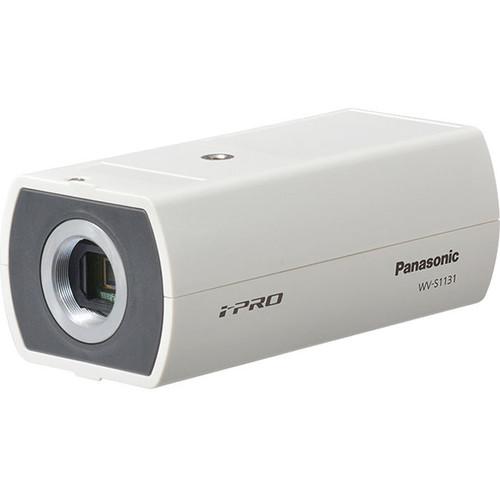

In the Box Panasonic WV-S1131 i-PRO Extreme 2MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S1131 i-PRO Extreme 2MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S1131 Specs | | | Image Sensor | Approximately 1/2.8" MOS | | Minimum Illumination | Color: 0.01 lux at f/1.4, Maximum Shutter: 1/30 sec, AGC at 11
B&W: 0.004 lux
Color: 0.0007 lux at f/1.4, Maximum Shutter: 16/30 sec, AGC at 11
B&W: 0.0003 lux | | White Balance | AWC (2000 to 10,000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only
2/120 fix is available during 60 fps mode only | | Intelligent Auto | On / Off | | Super Dynamic | On / Off, the level can be set in the range of 0 to 31
Automatically set off on 60 fps mode | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | Compensation | BLC (Black light compensation) / HLC (High light compensation) / Off (only when Super Dynamic and Intelligent Auto are off)
Fog: On / Off (only when Intelligent Auto is off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | Digital Noise Reduction | The level can be set in the range of 0 to 255 | | Video Motion Detection | On / Off, 4 areas available | | Image Stabilizer | On / Off (available only in the 30 fps mode) | | Privacy Zone | On / Off (up to 8 zones available) | | Image Rotation | 0 / 90 / 180 / 270°
When 3 MP [4 : 3] (30 fps mode) is selected for Image capture mode, 90° and 270° cannot be selected | | Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual | | | | Camera Control | Brightness, AUX On / Off | | Audio | Mic (Line) Input: On / Off
Volume Adjustment: Low / Middle / High
Audio Output: On / Off
Volume Adjustment: Low / Middle / High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network IF | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 2 MP (16:9) (30/60 fps): 1920 x 1080 / 1,280 x 720 / 640 x 360 / 320 x 180
3 MP (4:3) (30 fps): 2048 x 1536 (used by super resolution techniques) / 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 30 / 320 x 240 | | Transmission mode | H.265/H.264
Constant bit rate / VBR / Frame rate priority / Best effort | | Transmission Type | Unicast / Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream (1)
GOP (Group of pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265 | | Audio Compression | G.726 (ADPCM): 32 kbps / 16 kbps
G.711: 64 kbps
AAC-LC: 64 kbps / 96 kbps / 128 kbps
Only use AAC-LC (Advanced Audio Coding - Low Complexity) when recording audio on an SD memory card | | Audio Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1x, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1x, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card Slot | SDXC/SDHC/SD
H.265 / H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Cards: Panasonic 2 GB, 4 GB (SDHC card), 8 GB (SDHC card), 16 GB (SDHC card), 32 GB (SDHC card), 64 GB, 128 GB, 256 GB (SDXC card / except miniSD card and microSD card) | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 terminals input, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, pin jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | 3.5 mm stereo mini jack (Applicable Microphone: Plug-in power type)
Supply Voltage : 2.5 ±0.5 V | | Audio Output | 3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x ALARM IN 1 (DAY/NIGHT IN, Auto time adjustment)
1 x ALARM IN 2 (ALARM OUT)
1 x ALARM IN 3 (AUX OUT) | | | | Power | DC Power Supply: 12 VDC / 460 mA / approximately 5.6 W
PoE (IEEE 802.3af) Device: 48 VDC / 120 mA / approximately 5.8 W (Class 2 device) | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 10 to 90% (no condensation) | | ONVIF Conformance | Yes | | Material | Main Body: PC / ABS resin | | Dimensions (W x H x D) | 2.9 x 2.25 x 5.75" (75 x 57 x 146 mm) | | Weight | 12.3 oz (350 g) |
