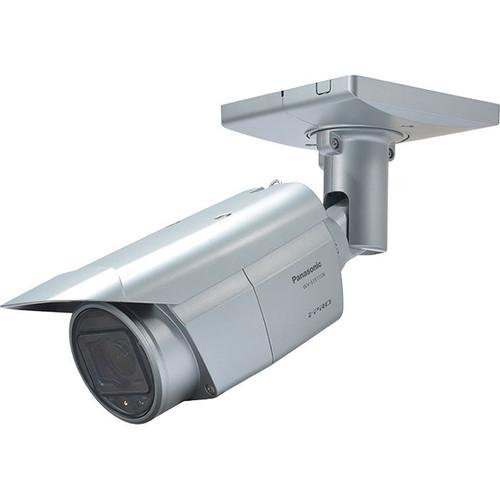

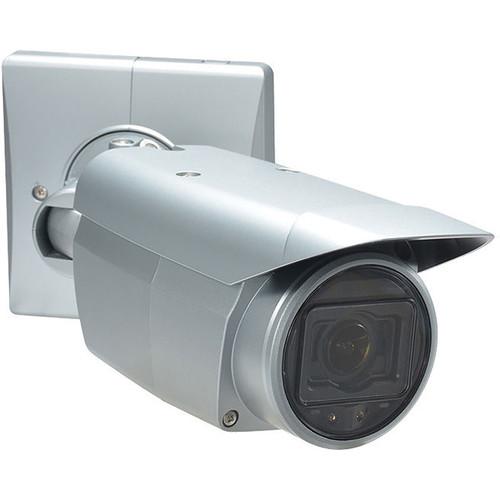

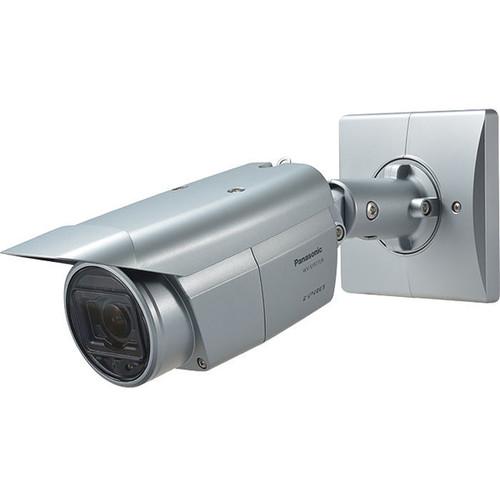

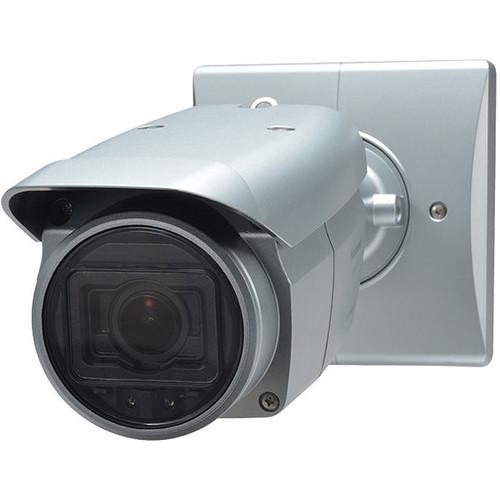

Product description The light gray WV-S1511LN i-PRO Extreme 1.3MP Outdoor Network Bullet Camera from Panasonic features a 1/3" MOS image sensor and a focal length of 2.8-10 mm for capturing videos at a maximum resolution of 1280 x 720. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to 131'. The camera features Intelligent Auto (iA) mode that monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing distortion from sources such as motion blur on moving objects. Its 144 dB dynamic range delivers balanced scene exposure in dynamic and extreme backlit environments. Furthermore, the camera provides low-light performance with accurate color rendition and saturation in environments with visibility in lighting as low as 0.0005 lux. The i-PRO Extreme bullet camera uses H.265 compression with Smart Coding technology that offers improved image quality streaming at lower bit rates. It supports full data encryption streaming and is compliant with FIPS 140-2 Level 1 standards to keep your data secured. - Frame rates up to 60 fps at 1280 x 720 resolution
- Auto shutter speed control for capturing fast moving vehicles
- Captures true color videos with reduced noise even in low-light environments (0.0005 lux)
- intelligent Auto (iA) monitors scene dynamics and motion to automatically adjust key camera settings in real time
- Super Dynamic 144 dB range for capturing sharp and clear images under challenging light conditions
- H.265 compression with Smart Coding technology (Auto VIQS and Smart Face Coding) reduces bandwidth without compromising the image quality
- Region of Interest encoding (Auto VIQS) dynamically detects motion areas
- Smart Facial Coding is suitable for ID camera applications that mainly capture faces
- Full encryption SD card edge recording
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
- ClearSight coating prevents water droplets and dirt from adhering to the dome cover
UPC: 885170303973 In the Box Panasonic WV-S1511LN i-PRO Extreme 1.3MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S1511LN i-PRO Extreme 1.3MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S1511LN Specs | | | Image Sensor | Approximately 1/3" MOS image sensor | | Minimum Illumination | Color:
0.008 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0005 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
B&W:
0.004 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0003 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
0 lux with IR LED on at f/1.6, Maximum Shutter: Off (1/30 sec), AGC: 11 | | White Balance | AWC (2000 to 10,000K)
ATW1 (2700 to 6000K)
ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only
2/120 fix is available during 60 fps mode only | | Intelligent Auto | On/Off | | Super Dynamic | On/Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | Light Compensation | BLC/HLC/Off (Only when Super Dynamic and Intelligent Auto: Off) | | Compensation | Fog: On/Off (Only when Intelligent Auto: Off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | IR LED | Off/Auto (High/Mid/Low) | | IR Range | 131' (40 m) | | Digital Noise Reduction | 0 to 255 | | Video Motion Detection | On/Off, 4 areas available | | Image Stabilizer | On/Off (available only in the 30 fps mode) | | Privacy Zone | On/Off (up to 8 zones available) | | Image Rotation | 0/90/180/270° | | Camera Title (OSD) | On/Off up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x (manual zoom / motorized focus) | | Angular Field of View | In 16:9 Mode
Horizontal: 31 to 112°
Vertical: 17 to 60°
In 4:3 Mode
Horizontal: 26 to 91°
Vertical: 19 to 67° | | Maximum Aperture Ratio | f/1.6 to 3.4 | | Focusing Range | 0.3 m to infinity | | Adjusting Angle | When Ceiling Mounted:
Horizontal: ±180° (pan rotation)
Vertical: 0 to 100° (tilt rotation)
Yaw: -190 to 100°
When Wall Mounted:
Horizontal: ±180° (tilt rotation)
Vertical: -±100° (tilt rotation)
Yaw: -190 to 100° | | | | Camera Control | Brightness, AUX on/off | | Audio | Mic (Line) Input / Audio Output: On / off Volume Adjustment: Low / Middle / High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network Interface | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 1.3 MP [16:9] (30/60 fps): 1280 x 720 / 640 x 360 / 320 x 180
1.3 MP [4:3] (30 fps): 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission Mode | H.265/H.264: Constant bit rate / VBR / Frame rate priority / Best effort | | Transmission Type | Unicast/Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream 1
GOP (Group of Pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265 | | Audio Compression | G.726 (ADPCM): 32/16 kb/s
G.711: 64 kb/s
AAC-LC: 64/96/128 kb/s | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card | H.265 / H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB model SDHC card, SDXC card (except miniSD card and microSD card) | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 x terminal inputs, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/ SDHC / SD memory recording, email notification, HTTP alarm notification indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, pin jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | ø3.5 mm stereo mini jack (Applicable Microphone: Plug-in power type)
Supply Voltage: 2.5 V ±0.5 V | | Audio Output | ø3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x Alarm In 1 (Day/Night In, Auto time adjustment)
1 x Alarm In 2 (Alarm Out) 1 x Alarm In 3 (Aux Out) | | | | Power | DC Power Supply: 12 VDC / 750 mA / Approximately 9 W
PoE (IEEE 802.3af compliant) Device: 48 VDC / 195 mA / Approximately 9.4 W (Class 0 device) | | Ambient Operating Temperature | -40 to 140°F / -40 to 60°C | | Ambient Operating Humidity | 10 to 100% / no condensation | | Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant | | Shock Resistance | Complies with IK10 (IEC 62262) | | Construction | Main Body: Aluminum die cast
Dome Section: Clear polycarbonate resin (ClearSight coating) | | Dimensions | 3.75 x 3.89 x 13.27" / 95 x 99 x 337 mm | | Weight | Approximately 3.53 lb / 1.6 kg | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 19.7 x 7.3 x 6.5" |
