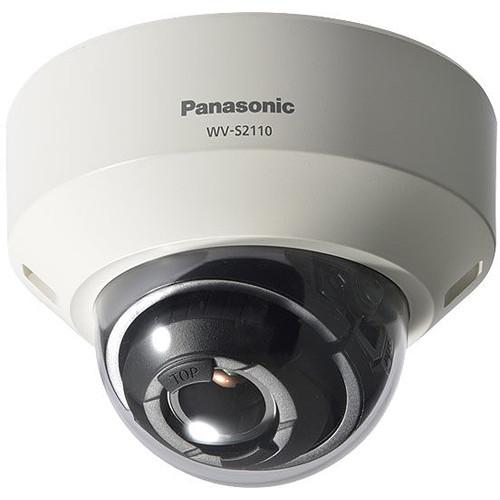

User Manual for Panasonic WV-S2110 i-PRO Extreme 1.3MP Network Dome Camera with 2.8-10mm Lens Click to enlarge the picture
Contents of the user manual for the Panasonic WV-S2110 i-PRO Extreme 1.3MP Network
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic WV-S2110 i-PRO Extreme 1.3MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The sail white WV-S2110 i-PRO Extreme 1.3MP Super Dynamic Network Dome Camera from Panasonic features a 1/3" MOS image sensor and a focal length of 2.8-10 mm for capturing videos at a maximum resolution of 1280 x 720. The camera features Intelligent Auto (iA) mode that monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing distortion from sources such as motion blur on moving objects. Its 144 dB dynamic range delivers balanced scene exposure in dynamic and extreme backlit environments. Furthermore, the camera provides low-light performance with accurate color rendition and saturation in environments with visibility in lighting as low as 0.0005 lux. It uses H.265 compression with Smart Coding technology that offers improved image quality streaming at lower bit rates. The camera supports full data encryption streaming and is compliant with FIPS 140-2 Level 1 standards to keep your data secured. - Frame rates up to 60 fps at 1280 x 720 resolution
- Auto shutter speed control for capturing fast moving vehicles
- Captures true color videos with reduced noise even in low-light environments (0.0005 lux)
- intelligent Auto (iA) monitors scene dynamics and motion to automatically adjust key camera settings in real time
- Super Dynamic 144 dB range for capturing sharp and clear images under challenging light conditions
- H.265 compression with Smart Coding technology (Auto VIQS and Smart Face Coding) reduces bandwidth without compromising the image quality
- Region of Interest encoding (Auto VIQS) dynamically detects motion areas
- Smart Facial Coding is suitable for ID camera applications that mainly capture faces
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
UPC: 885170303942 In the Box Panasonic WV-S2110 i-PRO Extreme 1.3MP Network Dome Camera with 2.8-10mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S2110 i-PRO Extreme 1.3MP Network Dome Camera with 2.8-10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S2110 Specs | | | Image Sensor | Approximately 1/3" MOS image sensor | | Minimum Illumination | Color:
0.008 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0005 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
B&W:
0.007 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.00044 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11 | | White Balance | AWC (2000 to 10,000K)
ATW1 (2700 to 6000K)
ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only
2/120 fix is available during 60 fps mode only | | Intelligent Auto | On/Off | | Super Dynamic | On/Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | Light Compensation | BLC/HLC/Off (Only when Super Dynamic and Intelligent Auto: Off) | | Compensation | Fog: On/Off (Only when Intelligent Auto: Off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Electrical: On/Off | | Digital Noise Reduction | The level can be set in the range of 0 to 255 | | Video Motion Detection | On/Off, 4 areas available | | Image Stabilizer | On/Off (available only in the 30 fps mode) | | Privacy Zone | On/Off (up to 8 zones available) | | Image Rotation | 0/90/180/270° | | Camera Title (OSD) | On/Off Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x (manual zoom / motorized focus) | | Angular Field of View | In 16:9 Mode
Horizontal: 30 to 110°
Vertical: 17 to 59°
In 4:3 Mode
Horizontal: 25 to 90°
Vertical: 19 to 66° | | Maximum Aperture Ratio | f/1.6 to 3.4 | | Focusing Range | 0.3 m to infinity | | Adjusting Angle | Horizontal: -240 to 120°
Vertical: ±85°
Yaw: ±100° | | | | Camera Control | Brightness, AUX on/off | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network Interface | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 1.3 MP [16:9] (30/60 fps): 1280 x 720 / 640 x 360 / 320 x 180
1.3 MP [4:3] (30 fps): 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission Mode | H.265/H.264: Constant bit rate / VBR / Frame rate priority / Best effort | | Transmission Type | Unicast/Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream 1
GOP (Group of Pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265 | | Audio Compression | G.726 (ADPCM): 32/16 kb/s
G.711: 64 kb/s
AAC-LC: 64/96/128 kb/s | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | VMD, Command alarm, Audio detection alarm | | Alarm Actions | Email notification, HTTP alarm notification indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, pin jack
An NTSC or PAL signal can be outputted from camera | | Built-In Microphone | Non-directional electret condenser microphone | | | | Power | PoE (IEEE 802.3af compliant) Device: 48 VDC / 110 mA / Approximately 5.3 W (Class 0 device) | | Ambient Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ambient Operating Humidity | 10 to 90% (no condensation) | | Construction | Main Body: ABS resin
Dome Section: Clear acrylic resin | | Dimensions |
