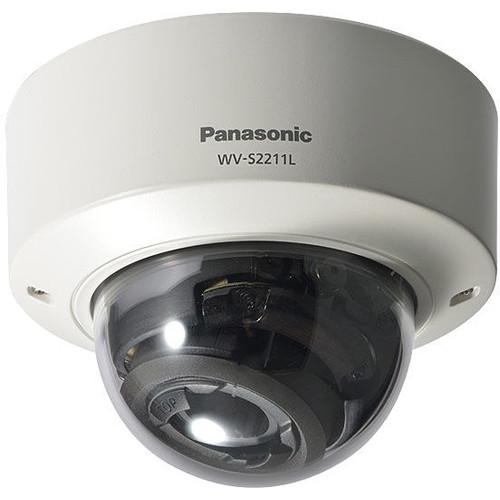

User Manual for Panasonic WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Panasonic WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant
- Product category: Wired IP Cameras Panasonic
- Brand: Panasonic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Panasonic Wired IP Cameras
|
User manual for the Panasonic WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Panasonic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Panasonic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Panasonic product will considerably shorten its lifespan!
|
Product description The WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant Network Dome Camera from Panasonic features a 1/3" MOS image sensor and a focal length of 2.8-10mm for capturing videos at a maximum resolution of 1280 x 720. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to 98'. It also features 144 dB wide dynamic range that delivers balanced exposure and accurate color in challenging lighting environments. Intelligent Auto (iA) features automatic scene detection, which continuously monitors the field of view and adjusts the camera's parameters to optimize image capture based on scene dynamics, compensating for motion and changing lighting. The camera comes enclosed in an IK10-rated housing that protects it from acts of theft or vandalism. - Super Dynamic technologies deliver 144 dB wide dynamic range
- Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility
- High sensitivity with day/night function (IR cut filter removal)
- Built-in IR LEDs offer visibility up to 98'
- H.265 Smart Coding (Long GOP, Auto-VIQS, and Smart Face Coding) offer improved image quality streaming at lower bit rates
- H.264 compatibility and mixed mode streaming, recording, and viewing
- Up to 4-steam simultaneous H.265/264 encoding
- Intelligent Face Compression provides improved picture quality at "Face best shot area" while reducing unimportant areas to save the network bandwidth and the disk space of a recorder
- Encryption and alteration detection functions for enhancing security
In the Box Panasonic WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S2211L i-PRO Extreme 1.3MP Vandal-Resistant Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S2211L Specs | | | Image Sensor | Approximately 1/3" MOS image sensor | | Minimum Illumination | Color:
0.008 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0005 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
B&W:
0.0005 lux at f/1.6, Maximum Shutter: 1/30 sec, AGC: 11
0.0003 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
0 lux with IR LED on at f/1.6, Maximum Shutter: Off (1/30 sec), AGC: 11 | | White Balance | AWC (2000 to 10,000K)
ATW1 (2700 to 6000K)
ATW2 (2000 to 6000K) | | Shutter Speed | 1/30 to 1/10,000 sec
1/30 fix to 2/120 fix is available during 30 fps mode only | | Intelligent Auto | On/Off | | Super Dynamic | On/Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | Light Compensation | BLC/HLC/Off (Only when Super Dynamic and Intelligent Auto: Off) | | Compensation | Fog: On/Off (Only when Intelligent Auto: Off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | On / Off / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | IR LED | Off/Auto (High/Mid/Low) | | IR Range | 98' (30 m) | | Digital Noise Reduction | The level can be set in the range of 0 to 255 | | Video Motion Detection | On/Off, 4 areas available | | Privacy Zone | On/Off (up to 8 zones available) | | Camera Title (OSD) | On/Off
Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual / Adjusting method (Auto/Preset/Fix) | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x (motorized zoom / motorized focus) | | Angular Field of View | In 16:9 Mode
Horizontal: 30 to 110°
Vertical: 17 to 59°
In 4:3 Mode
Horizontal: 25 to 90°
Vertical: 19 to 66° | | Maximum Aperture Ratio | f/1.6 to 3.4 | | Focusing Range | 0.3 m to infinity | | Adjusting Angle | Horizontal: -240 to 120°
Vertical: -30 to 85°
Yaw: ±100° | | | | Camera Control | Brightness, AUX On/Off | | Audio | Mic (Line) Input / Audio Output: On/Off
Volume Adjustment: Low/Middle/High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network Interface | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 1.3 MP [16:9] (30/60 fps): 1280 x 720 / 640 x 360 / 320 x 180
1.3 MP [4:3] (30 fps): 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission Mode | H.265/H.264: Constant bit rate / VBR / Frame rate priority / Best effort | | Transmission Type | Unicast/Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream 1
GOP (Group of Pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265. | | Audio Compression | G.726 (ADPCM): 32/16 kb/s
G.711: 64 kb/s
AAC-LC: 64/96/128 kb/s | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card | H.265/H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB model SDHC card, SDXC card | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 x terminal inputs, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, RCA jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | ø3.5 mm stereo mini jack (Applicable Microphone: Plugin power type)
Supply Voltage: 2.5 V ±0.5 V | | Audio Output | ø3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x Alarm In 1 (Day/Night In, Auto time adjustment)
1 x Alarm In 2 (Alarm Out) 1 x Alarm In 3 (Aux Out) | | | | Power | DC Power Supply: 12 VDC / 560 mA / Approximately 6.8 W
PoE (IEEE 802.3af compliant) Device: 48 VDC / 150 mA / Approximately 7.2 W (Class 0 device)
Maximum power consumption on the camera power input side
Only connect 12 VDC class 2 power supply | | Ambient Operating Temperature | 14 to 122°F / -10 to 50°C | | Ambient Operating Humidity | 10 to 90% (no condensation) | | Shock Resistance | Compliant with IK10 (IEC 62262) | | Construction | Main Body: Aluminum die cast
Dome Section: Clear polycarbonate resin | | Dimensions | Ø x H: 5.09 x 4.03" / 129.5 x 102.5 mm
Dome Radius: 1.6" / 41.5 mm | | Weight | Approximately 1.65 lb / 0.75 kg |
