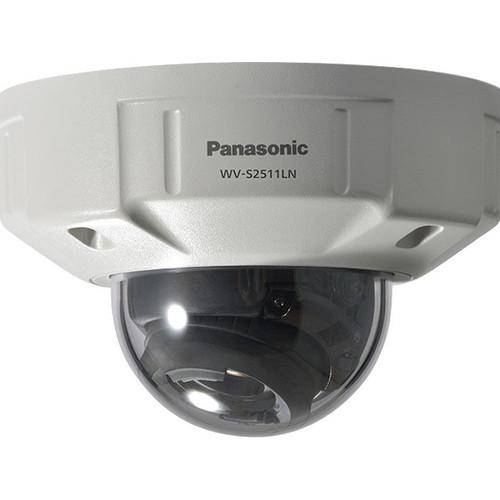

Product description The light gray WV-S2511LN 1.3MP Outdoor H.265 Network Dome Camera from Panasonic features a 1/3” MOS sensor and 2.8-10mm varifocal lens for capturing videos at a maximum resolution of 1280 x 720. This day/night camera provides 24-hour surveillance thanks to built-in IR LEDs with a range of up to 131’. The iA (intelligent Auto) function monitors scene dynamics and motion to adjust key camera settings automatically in real time reducing distortions like motion blur on moving objects. The camera features Super Dynamic technology that offers a dynamic range of up to 144 dB. The camera supports data encryption streaming and is compliant with FIPS 140-2 Level 1 security standards. Performance - Supports iA (intelligent Auto) technology
- Super Dynamic (144 dB) range
- Color night vision between 0.0005 and 0.008 lux
- H.265 compression with Smart coding technology
- Auto shutter speed control for fast moving vehicles
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and alteration detection function
- ROI encoding (Auto VIQS) dynamically detects motion areas and maintains picture quality of moving vehicles and humans while lowering bandwidth use
- Smart Facial Coding further reduces bandwidth use in ID camera applications like capturing faces
In the Box Panasonic WV-S2511LN i-Pro 1.3MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S2511LN i-Pro 1.3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S2511LN Specs | | | Image Sensor | Approximately 1/3" MOS | | Minimum Illumination | Color: 0.008 lux, B&W: 0.004 lux at f/1.6, Maximum Shutter 1/30 sec, AGC 11
B&W at 0 lx with IR LED on
Color: 0.0005 lux, B&W: 0.0003 lux at f/1.6, Maximum Shutter 16/30 sec, AGC 11 | | White Balance | AWC (2000 to 10,000K), ATW1 (2700 to 6000K), ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10,000 sec
1/30 fix to 2/100 fix is available in 30 fps mode only
2/120 fix is available in 60 fps mode only | | Intelligent Auto | On / Off | | Super Dynamic | On / Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | 0 to 255 | | Compensation | BLC (Black Light Compensation) / HLC (High Light Compensation) / Off (only when Super dynamic and intelligent Auto are off)
Fog: On / Off (only when intelligent Auto is off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | IR LED | Off / Auto (High / Mid / Low)
Irradiation Distance :131' (40 m) | | Digital Noise Reduction | 0 to 255 | | Video Motion Detection | On / Off, 4 areas available | | Privacy Zone | On / Off (up to 8 zones available) | | Image Stabilizer | On / Off (available only in 30 fps mode) | | Image Rotation | 0 / 90 / 180 / 270° | | Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual | | | | Focal Length | 2.8-10mm | | Zoom Ratio | 3.6x (manual zoom / motorized focus) | | Field of View | 16:9 mode
Horizontal: 30 (tele) to 108° (wide)
Vertical: 17 (tele) to 58° (wide)
4:3 mode
Horizontal: 25 (tele) to 90° (wide)
Vertical: 19 (tele) to 65° (wide) | | Maximum Aperture Ratio | 1:1.6 (wide) to 1:3.35 (tele) | | Focusing Range | 0.98' to infinity (0.3 m to infinity) | | Adjusting Angle | Horizontal: ±180°
Vertical: -30 to 85°
Yaw: ±100° | | | | Camera Control | Brightness, AUX On / Off | | Audio | Mic (Line) Input: On / Off
Volume Adjustment: Low / Middle / High
Audio Output: On / Off
Volume Adjustment: Low / Middle / High | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network IF | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 1.3 MP (16:9) (30/60 fps): 1280 x 720 / 640 x 360 / 320 x 180
1.3 MP (4:3) (30 fps): 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission Mode | H.265/H.264
Constant bit rate / VBR / Frame rate priority / Best effort | | Transmission Type | Unicast / Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream (1)
GOP (Group of Pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265 | | Audio Compression | G.726 (ADPCM): 32 kbps / 16 kbps
G.711: 64 kbps
AAC-LC: 64 kbps / 96 kbps / 128 kbps
Only use AAC-LC (Advanced Audio Coding - Low Complexity) when recording audio on an SD memory card | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (Full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ | | Standards | ONVIF Profile S and ONVIF Profile G | | Number of Simultaneous Users | Up to 14 users (Depends on network conditions) | | Memory Card Slot | SDXC / SDHC / SD
H.265 / H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB (SDHC card), 8 GB (SDHC card), 16 GB (SDHC card), 32 GB (SDHC card), 64 GB, 128 GB, 256 GB (SDXC card / except miniSD card and microSD card) model | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 terminals input, VMD, command alarm, audio detection alarm | | Alarm Actions | SDXC / SDHC / SD memory recording, email notification, HTTP alarm notification indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, pin jack
An NTSC or PAL signal can be output from camera | | Microphone/Line Input | 3.5 mm stereo mini jack (Applicable Microphone: Plugin power type)
Supply voltage: 2.5 V ±0.5 V | | Audio Output | 3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | 1 x ALARM IN 1 (DAY/NIGHT IN, Auto time adjustment)
1 x ALARM IN 2 (ALARM OUT)
1 x ALARM IN 3 (AUX OUT) | | | | Power | DC Power Supply: 12 VDC / 750 mA / approximately 9 W
PoE (IEEE 802.3af Compliant) Device: 48 VDC / 195 mA / approximately 9.4 W (Class 0 device) | | Ambient Operating Temperature | IR LED On: -40 to 122°F (40 to 50°C)
IR LED Off: -40 to 140°F (40 to 60°C) | | Ambient Operating Humidity | 10 to 100% (no condensation) | | IP Rating | IP66, IEC60529 measuring standard compatible, Type 4X (UL50), NEMA 4X | | Vandal Resistance | Compliant with 50J IEC60068-2-75, IK10 (IEC 62262) | | Material | Main Body: Aluminum die-cast
Dome section: Clear polycarbonate resin (ClearSight coating) | | Dimensions (Ø x H) | 6.47 x 5.47" (164 x 139 mm)
Dome Radius: 1.66" (42 mm) | | Weight | When Using Base Bracket: Approximately 3.53 lb (1.6 kg)
When Using Attachment Plate: Approximately 2.65 lb (1.2 kg) |
