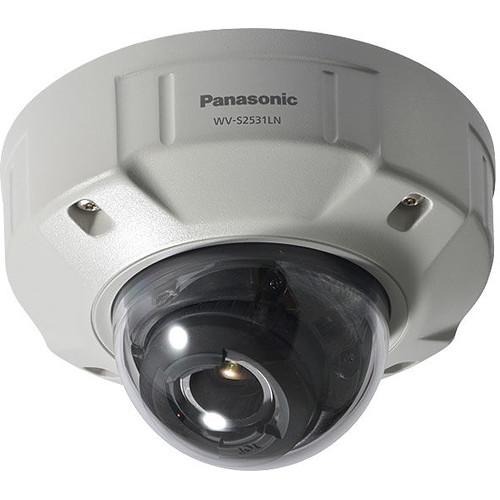

Product description The light gray WV-S2531LN 1080p Outdoor Network Dome Camera from Panasonic features a 1/3" CMOS image sensor and a focal length of 2.8-10 mm for capturing videos at a maximum resolution of 1920 x 1080. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to 131'. Enclosed in an IP66- and IK10-rated vandal-resistant housing, the camera can be used for both indoor and outdoor applications. -
- Super Dynamic technologies deliver 144 dB wide dynamic range
- Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility
- High sensitivity with day/night function (IR cut filter removal)
- H.265 compression and Smart Coding technology offer improved image quality streaming at lower bit rates
- Intelligent Face Compression provides improved picture quality at "Face best shot area" while reducing unimportant areas to save the network bandwidth and the disk space of a recorder
- Encryption and alteration detection functions for enhancing security
- Rain wash coating makes it difficult for water droplets to adhere to the dome cover
UPC: 885170303867 In the Box Panasonic WV-S2531LN 1080p Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Panasonic WV-S2531LN 1080p Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPanasonic WV-S2531LN Specs | | | Image Sensor | Approximately 1/3" CMOS image sensor | | Minimum Illumination | Color: 0.012 lux at f/1.6, Maximum Shutter: Maximum 1/30 sec, AGC: 11
B&W: 0.006 lux at f/1.6, Maximum Shutter: Maximum 1/30 sec, AGC: 11
0 lux with IR LED
Color: 0.0008 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11
B&W: 0.0004 lux at f/1.6, Maximum Shutter: 16/30 secs, AGC: 11 | | White Balance | AWC (2000 to 10,000K)
ATW1 (2700 to 6000K)
ATW2 (2000 to 6000K) | | Shutter Speed | Off (1/30) to 1/10000 sec
1/30 fix to 2/100 fix is available during 30 fps mode only | | Intelligent Auto | On / Off | | Super Dynamic | On / Off, the level can be set in the range of 0 to 31 | | Dynamic Range | 144 dB (Super Dynamic: On) | | Adaptive Black Stretch | The level can be set in the range of 0 to 255 | | BLC | BLC / HLC / Off (Only when Super Dynamic and Intelligent Auto: Off) | | Compensation | Fog: On / Off (Only when Intelligent Auto: Off) | | AGC | The level can be set in the range of 0 to 11 | | Day/Night | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | | IR LED | Off / Auto (High / Mid / Low) | | IR Range | 131' (40 m) | | Digital Noise Reduction | 0 to 255 | | Video Motion Detection | On / Off, 4 areas available | | Privacy Zone | On / Off (up to 8 zones available) | | Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) | | Focus Adjustment | Auto back focus / Manual / Adjusting method (Auto / Preset / Fix) | | | | Focal Length | 2.8 to 10mm | | Zoom Ratio | 3.6x (Motorized zoom / Auto Focus) | | Angular Field of View | (16:9 mode) Horizontal: 30 to 108°
Vertical: 17 to 58°
(4:3 mode) Horizontal: 25 to 90°
Vertical: 19 to 65° | | Maximum Aperture Ratio | 1:1.6 to 1:3.35 | | Focusing Range | 0.9' (0.3 m) and more | | Adjusting Angle | Horizontal: ±180°
Vertical: -30 to 85°
Yaw: ±100° | | | | Camera Control | Brightness, AUX on / off | | Audio | Mic (Line) Input/ Audio Output | | GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | | | | Network IF | 10Base-T/100Base-TX, RJ45 connector | | Image Resolution | 2 MP [16:9] (30/60 fps): 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180
3 MP [4:3] (30 fps): 2048 x 1536 / 1280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 | | Transmission mode | H.265/ H.264: Constant bit rate / VBR / Framerate priority / Best effort | | Transmission Type | Unicast / Multicast | | Image Quality | JPEG: 10 steps | | Coding Method | Smart Facial Coding: On (Smart Facial Coding) / On (Auto VIQS) / Off
Smart Facial Coding is only available with Stream (1)
GOP (Group of pictures): On (Advanced) / On (Low) / On (Mid) / Off
On (Advanced) is only available with H.265. | | Audio Compression | G.726 (ADPCM): 32 kbps / 16 kbps
G.711: 64 kbps
AAC-LC: 64 kbps / 96 kbps / 128 kbps | | Audio Mode | Off / Mic (line) input / Audio output / Interactive (half duplex) / Interactive (full duplex) | | Supported Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ | | Number of Simultaneous Users | Up to 14 users (depends on network conditions) | | Memory Card | H.265 / H.264 Recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG Recording: Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SD (SDHC/SDXC) Card: Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB model SDHC card, SDXC card (except miniSD card and microSD card) | | Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals | | | | Alarm Source | 3 terminals input, VMD, Command alarm, Audio detection alarm | | Alarm Actions | SDXC/SDHC/SD memory recording, email notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic protocol output | | | | Monitor Output | VBS: 1.0 V p-p / 75 Ohms, composite, RCA jack
An NTSC or PAL signal can be outputted from camera | | Microphone/Line Input | ø3.5 mm stereo mini jack (Applicable Microphone: Plug-in power type)
Supply Voltage: 2.5 V ±0.5 V | | Audio Output | ø3.5 mm stereo mini jack (monaural output)
Output Impedance: Approximately 600 Ohms (unbalanced) | | External I/O Terminals | Alarm In 1 (Day/Night In, Auto time adjustment) (x1)
Alarm In 2 (Alarm Out) (x1), Alarm In 3 (Aux Out) (x1) | | | | Power | DC Power Supply: 12 VDC / 750 mA / Approximately 9 W
PoE (IEEE 802.3af compliant) Device: 48 VDC / 195 mA / Approximately 9.4 W (Class 0 device)
Maximum power consumption on the camera power input side
Only connect 12 VDC class 2 power supply | | Ambient Operating Temperature | IR LED: On: -40 to 122 °F (-40 to 50 °C)
IR LED: Off: -40 to 140 °F (-40 to +60 °C) | | Ambient Operating Humidity | 10 to 90% (no condensation) | | Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X (UL50), NEMA 4X compliant | | Shock Resistance | Compliant with 50J IEC60068-2-75, IK10 (IEC 62262) | | Construction | Main Body: Aluminum die cast
Dome Section: Clear polycarbonate resin (New rain wash coating) | | Dimensions | Ø x H: 6.4 x 5.4" (164 x 139 mm)
Dome Radius: 1.6" (42 mm) | | Weight | With Bracket: Approximately 3.53 lb (1.6 kg)
When Using Attachment Plate: Approximately 2.65 lb (1.2 kg) | | | | Package Weight | 4.845 lb | | Box Dimensions (LxWxH) | 11.15 x 8.9 x 8.25" |
